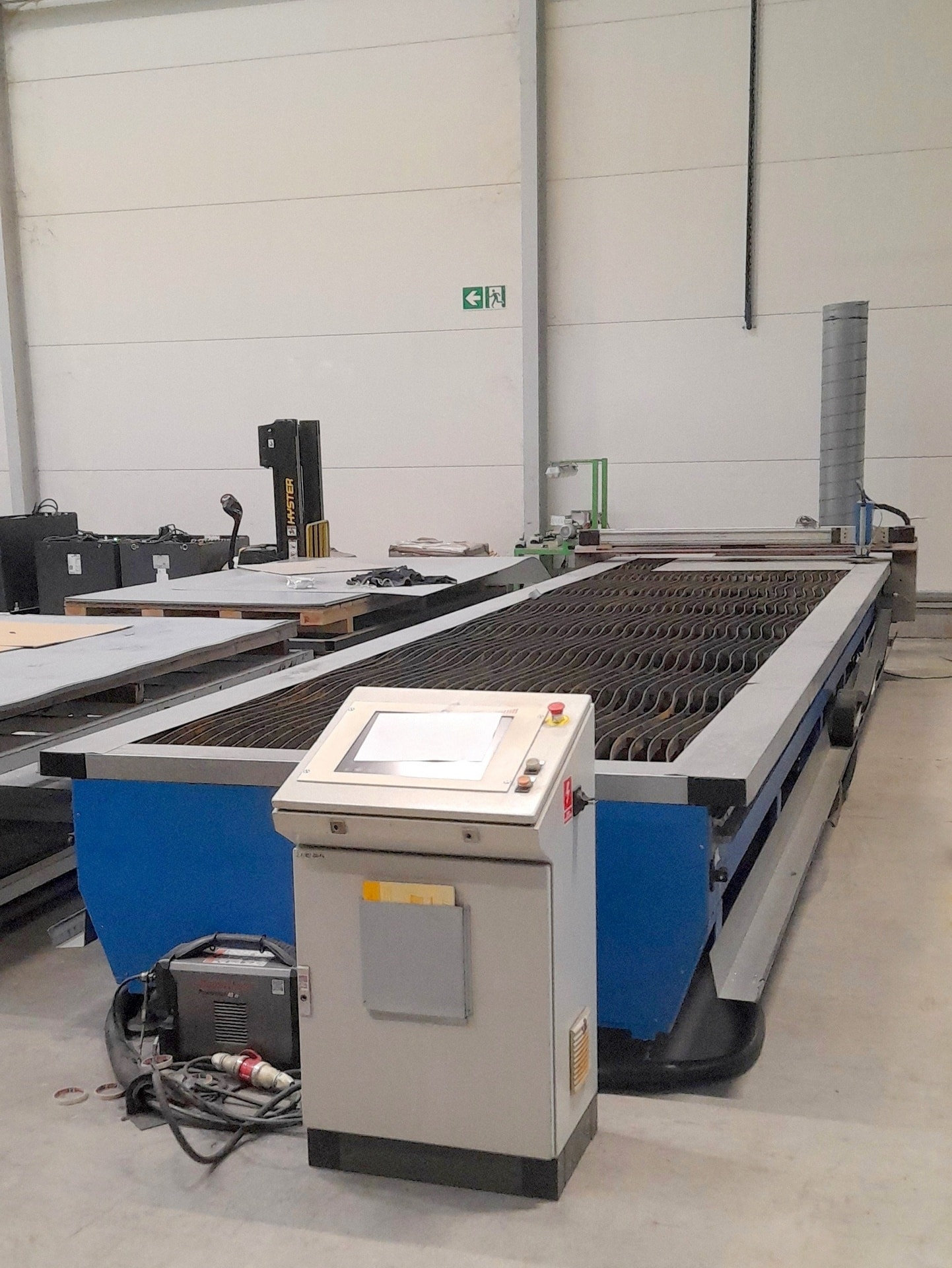

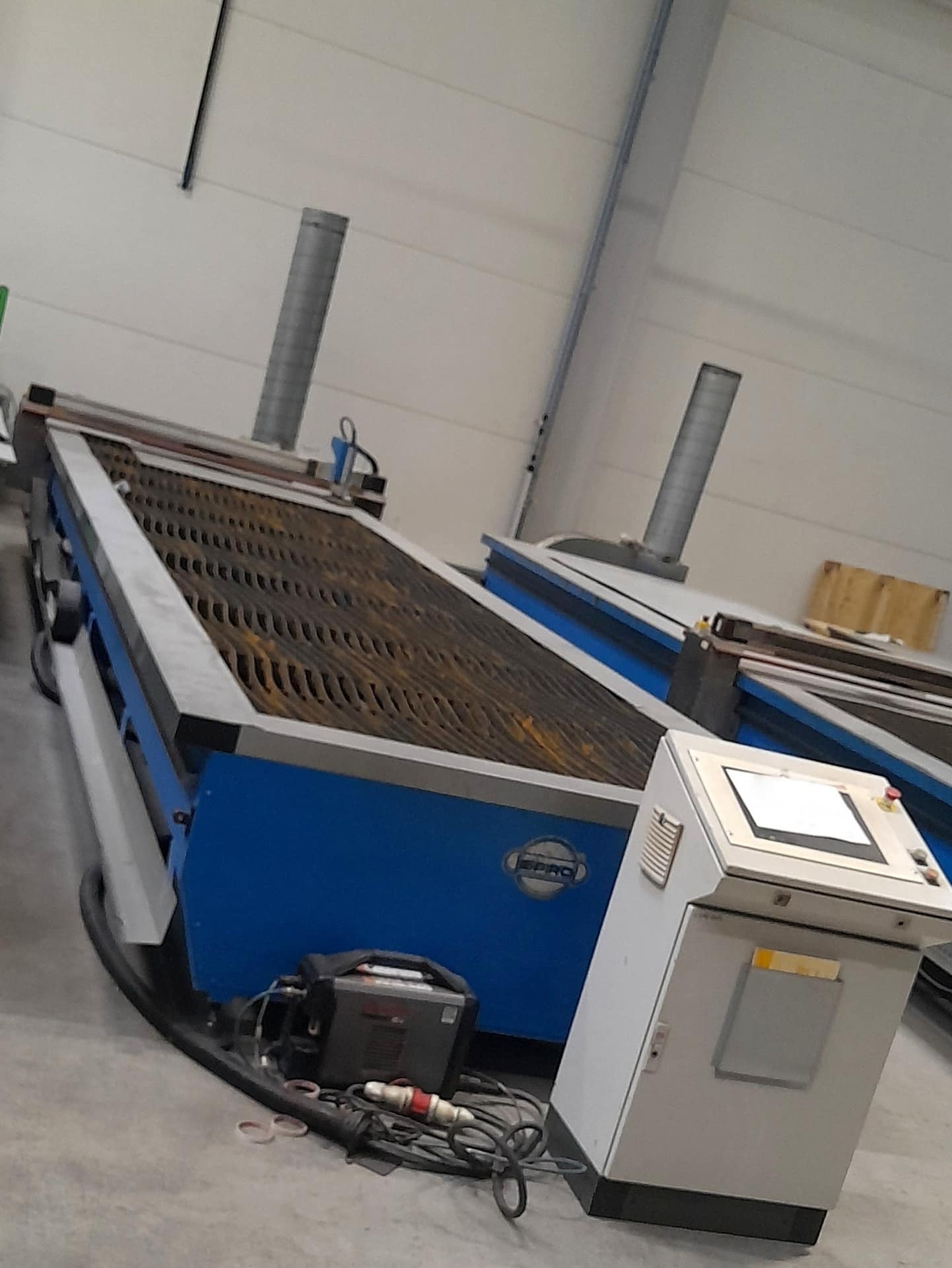

SPIRO 6000V4 plasma cutting machine

SPIRO 6000V4 plasma cutting machine built in 2016 in Switzerland, performs ideally in medium and large industrial plants during the industrial production of parts made of steel sheets and non-ferrous metals. To ensure high cutting performance even during the most intensive machining, the extended work space based on a stable design allows simultaneous cutting and unloading of finished products without interrupting machine operation. The SPIRO CUTLASS 6000 plasma cutting machine is operated using the high-speed LENZE with a complete library of parametric models and shapes.

Technical specifications of the SPIRO 6000V4 plasma cutting machine

• work table area (L x W): 6000 x 1500 mm
• maximum workpiece thickness (galvanised steel): 6 mm
• maximum workpiece thickness (black steel): 6 mm
• maximum workpiece thickness (stainless steel): 6 mm
• maximum workpiece thickness (aluminium): 6 mm
• rapid traverse: 40 m/min
• cutting gas: air (dry and clean)
• cutting gas flow: 170 l/min
• cutting gas pressure: 6 bar
• exhaust system capacity: 6000 m3/h
• import/export of DXF files
• power requirement: 16 kVA
• power supply: 3x 380 V; 50 Hz
• control cabinet dimensions (L x W x H): 500 x 590 x 1100 mm
• machine dimensions (L x W x H): 7000 x 2100 x 1155 mm

Equipment of the CUTLASS 6000 plasma cutting machine

• controller: LENZE
• CAM software: CAM-DUCT
• CAD software: OPUS 2D CAD
• plasma source: HYPERTHERM POWERMAX 1000
