Stanko 3B70V grinder

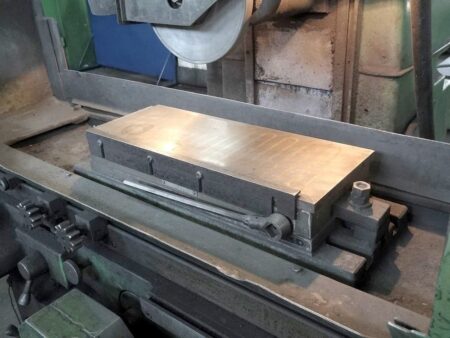

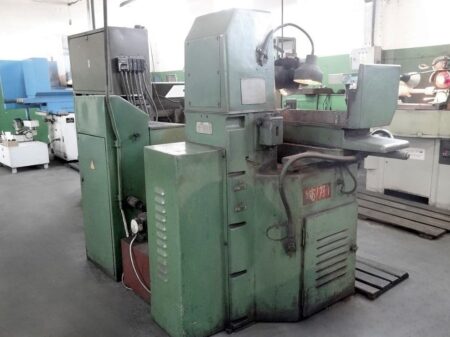

Stanko 3B70V grinder was built in 1976 in the USSR. The 3B70V grinder is designed for grinding flat surfaces of various products with a maximum height of 320 mm and a weight of up to 50 kg. The machine is equipped with a working table with dimensions (L x W) 400 x 160 mm. The grinding wheel of the grinder has a diameter of 200 mm, and the power of the machine’s electric motor is 1 kW.

Specification of the Stanko 3B70V grinder

– grinding wheel diameter: 200 mm
– maximum weight of the workpiece: 50 kg
– dimensions of the working table (length x width): 400 x 160 mm
– maximum height of the workpiece: 320 mm
– electric motor power: 1 kW
– dimensions (L x W x H): 1465 x 1950 x 1610 mm
– total weight of the Stanko 3B70V grinder: 1500 kg
