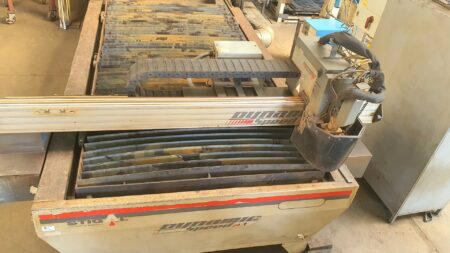

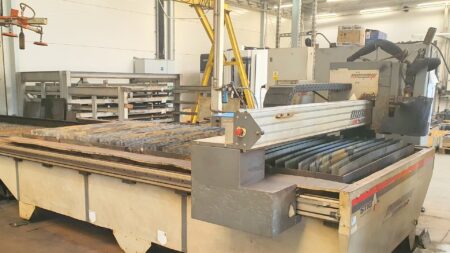

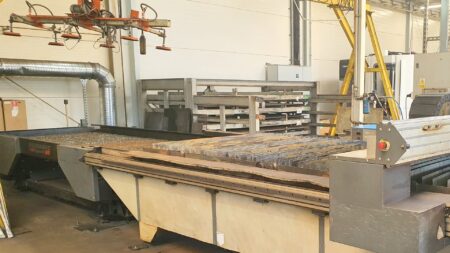

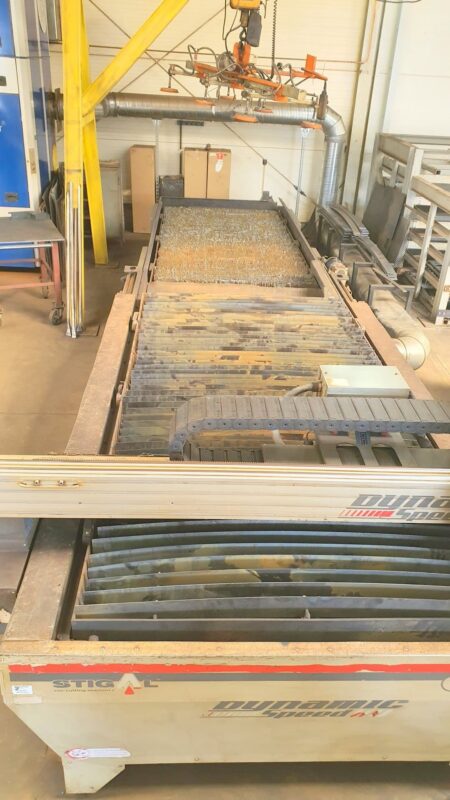

STIGAL DYNAMIC SPEED HQ 1500X3000 plasma cutter

The STIGAL DYNAMIC SPEED HQ 1500X3000 plasma cutter was built in 2013 by the Polish company Stigal. A computer-controlled machine is designed for cutting out shapes from a sheet of metal. The plamsa cutter is equipped with, among others in: CEBORA PROF 165 HQC aggregate, CAD/CAM WRYKRYS software, CNC G-CODE control, or a cover that protects the operator’s eyesight. The cutting width of the cutting machine is 1500 mm, length is 3000 mm, and the thickness is 20 mm. The machine’s torch moves at a speed of 330 mm/s and cuts metal sheets with a maximum thickness of 20 mm. The total weight of the machine is 3 tons.

Technical data of the STIGAL DYNAMIC SPEED HQ 1500X3000 plasma cutter

– cutting length: 3000 mm
– cutting width: 1500 mm
– maximum material thickness: 20 mm
– maximum cutting thickness: 20 mm
– permissible table load: 150 kg/m2
– maximum travel speed: 90 m/min
– type of burner height adjustment: voltage
– speed of movement up / down the torch: 330 mm/s
– torch positioning accuracy: ± 0.05 mm
– suction port: Ø315 mm
– operating temperature range: +5 to +40 degrees C
– maximum air humidity: 90%
– power supply: 400 V; 50 Hz
– power consumption: 12,500 W
– total weight of the machine: 3 t

Equipment of DYNAMIC SPEED HQ 1500X3000 plasma cutter

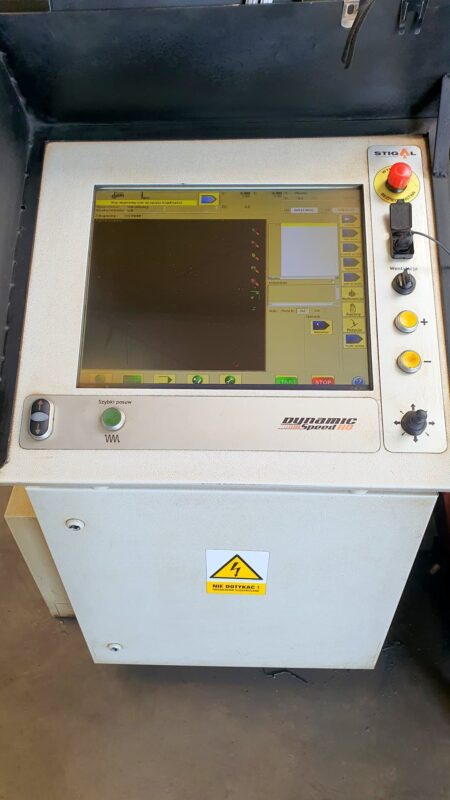

– CNC control: G-CODE
– CAD/CAM WRYKRYS software
– intelligent exhaust section control system – ECTS system
– dynamic material detection system (DDM)
– double material piercing system (DPS)
– system of active adjustment of the clamping force of the drive train (ASD)
– vertical anti-collision system (WUA)

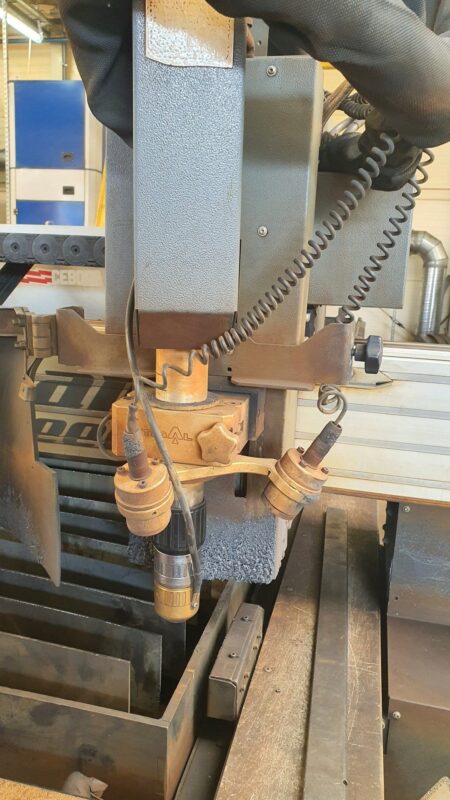

– voltage height controller of the plasma torch with an adjustment accuracy of 0.1 mm
– automatic shield against light radiation of the plasma arc and sparks

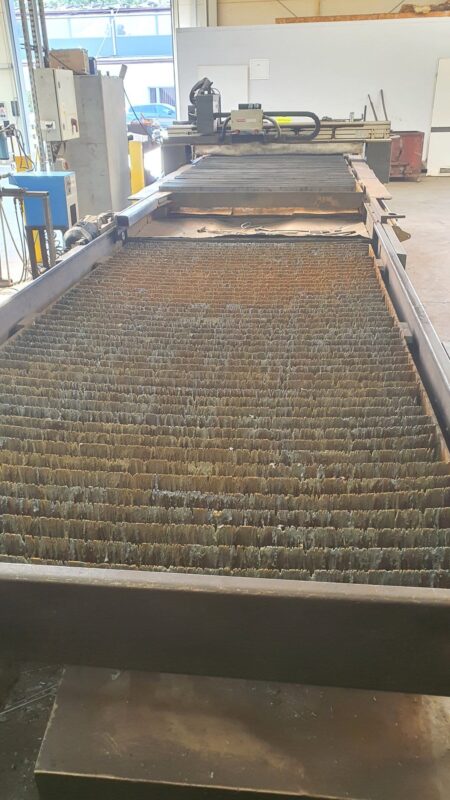

– segmented extraction table

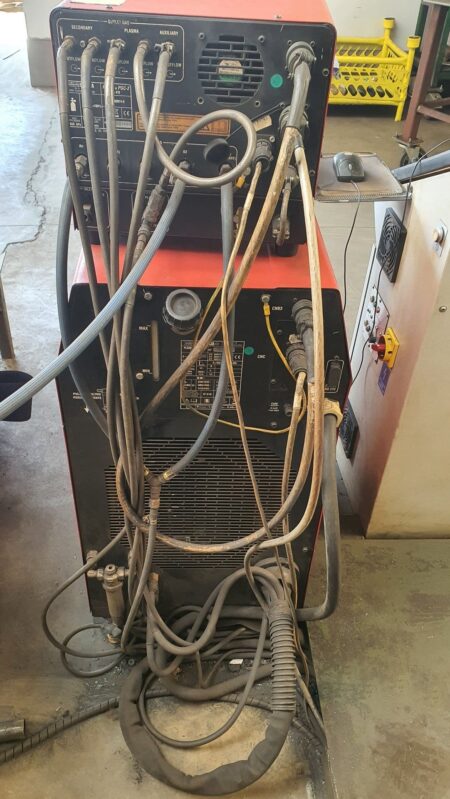

– plasma aggregate: CEBORA PROF 165 HQC
