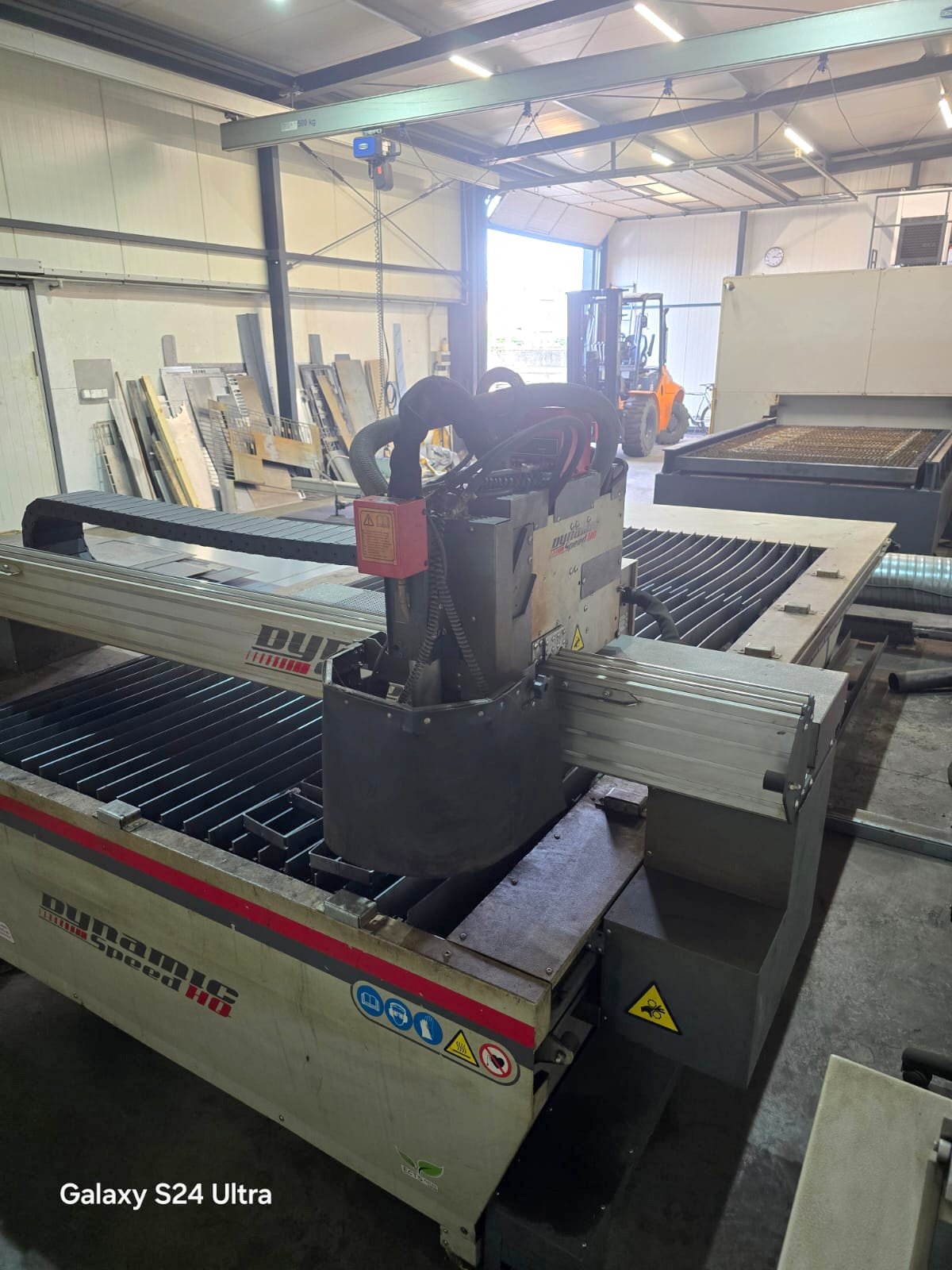

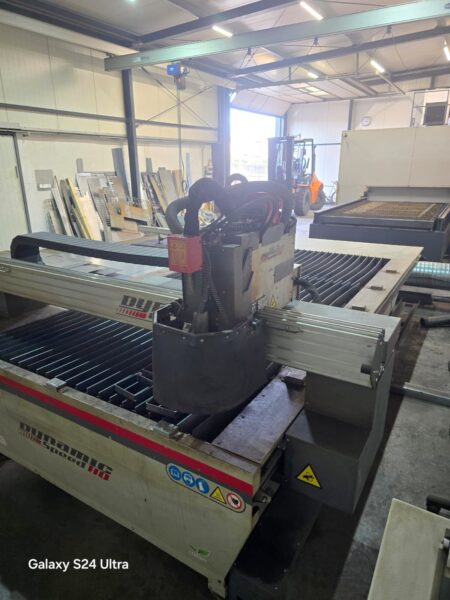

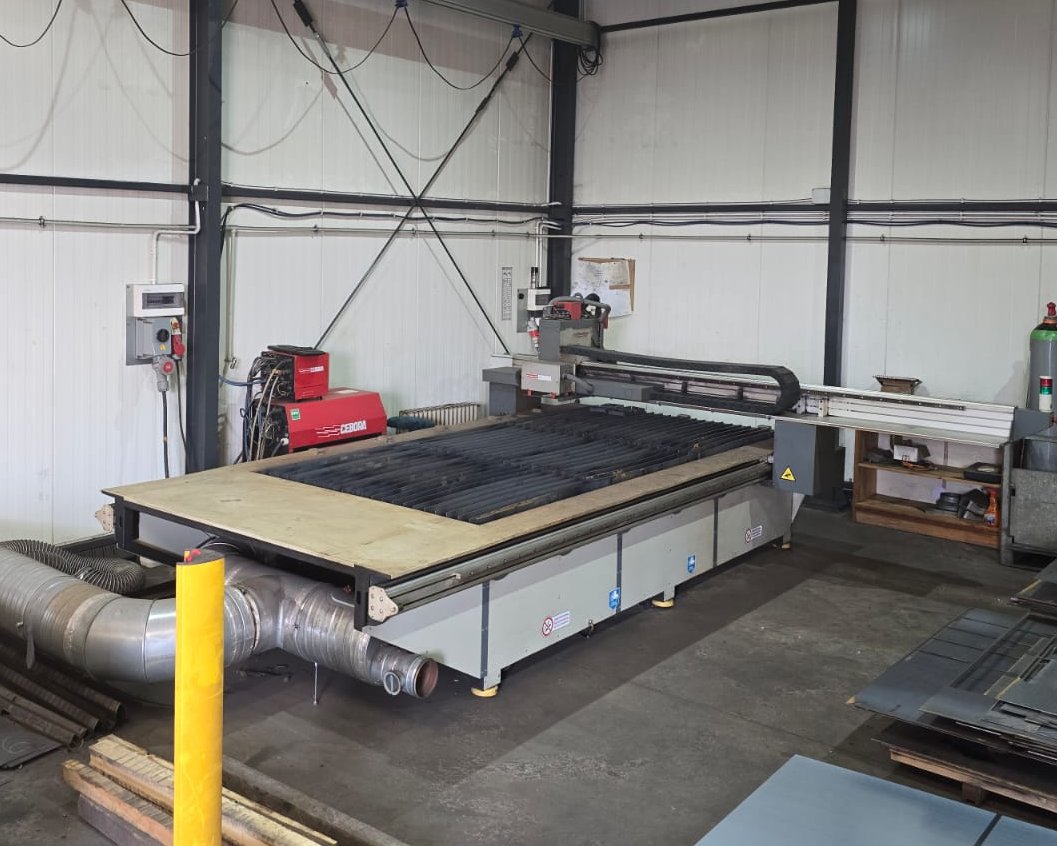

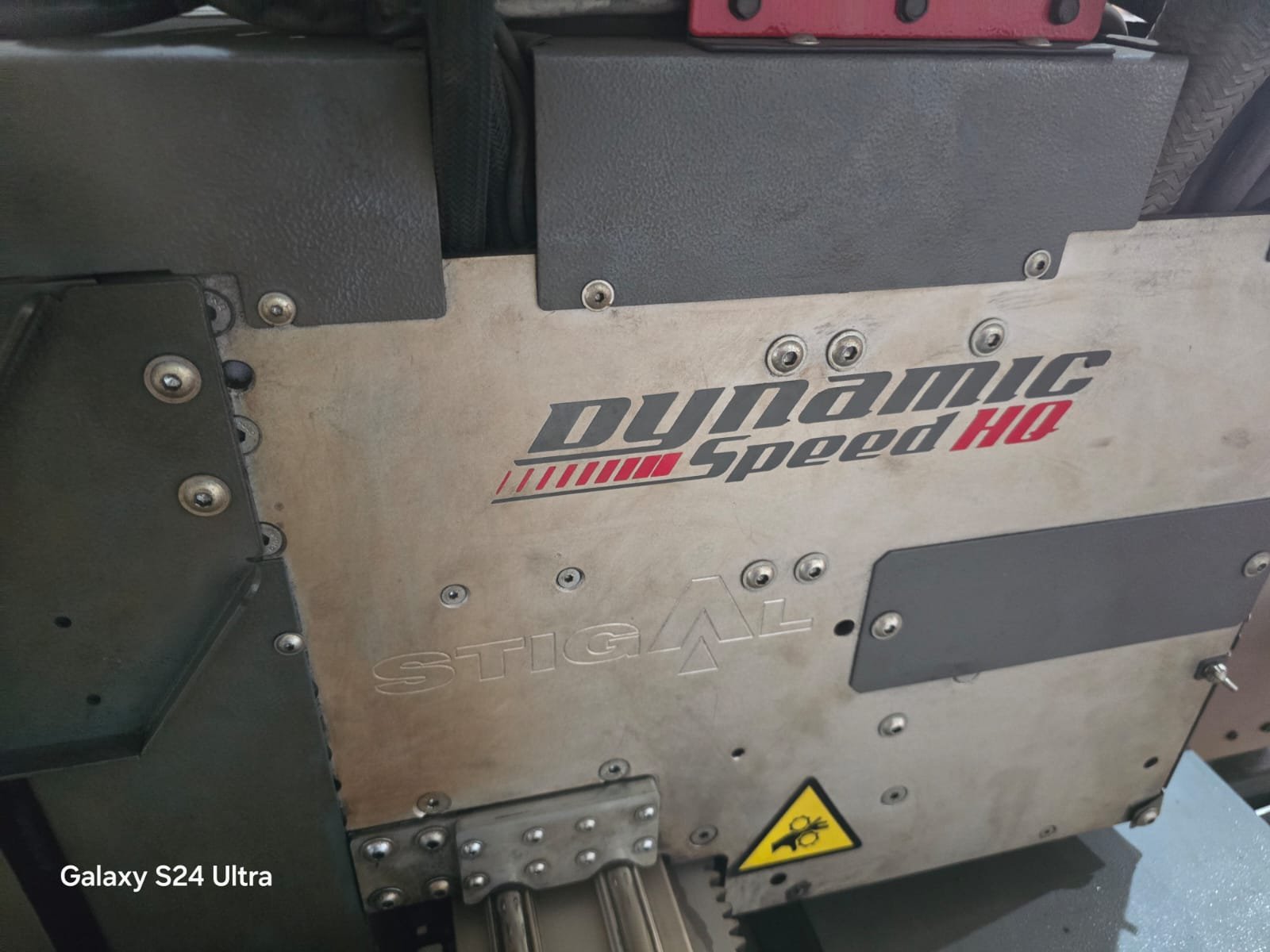

STIGAL DYNAMIC SPEED HQ plasma cutting machine was built in 2013 in Poland by STIGAL Marcin Stępień. The machine is used for precision cutting of sheet metal with a maximum thickness of 50 mm. The machining process is performed by a reliable plasma torch, which is powered by a CEBORA plasma source of the highest energy efficiency. Depending on the material type, high quality gas mixtures, i.e. oxygen, air, nitrogen and argon, are used in the cutting process. All this is complemented by an intuitive CNC control in which even the most advanced machining programmes are created in just a few steps. All this makes the offered STIGAL plasma cutting machine an excellent choice for both small businesses as well as large industrial plants. The total weight of the machine is approximately 2000 kg.
Technical specifications of the STIGAL DYNAMIC SPEED HQ plasma cutting machine

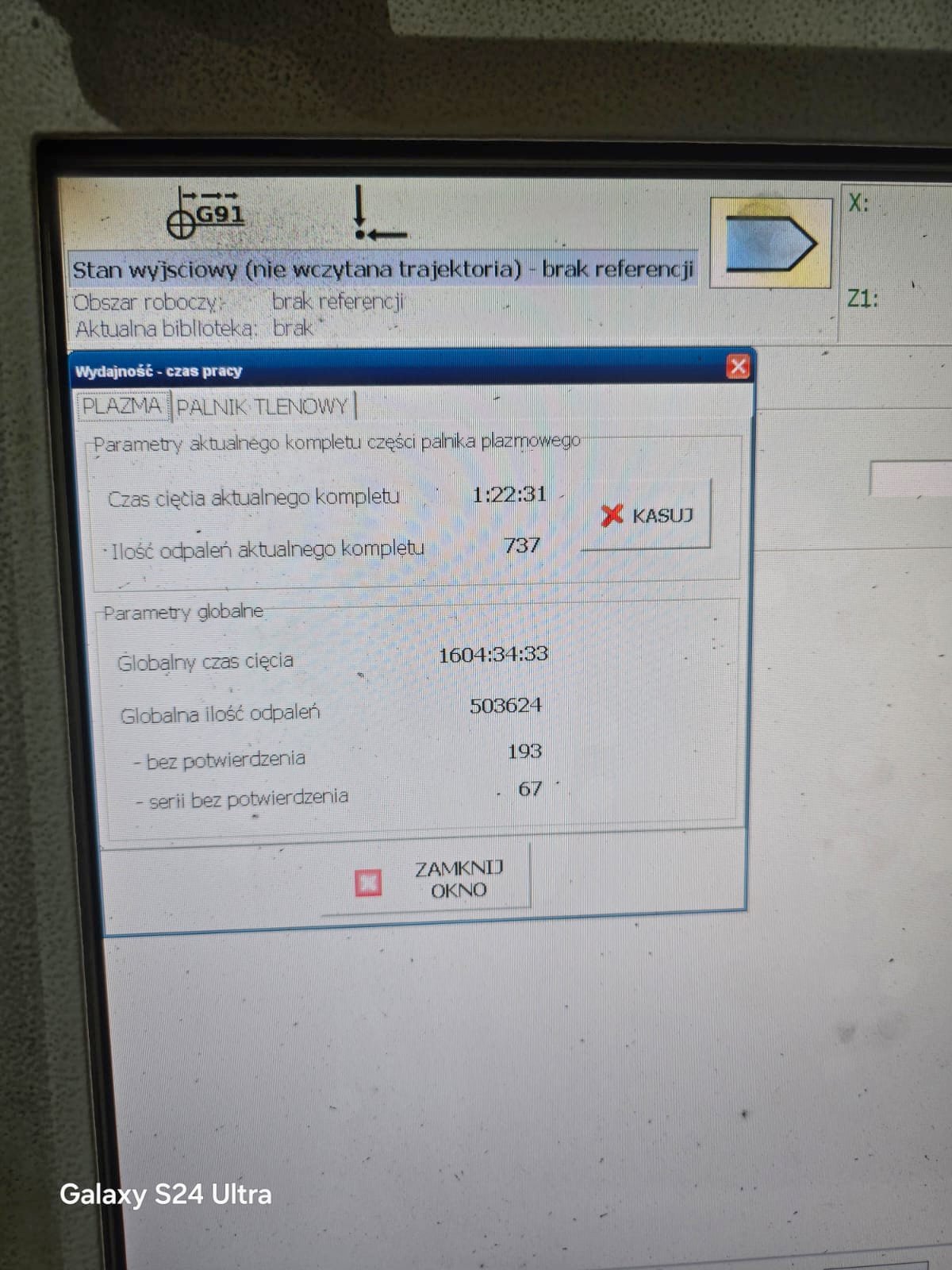

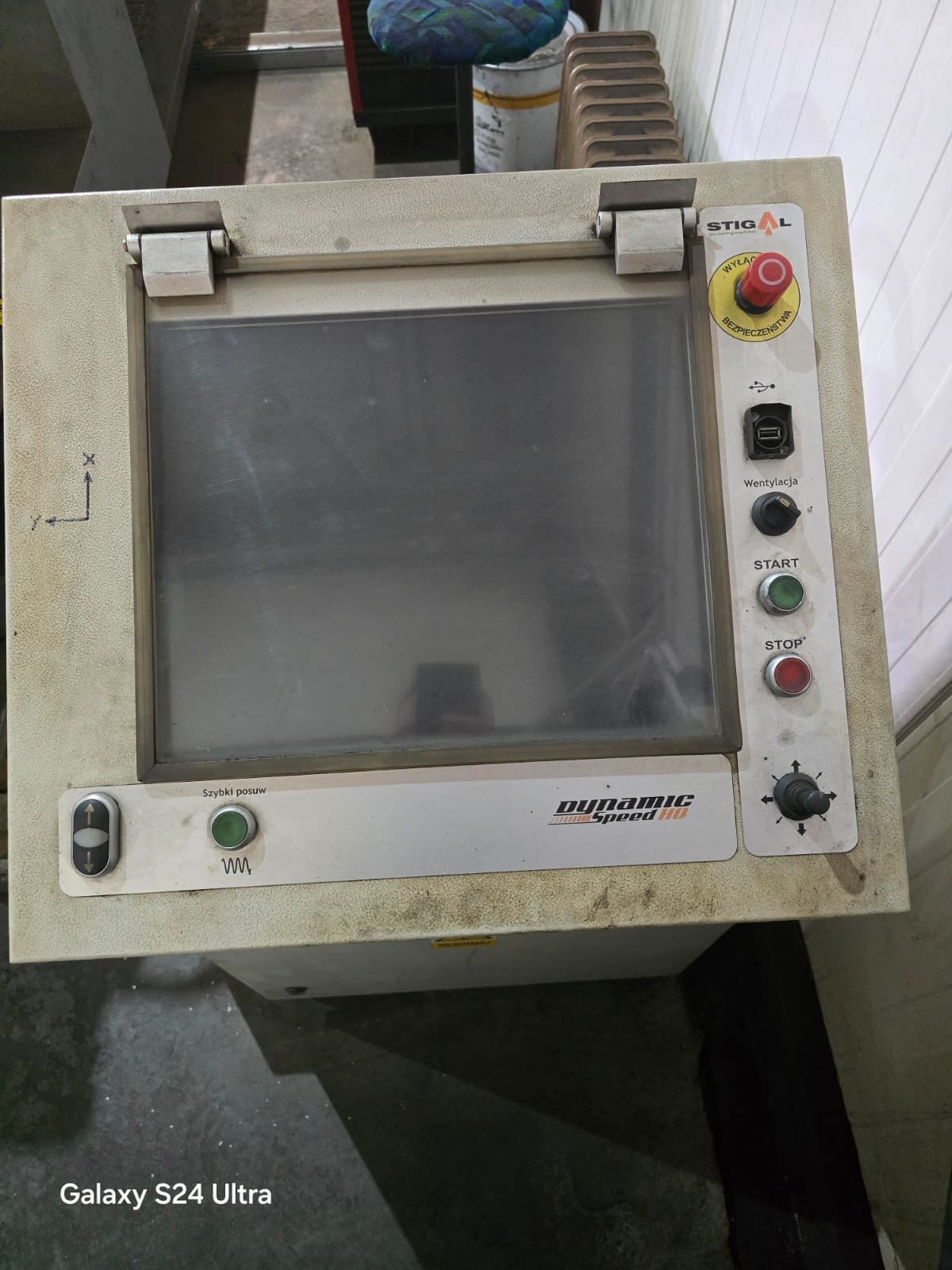

- operator panel with CNC control
- cutting area (L x W): 3000 x 1500 mm
- maximum sheet metal thickness: 50 mm
- maximum work table load: 400 kg/m2
- maximum traverse speed: 90 m/min
- programming format: G-CODE

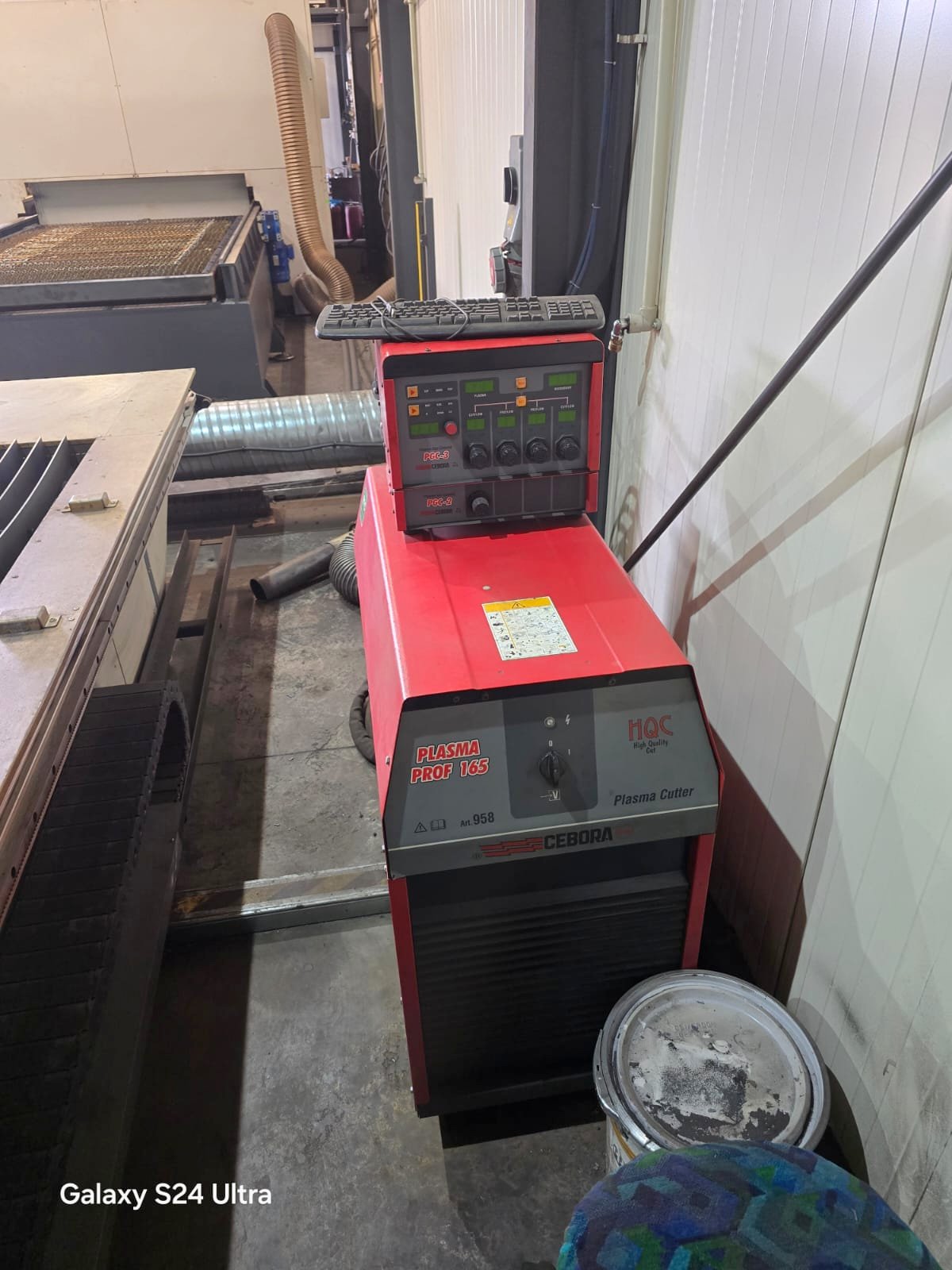

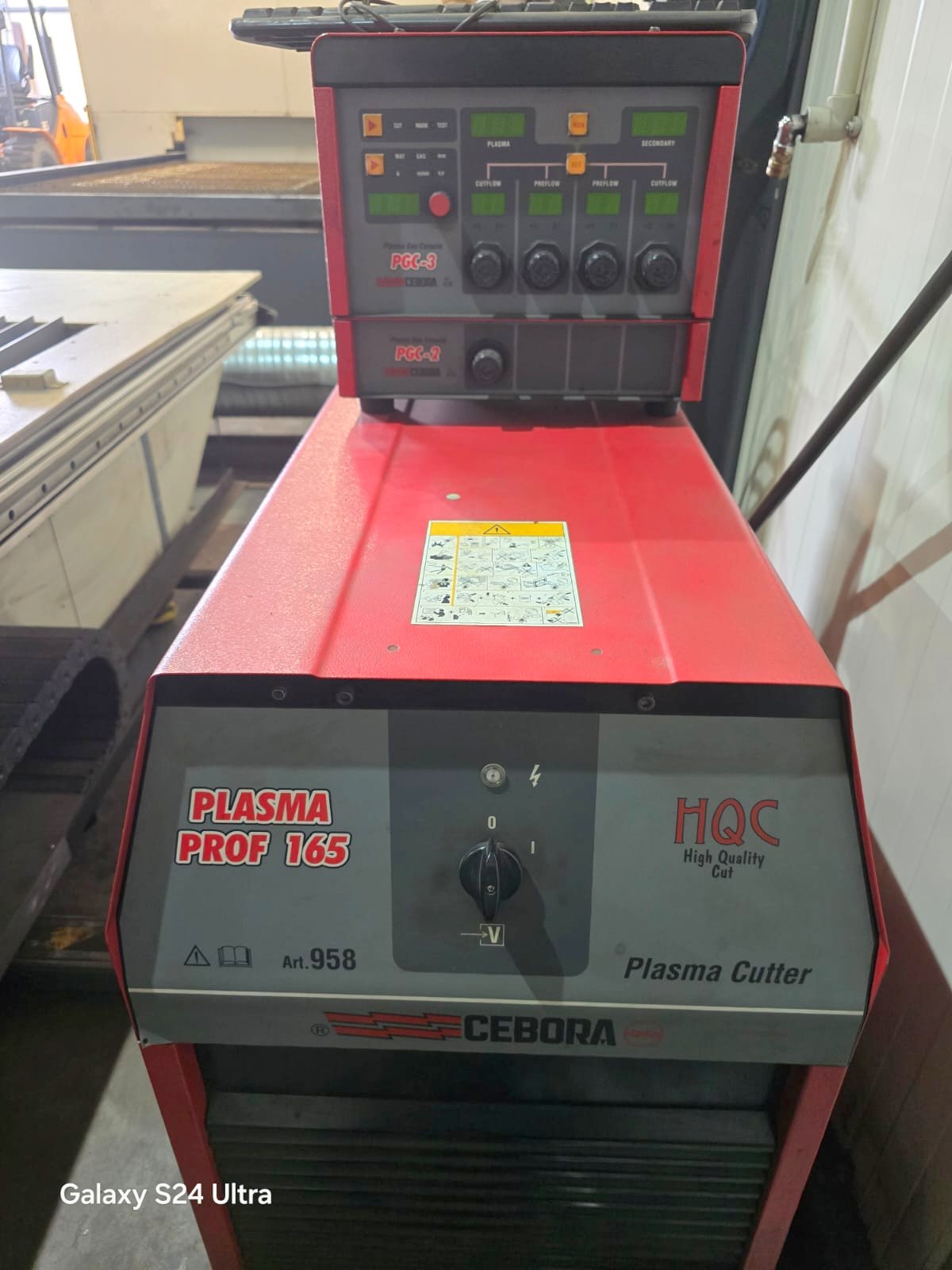

- plasma source: CEBORA PLASMA PROF 165 HQC
- semi-automatic gas console: CEBORA PGC-3
- torch height adjustment type: voltage
- torch up/down movement speed: 330 mm/s
- torch positioning accuracy: ± 0.05 mm

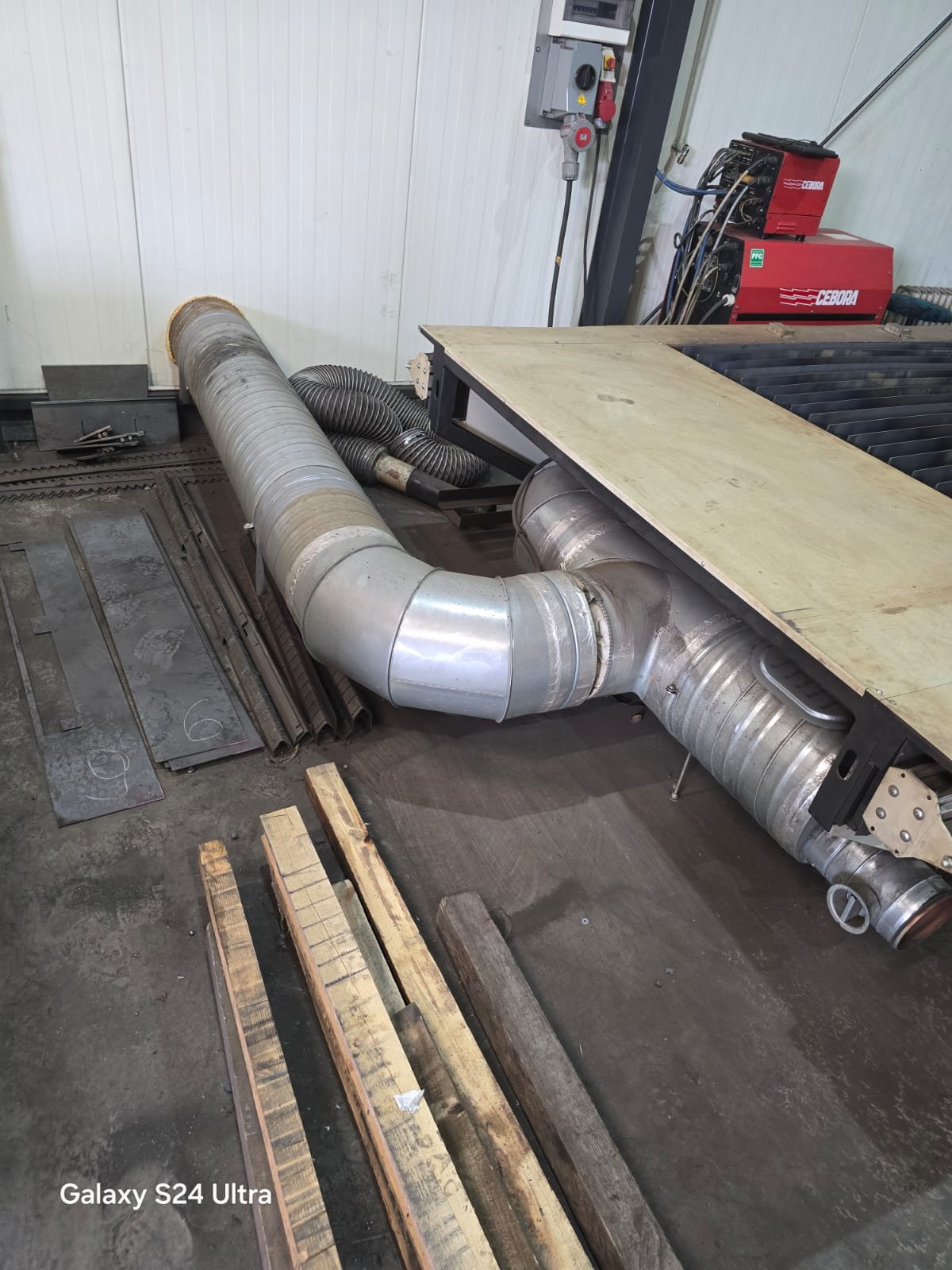

- suction nozzle: ⌀ 315 mm
- power consumption: 8000 W
- ambient temperature: +5°C/+40°C
- maximum humidity: 90% (non-condensing)
- power supply: 400 V; 50 Hz
- weight of the STIGAL DYMANIC SPEED HQ machine: approx. 2000 kg
