STROJARNE PIESOK XZMP 2000/8C plate rolling machine

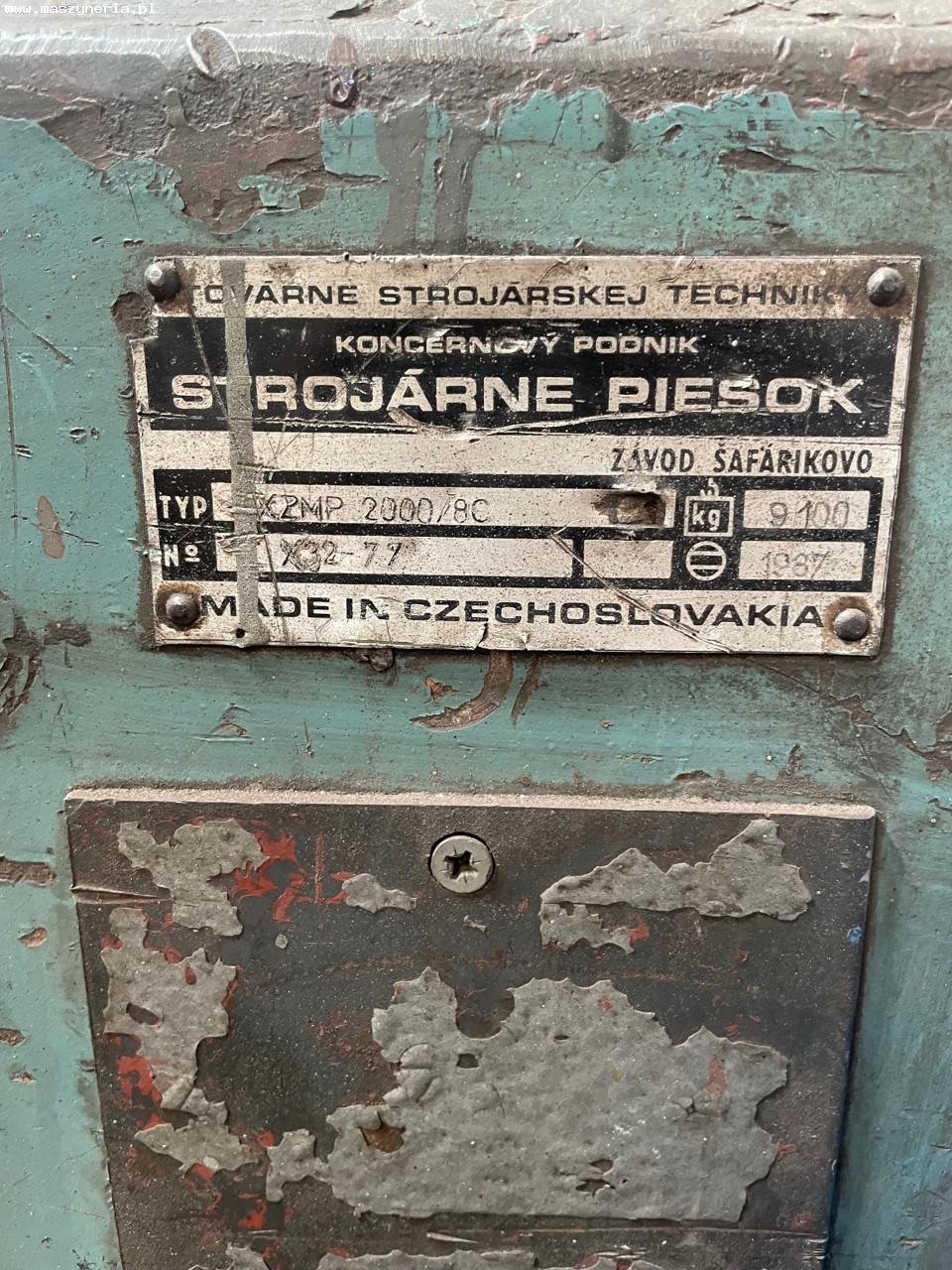

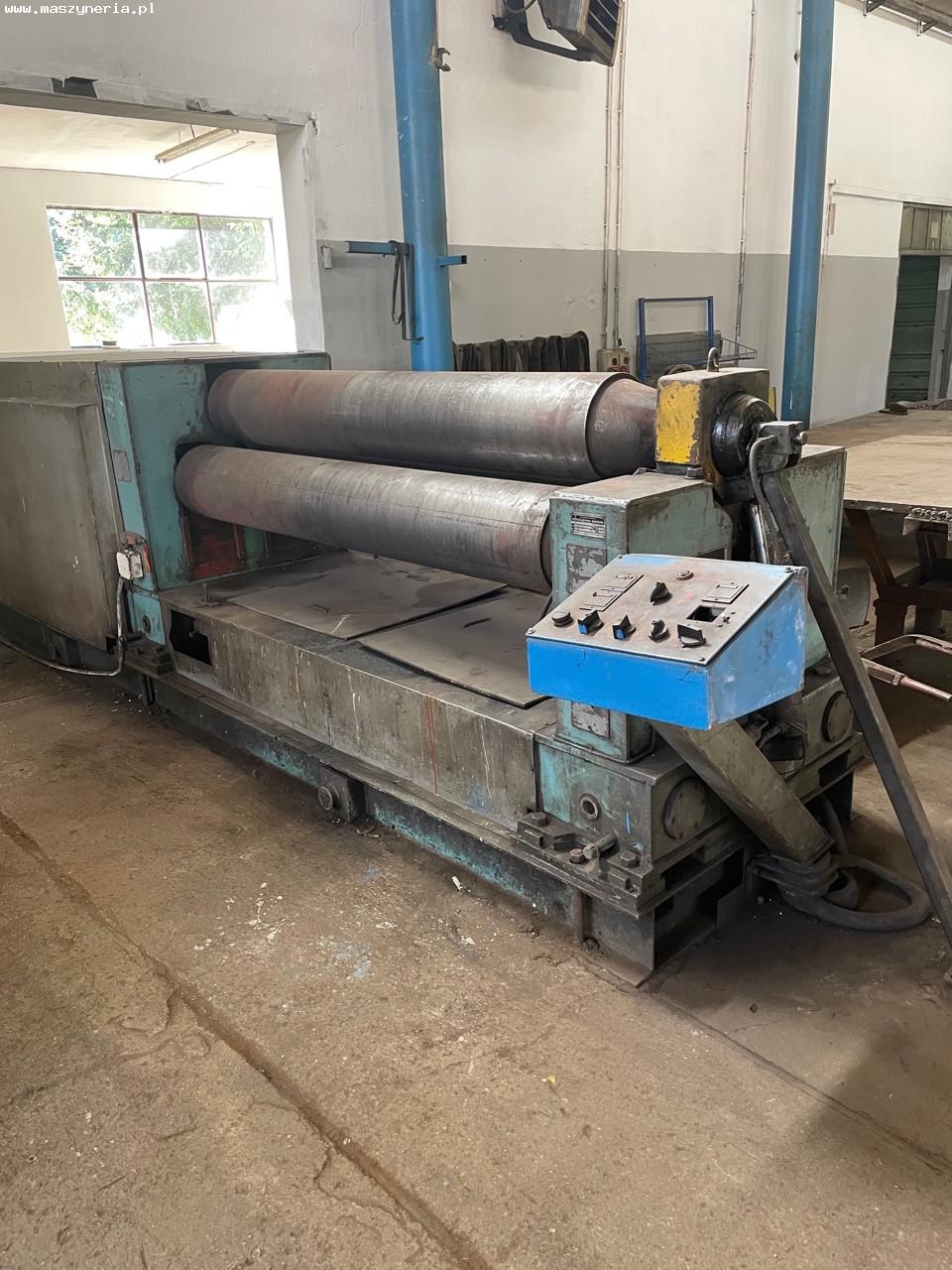

STROJARNE PIESOK XZMP 2000/8C plate rolling machine was built in 1987 in Czechoslovakia by STROJÁRNE PIESOK. The machine is used for the precise rolling of cylindrical and conical forms from sheet metal with a maximum thickness of 12 mm. The machining process is performed by three mechanically driven rollers, made of top-quality steel. The control used, in turn, allows independent or simultaneous vertical movement of the front and rear rollers. The XZMP plate bending machine weighs 9100 kg.

Specification of the STROJARNE PIESOK XZMP 2000/8C plate rolling machine

• number of rollers: 3
• maximum thickness of rolled sheet metal: 8 mm
• maximum thickness of bent sheet metal: 12 mm
• maximum sheet metal length: 2000 mm
• roller diameter: 300 mm
• hydraulically opened roller end
• main motor power: 11/5.5 kW
• main motor rotational speed: 1460/735 rpm
• control motors power: 2x 0.75 kW
• control motors rotational speed: 700 rpm
• hydraulic system power: 0.75 kW
• hydraulic system pressure: 3 MPa
• total power requirement: approx. 28 kW
• dimensions (L x W x H): 5600 x 1450 x 1830 mm
• weight of the XZMP 2000/8C machine: 9100 kg
