The plasma-gas cutting machine ECKERT JANTAR 2

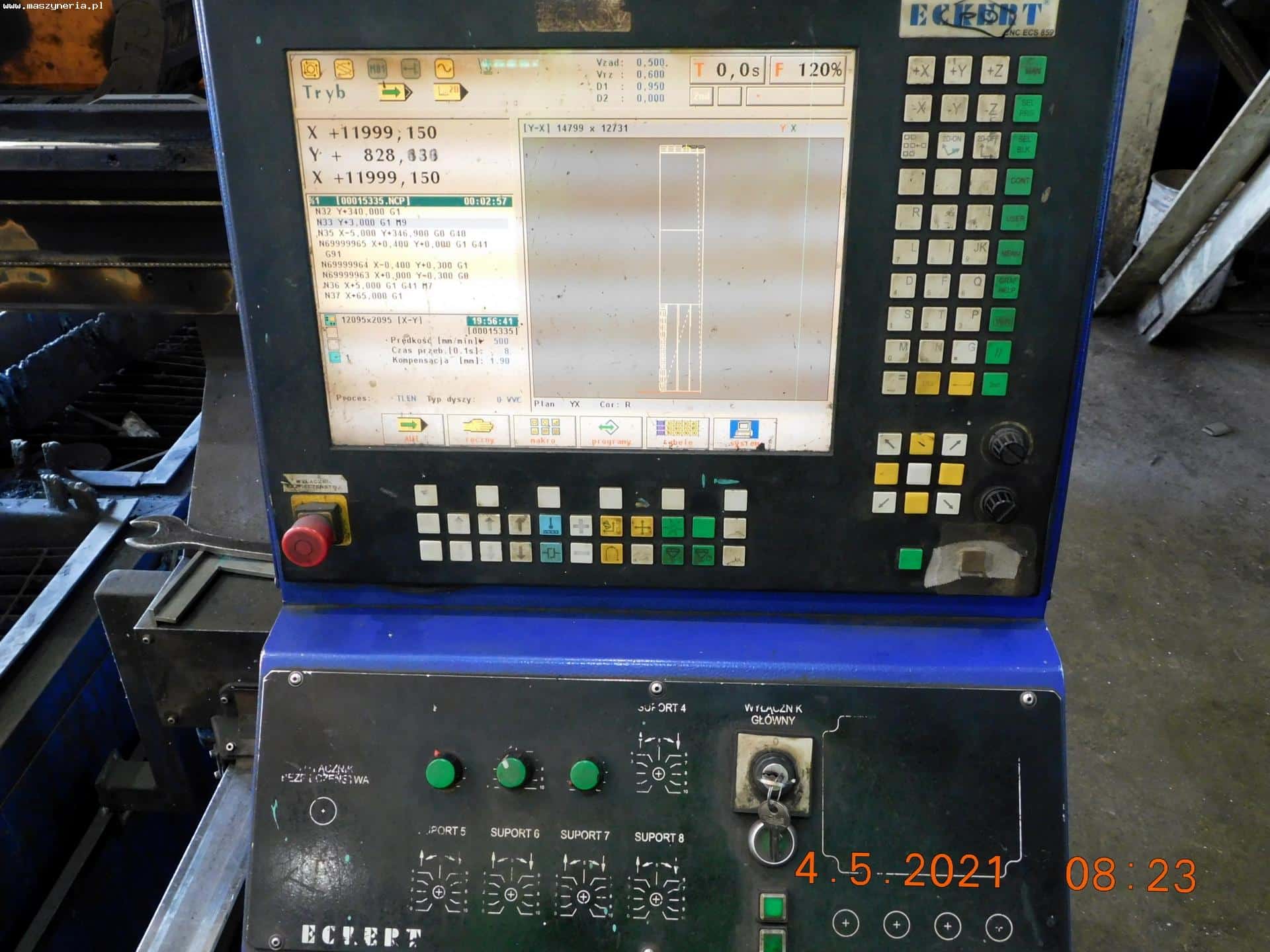

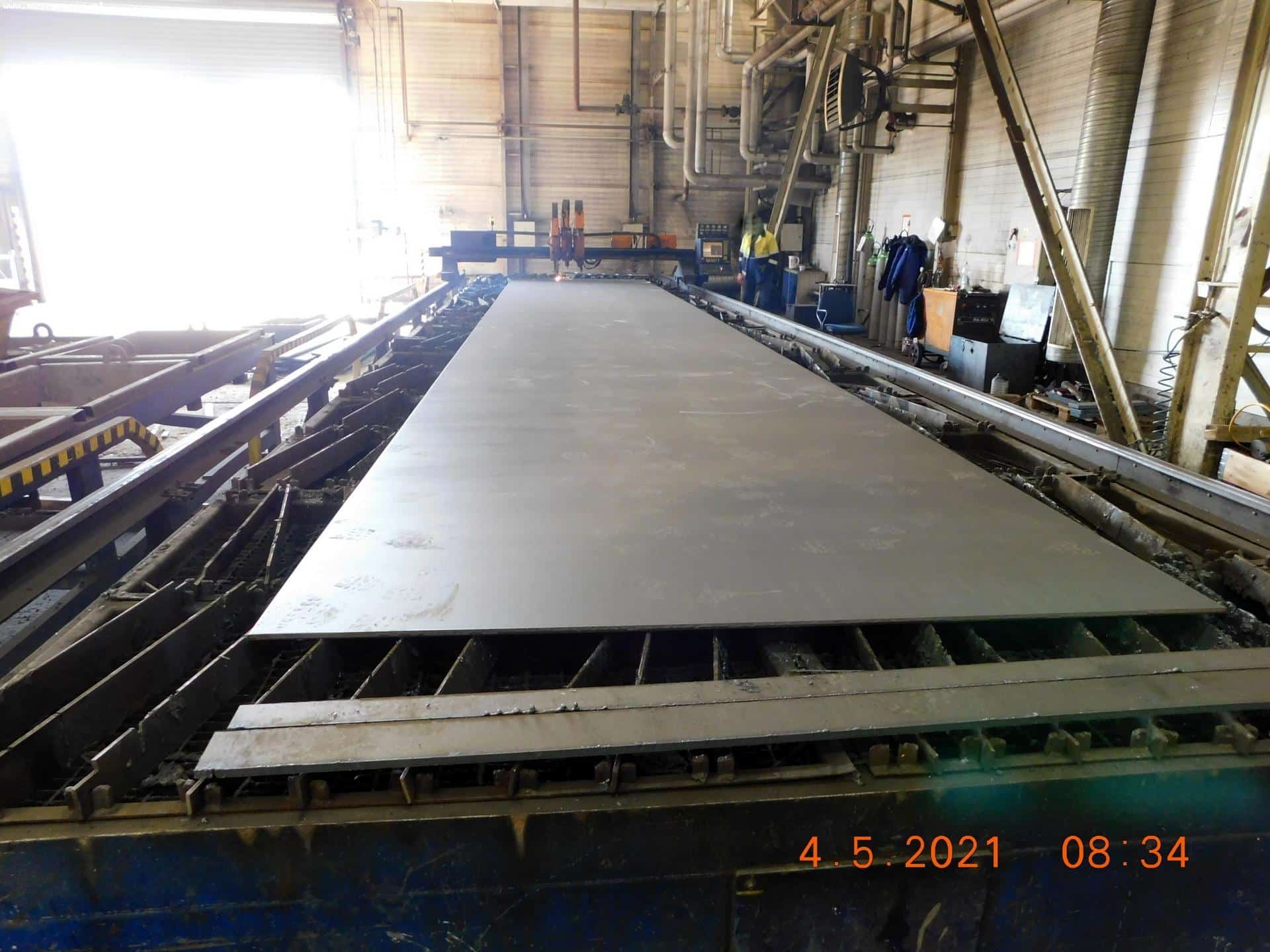

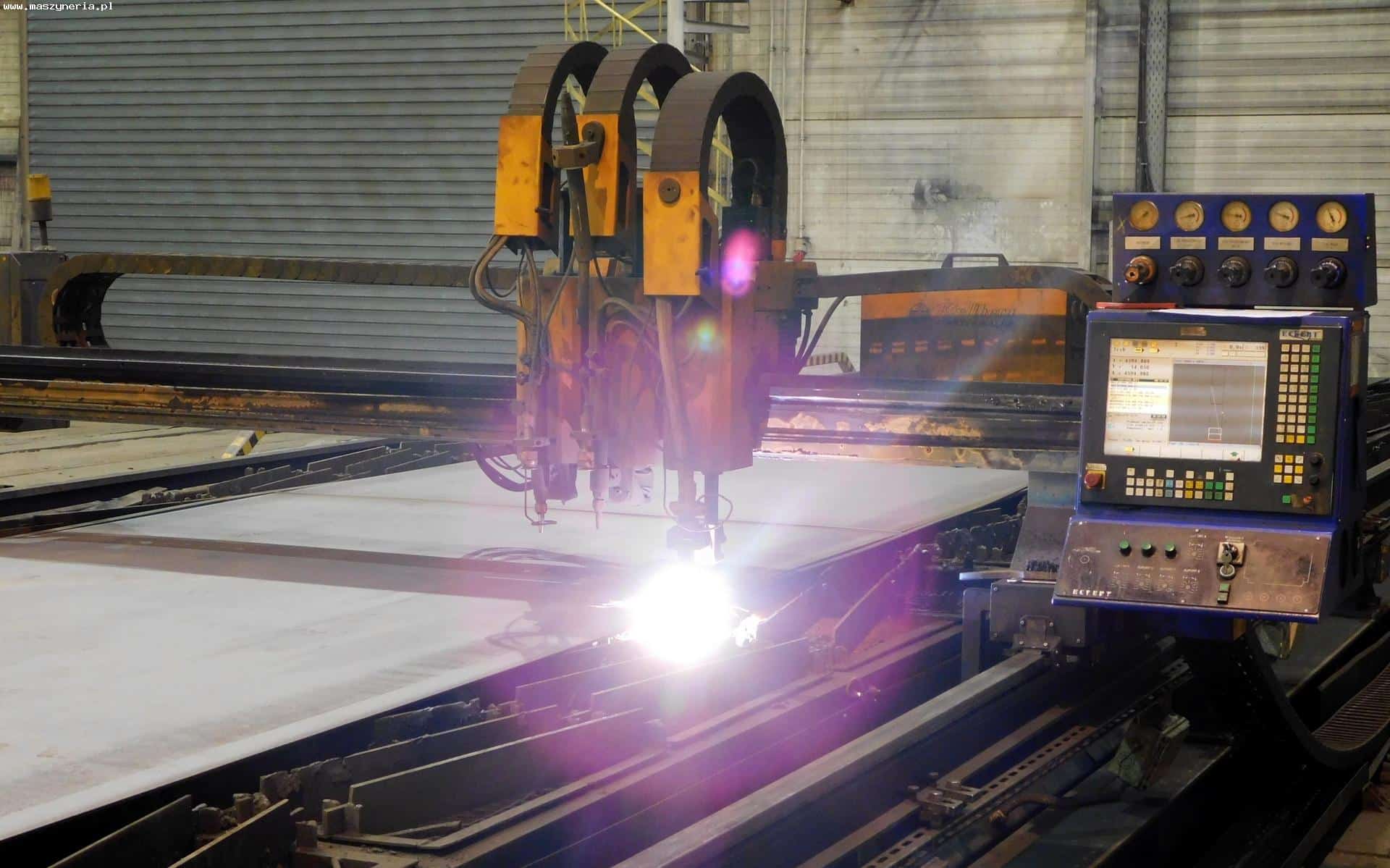

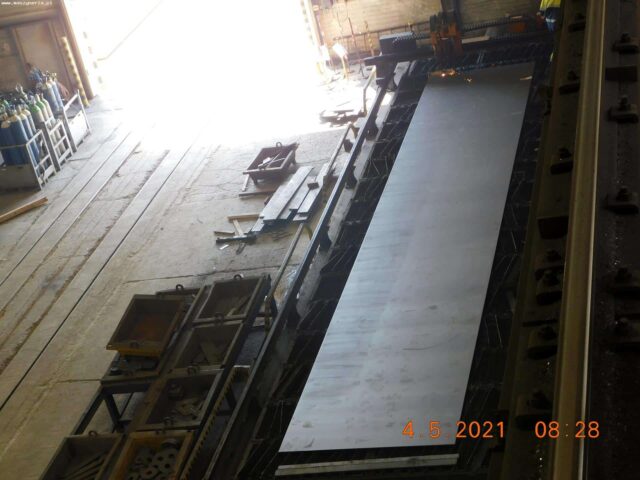

The plasma-gas cutting machine ECKERT JANTAR 2 was produced in 2007. It is equipped with the ECS 859 numerical control, which enables the design of any shape. Plasma is designed for both plasma and gas cutting of metal sheets. Plasma aggregate Kjellberg PA-S45W enables plasma cutting of sheet metal with a thickness of 8 to 10 mm. The cutter has two Harris burners that allow gas cutting of sheet metal up to a thickness of 90 mm. The table, 3.2 x 14.58 m in size, consists of nine sections with a length of 1.62 m.

Technical parameters of the plasma cutter ECKERT JANTAR 2

– CNC control: ECS 859
– table: 9 sections, 1.62 m long each
– table width: 3.2 m
– table length: 14.58 m
– number of slides: 3
– possibility of communication with a computer
– possibility of plasma and gas cutting
– 2 Harris gas burners
– plasma cutting thickness: 8-10 mm
– gas cutting thickness: up to 90 mm
– power supply: 230 V
– rated current: 12 A
– plasma aggregate: PA-S45W
