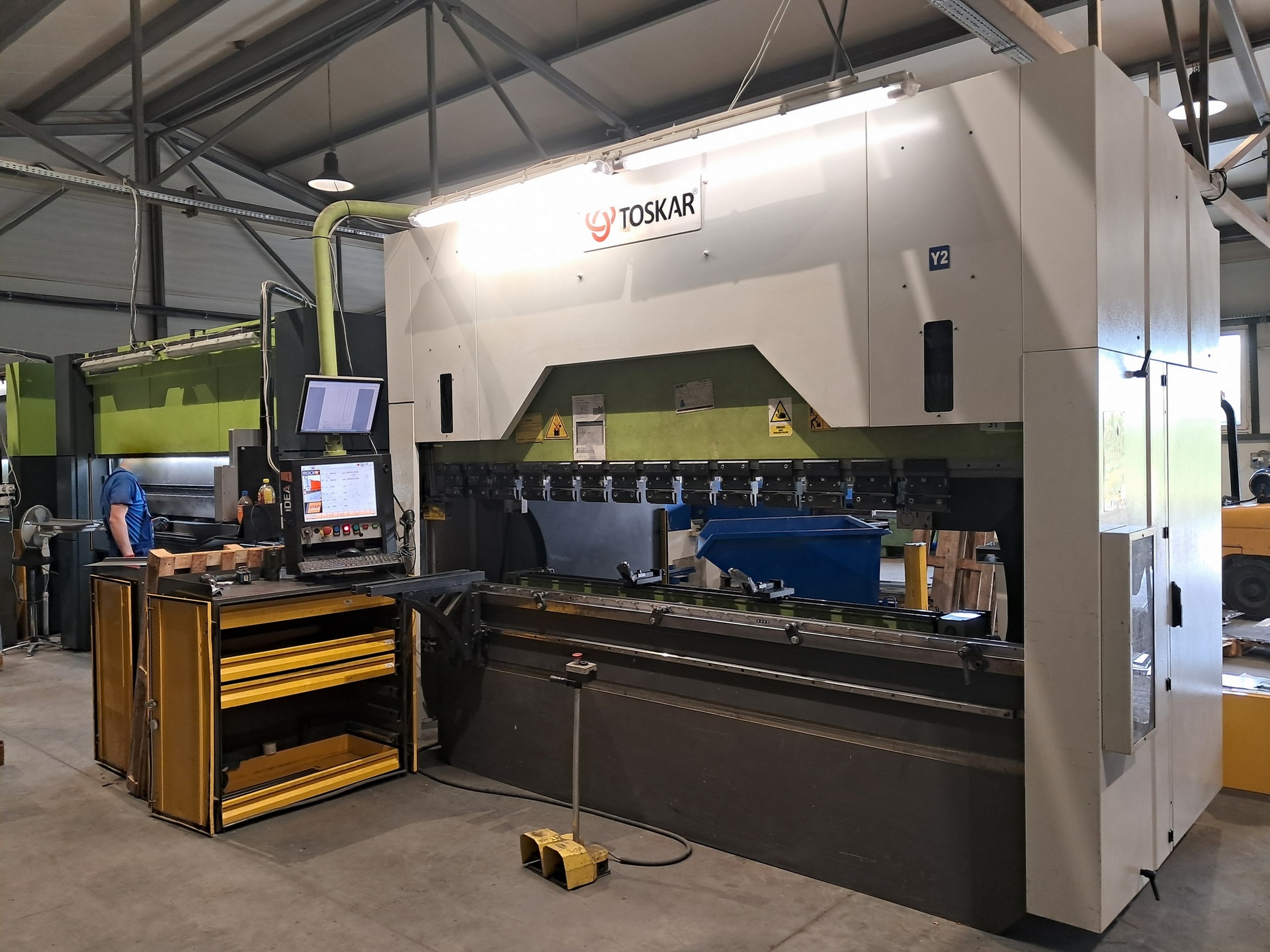

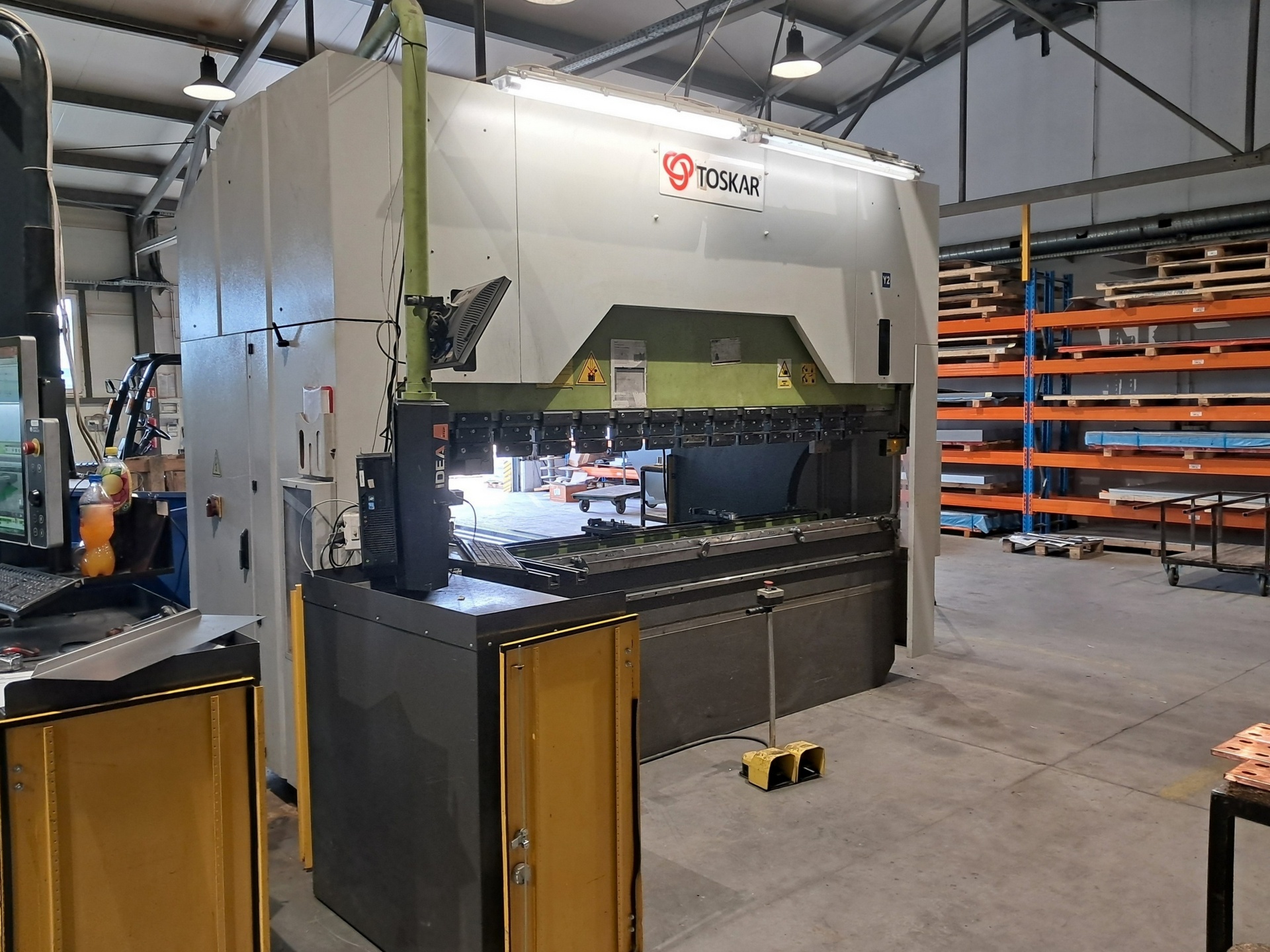

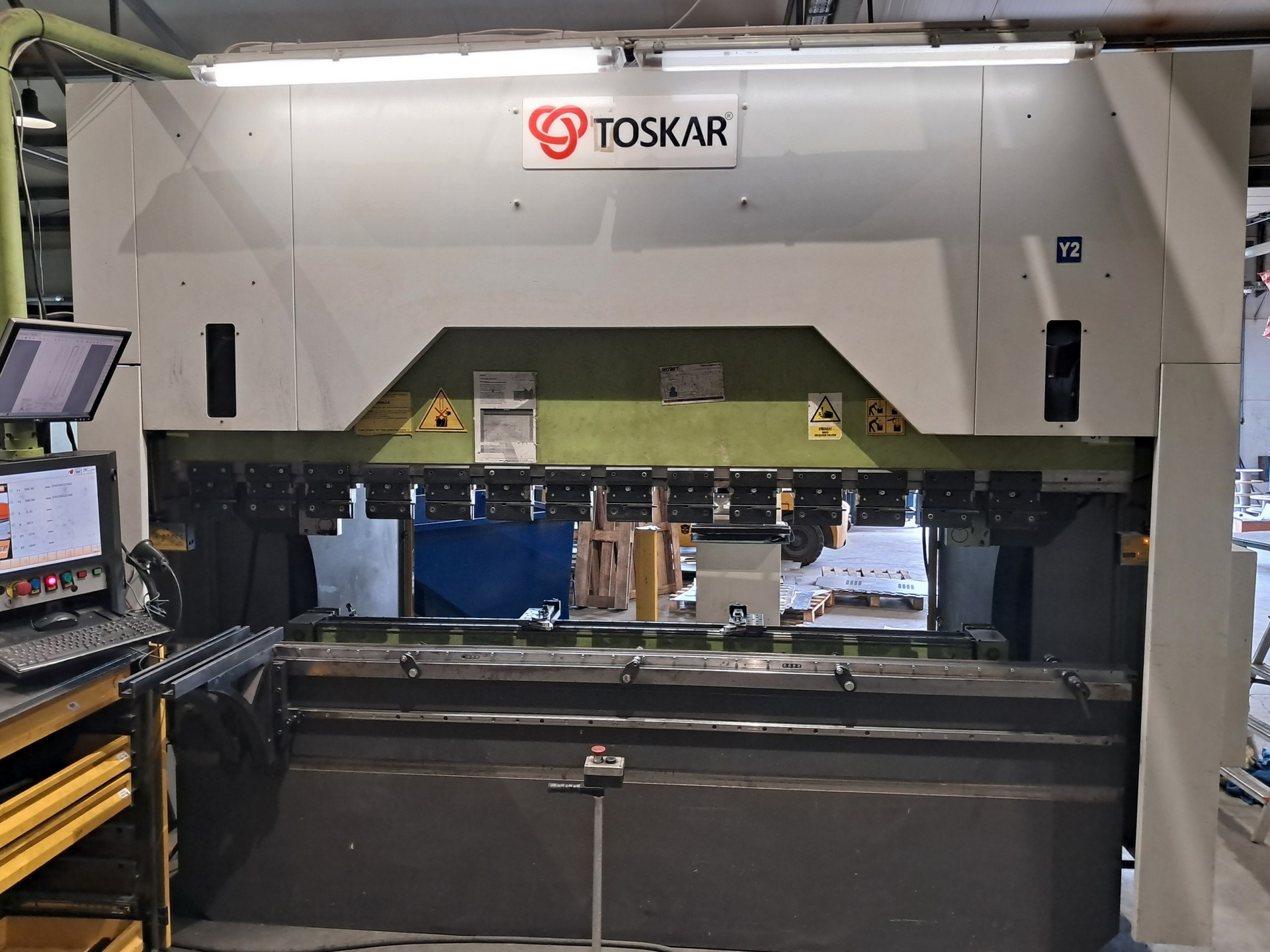

TOSKAR MASTERFAB 3100-175 CNC hydraulic press brake

TOSKAR MASTERFAB 3100-175 CNC hydraulic press brake was built in 2015 in Turkey by TOSKAR Makine Yedek Parça İmalat Ticaret ve Sanayi Ltd Şti. The machine, distinguished by its high efficiency and excellent precision, is used in economical sheet metal machining. The reliable hydraulic drive combined with a high press force of 175 tonnes ensures excellent bending results, even when machining the hardest materials. The working area, in turn, is protected by a laser safety system which automatically stops the machine if the laser beam is interrupted. All this is complemented by an advanced CNC controller with many useful functions.

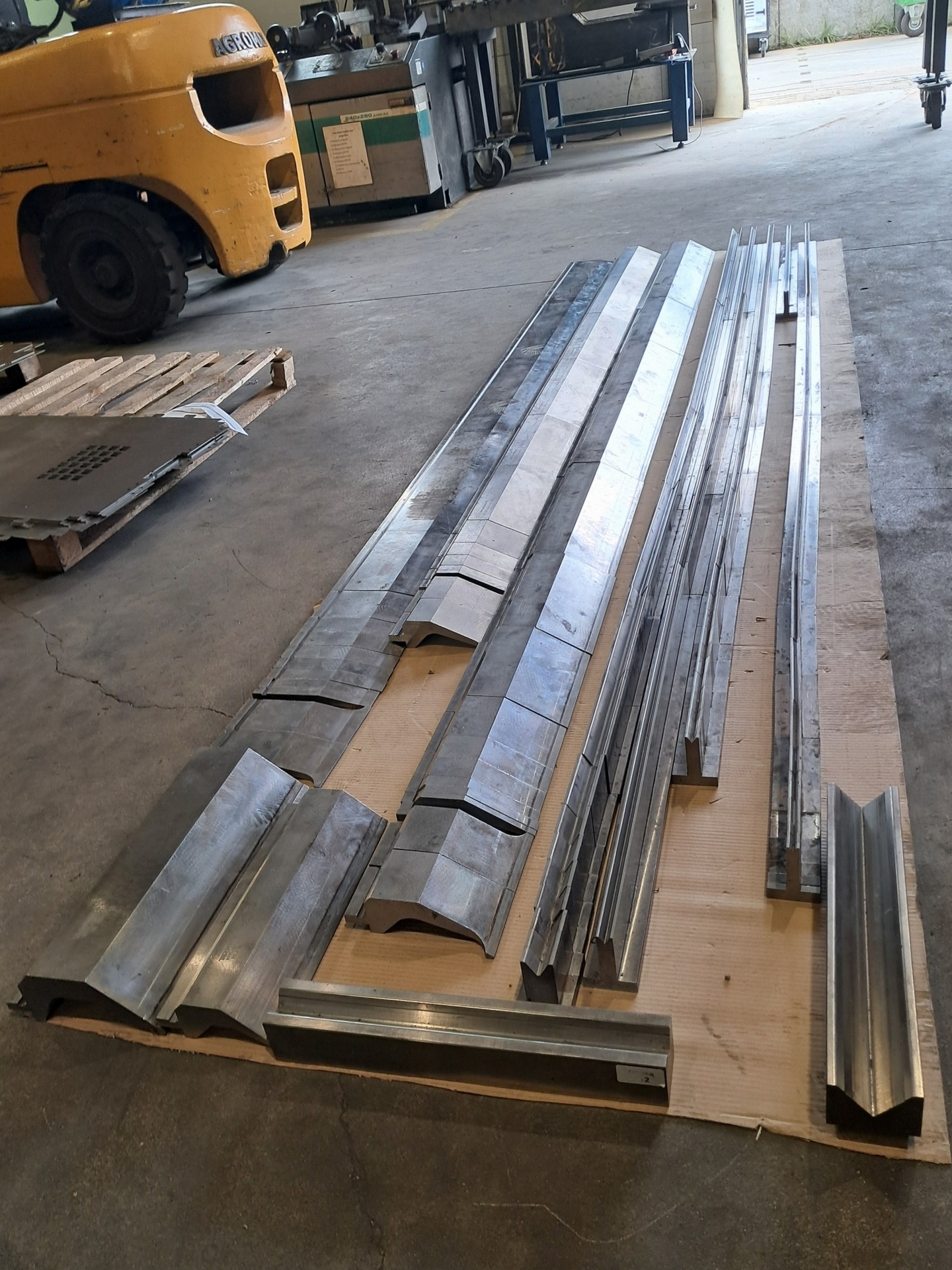

The MASTERFAB 3100-175 CNC press brake is offered with tooling in the form of punches and dies with a total value of approximately EUR 13000.

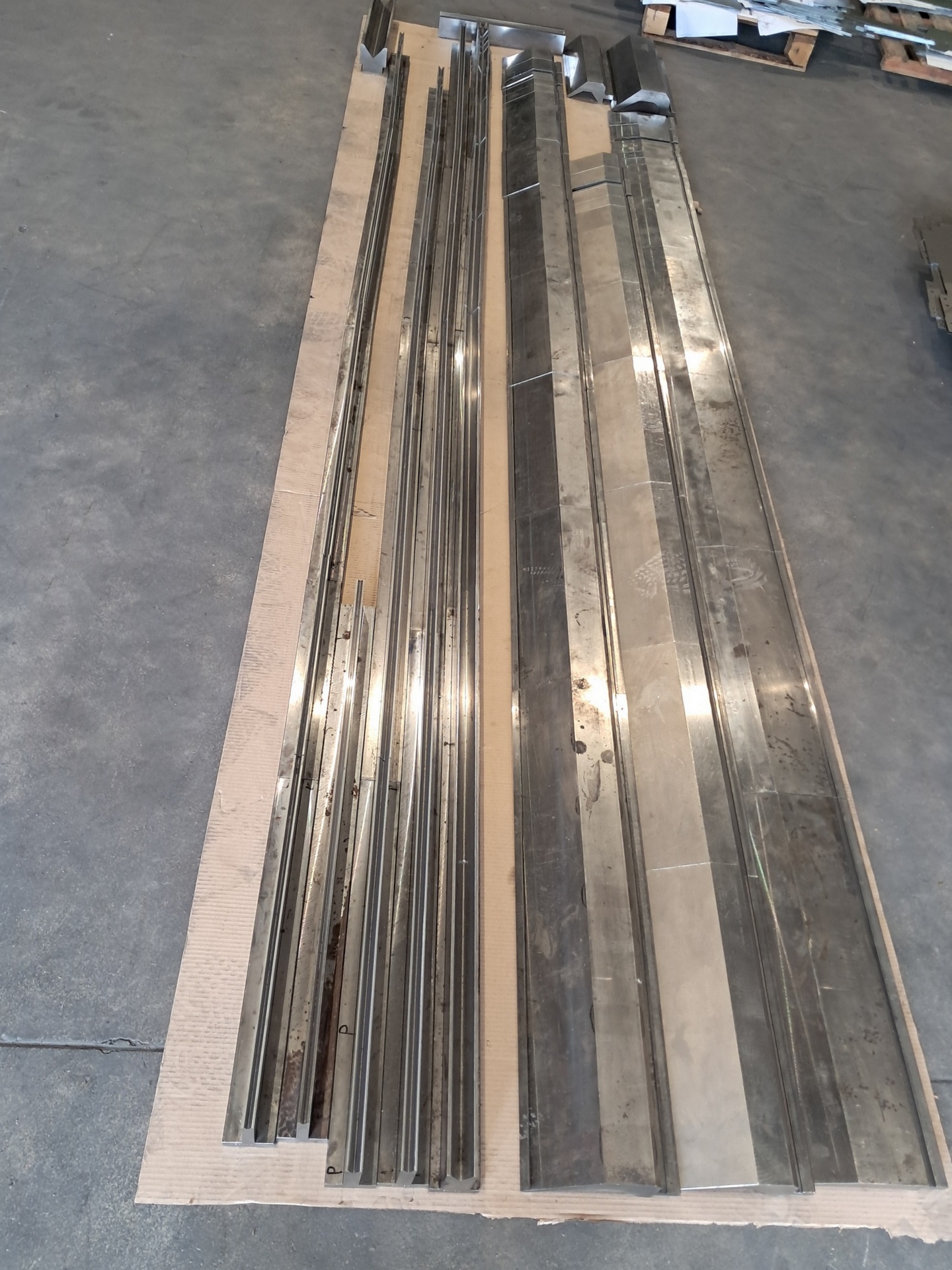

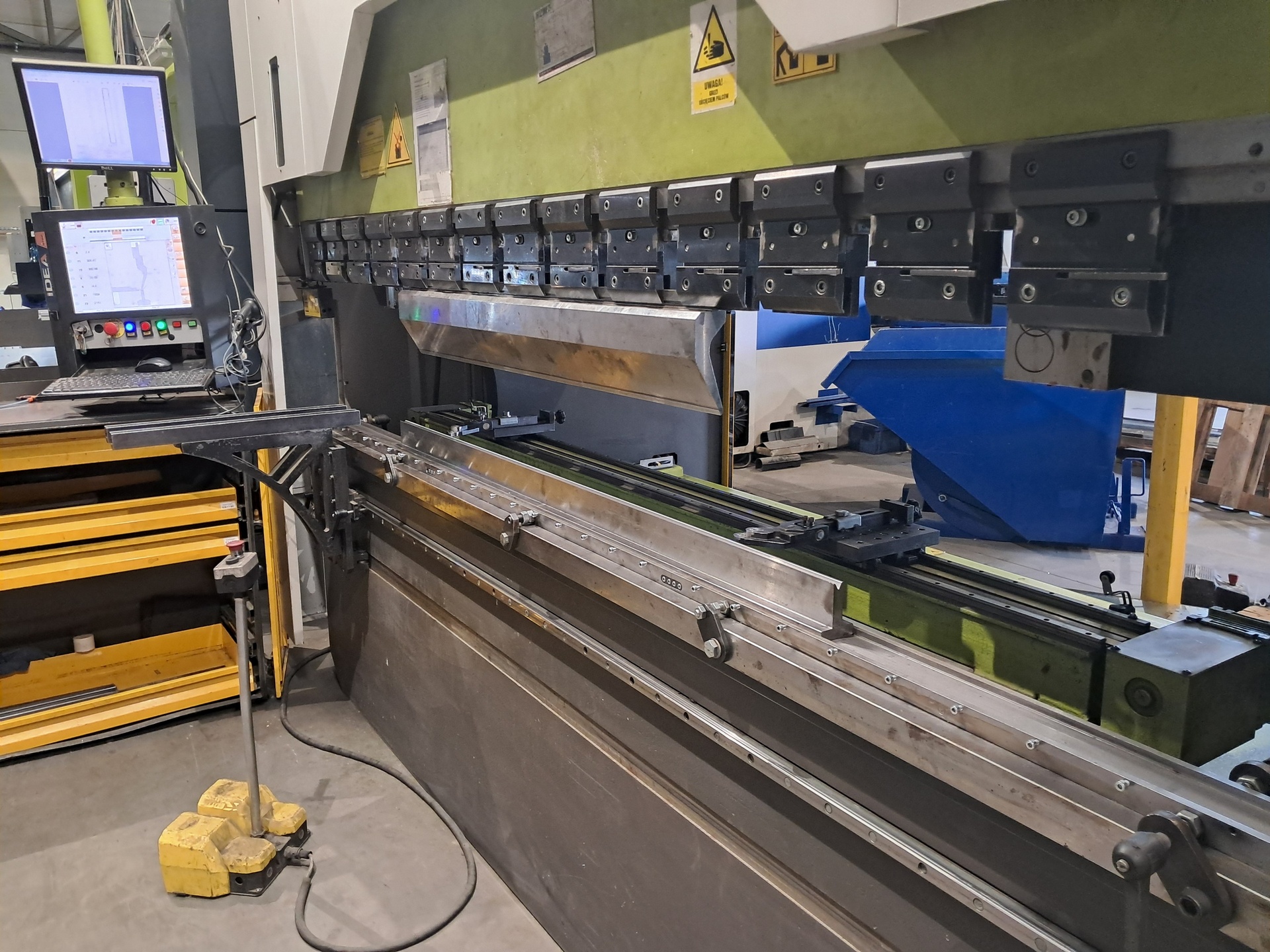

Top tools:
TOP135.85 R0.8 punch – L=360 mm
TOP205.85.R4 punch – L=415 mm
TOP205.26.R0.8 segmented punch – L=3000 mm
TOP190.60.R0.8 segmented punch – L=5895 mm

Bottom tools:
T80.25.60 (V25) segmented T-die – L=3360 mm
T80.12.60 (V12) segmented T-die – L=5925 mm
T80.80.60 (V8) segmented T-die – L=3100 mm
T80.06.26 (V5) T-die – L=835 mm
M60.85.32 (V32) die – L=415 mm
M75.85.63 (V63) die- L=415 mm

Technical specifications of the TOSKAR MASTERFAB 3100-175 press brake

• number of axes: 4
• maximum press force: 175 t
• feed in the X axis: 800 mm
• feed rate in the X axis: 230 mm/s
• approach speed: 100 mm/s
• bending speed: 8 mm/s
• return speed: 100 mm/s
• slider stroke length: 270 mm
• distance from slider to work table surface: 545 mm
• work table width: 120 mm
• work table height: 920 mm
• distance between columns: 2550 mm
• throat depth: 500 mm
• response time: 0.05 s
• oil tank capacity: 250 l
• motor power: 15 kW
• power supply: 380 V
• dimensions (L x W x H): 3775 x 2415 x 2880 mm
• weight of the TOSKAR MASTERFAB 3100 175 machine: 9100 kg

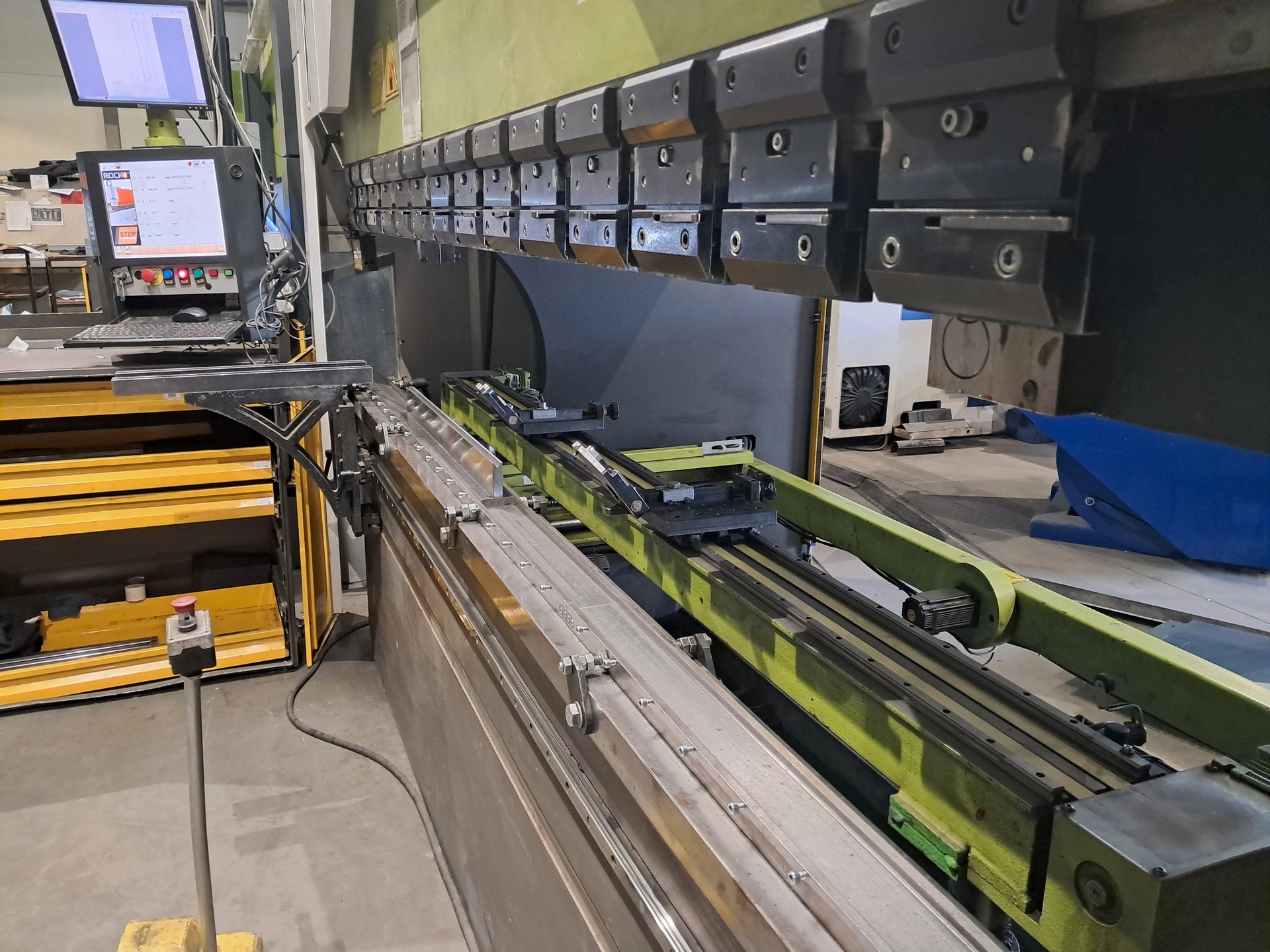

Equipment of the TOSKAR press brake

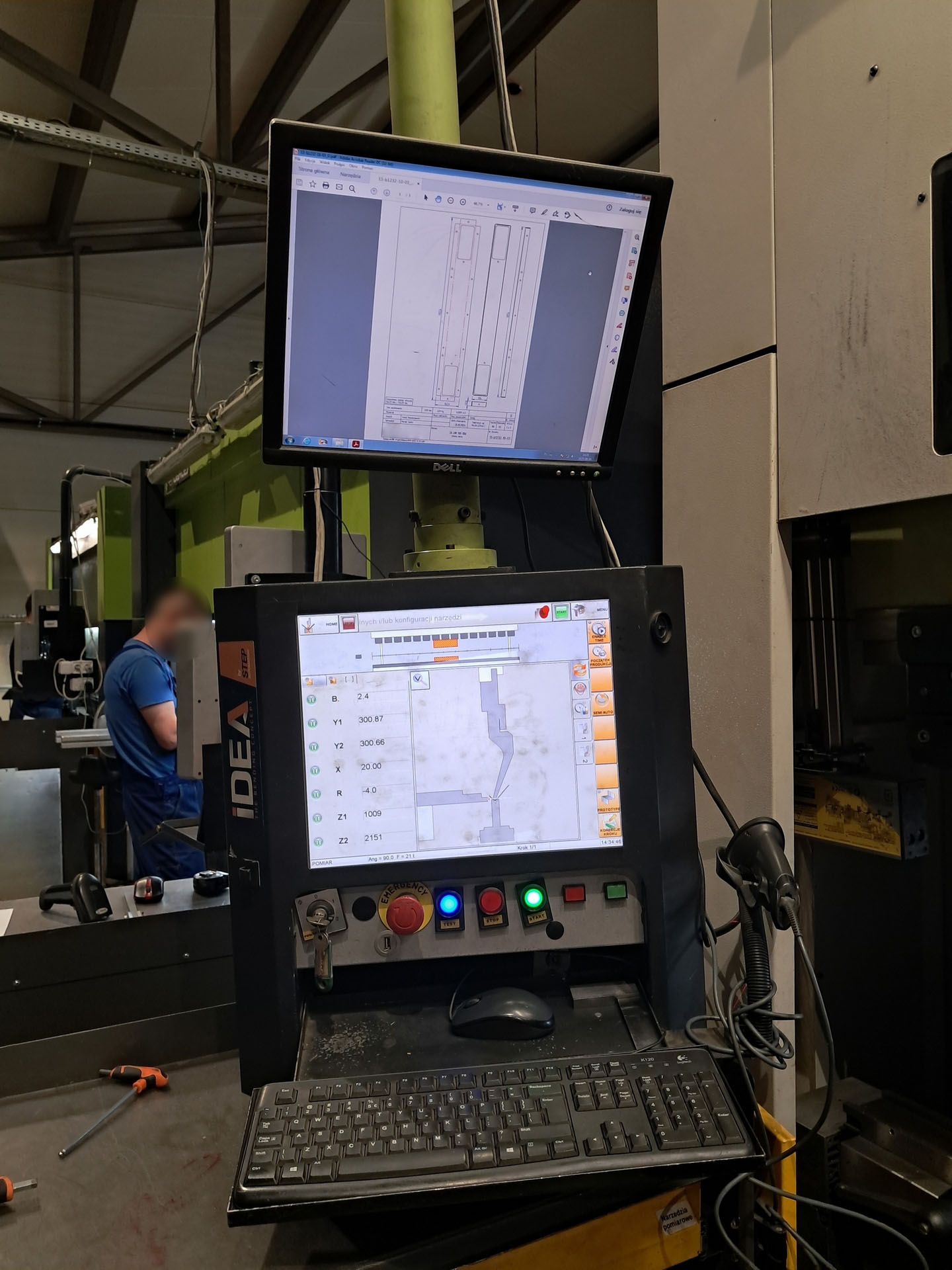

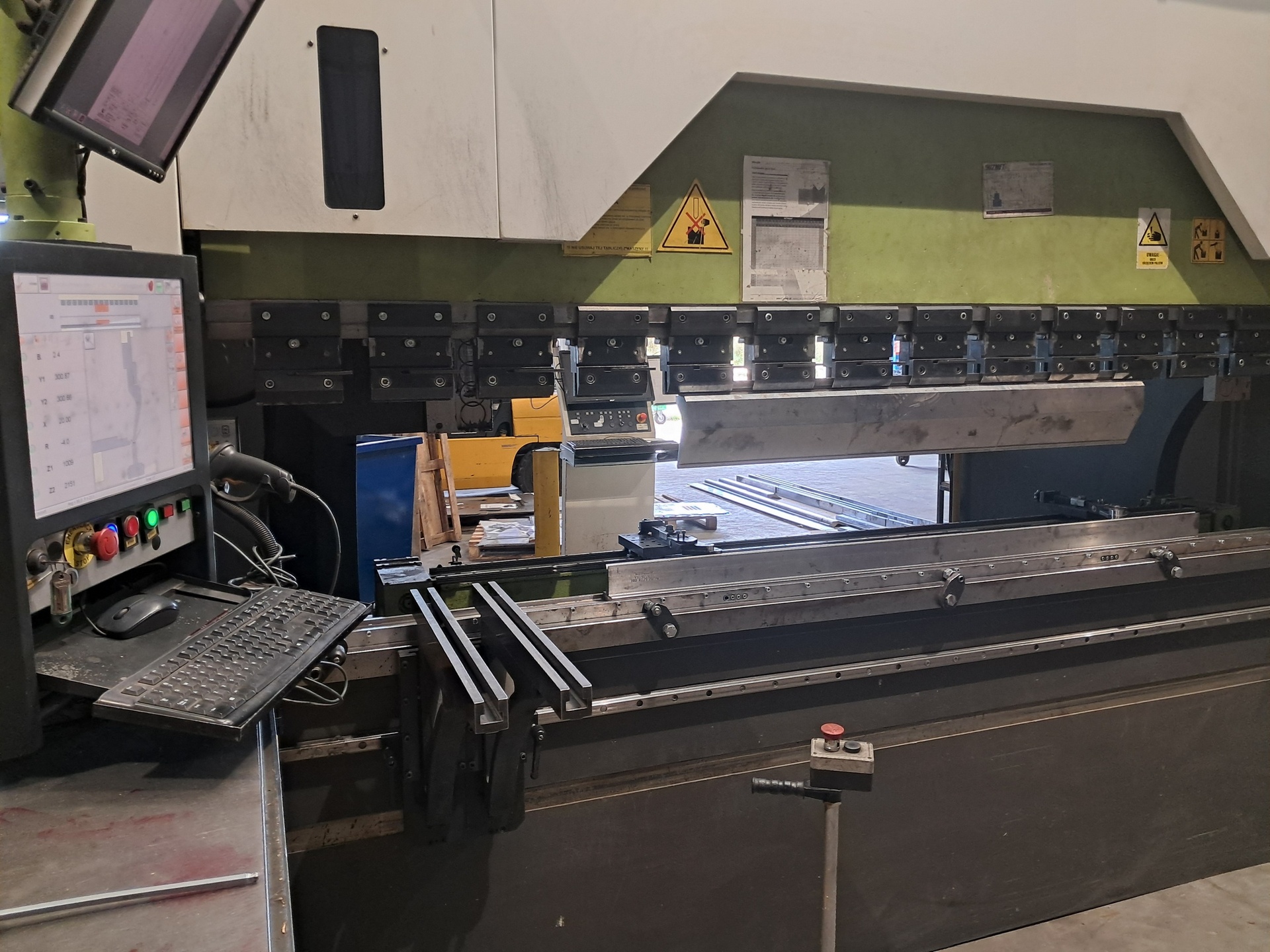

• CNC controller: STEP AUTOMATION IDEA
• tooling (punches and dies)
• laser safety system
• front supports (2 pcs.)
• back stop finger rear supports (2 pcs.)
• foot switch control
