TRUMPF TRUMATIC 500 ROTATION punching machine

TRUMPF TRUMATIC 500 ROTATION punching machine was manufactured in Germany in 1993. The machine with a stable and rigid construction guarantees high productivity and precision when processing sheet metal with a maximum thickness of 6 mm. Hole punching is performed with a force of 22 tonnes with tools that can be smoothly rotated in a range of 360° by equipping the tool station with a ROTATION drive.

The TRUMPF TRUMATIC 500 R punching machine is offered with a comprehensive range of equipment including, among others, a set of approx. 150 punching tools (punches, dies, adapters and peelers), CAD/CAM software with NESTING function for creating machining programmes, and a BOSCH TRUMAGRAPH CNC control. The total weight of the machine is 11050 kg.

Technical specifications of the TRUMPF TRUMATIC 500 ROTATION punching machine

• maximum press force: 22 t (220 kN)
• maximum sheet thickness: 6 mm
• feed rates in X/Y axis: 2500/1250 mm
• working pressure: 6 bar
• power supply: 380 V; 50 Hz
• dimensions (L x W x H): 6400 x 5800 x 2100 mm
• TRUMATIC 500 ROTATION machine weight: 11050 kg

Equipment of the punching machine

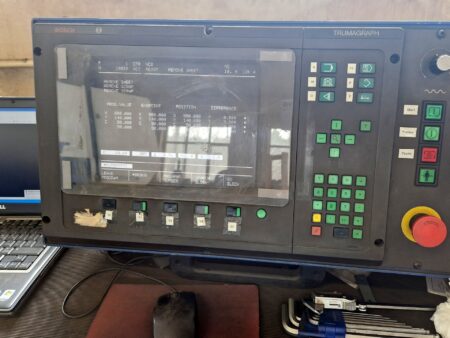

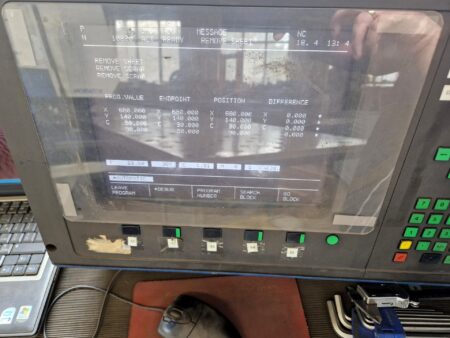

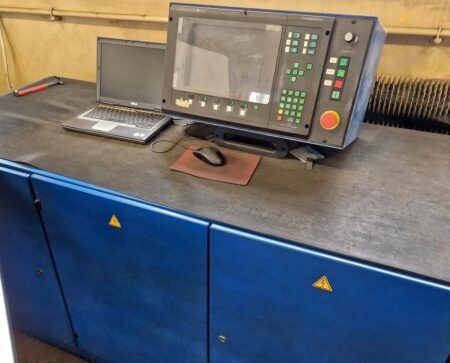

• CNC controller: BOSCH TRUMAGRAPH
• CAD/CAM software with NESTING function

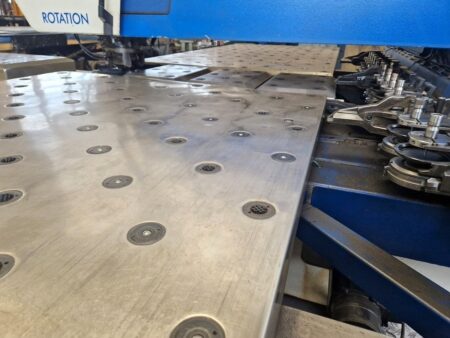

• ROTATION drive for stepless tool rotation in the tool head

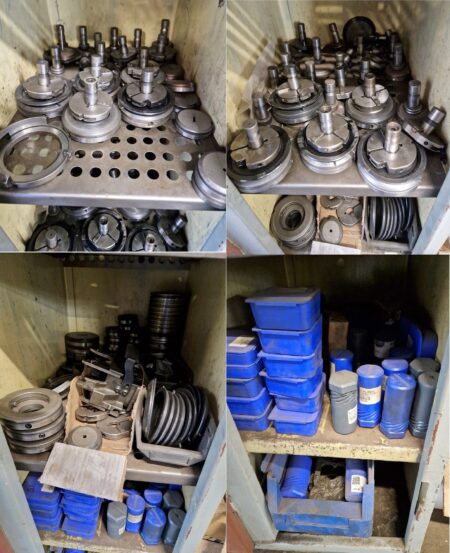

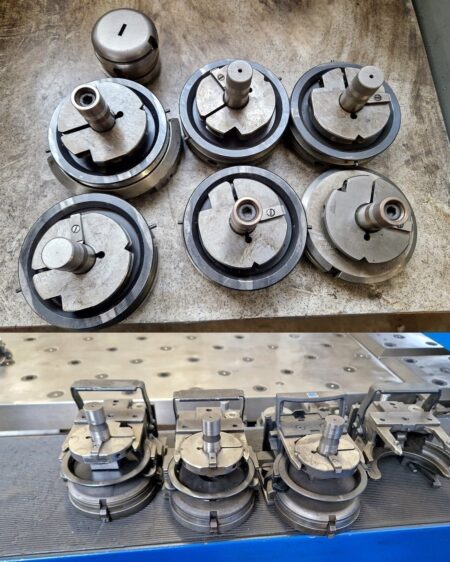

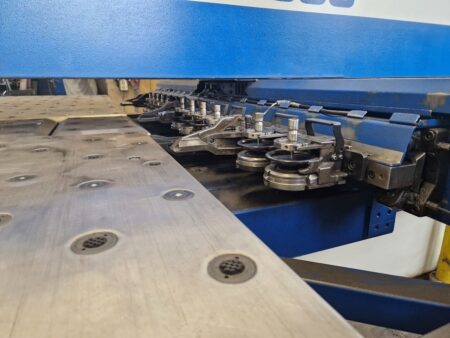

• set of approx. 150 punching tools (dies, punches, adapters and nippers)
• QuickSet system for manual tool assembly
• tool cassettes (18 tools)
• PC computer
• diagonal and flat punch tool grinding device
• DTR – technical and propulsory documentation

All oils, filters and batteries were replaced in the machine. During its use, it has undergone regular technical inspections and is in very good condition.
