TRUMPF TruPunch 3000 punching machine

TRUMPF TruPunch 3000 punching machine was manufactured in 2014. The machine, equipped with a servo-electric punch operating with a maximum force of 18 tonnes, is designed for the precise punching and perforation of sheet metal with a maximum thickness of 3 mm. Thanks to additional functions, it is also possible to form small bends with an angle of up to 90° (MultiBend function), threading, engraving and marking of workpieces.

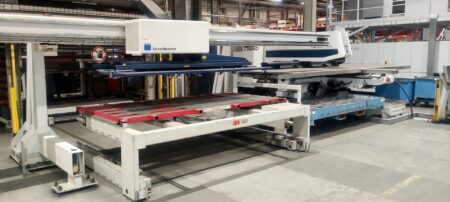

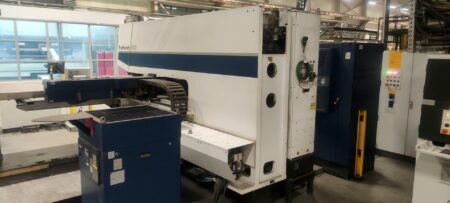

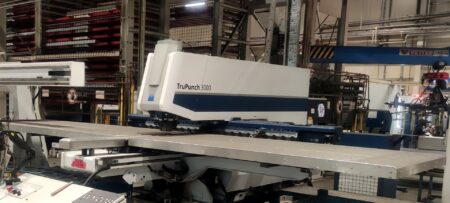

The TruPunch 3000 (S11) punching machine features a robust C-frame design providing high stability during processing. The machine also includes the state-of-the-art CNC control BOSCH MTX CMP 70 and the space-saving TRUMPF SheetMaster system for automatic and safe loading and unloading of workpieces.

Technical data of the TRUMPF TruPunch 3000 punching machine

• maximum pressing force: 18 t
• feed rates in the X/Y axis: 2500/1600 mm
• rapid traverse in X/Y axis: 90/60 m/min
• number of strokes (punching): 800 1/min
• number of strokes (marking): 1000 1/min
• maximum sheet size (L x W): 3000 x 1500 mm
• maximum workpiece thickness: 3 mm
• maximum workpiece weight: 150 kg
• linear tool magazine capacity: 17 pcs.
• positioning accuracy: ± 0.01 mm
• working height: 1120 mm
• man-hours: 41625 h
• TruPunch 3000 machine power supply: 400 V; 50 Hz

Equipment of the punching machine

• CNC control: BOSCH MTX CMP 70
• sheet loading/unloading system: TRUMPF SheetMaster
• MultiBend function
• MultiTool function
• threading function
• surface marking / extrusion function
• axis drives with AC servomotors
• hydraulic clamps (3 pcs)
• workpiece collapse
• container for parts/chips
• USB interface
• RJ-45 interface
• technical documentation
