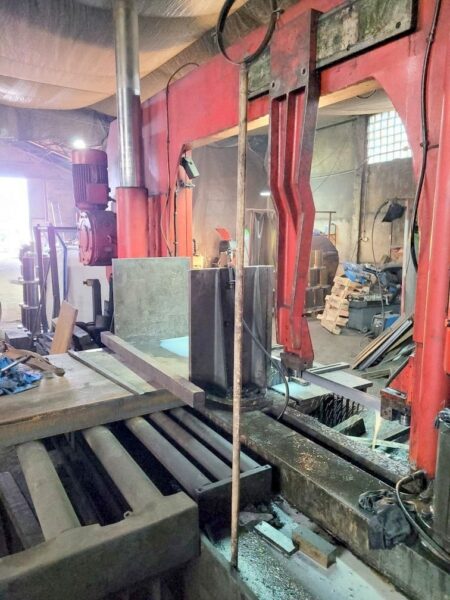

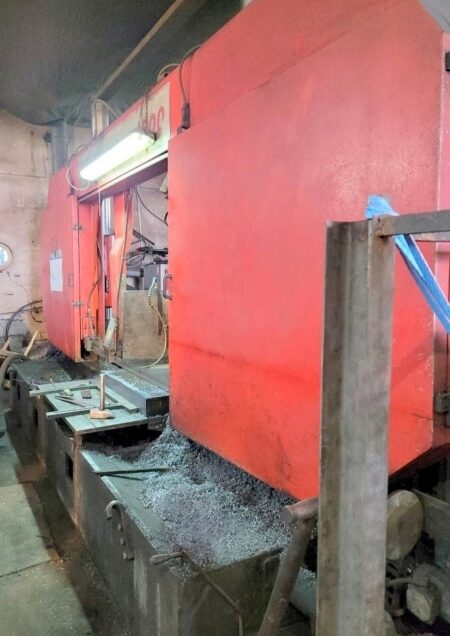

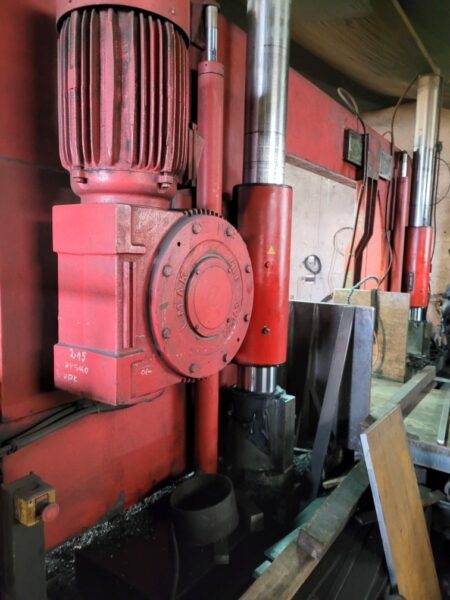

UZAY MAKINA UMSY 1300 band saw

UZAY MAKINA UMSY 1300 band saw was built in Turkey in 2001. The machine, equipped with a high-quality saw blade with hydraulic blade tension and the possibility of adjusting the cutting height via a control panel, is designed for the precise cutting of workpieces made of even the hardest materials, such as titanium.

The specially designed double-jaw vise system significantly increases the capacity of the machining process, thanks to the possibility of positioning the workpiece at the front and at the back of the UZAY MAKINA UMSY 1300-1600 SP machine. The UZAY MAKINA 1300 x 1600 double-column sawing machine weighs approximately 8200 kg.

Technical data of the UZAY MAKINA UMSY 1300 band sawing machine

• saw blade dimensions (L x W x H): 12000 x 67 x 1.6 mm
• maximum cutting speed: 100 m/min
• minimum cutting speed: 20 m/min
• maximum cut at 90° (circle): 1300 mm
• maximum cut at 90° (square): 1300 mm
• maximum cut at 90° (rectangle): 1300 x 1600 mm
• control panel
• hydraulic blade tensioning
• cutting height adjustment
• working height: 650 mm
• main motor power: 11 kW
• hydraulic motor power: 2 kW
• dimensions (L x W x H): 6000 x 1350 x 3850 mm
• weight of machine UMSY 1300: approx. 8200 kg
