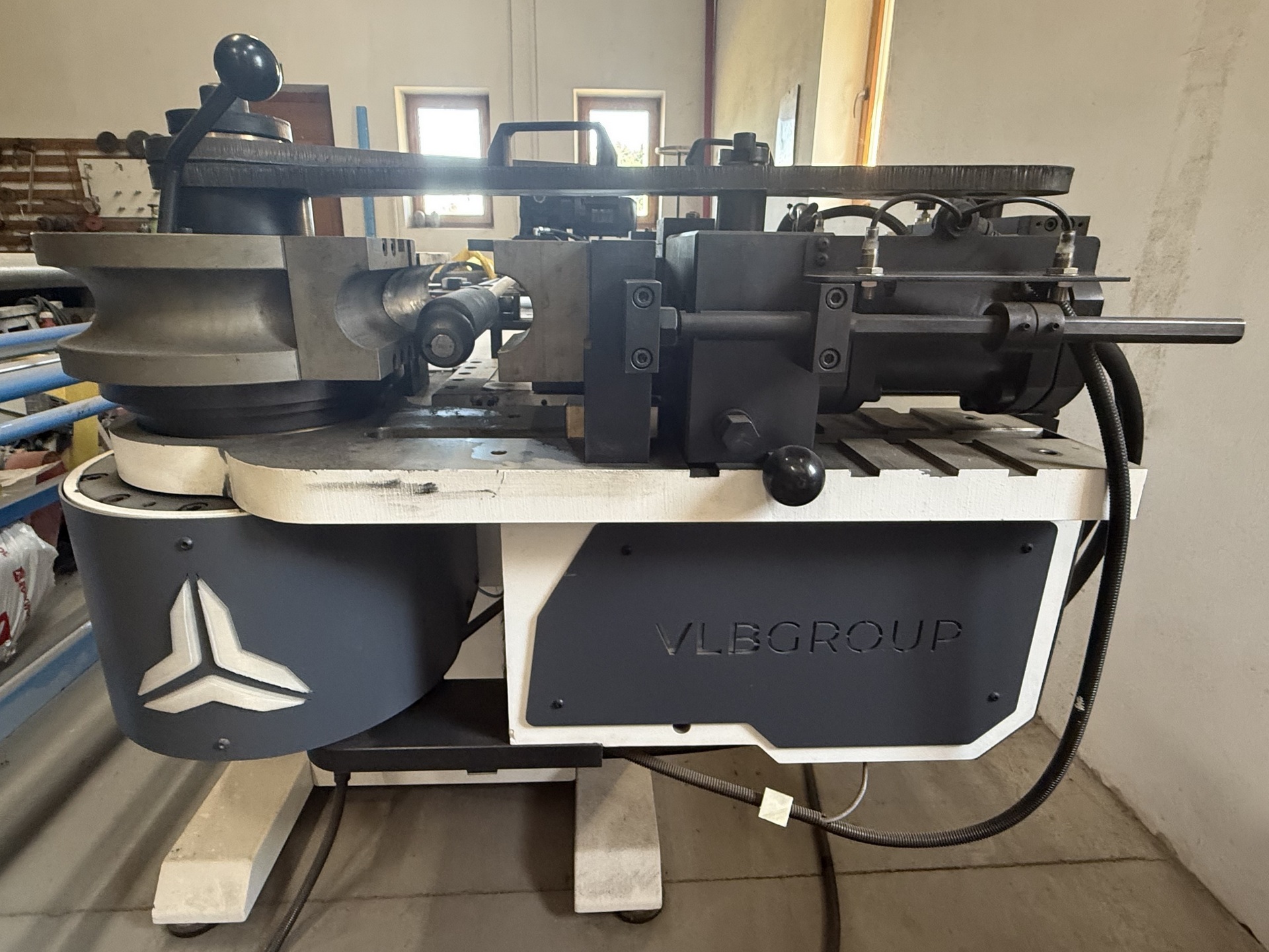

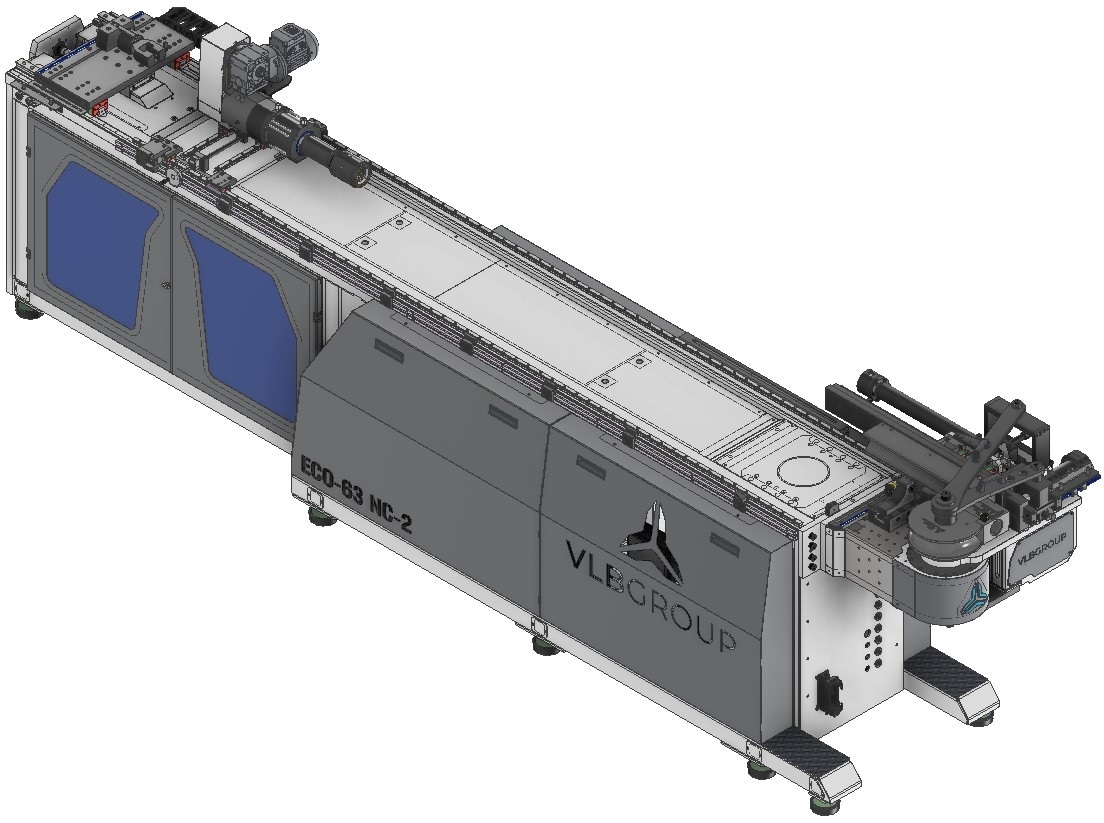

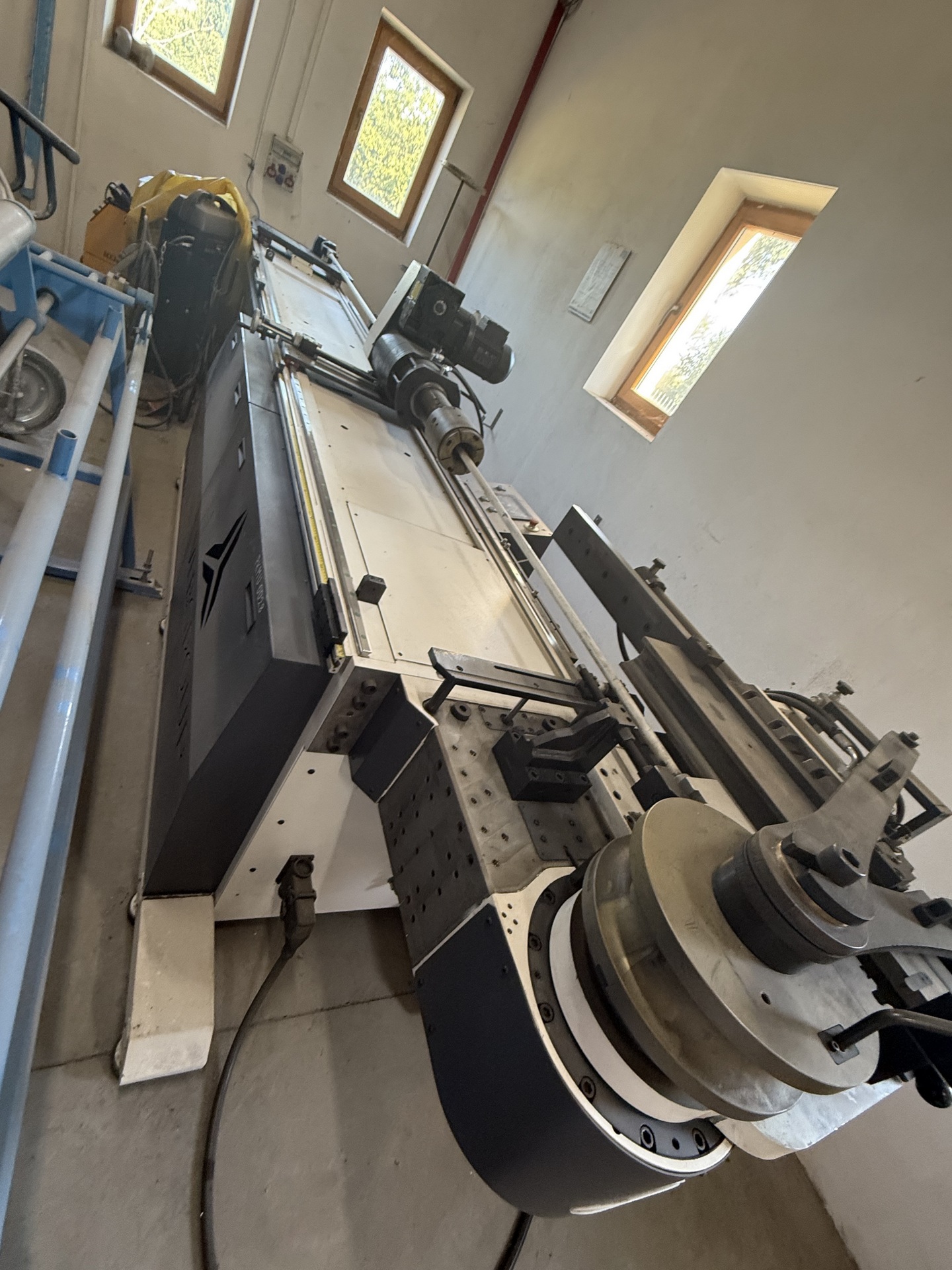

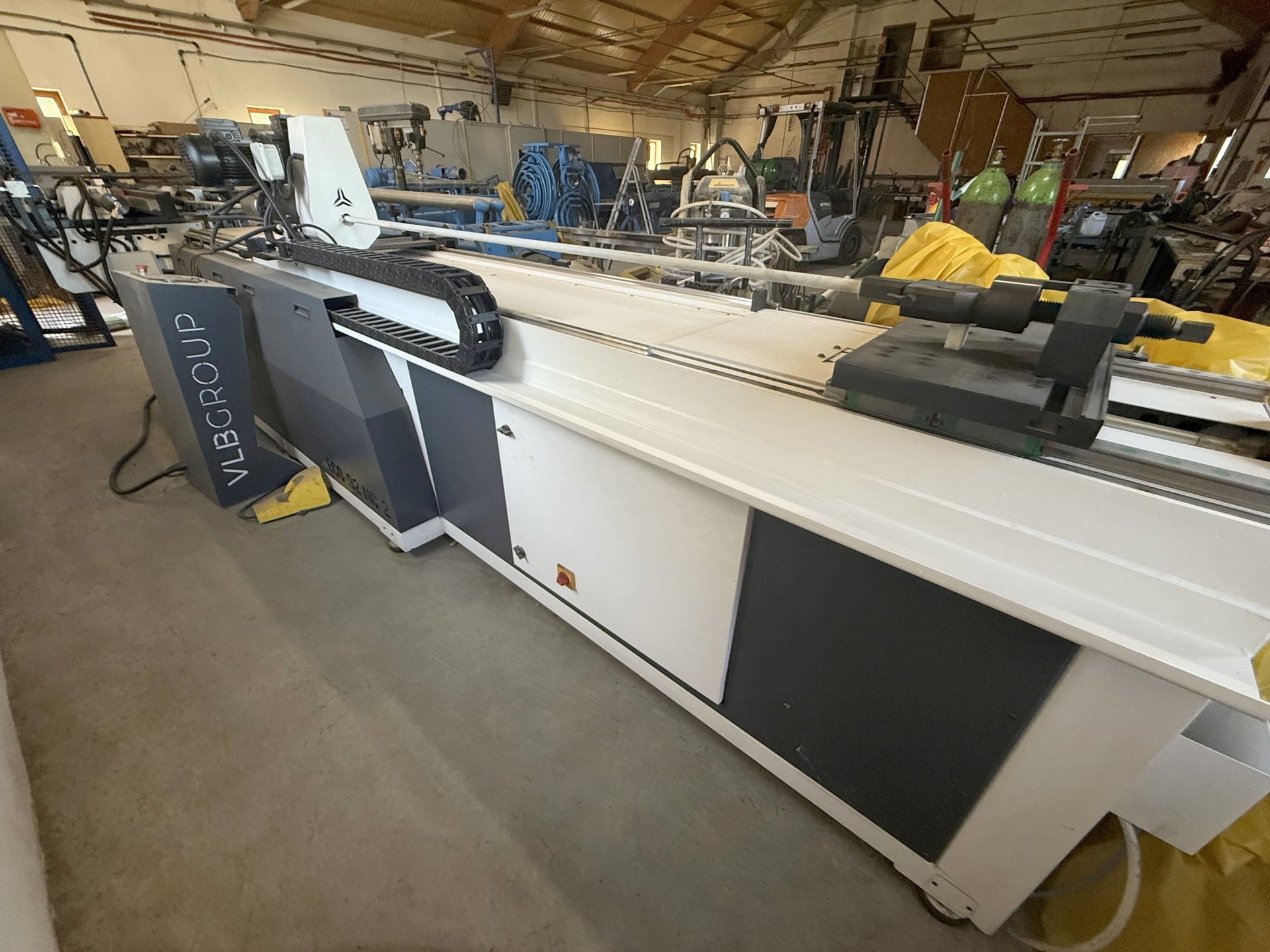

VLB GROUP ECO 92 NC2 tube bending machine

VLB GROUP ECO 92 NC2 tube bending machine was built in 2022 in Portugal by the VLB Group. The machine has only undergone a test run and has not been used in production conditions.

The machine is used for precision bending of tubes and profiles with a maximum diameter of 92 mm. All machining parameters are programmed in an advanced industrial controller with a touchscreen. It allows precise basic movements, i.e. bending angle (Y axis) and tube rotation (Z axis), to be performed fully electrically. The distance between bends (X axis) is, in turn, precisely set using mechanical stops. Thanks to the technical solutions used, the offered ECO 92 NC2 mandrel bending machine is the perfect choice for high-quality workpiece bending in small and medium series. The total weight of the machine is 2420 kg.

Technical specifications of the VLB GROUP ECO 92 NC2 tube and profile bending machine

• operating hours: 5 h
• NC control
• software: VLB 2D
• bending capacity: ⌀ 92×4 mm
• maximum bending radius: 230 mm
• CLR bending radius: 150 mm
• maximum tube length: 3000 mm
• working height: 1100 mm
• tool diameter: 30 mm; 60 mm
• die diameter: 90 mm
• lubricant tank capacity: 18 l
• installed power: 8.25 kW
• pneumatic system with filter unit and input control with manual condenser
• pneumatic system pressure: 6 bar
• ambient temperature: +5/+40°C
• relative humidity: 5-75%
• power supply: 380/400 V; 47-63 Hz
• dimensions (L x W x H): 5107 x 1429 x 1477 mm
• weight of the ECO 92 NC2 machine: 2420 kg
