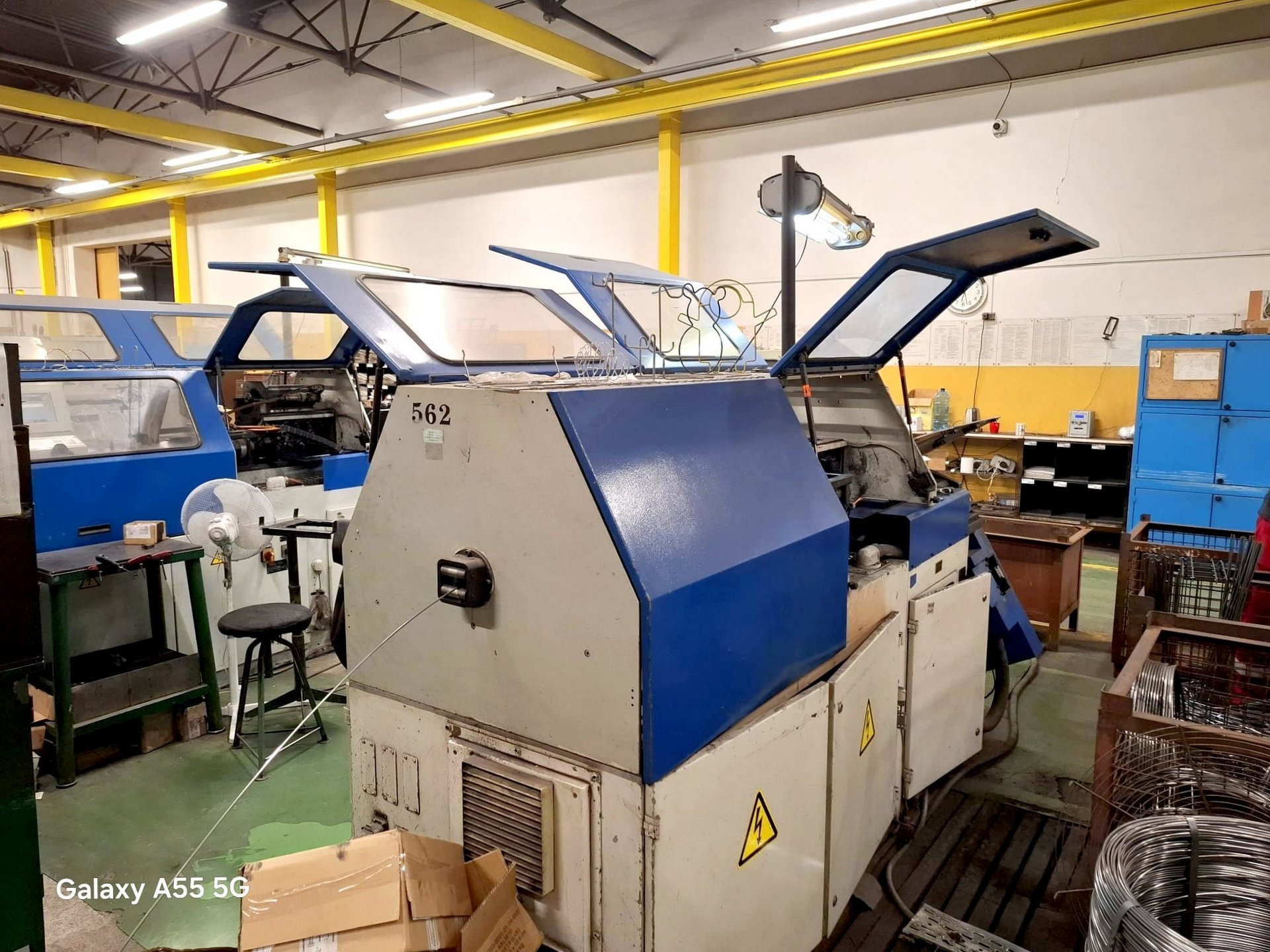

WAFIOS BM-3 CNC wire bending machine

WAFIOS BM-3 CNC wire bending machine was built in 1997 in Germany by WAFIOS AG. The offered machine is the perfect solution for the precise forming of wire with a maximum diameter of 6 mm. The entire 2D or 3D bending process is performed fully automatically. The material is fed towards the workspace with a bending head that performs pre-programmed movements. At the end of the process, the material is automatically cut off and the finished parts are dropped into a receiving container or onto a support table. The WAFIOS automatic wire bending machine is also very easy to operate. The operator of the machine has at his disposal an intuitive control system, whose capacious memory allows the storage of up to 5000 parts. The total weight of the machine, including the control cabinet, is approximately 4000 kg.

Technical specifications of the WAFIOS BM-3 wire bending machine

• wire diameter (Rm=<600 N/mm2): 1,5-6 mm
• wire diameter (Rm=<800 N/mm2): 1,5-5 mm
• wire diameter (Rm=<1200 N/mm2): 1,5-4 mm
• wire diameter (Rm=2000 N/mm2): 1.5-3 mm
• bending capacity: 60 bends/min

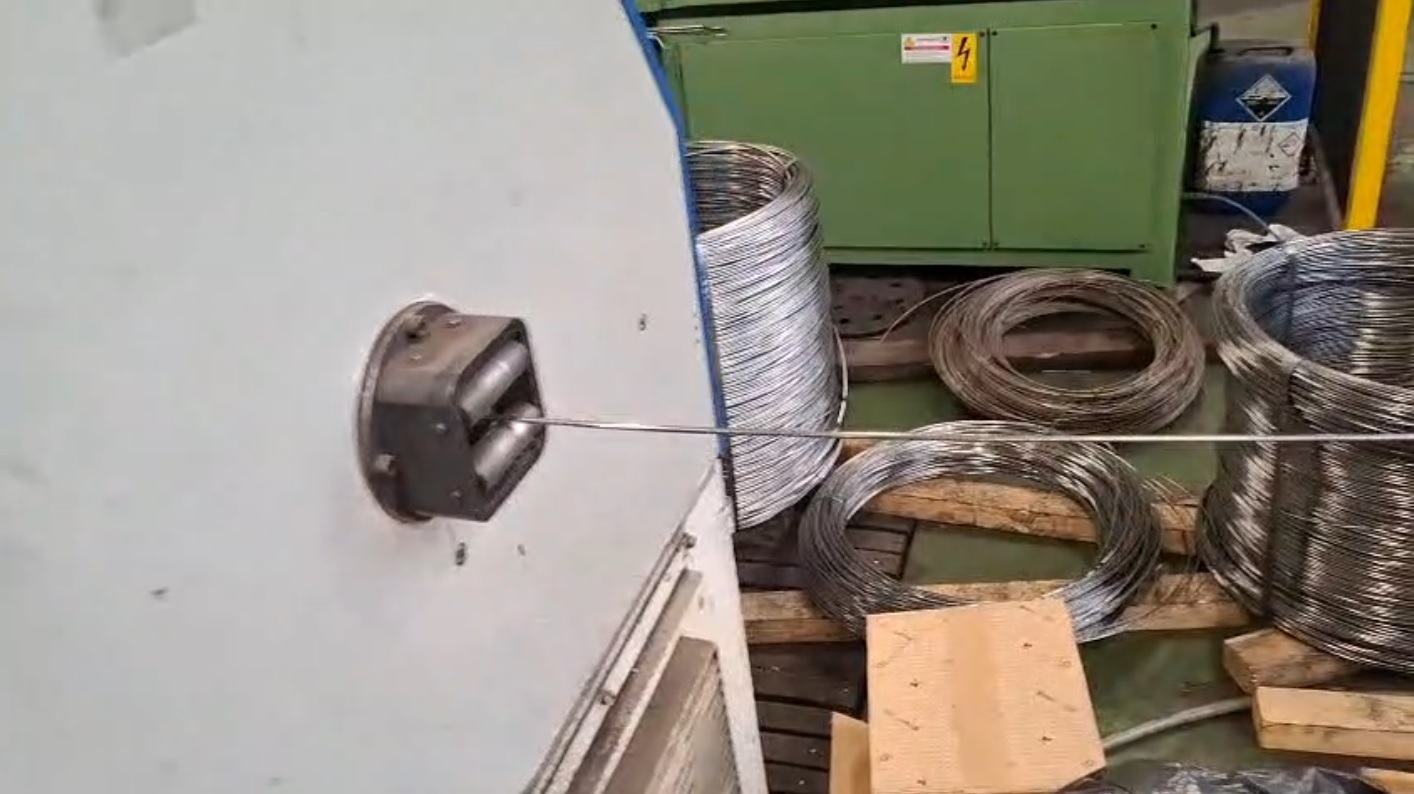

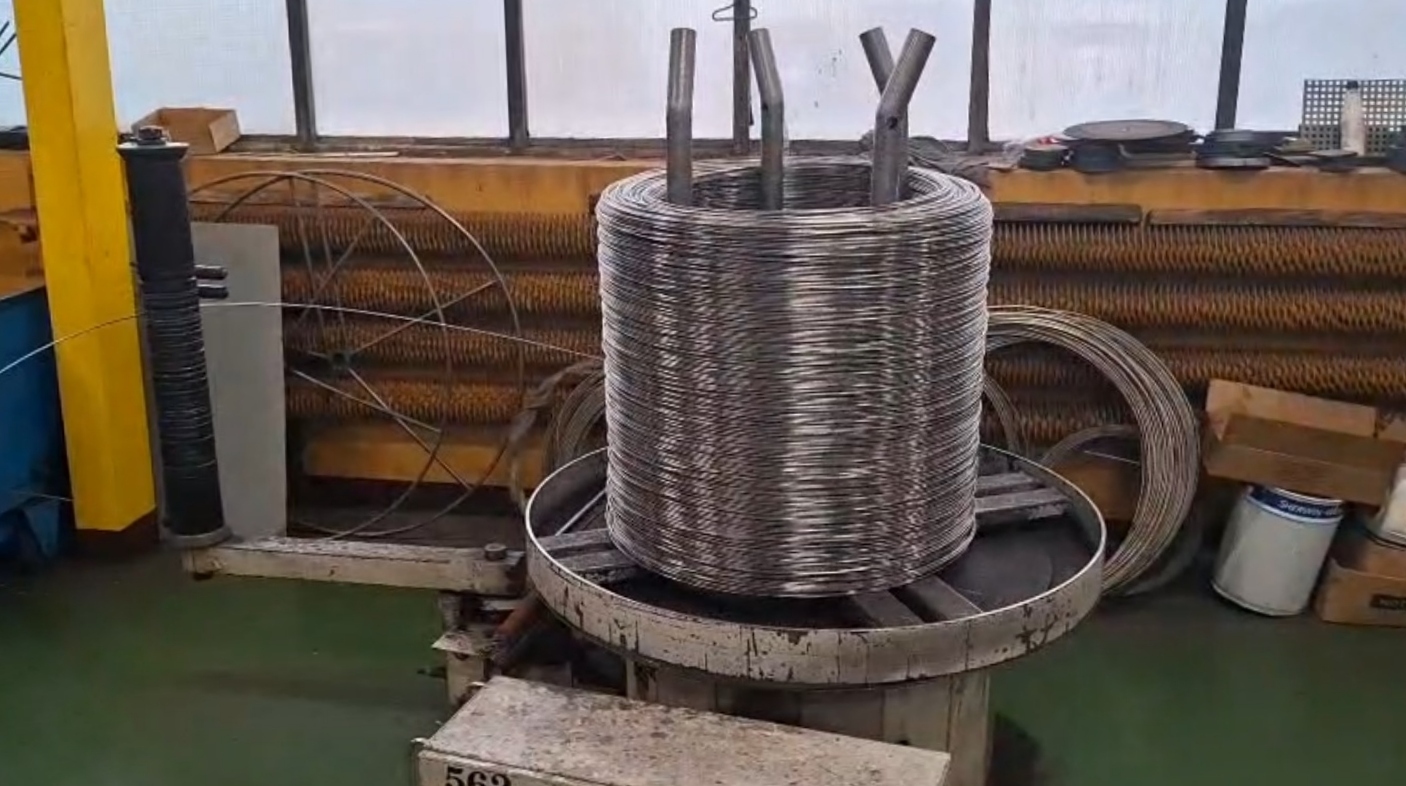

• maximum wire feed: unlimited
• maximum wire feed rate: 80 m/min
• bending head rotation angle: unlimited
• maximum bending head stroke (deflection): 75 mm
• bending head lateral adjustment: ± 20 mm
• working height to the wire centre: 1175 mm
• minimum distance between wire pick-up device and bending head: 235 mm
• compressed air pressure: 6 bar
• compressed air consumption: 1 l/min
• ambient temperature: +10°C/+40°C
• relative humidity: 70%
• sound level: approx. 75 dB(A)
• installed power: 10 kW
• space requirement (L x W x H): 5200 x 3100 x 2500 mm
• weight of the WAFIOS BM-3 machine including control cabinet: approx. 4000 kg

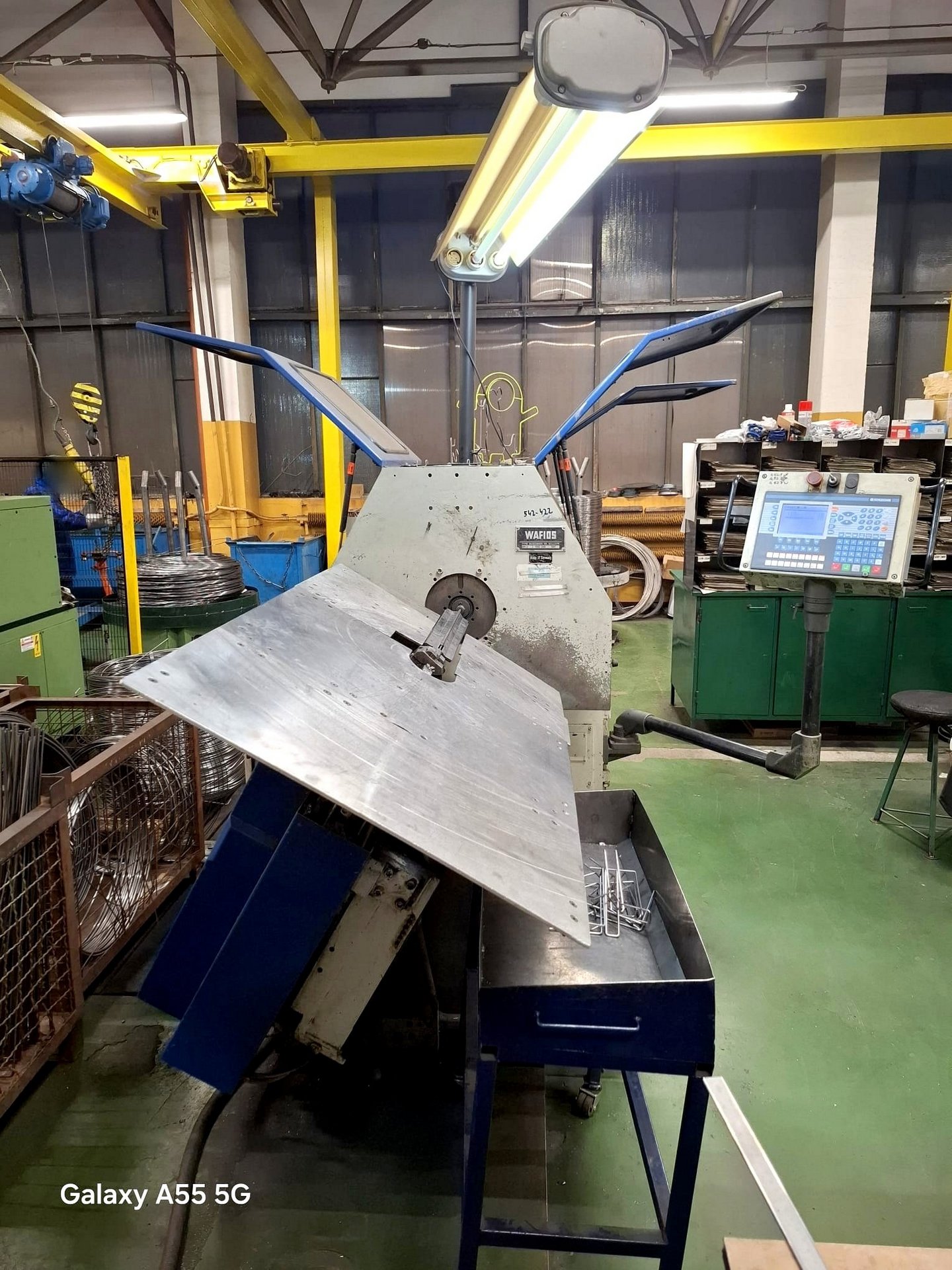

Equipment of the BM3 wire bender

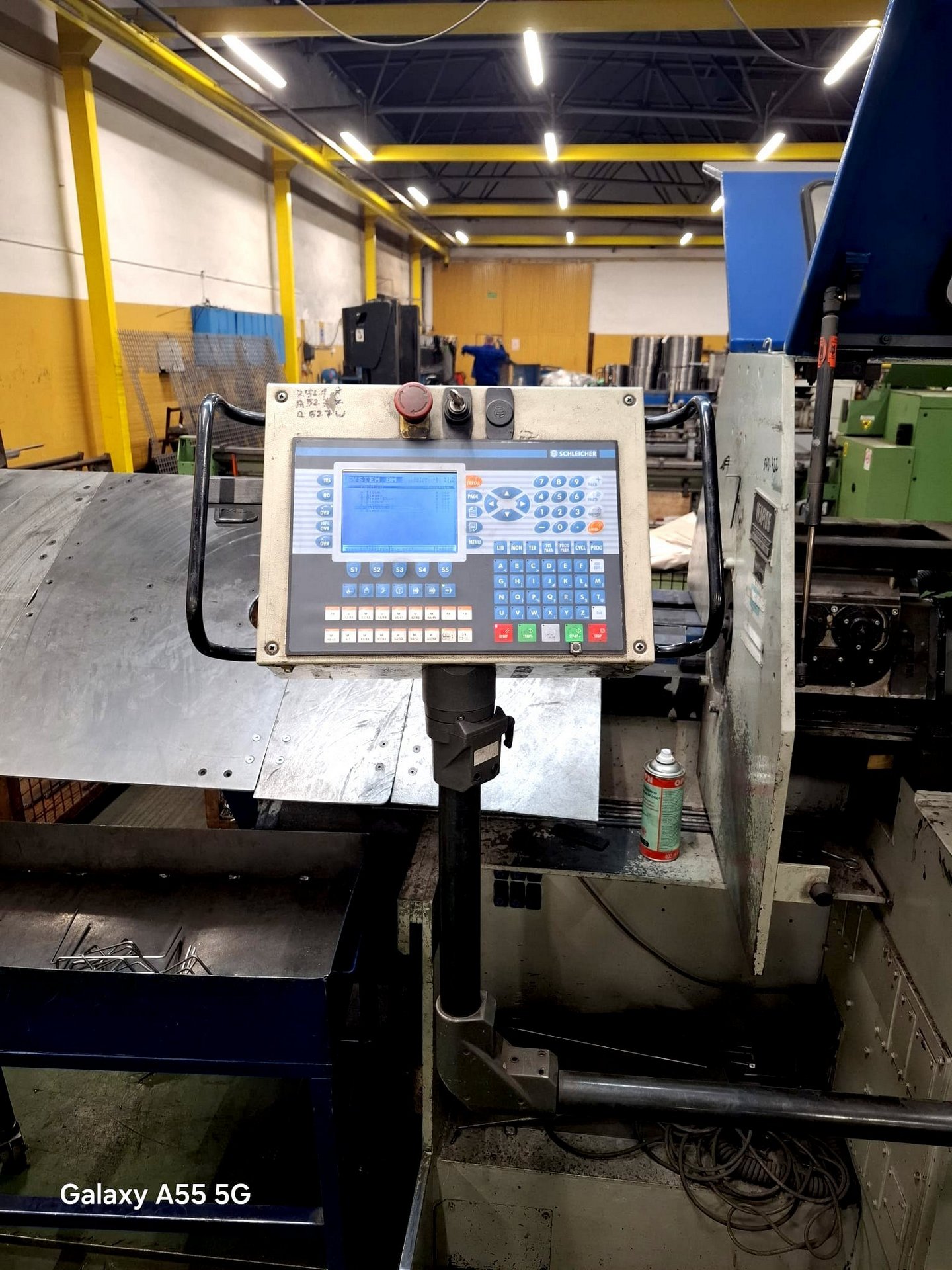

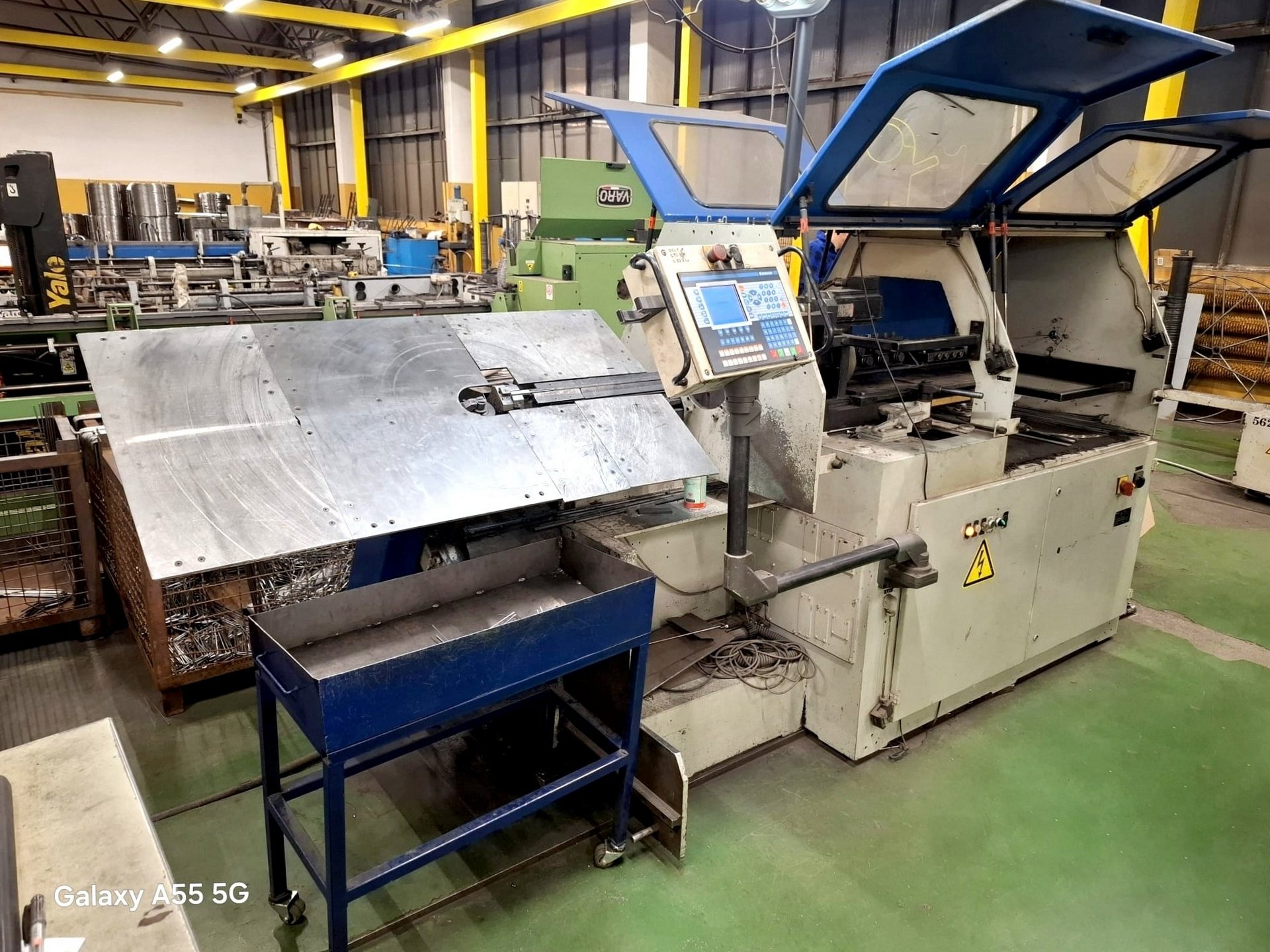

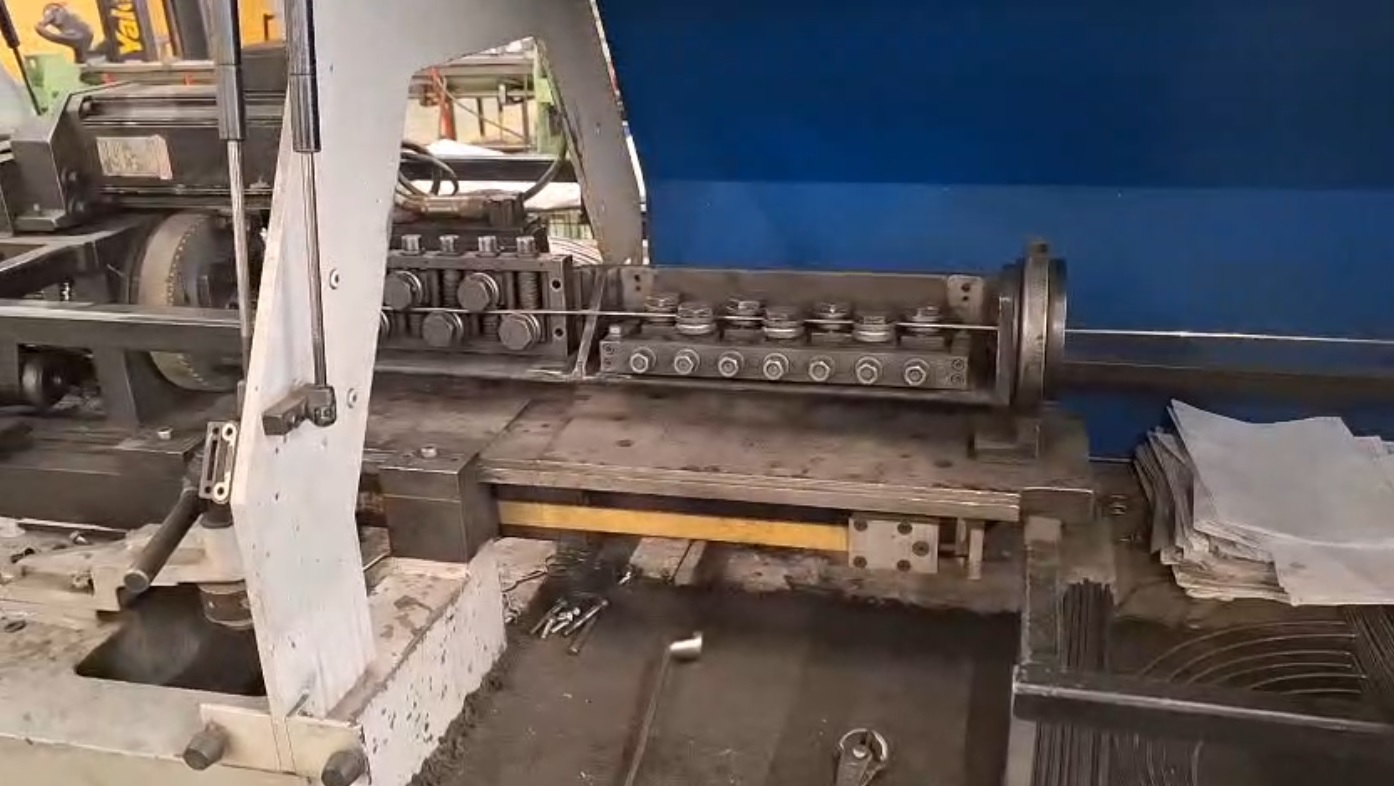

• CNC controller: SCHLEICHER ELECTRONIC

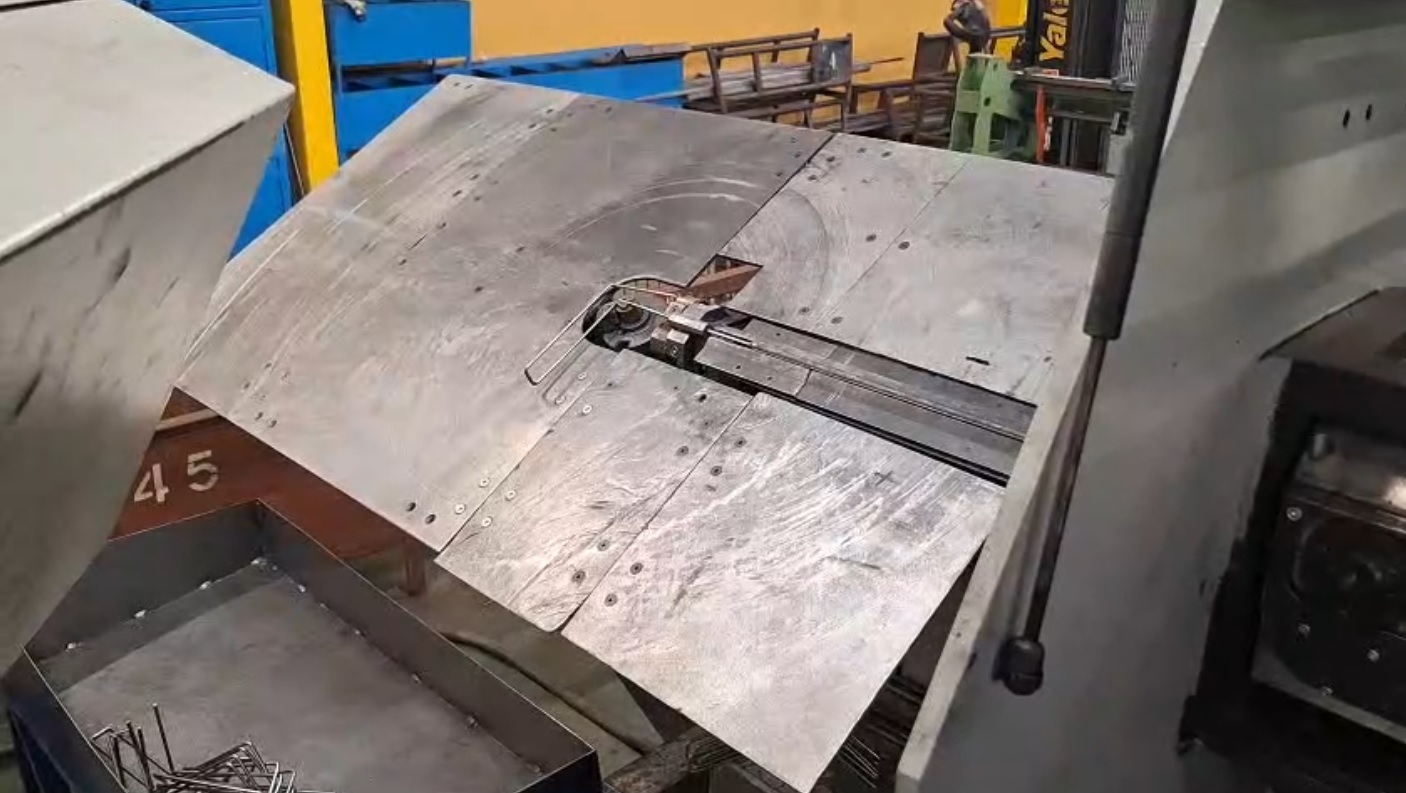

• roller-mounted work table for picking up bending sliders

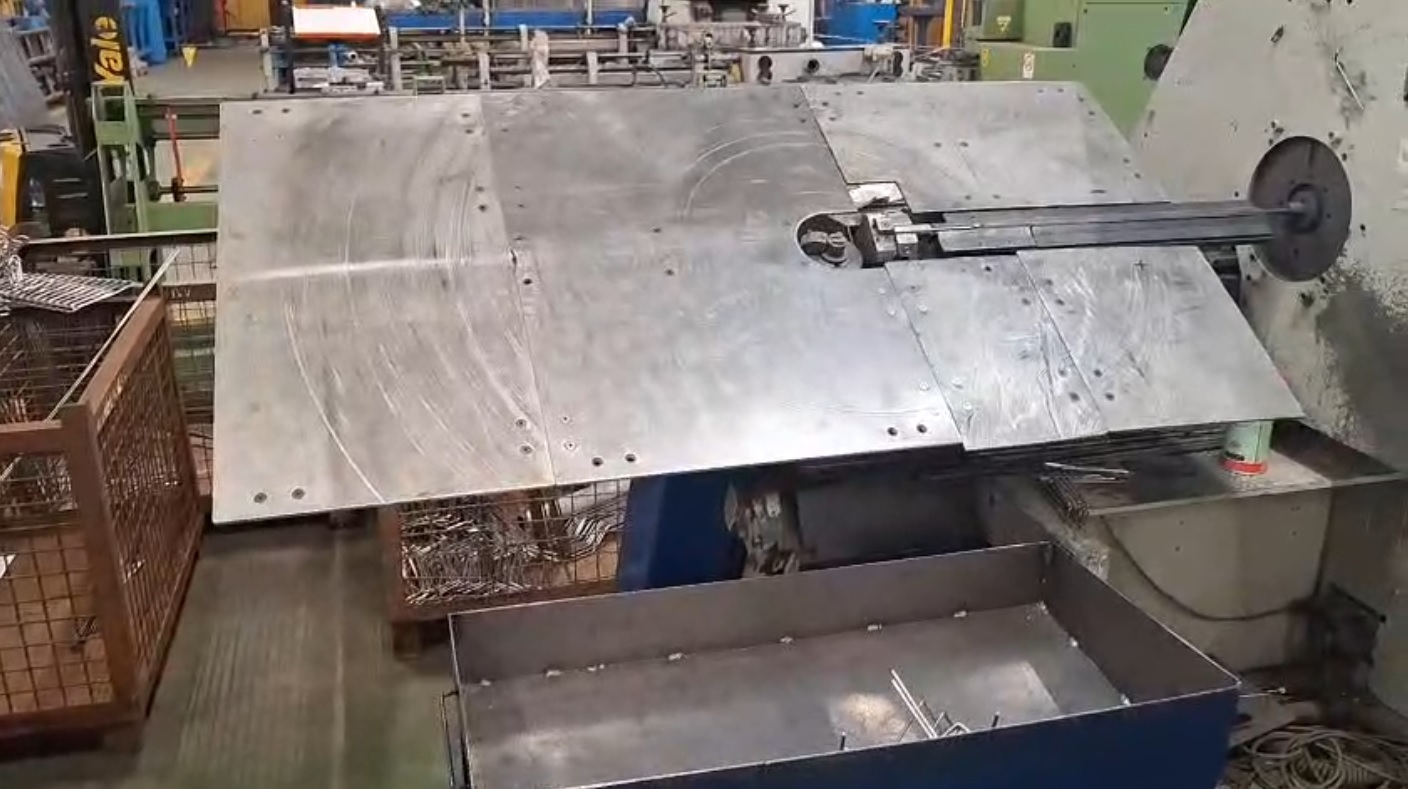

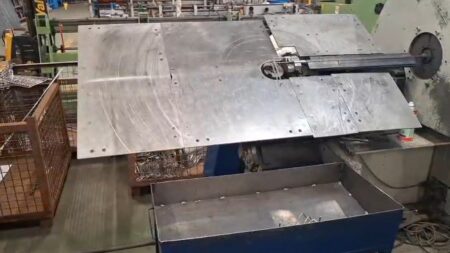

• numerically controlled support table

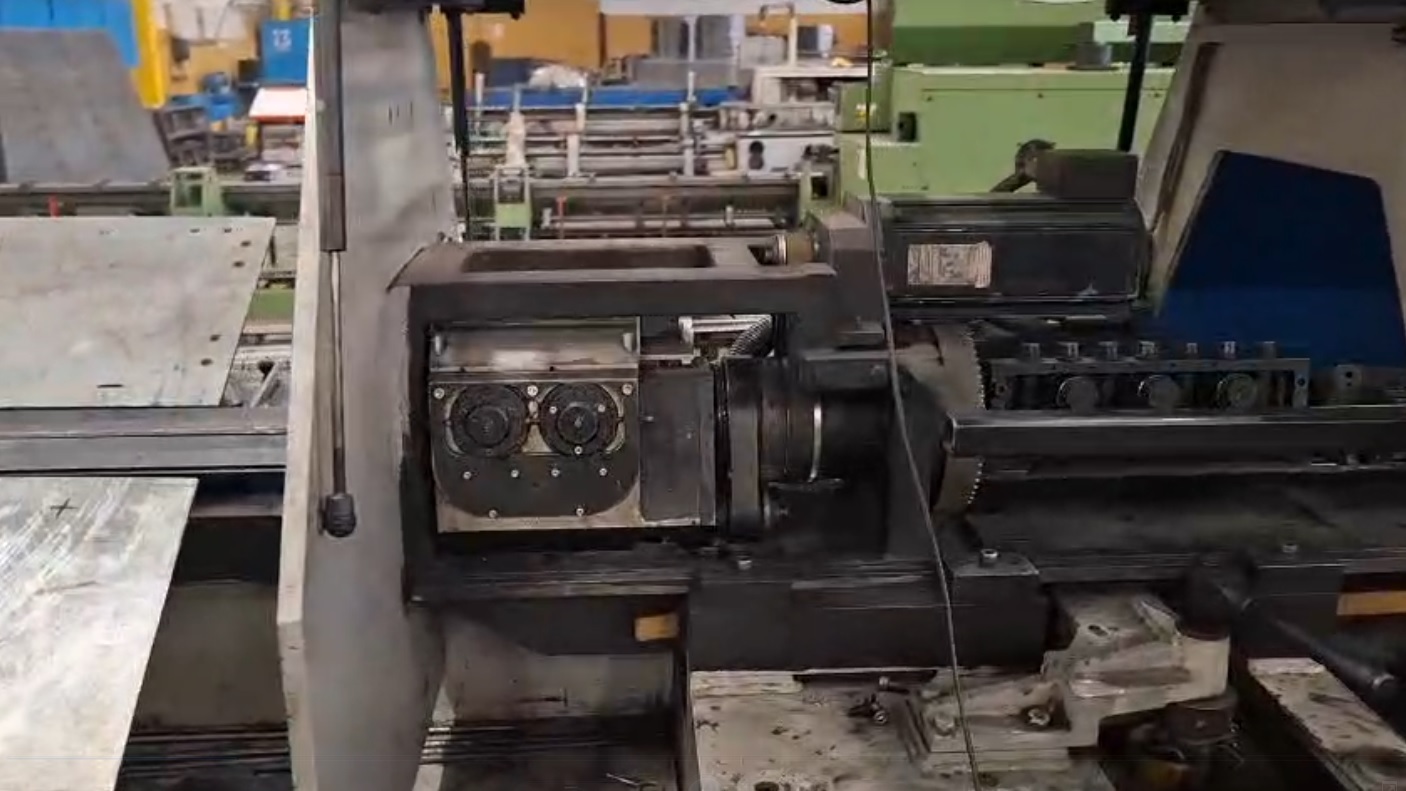

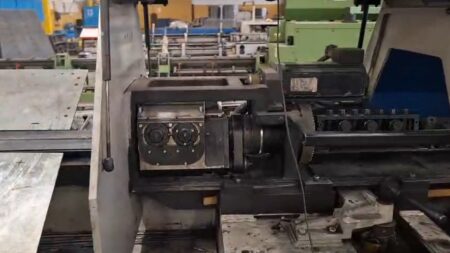

• bending spindle with rotary drive

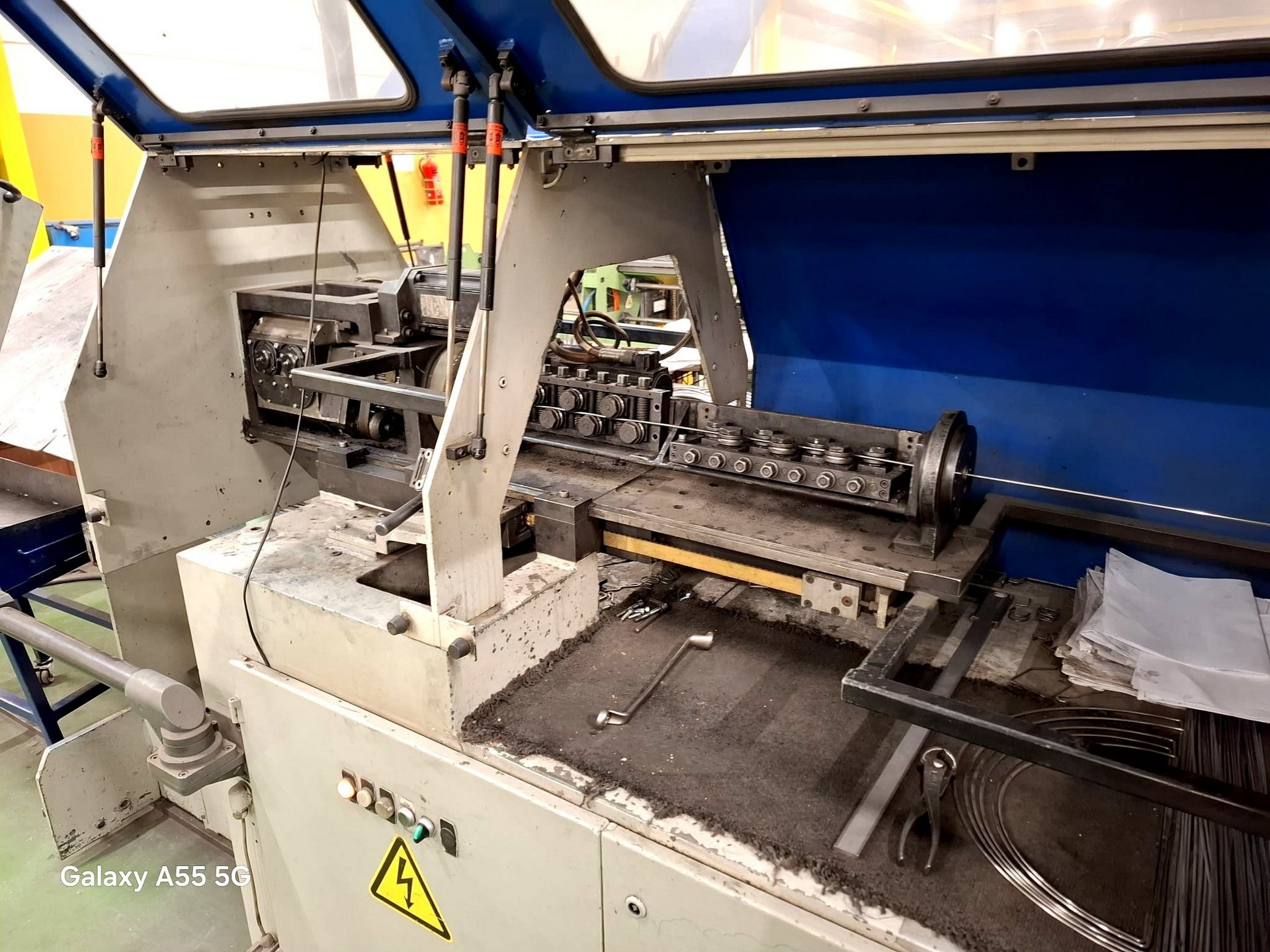

• pneumatically controlled transport chuck
• hand wheel
