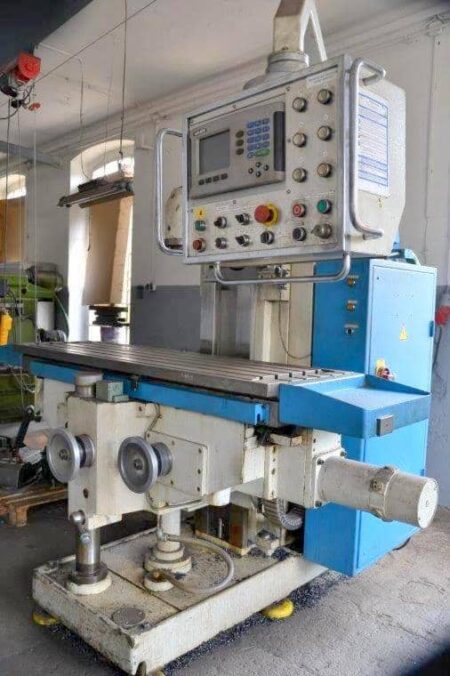

WAGNER FCU 1600 universal milling machine

WAGNER FCU 1600 universal milling machine manufactured in Germany in 1998 is designed for precision machining of workpieces in X,Y,Z axes with feeds of 1200 mm (X axis), 700 mm (Y axis) and 500 mm (Z axis). The machine characterised by its high reliability and efficiency performs the milling of workpieces on a large work table with a length of 1600 mm and a width of 500 mm using a precision spindle rotating at a maximum speed of 2050 rpm. The milling machine is also equipped with measuring rulers and digital readouts. The total weight of the machine is 4000 kg.

Technical data of the WAGNER FCU 1600 milling machine

• feed rates in the X/Y/Z axis: 1200/700/500 mm
• feed speed in the X axis: 10-1000 mm/min
• feed speed in the Y axis: 10-1000 mm/min
• feed speed in the Z axis: 5-500 mm/min
• rapid traverse in the X/Y/Z axis : 3000/3000/1500 mm/min
• working table dimensions (L x W): 1600 x 500 mm
• number of T-slots: 5
• width of T-slots: 18 mm
• distance between T-slots: 80 mm
• maximum spindle speed: 2050 rpm
• minimum spindle speed: 30 rpm
• number of spindle speeds: 27
• spindle taper: ISO 50
• spindle power: 7.5 kW
• maximum distance between spindle tip and work table: 550 mm
• minimum distance between spindle tip and work table: 50 mm
• maximum distance between spindle axis and column: 728 mm
• minimum distance between spindle axis and column: 28 mm
• digital readouts
• measuring rulers
• power supply: 400 V; 50 Hz
• overall dimensions (L x W x H): 2475 x 2260 x 2180 mm
• weight of machine FCU 1600: 4000 kg
