WALTER SF 37 KS screw compressor

The WALTER SF 37 KS screw compressor was built by the Polish company WALTER Kompressortechnik in 2014. The 37 kW freestanding screw compressor is equipped with a direct drive and inverter. The capacity at an operating pressure of 10 bar is 5.8 m3/min. In addition, together with the compressor we offer a 3000 dm3 vertical equalization tank together with a WALTER WDFC 396 refrigeration dryer. The refrigeration dryer is equipped with a control panel and has a built-in 1 and 0.01 u filter. The total weight of the WALTER SF 37 KS screw compressor including the dryer is 835 kg.

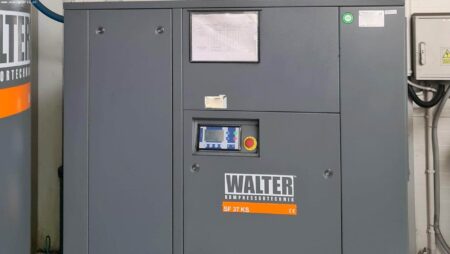

Technical parameters of the screw compressor WALTER SF 37 KS

• working pressure: 10 bar
• capacity: 5.8 m3/min
• power: 37 kW
• connector: R 1 1/4″
• noise level: 71 db (A)
• dimensions (L x W x H): 1575 x 1030 x 1750 mm
• compressor weight: 715 kg

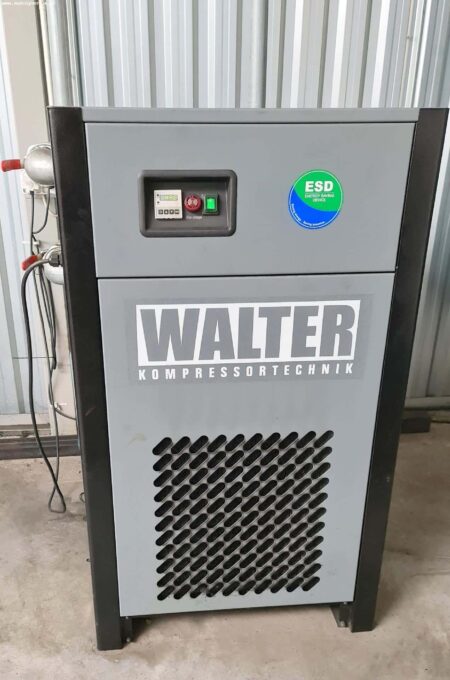

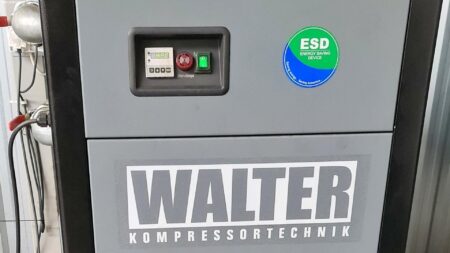

Specifications of the WALTER WDFC 396 refrigeration dryer

• capacity (hrs.): 396 m3/h
• capacity (min.): 6.6 m3/min
• connector: 2″
• voltage: 230/1/50 V
• refrigerant: R134.a
• pressure drop: 120 mbar
• working pressure: 16
• 2 built-in micron filters: 1 and 0.01 u
• dehumidifier weight: 120 kg
• dimensions (L x W x H): 750 x 700 x 1170 mm

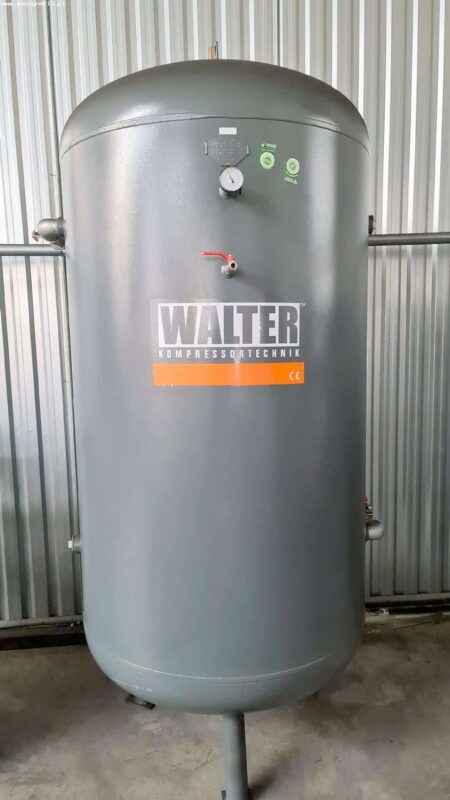

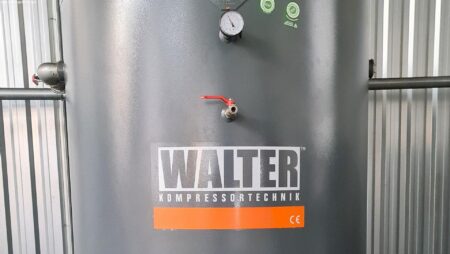

• dimensions of expansion tank: diameter – approx. 1.2 m, height – approx. 2.6 m
