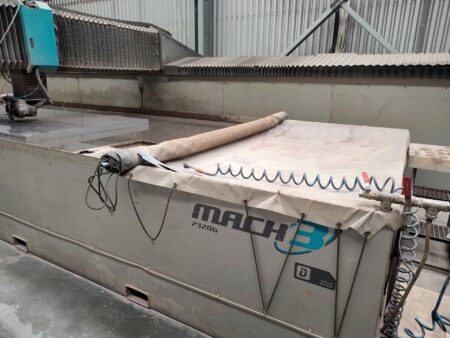

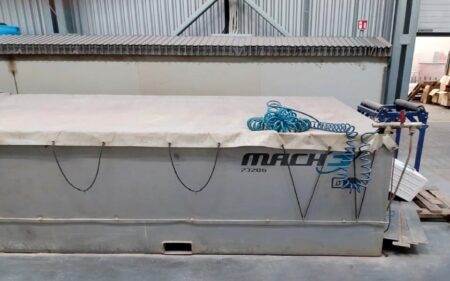

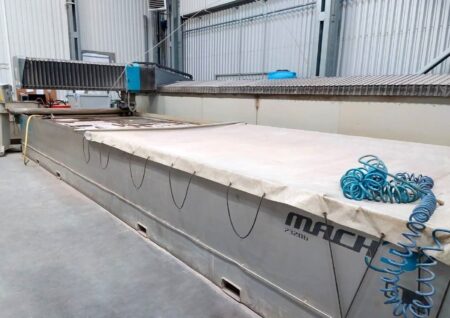

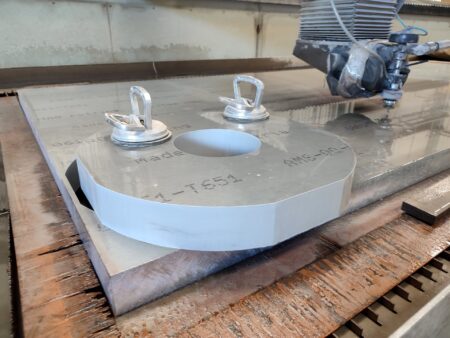

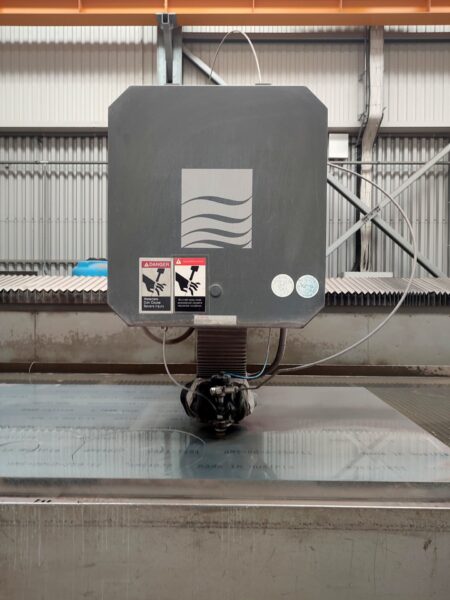

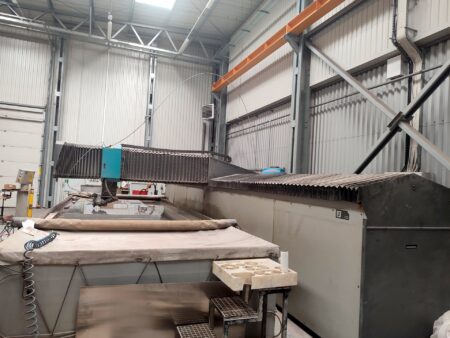

WaterJet FLOW MACH 3 7320B was built in 2010. The water cutting machine is designed for cutting workpieces with a maximum thickness of 180 mm made of e.g. metal or stone. The machine uses a mounted FLOW Paser Mach 4 cutting head equipped with the most advanced FLOW UltraPierce technology, making it possible to cut even the most fragile workpieces without chipping or cracking.

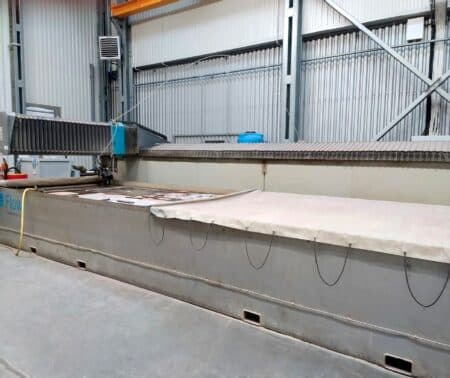

The machine body, made of high quality annealed steel, guarantees the best working stability even under the heaviest loads. The open structure of the water cutting machine considerably facilitates the loading and unloading of workpieces on the 7300 mm long and 2000 mm wide work table, by providing free access to the machine from four sides. The easy and user-friendly FlowMaster software allows you to design the cut-out shapes in any material of any thickness.
The waterjet is offered with a wide range of equipment, including the FLOW HYPERJET 100 high pressure pump, an additional cutting head for the precise cutting of thin materials with 0.5 mm stream width and light curtains to prevent workers from entering the working area of the machine.
Technical specifications of the FLOW MACH 3 7320B water cutting machine
- cut materials: metals, ceramics, glass, stone
- maximum workpiece thickness: 180 mm
- work table size (L x W): 7300 x 2000 mm
- maximum cutting speed: 7.6 mm/min
- high speed longitudinal feed: 12.5 mm/min
- straightness accuracy: +/- 0.04 mm per 1 m
- FLOW UltraPierce technology
- maximum suction capacity of abrasive: 1000 kg/h
- weight of the abrasive removal system: 400 kg
- maximum pump pressure: 6000 bar
- MACH 3 7320B machine dimensions (L x W x H): 9120 x 3950 x 2300 mm
Water cutting machine equipment

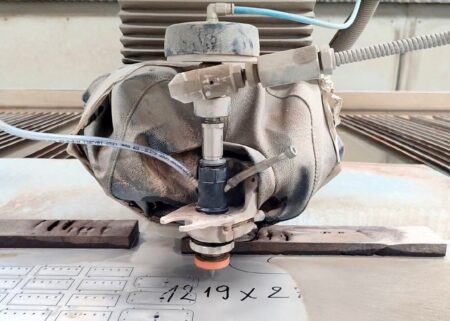

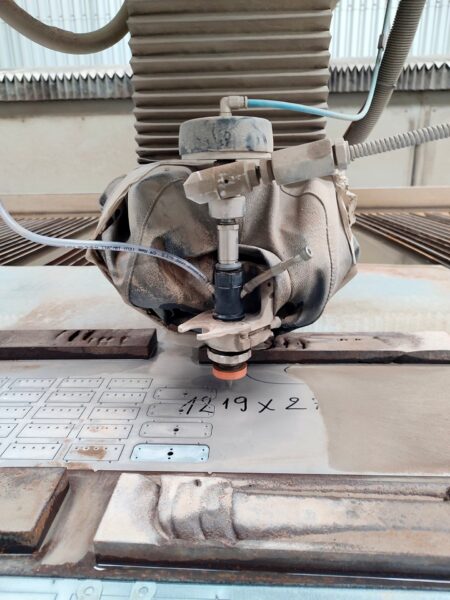

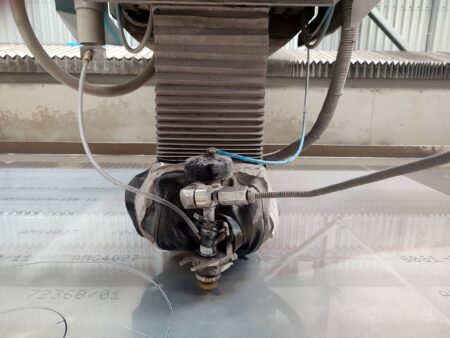

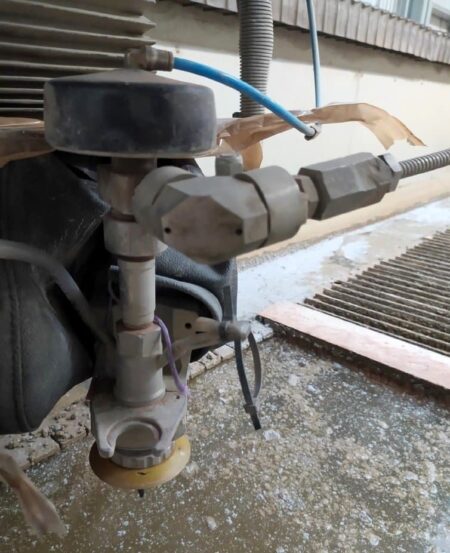

- cutting head: FLOW Paser Mach 4
- additional cutting head for precise cutting of thin materials with 0.5 mm stream width

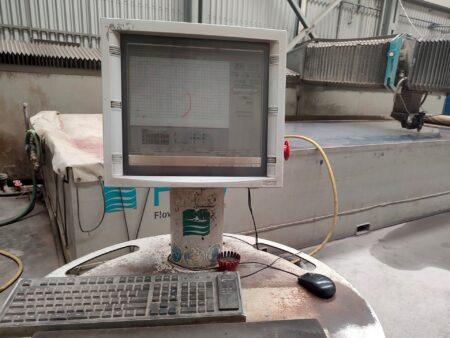

- machine software: FlowMaster

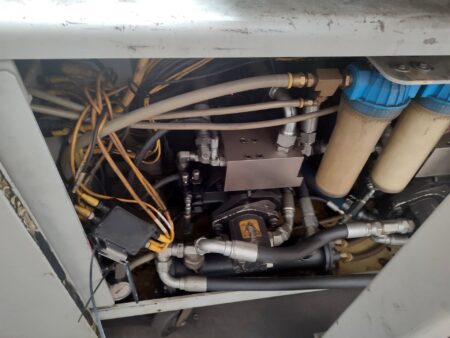

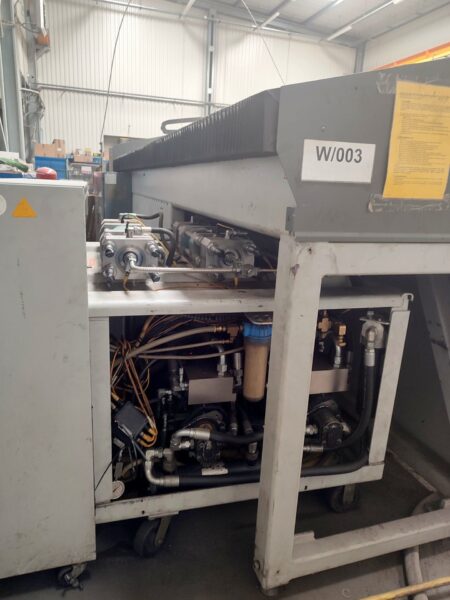

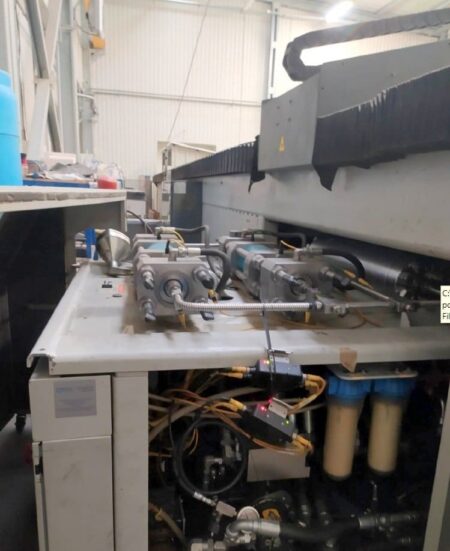

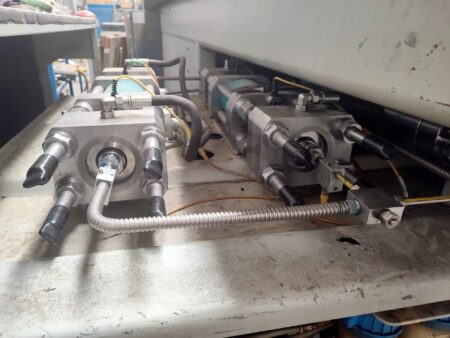

- high pressure pump: FLOW HYPERJET 100

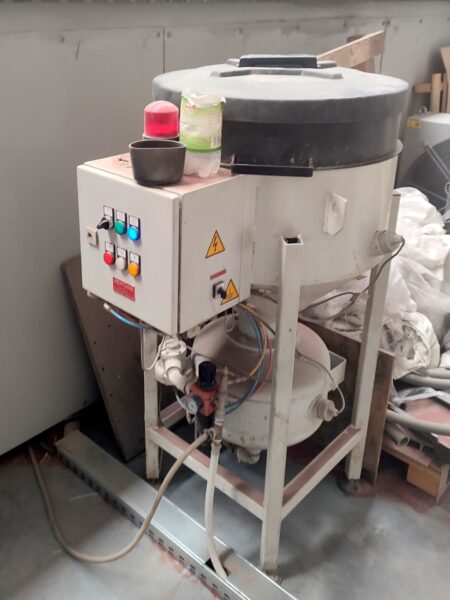

- abrasive feeding and dosing system: FLOW Paser

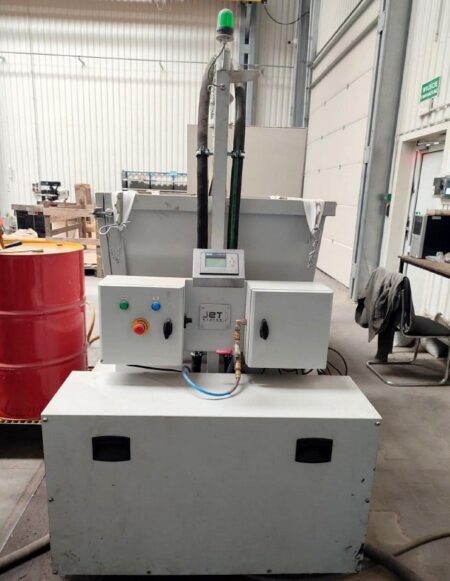

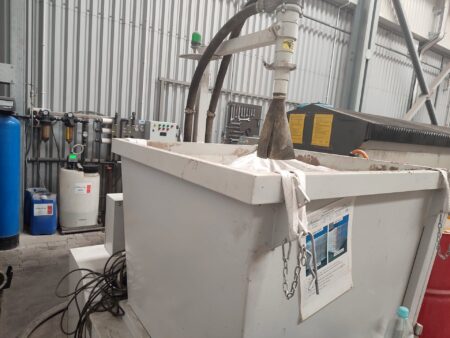

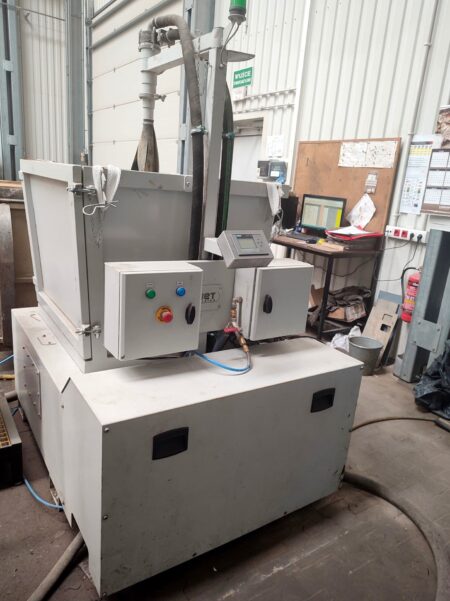

- abrasive removal system: JS-750

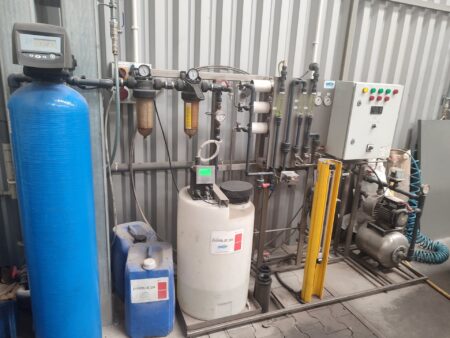

- water treatment system: DROP SERVICE SUW R.O.
- light curtains
