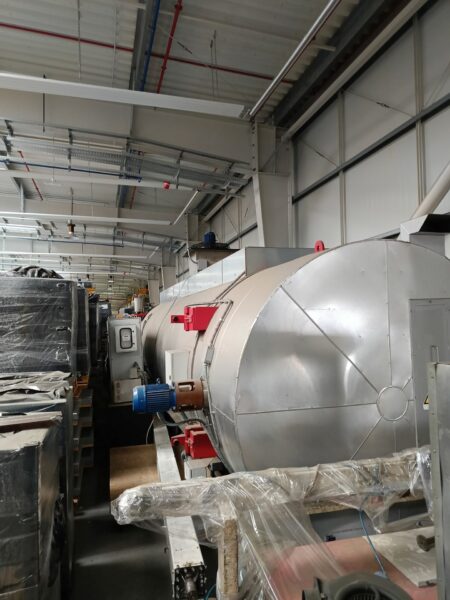

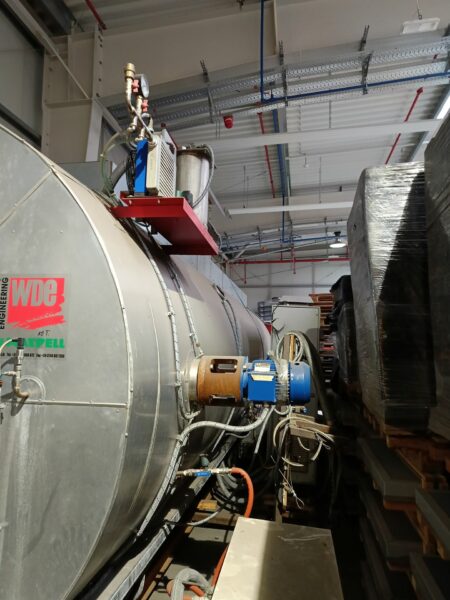

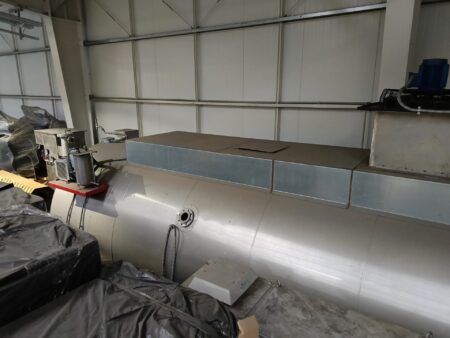

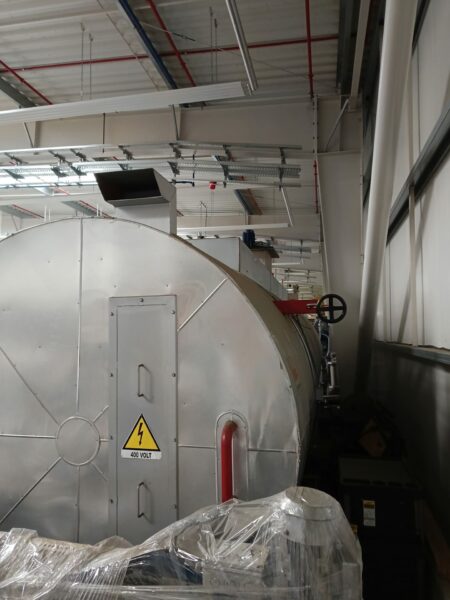

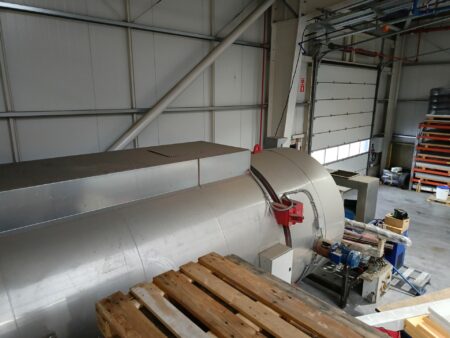

WDE MASPELL TVS ROLL 1.8 E 8 L vacuum kiln

WDE MASPELL TVS ROLL 1.8 E 8 L vacuum kiln was built in 2015 by the Italian company WDE MASPELL S.r.l.. The machine is used for the heat treatment of solid wood, in the form of planks or pre-cut pieces with a maximum length of 8 metres. The innovative vacuum technology, compared to traditional methods of impregnating wood, reduces treatment times by up to 50%, while also reducing emissions of harmful substances into the environment. High temperature combined with vacuum improves the intrinsic properties of the wood by changing its chemical structure. As a result, the wood elements take on a very dark colour and, most importantly, become harder and more resistant to external influences, i.e. moisture or fungi. The TVS ROLL 1.8 E 8 L vacuum wood dryer is also suitable for fumigation, i.e. the process of insect removal.

All thermal processes are optimised for maximum heat utilisation. The TVS ROLL 1.8 E 8 L vacuum drying klin can be integrated into other production systems in the plant, making it an excellent choice for structural timber producers, carpenters, lumber companies and furniture manufacturers. The control system with its intuitive interface, on the other hand, ensures easy operation, as well as the adaptation of precise process parameters to specific production requirements. The WDE MASPELL TVS ROLL wood dryer weighs 8000 kg.

Technical specifications of the WDE MASPELL TVS ROLL 1.8 E 8 L wood drying machine

• PLC control
• maximum charge quantity: 1
• maximum charge size (L x W x H): 8000 x 1200 x 1400 mm
• net charge volume: 8 m3
• heating: electrical resistors
• working chamber dimensions (L x W x H): 11000 x 3000 x 3300 mm
• working chamber weight of WDE MASPELL TVS ROLL 1.8 E 8 L machine: 8000 kg
