WEBSTER & BENNETT vertical carousel lathe

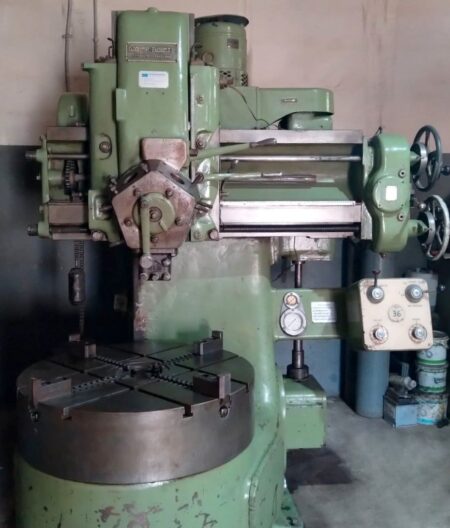

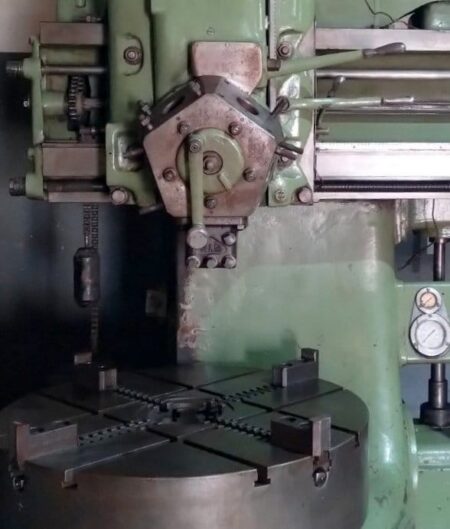

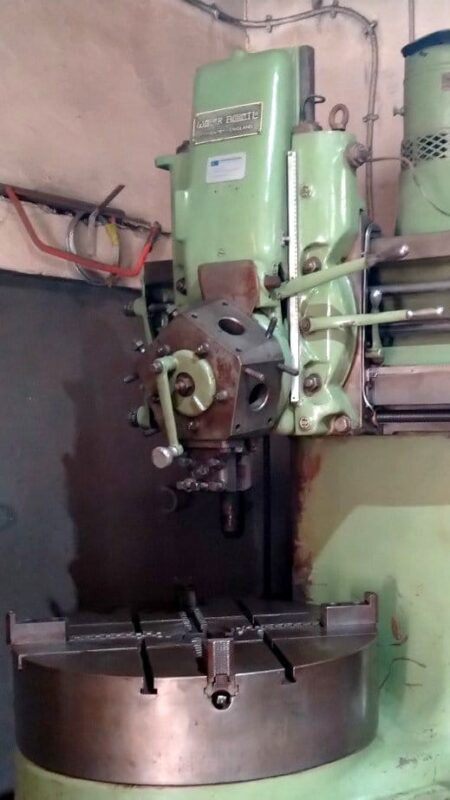

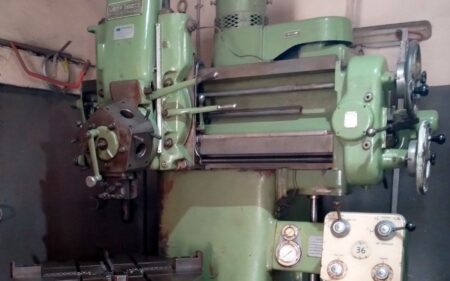

WEBSTER & BENNETT vertical carousel lathe, made in England, allows machining a workpiece with a maximum diameter of 900 mm and a height of 710 mm. The machine has a work table with a diameter of 914 mm, rotating at a speed from 5 to 125 revolutions per minute. The turret head of the lathe moves 660 mm vertically and 558 mm horizontally, and has a swivel of 45 degrees. The total weight of the machine is approx. 4 tons.

Technical data of WEBSTER & BENNETT lathe

• diameter of the working table: 914 mm
• turning diameter: 900 mm
• maximum height of workpiece: 710 mm
• table rotation speed: 5 – 125 rpm
• horizontal head travel: 558 mm

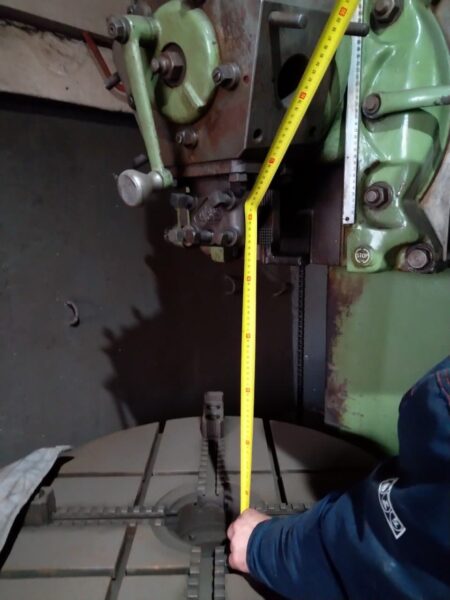

• vertical head travel: 660 mm
• turret swivel: 45 degrees
• smallest distance between lathe chuck and vice: 0 mm
• largest distance between lathe chuck and vice: 520 mm

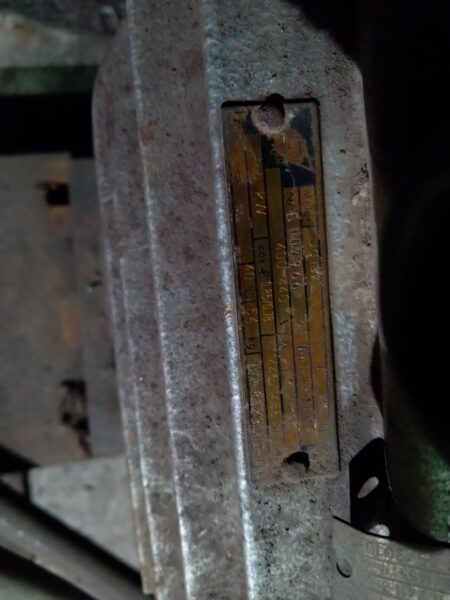

• main motor power: 5.5 kW
• machine dimensions (L x W x H): 1.9m x 2.5m x 2.5m
• weight: approx. 4 t

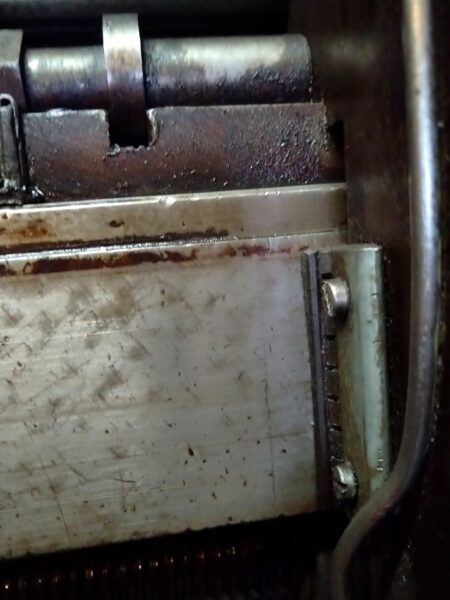

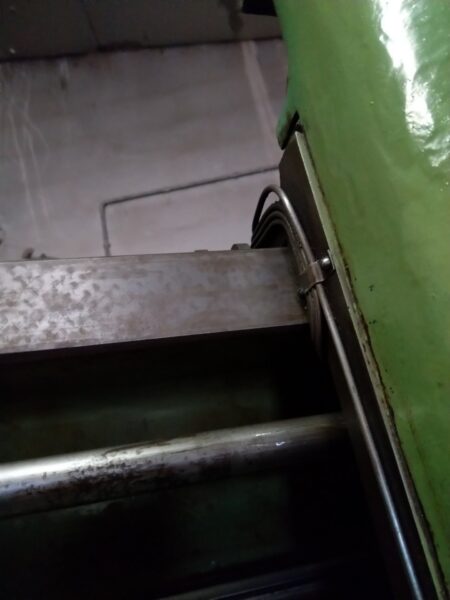

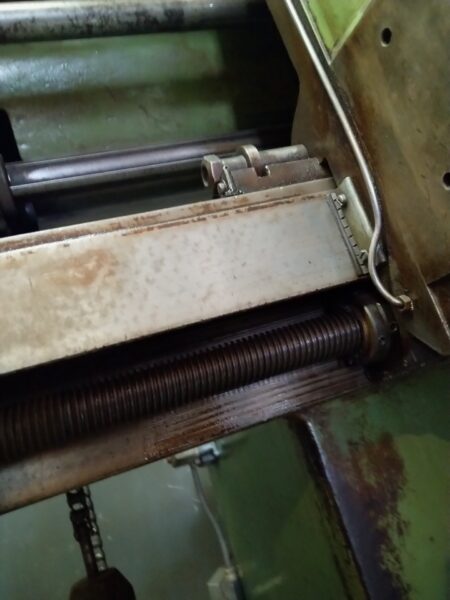

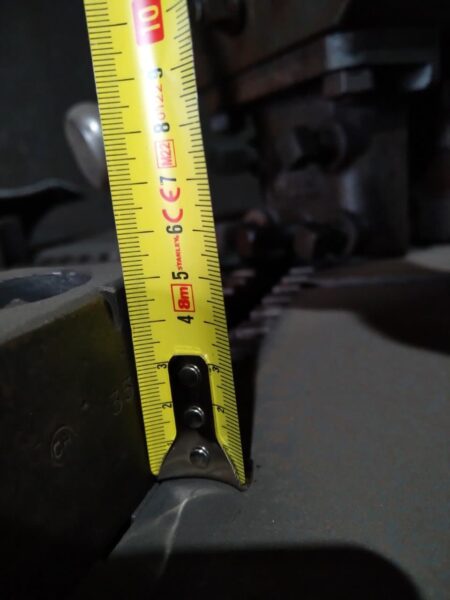

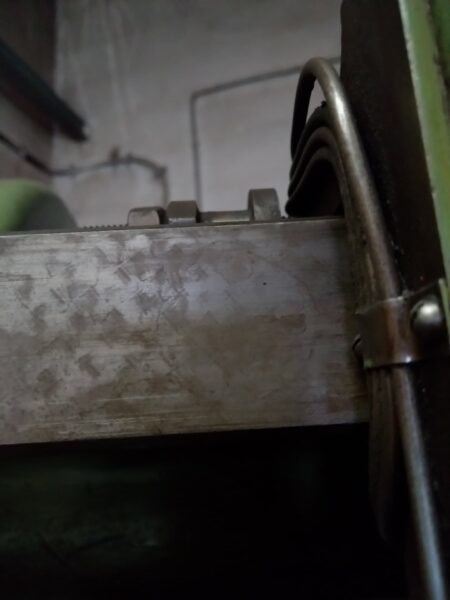

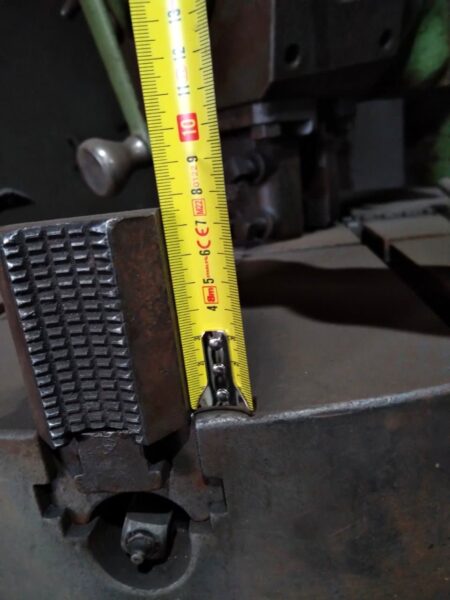

The machine has run for a small amount of time, as evidenced by the almost imperceptible wear on the guides.
