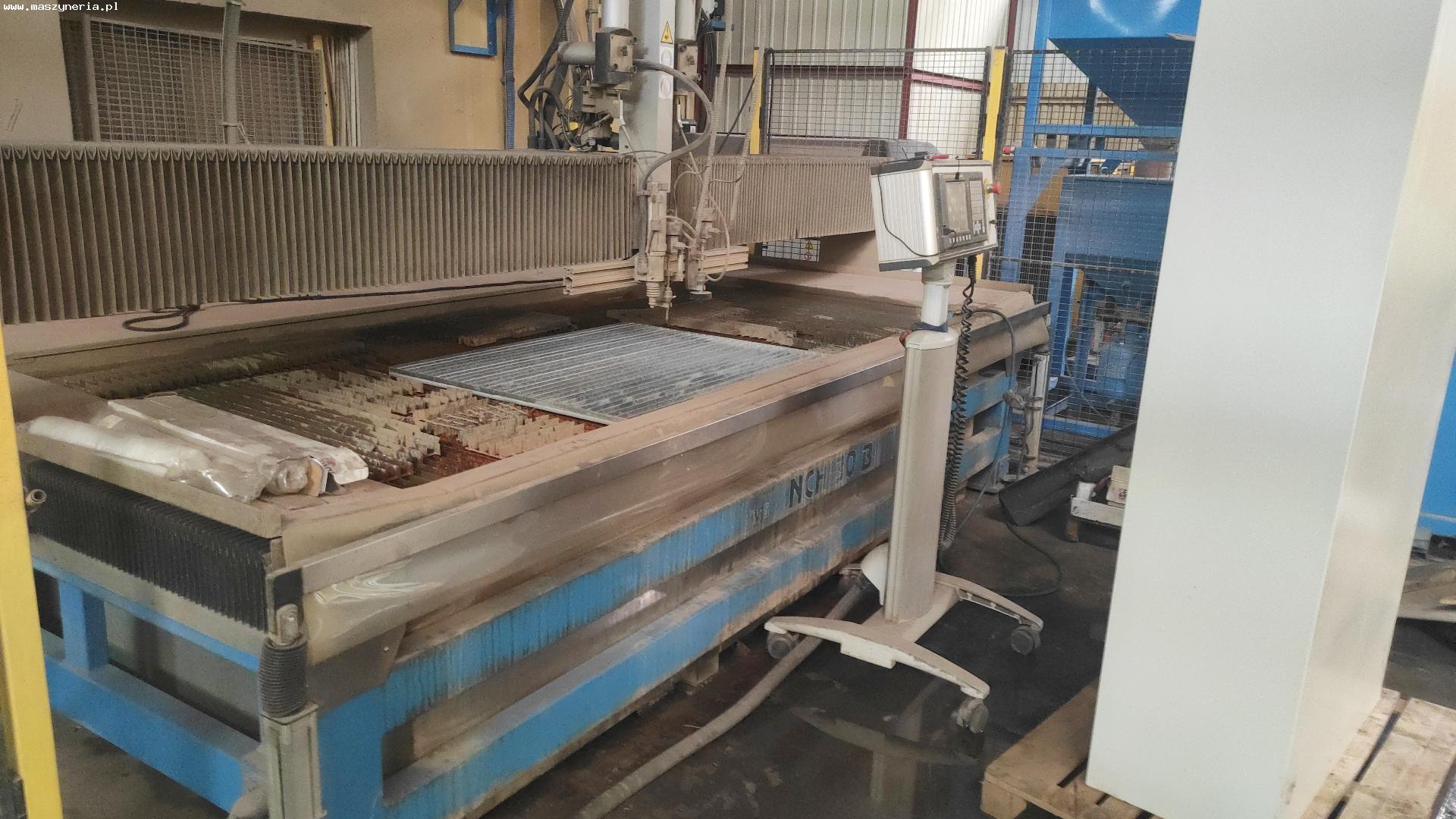

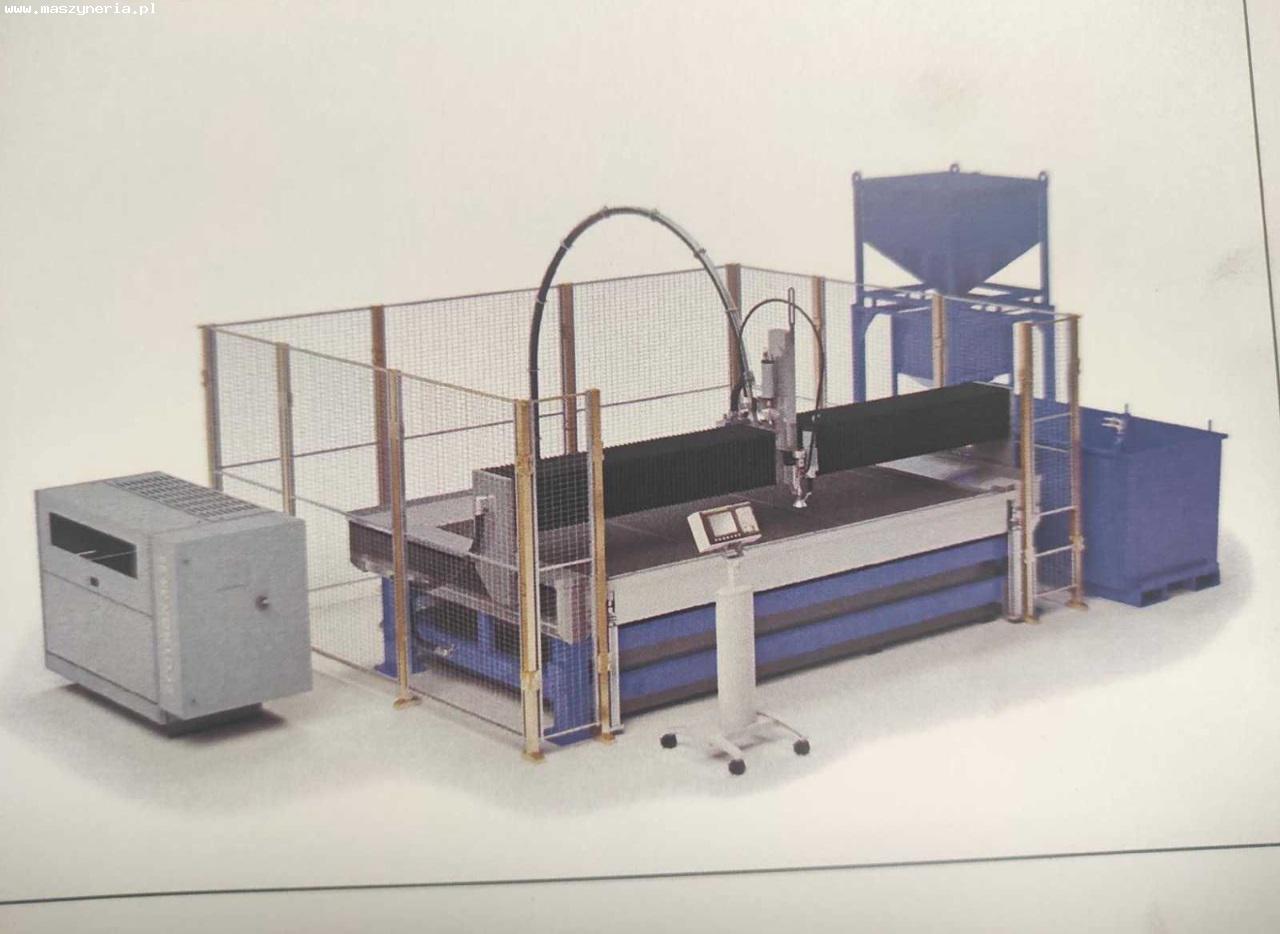

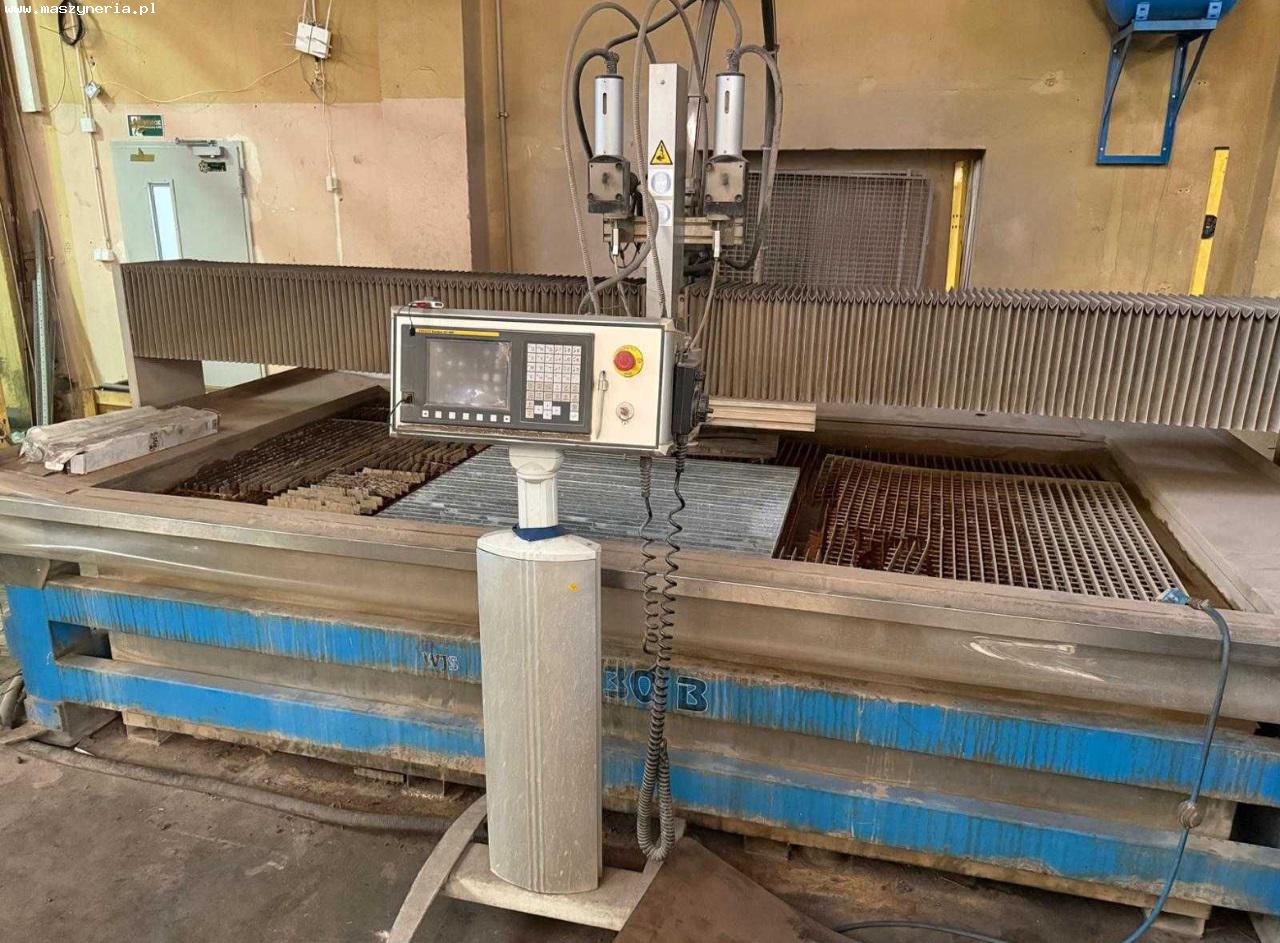

WJS NCH 30 B CNC waterjet cutting machine

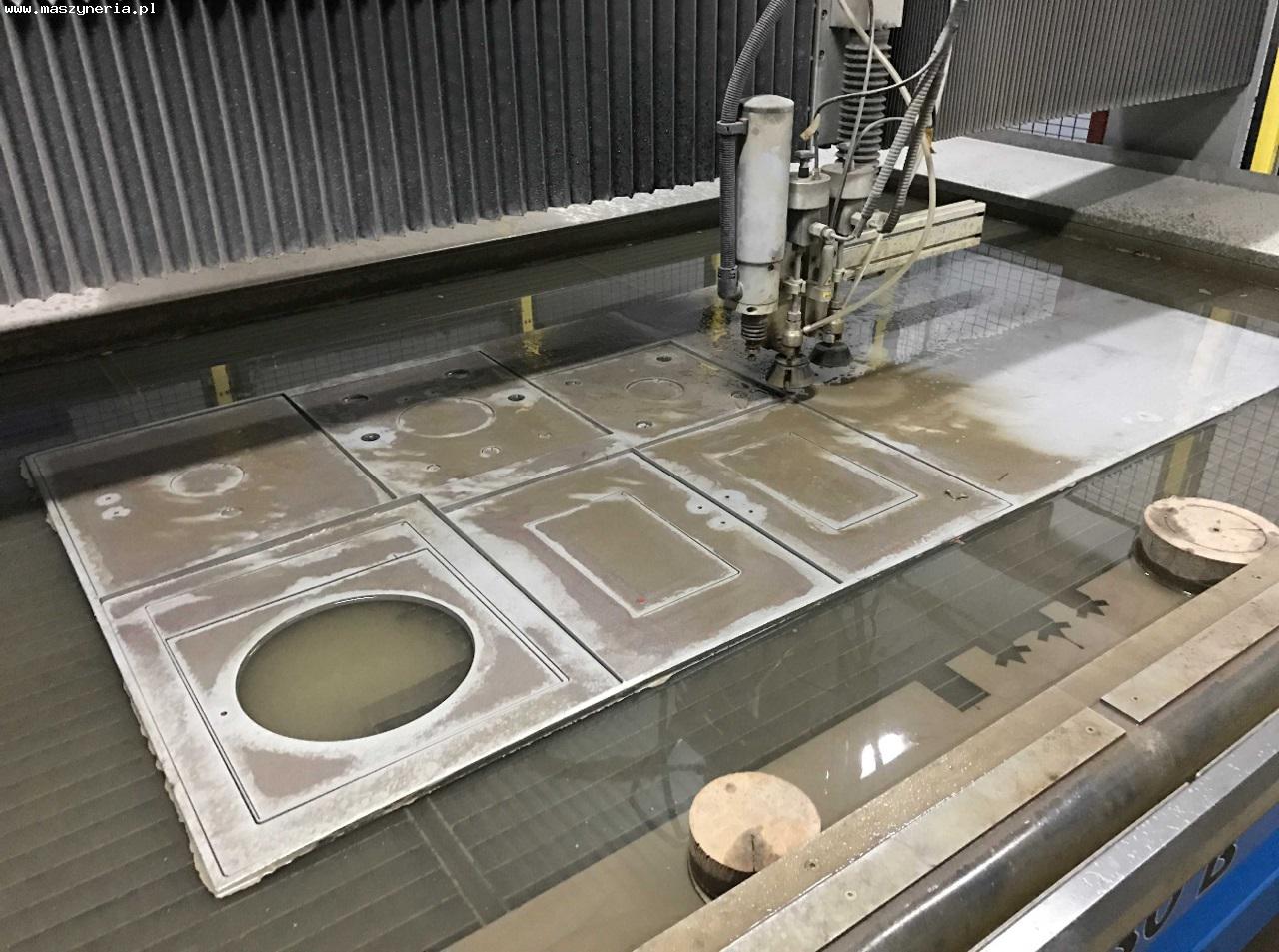

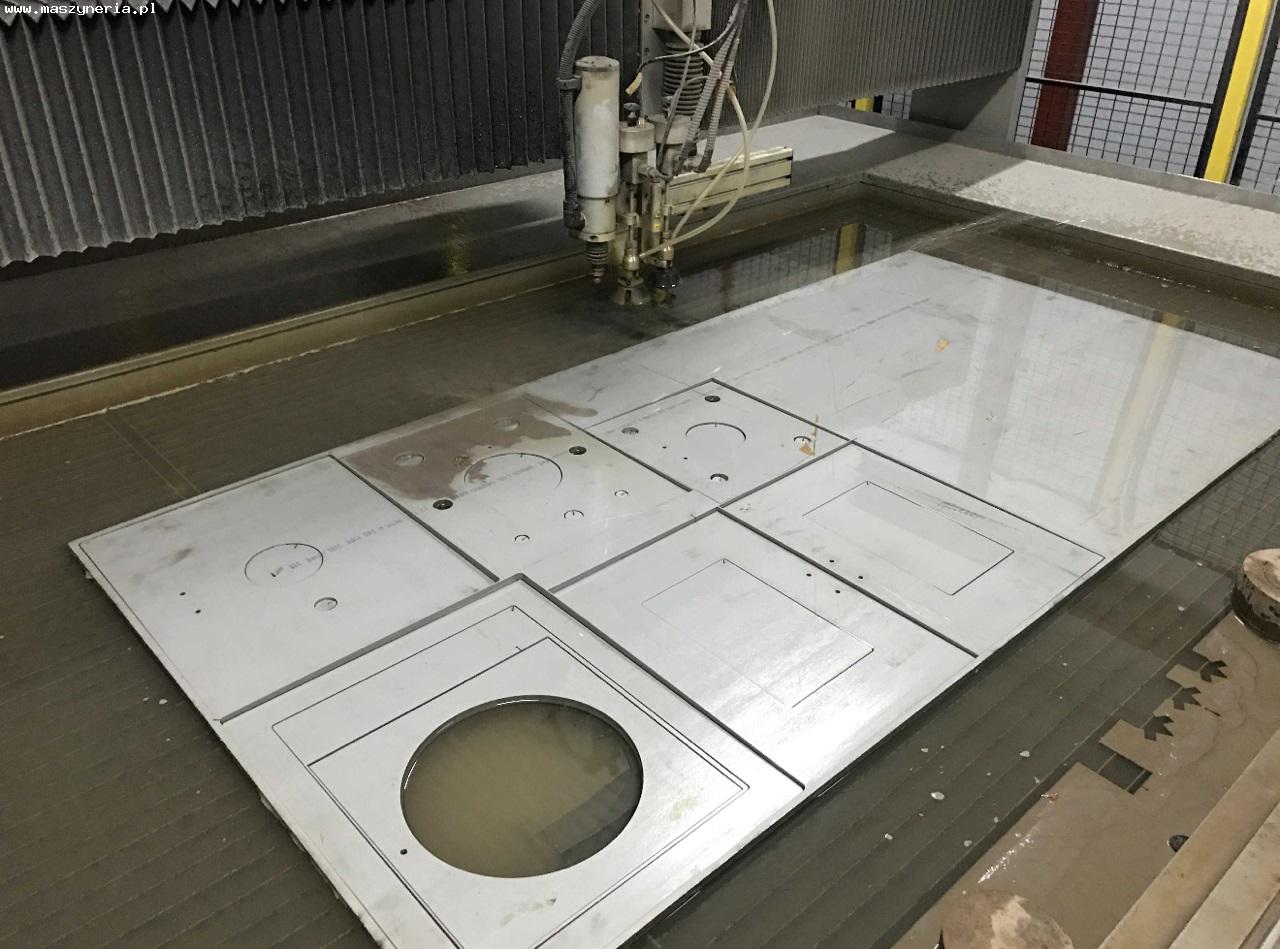

WJS NCH 30 B CNC waterjet cutting machine was built in 2017 in Sweden by Water Jet Sweden AB. The machine, equipped with two cutting heads, is used for machining a wide range of materials, i.e. metal, plastics and glass. The machining process is performed with innovative water jet cutting technology, which guarantees perfectly smooth edges without the need for further secondary processes. Only natural abrasive and water are used during cutting, making the process free of harmful fumes and safe for the environment.

The NCH 30B WaterJet is offered with extensive equipment, including a 50 HP high-pressure pump and an advanced FANUC CNC control. Over its entire service life, the machine has worked a total of 4866 hours.

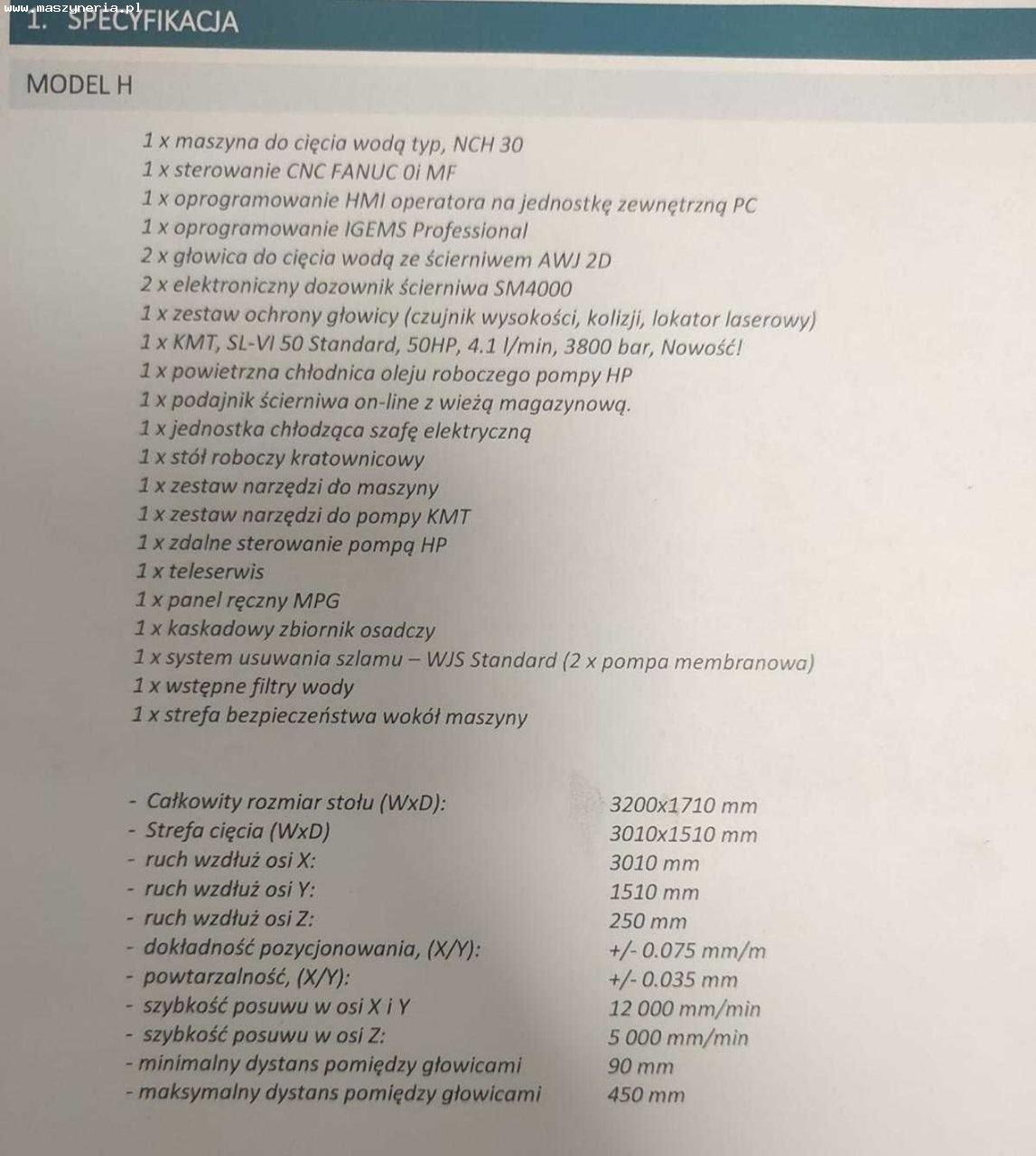

Technical specifications of the WJS NCH 30 B water cutting machine

• feed in the X/Y/Z axis: 3010/1510/250 mm
• feed rate in the X/Y/Z axis: 12000/12000/5000 mm/min
• work table dimensions (L x W): 3200 x 1710 mm
• cutting area (L x W): 3010 x 1510 mm
• maximum distance between heads: 450 mm
• minimum distance between heads: 90 mm
• operating hours: 4866 h
• pump power: 50 HP
• maximum pump pressure: 3800 bar
• maximum pump flow: 4.1 l/min
• positioning accuracy in X,Y axis: ± 0,075 mm/min
• repeatability of positioning in X,Y axis: ± 0.035 mm

Equipment of the WJS waterjet cutting machine

• CNC controller: FANUC 0i MF
• CAD/CAM software: IGEMS Professional

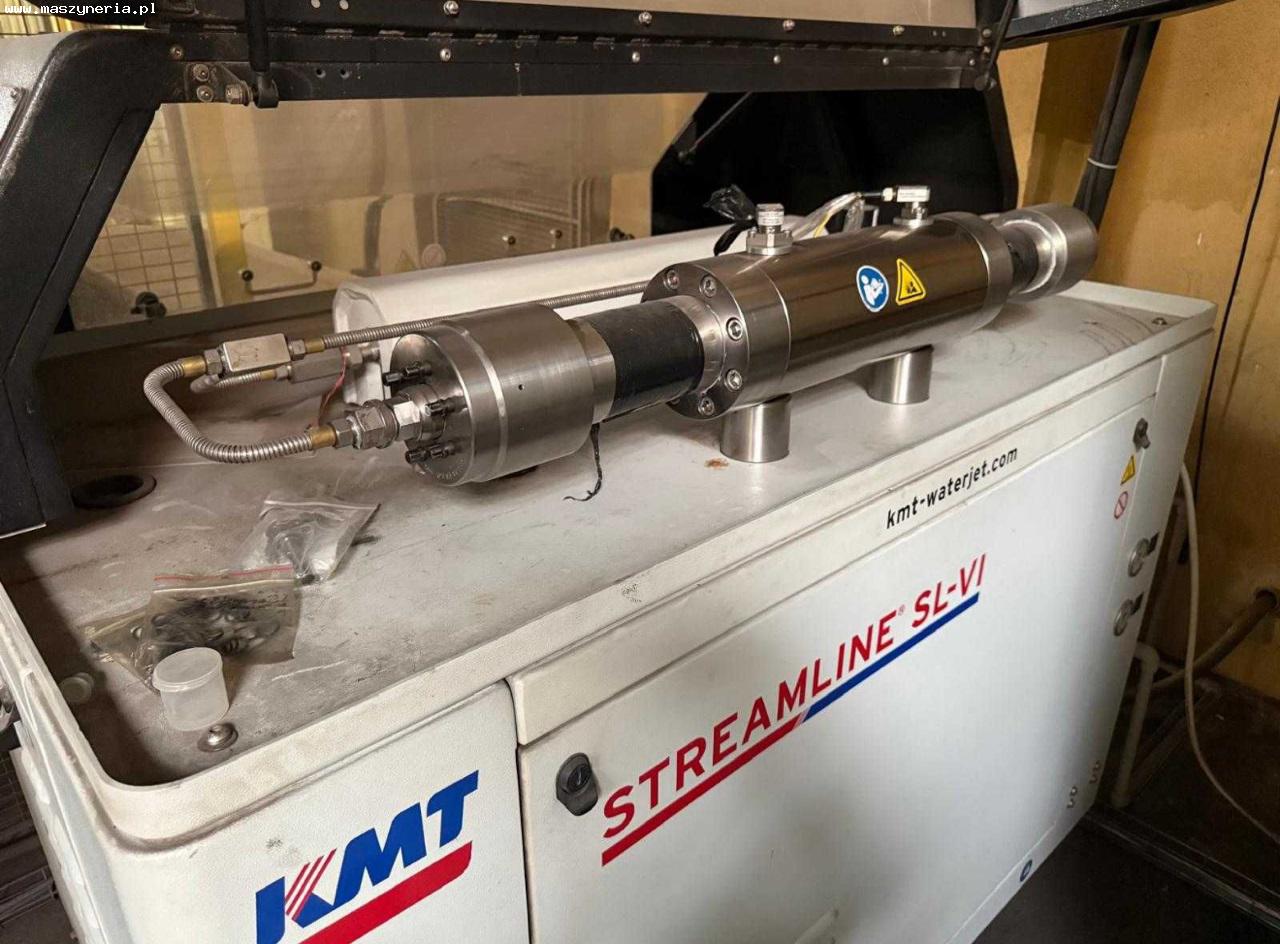

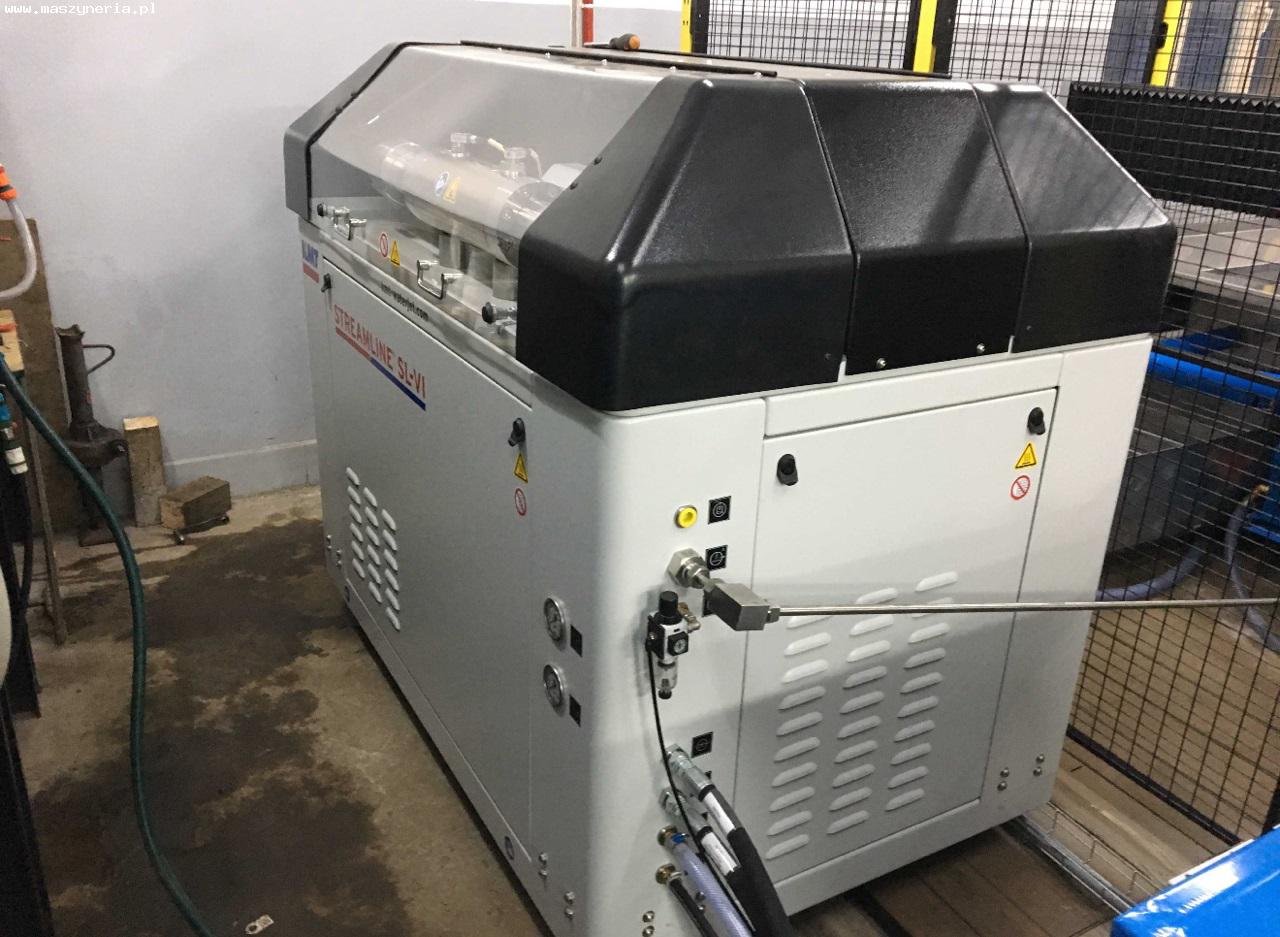

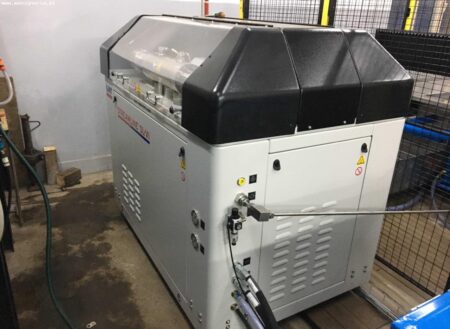

• high-pressure pump: KMT STREAMLINE SL-VI
• AWJ 2D cutting head with height and collision sensor and laser marker (2 pcs.)
• electronic abrasive dispenser: SM4000
• on-line abrasive feeder with magazine
• sludge removal system in the form of two diaphragm pumps
• cascade settling tank
• air-cooled oil cooling system
• teleservice via internet
• MPG operator control panel
• pre-filters
• toolset
• electrical cabinet with cooling system
• safety fencing

(The technical parameters given may differ slightly from reality. A verification with the actual capabilities of the offered machine is required.)
