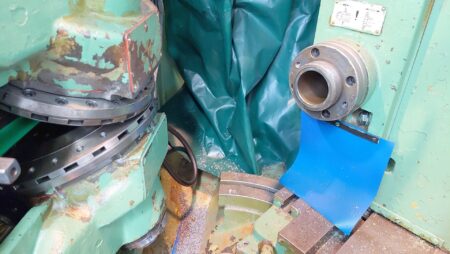

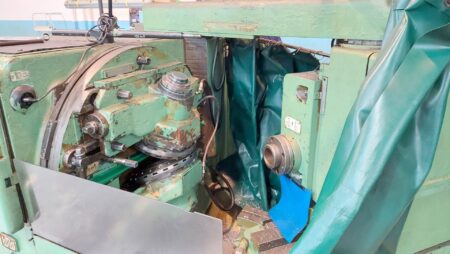

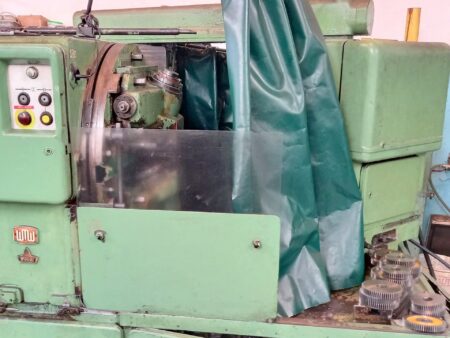

WMW MODUL ZFTK 250×5 bevel gear generator

WMW MODUL ZFTK 250×5 bevel gear generator was manufactured in Germany. The machine is used for precise machining of gears, providing high quality workmanship and correct functioning of the gear in the devices using it.

A workpiece with a maximum diameter of 250 mm and width of 40 mm is machined at a speed of 35.5 to 71 revolutions per minute. The milling machine allows to make from 6 to 100 teeth in a gear wheel. The total weight of the machine is 6700 kg.

Technical data of bevel gear generator WMW MODUL ZFTK 250×5

• maximum diameter of a gear wheel: 250 mm
• maximum width of a gear wheel: 40 mm
• maximum module: 7 mm
• minimum number of teeth: 6
• maximum number of teeth: 100
• maximum gear ratio: 1:6
• milling speed: 35.5 – 71 rpm
• radial adjustment of milling head: 0 – 110 mm
• diameter of milling head: 355 mm
• operating voltage: 380 V
• machine dimensions (L x W x H): 3000 x 2000 x 2100 mm
• total weight: 6700 kg
