WORTHINGTON CREYSSENSAC RLR 20 CE rotary screw compressor

WORTHINGTON CREYSSENSAC RLR 20 CE rotary screw compressor was built in Italy in 2022. The easy-to-maintain compressor with innovative technology provides users with high-quality compressed air at low operating costs. The motor, inverter and other machine components are cooled by a separate airflow with a low operating temperature, and the use of direct-drive gearbox ensures high energy efficiency and operational reliability.

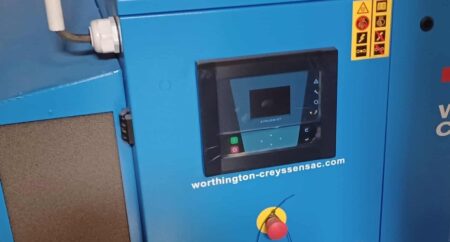

The ROLLAIR 20 screw compressor has a capacity of 137 m3/h at a maximum operating pressure of 10 bar. The compressor’s internal water separator with automatic drain and DS13 refrigeration dryer immediately remove moisture from the compressed air, guaranteeing long and trouble-free machine operation. A state-of-the-art Airlogic² controller enables operation with different pressure ranges and allows continuous monitoring of key operating parameters. The total weight of the compressor is 345 kg.

Technical specifications of the WORTHINGTON CREYSSENSAC RLR 20 CE screw compressor

• power: 15 kW
• working pressure: 10 bar
• capacity at maximum working pressure: 137 m3/h
• dryer output at pressure of 7 bar: 130 m3/h
• dryer pressure dew point: +3°C
• maximum inlet air temperature: 35°C
• tank capacity: 500 l
• maximum ambient temperature: 46°C
• noise level: 66 dB(A)
• power supply: 3x 400 V; 50 Hz
• dimensions (L x W x H): 1545 x 835 x 1220 mm
• weight of RLR 20 CE machine: 345 kg

Equipment of compressor

• controller: Airlogic²
• refrigeration dryer: DS13
• vertical tank
• FG119 filter
• FC119 filter
