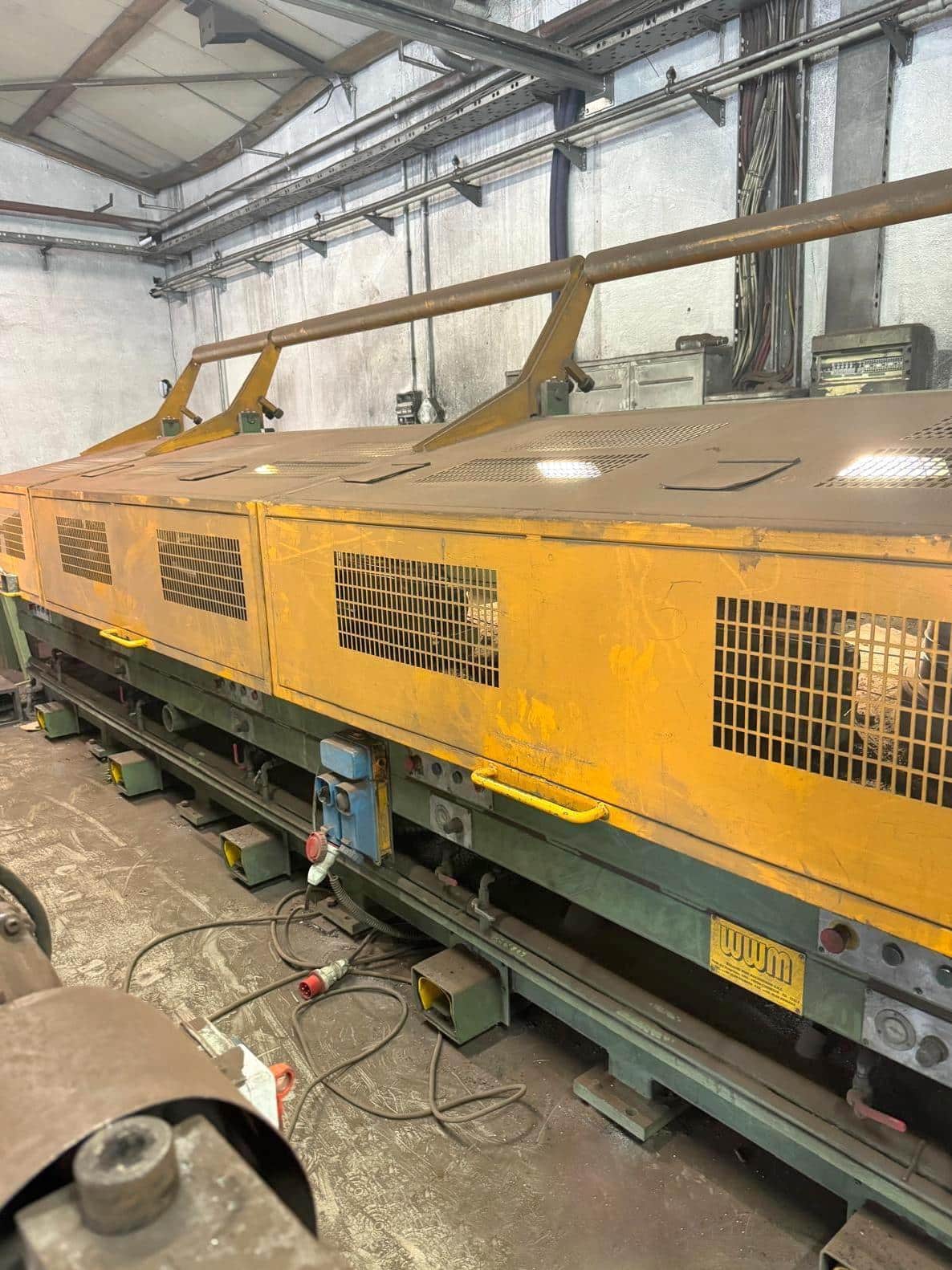

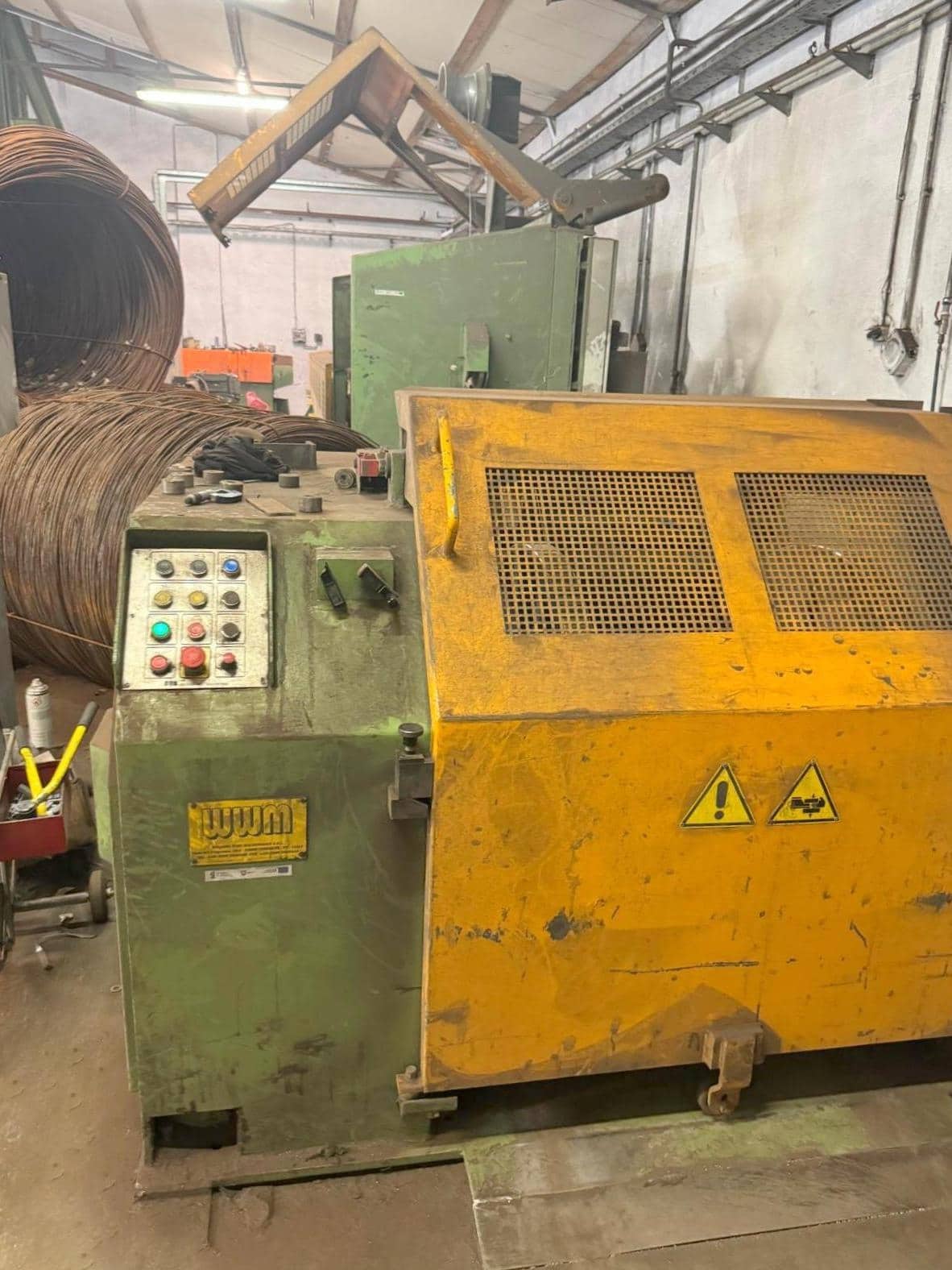

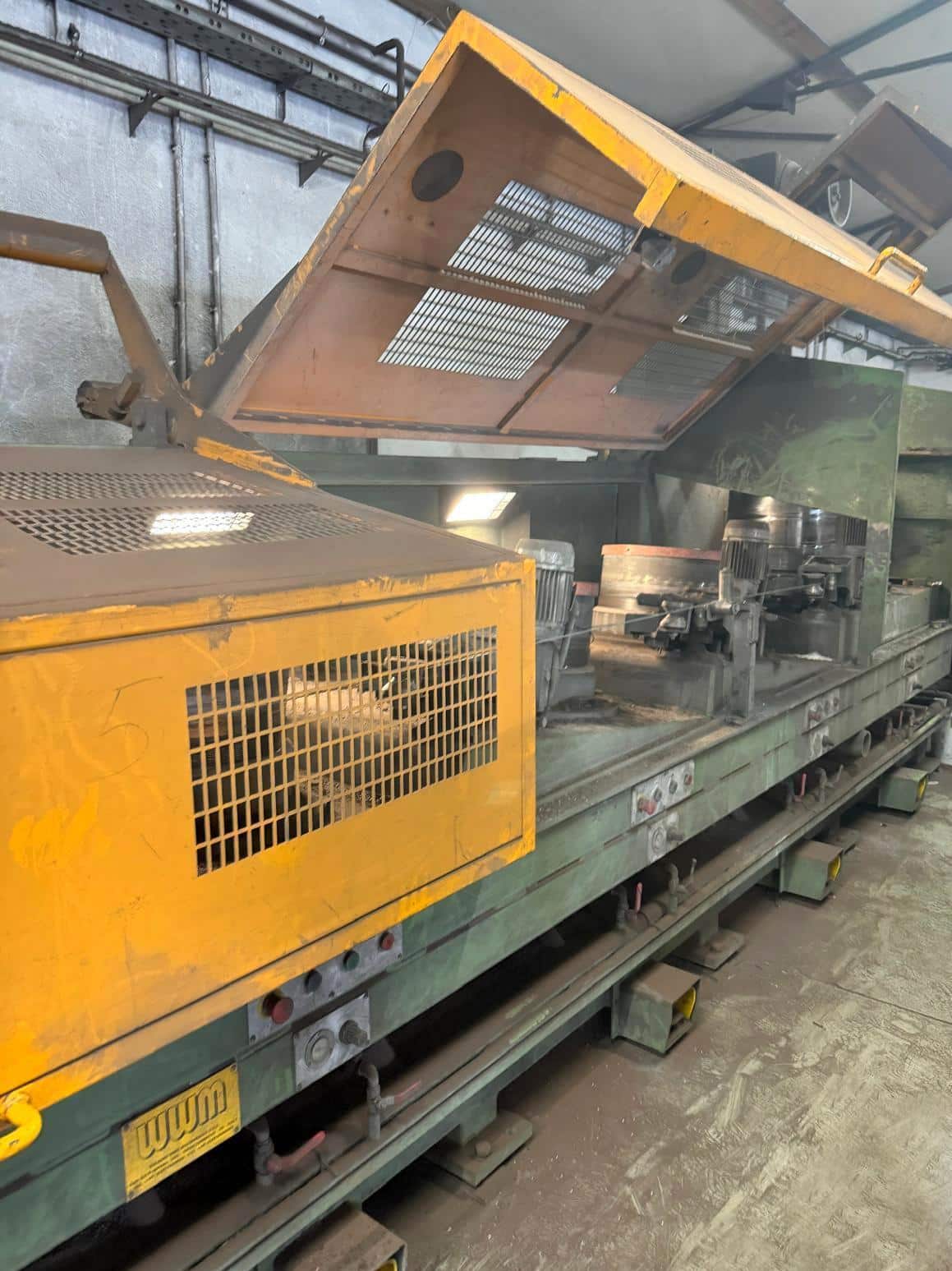

WWM TS 560/8-1 wire drawing machine

WWM TS 560/8-1 wire drawing machine was built in 2014 in Italy by WWM Technology Srl (now EJP Italmec Sp. z o.o.). The machine is used in the process of reducing the diameter of various types of wire by pulling it through a series of rollers. Once reduced to the appropriate diameter, the wire is confectioned directly onto a carousel or stand.

The wire drawing line consists of the following machines:
1. WWM TS 560/8-1 wire drawing machine
2. WWM SV5 vertical static wire pay-off
3. WWM DSM 01 mechanical descaler
4. WWM AF 1000 wire coiler

Wire feeding precision is ensured by the WWM wire pay-off, which consists of two tilting drums and a central column. It enables easy loading of material coils weighing a maximum of 3000 kg each, without stopping the drawing machine. During threading, the sheave and basket are lowered by a hoist with AC motor. The scale on the entire surface of the wire is also broken off during machining. Once the rod has been bent in four planes, a nozzle located in front of the press removes the scale with compressed air. The press then pushes commercial steel wool against on the rod surface through a double series of interpenetrating blades.

Technical specifications of the individual parts of the WWM TS 560/8-1 wire drawing line

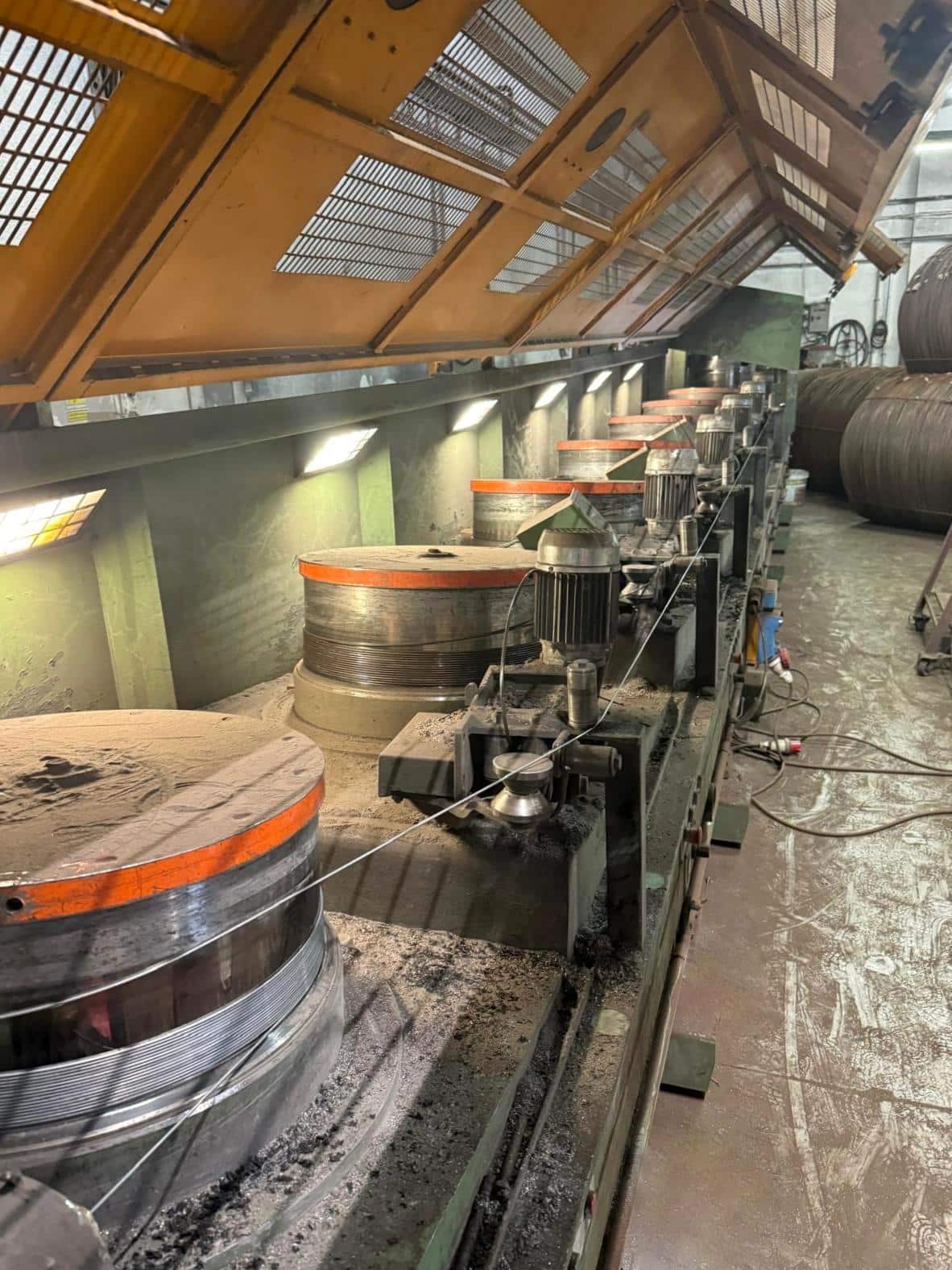

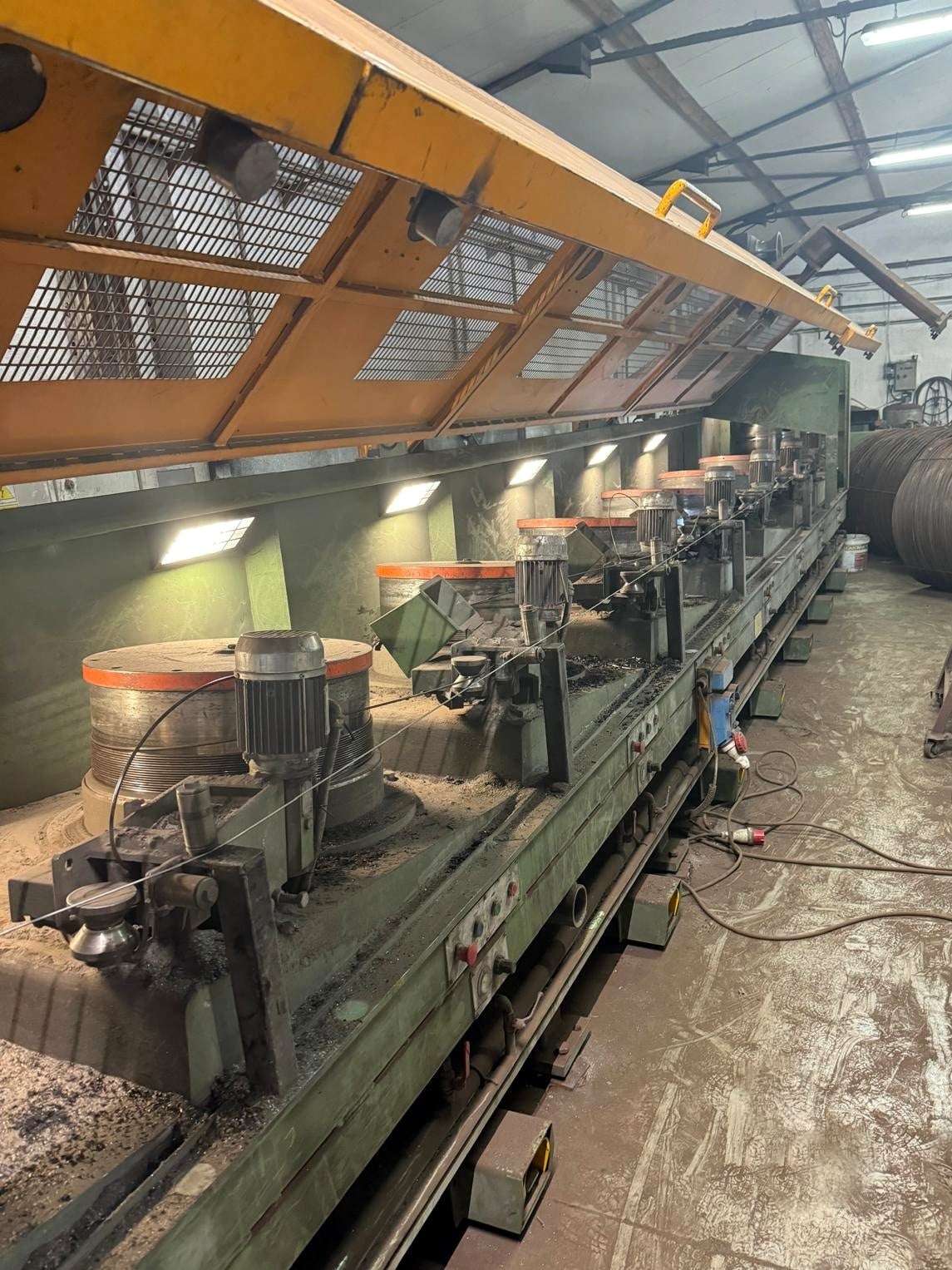

Wire drawing machine

• year of manufacture: 2014

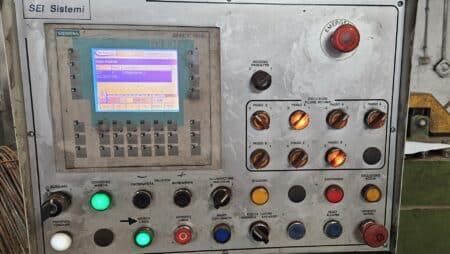

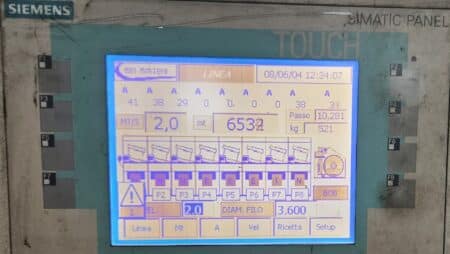

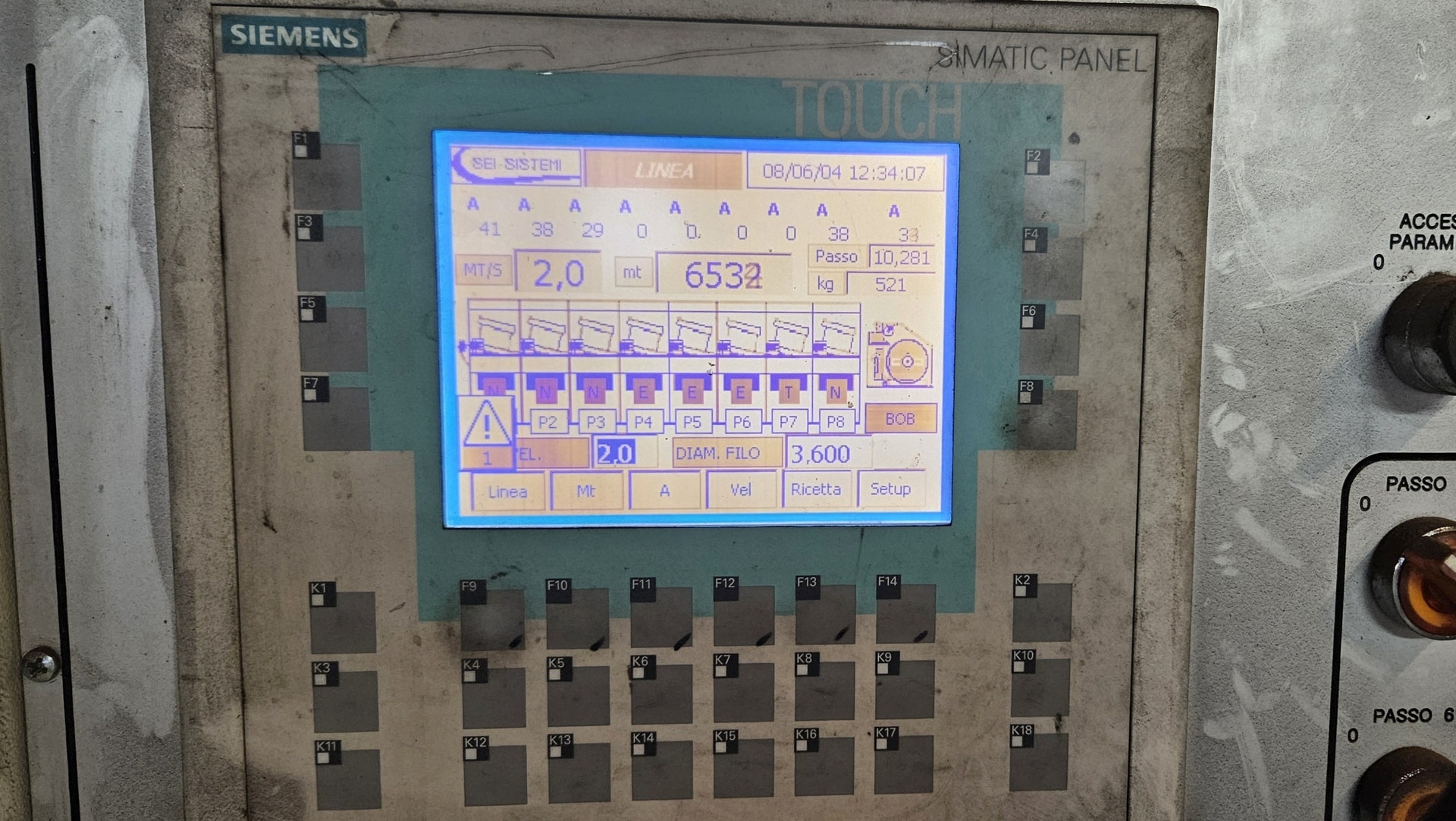

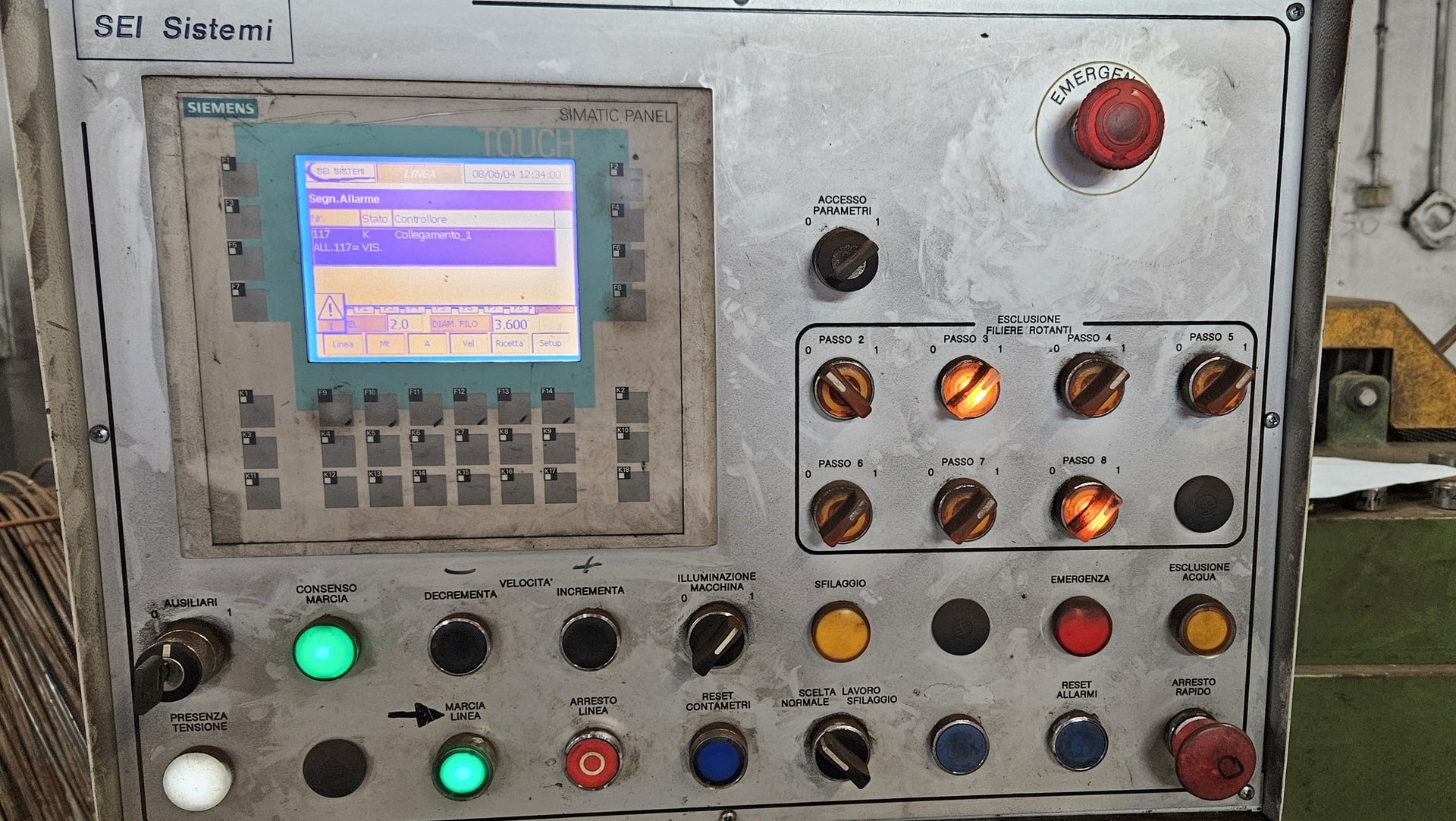

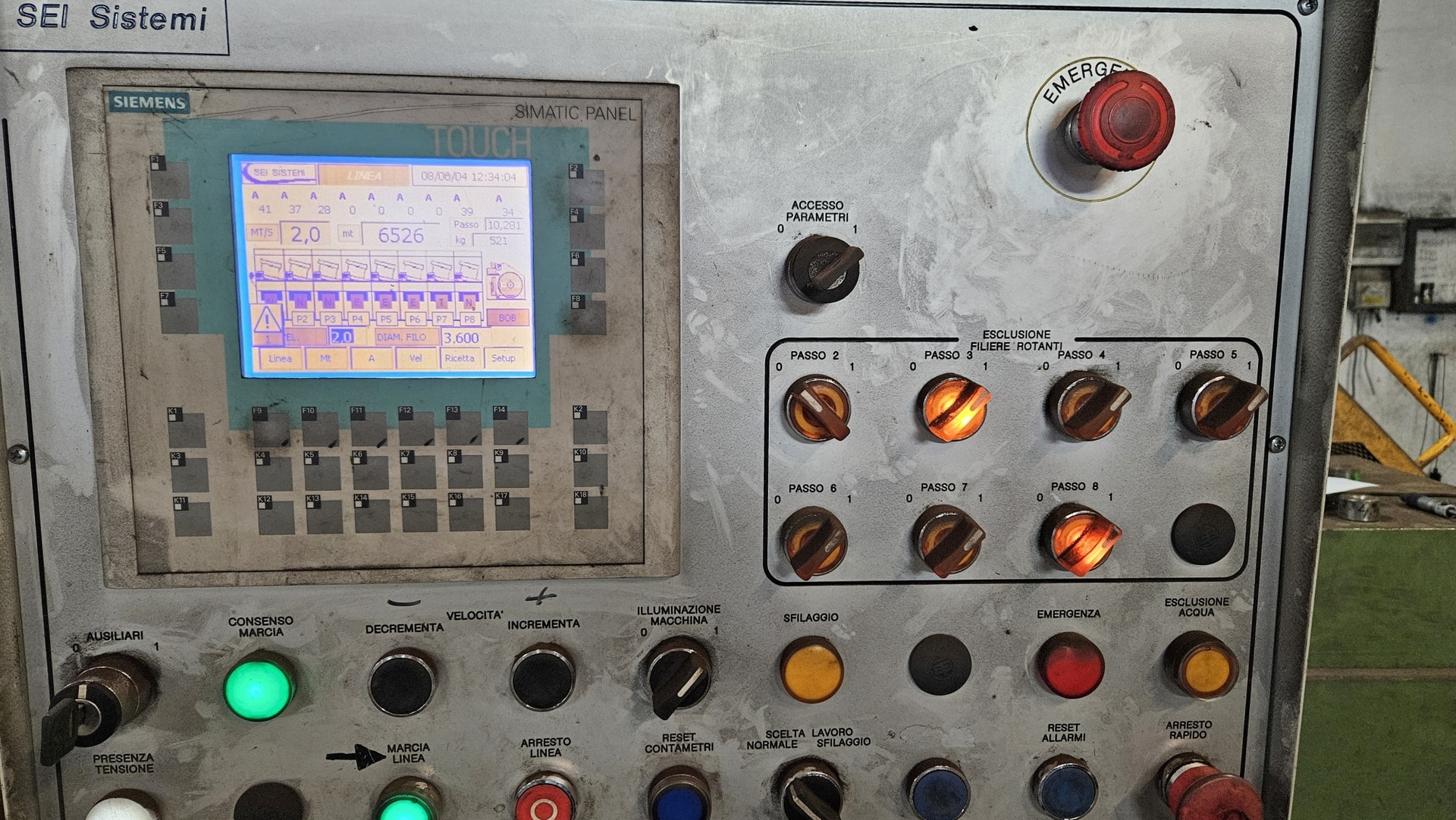

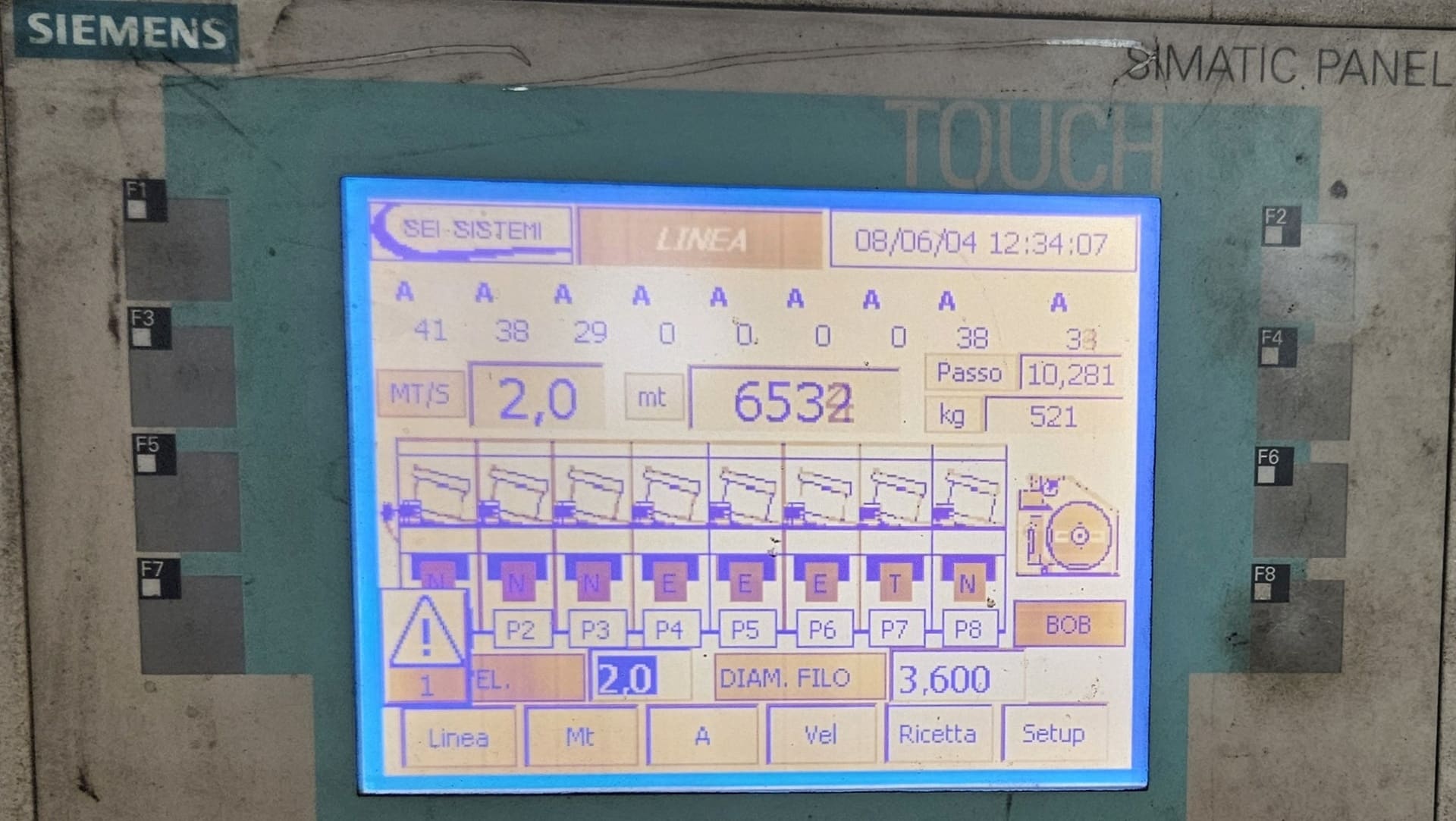

• control system: SIEMENS

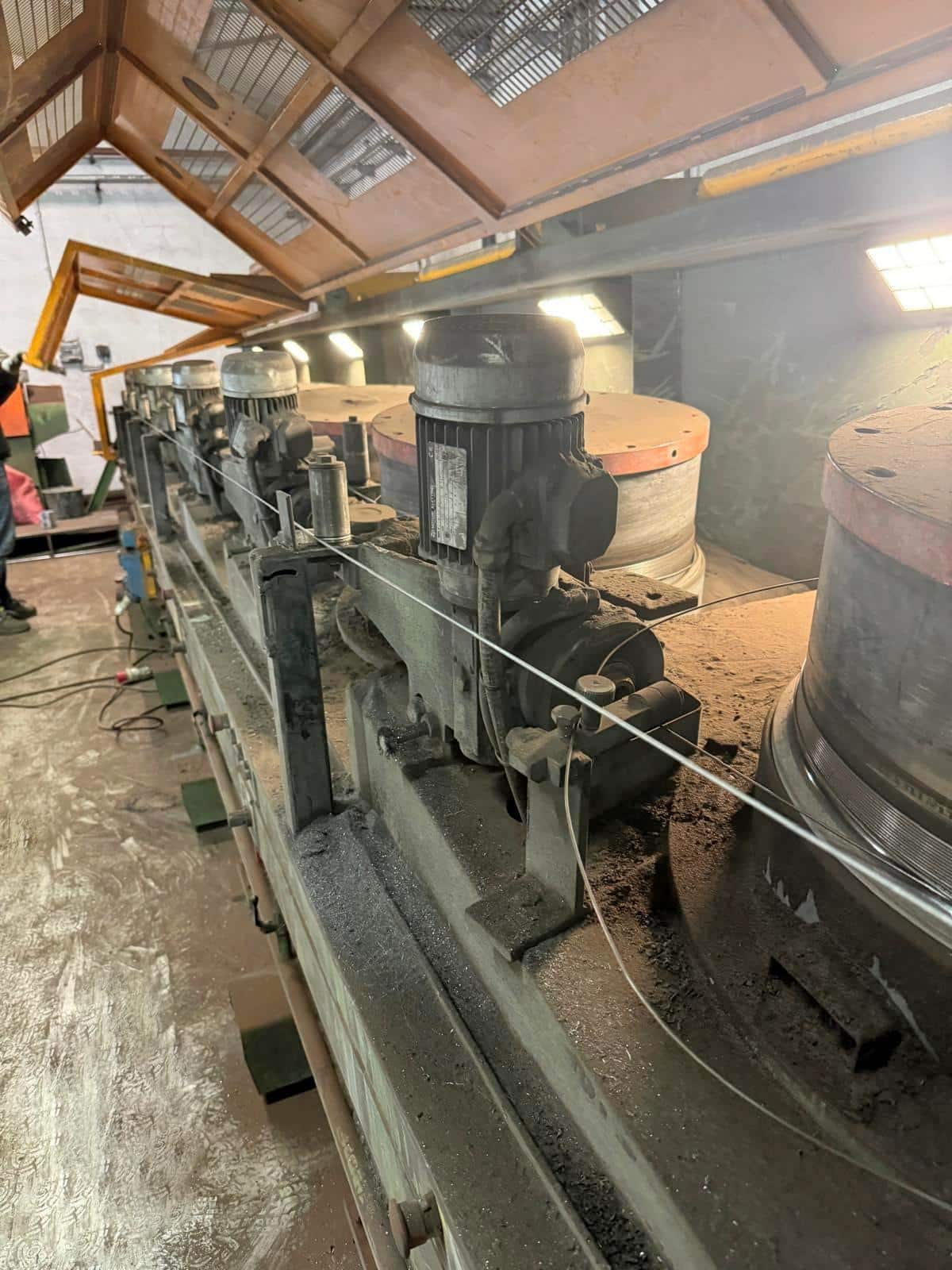

• number of drums: 8
• inlet wire diameter: 6.5-5.5 mm
• maximum outlet wire diameter: 2 mm
• capstan diameter: 560 mm
• maximum working speed: 30 m/s
• sensor control and dancer arm control
• rotary dies

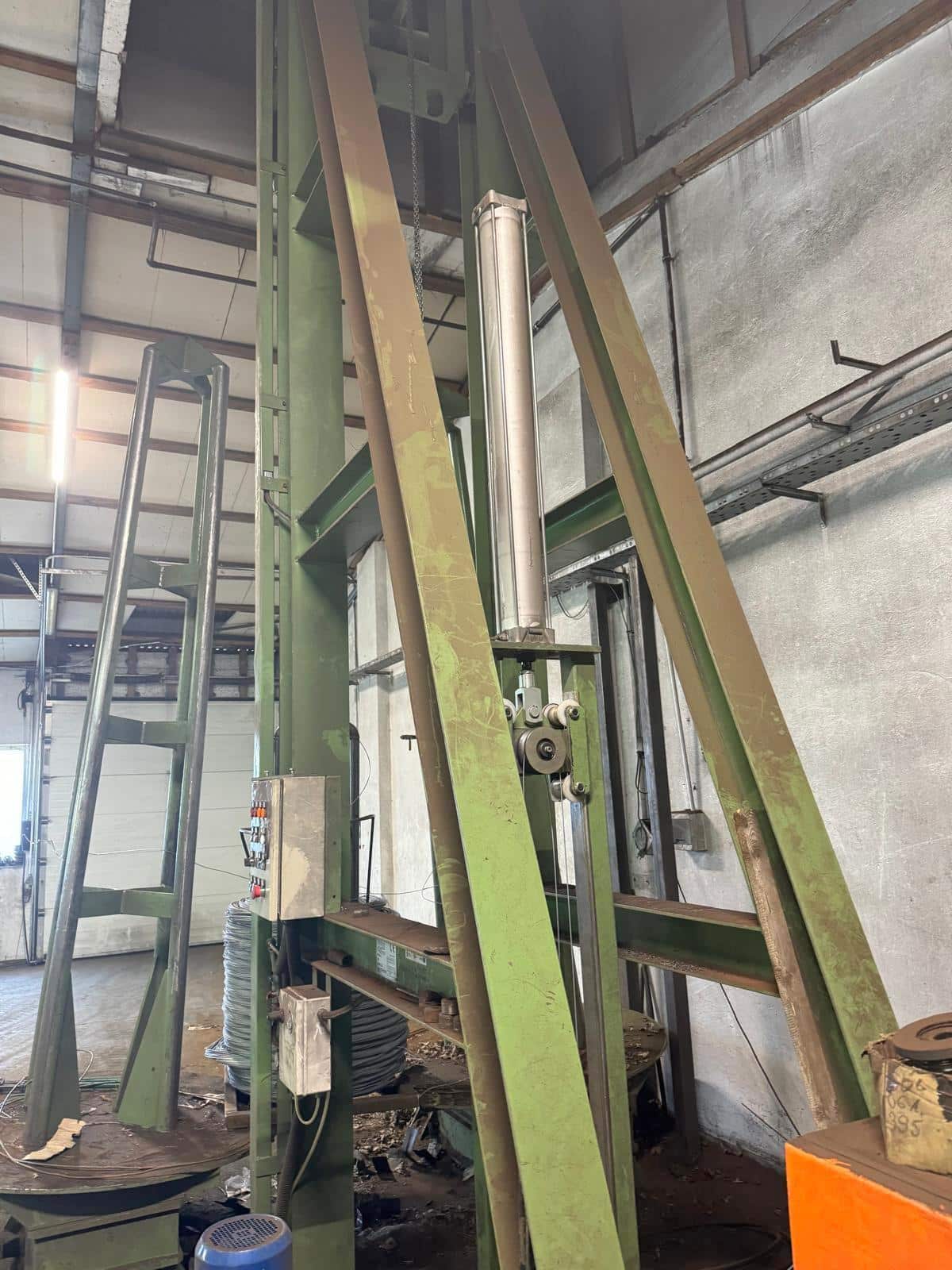

Vertical wire pay-off

• year of manufacture: 2014
• maximum wire diameter: 7 mm
• number of drums: 2
• drum vertical height: 3000 mm
• maximum load permitted on each drum: 3000 kg
• working speed: 8-25 m/min
• height: 6000-7300 mm
• maximum chain stroke: 6 m
• hydraulic unit for the positioning of the drums with AC motor
• safety protection in accordance with current standards
• machine base dimensions (L x W): 3100 x 3200 mm
• total weight of machine: 5550 kg

Mechanical descaler

• year of manufacture: 2014

Wire coiler

• year of manufacture: 2014
• wire diameter range: 0.5-0.8 mm
• reel flange diameter: 1000 mm
• maximum reel weight: 2000 kg
• maximum working speed: 30 m/s
• pneumatic lifter for reel loading/unloading
• wire straightening unit
• tailstock with pneumatic drive and mechanic lock
• balancing of rotating parts for an improved running and greater durability
• control panel
• digital indicator with deceleration and shutdown on reaching required quantity
• pneumatic system with filter, reducer and lubricator
• safety protection in accordance with current standards
• AC motor
