ZINSER 2425-I plasma cutting machine

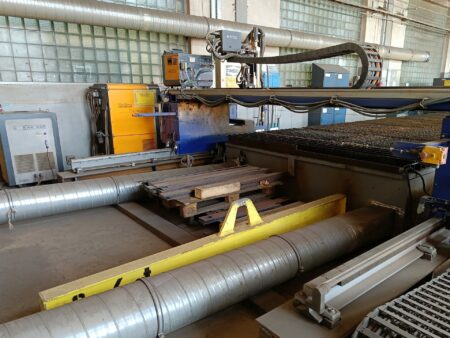

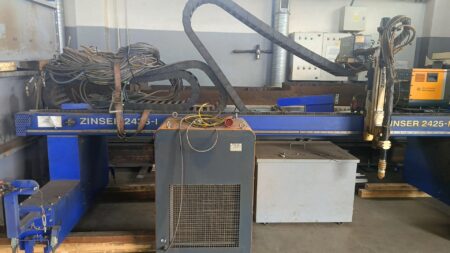

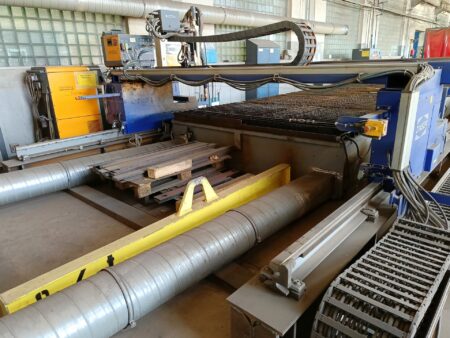

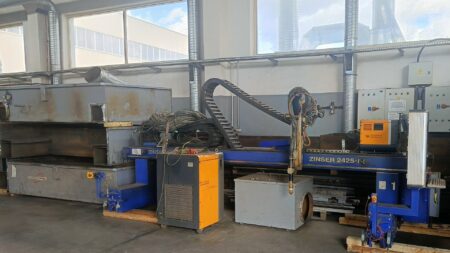

ZINSER 2425-I plasma cutting machine was built in 2013 in Germany by ZINSER GmbH. The machine, which is designed for precision cutting, marking and bevel cutting of tubes and sheet metal, has AC servo drives with precision planetary gears that guarantee excellent handling characteristics at high speeds and rapid direction changes. For the machining process, plasma or oxy-fuel torches are used, which move along the large work table on two linear guides. A sturdy portal structure with an efficient filtration system further eliminates any contamination, leaving the work area safe and comfortable. All this is complemented by a state-of-the-art CNC control with touchscreen. The ZINSER 2425 plasma cutting machine weighs 1325 kg.

Technical parameters of the ZINSER 2425-I plasma cutting machine

• CNC controller: ZINSER CNC 5010
• input power: 4000 W
• maximum workpiece thickness: 200 mm
• work table dimensions (L x W): 4000 x 2000 mm
• track length: 7000 mm
• plasma torch
• oxy-fuel torch for propane

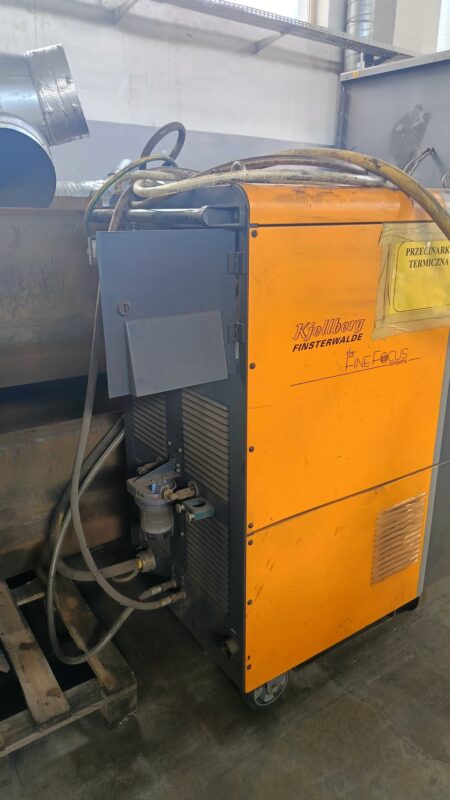

• plasma source: KJELLBERG
• filtration system
• heat exchanger: COSMOTEC EXW5000220 7035
• power supply: 3x 400 V
• weight of the ZINSER 2425-I machine: 1325 kg
