AIRPOL KT7 rotary screw compressor

AIRPOL KT7 rotary screw compressor was built in 2015 in Poland by Przedsiębiorstwo Produkcji Sprężarek Airpol Sp. z o.o.. The machine, which is a modern, reliable and quiet source of compressed air, is an excellent choice for any industrial plant. To achieve the highest air quality, the machine is equipped with an efficient refrigeration dryer that removes moisture and water vapour on an ongoing basis. Thanks to efficient ventilation and an oil separation system, the compressed air also has a very low oil concentration compared to, for example, piston compressors. The AIRPOL KT 7 oil-injected screw compressor weighs 405 kg.

Technical specifications of the AIRPOL KT7 screw compressor

• discharge overpressure: 0.8 MPa
• electric motor power: 7.5 kW
• capacity: 57 m3/h
• compressed air purity class in accordance with ISO 8573.1: 2.4.2
• compressed air temperature: approx. 10°C above ambient temperature
• integrated refrigeration dryer
• refrigeration dryer pressure dew point: +3°C
• integrated compressed air tank
• compressed air tank capacity: 500 l

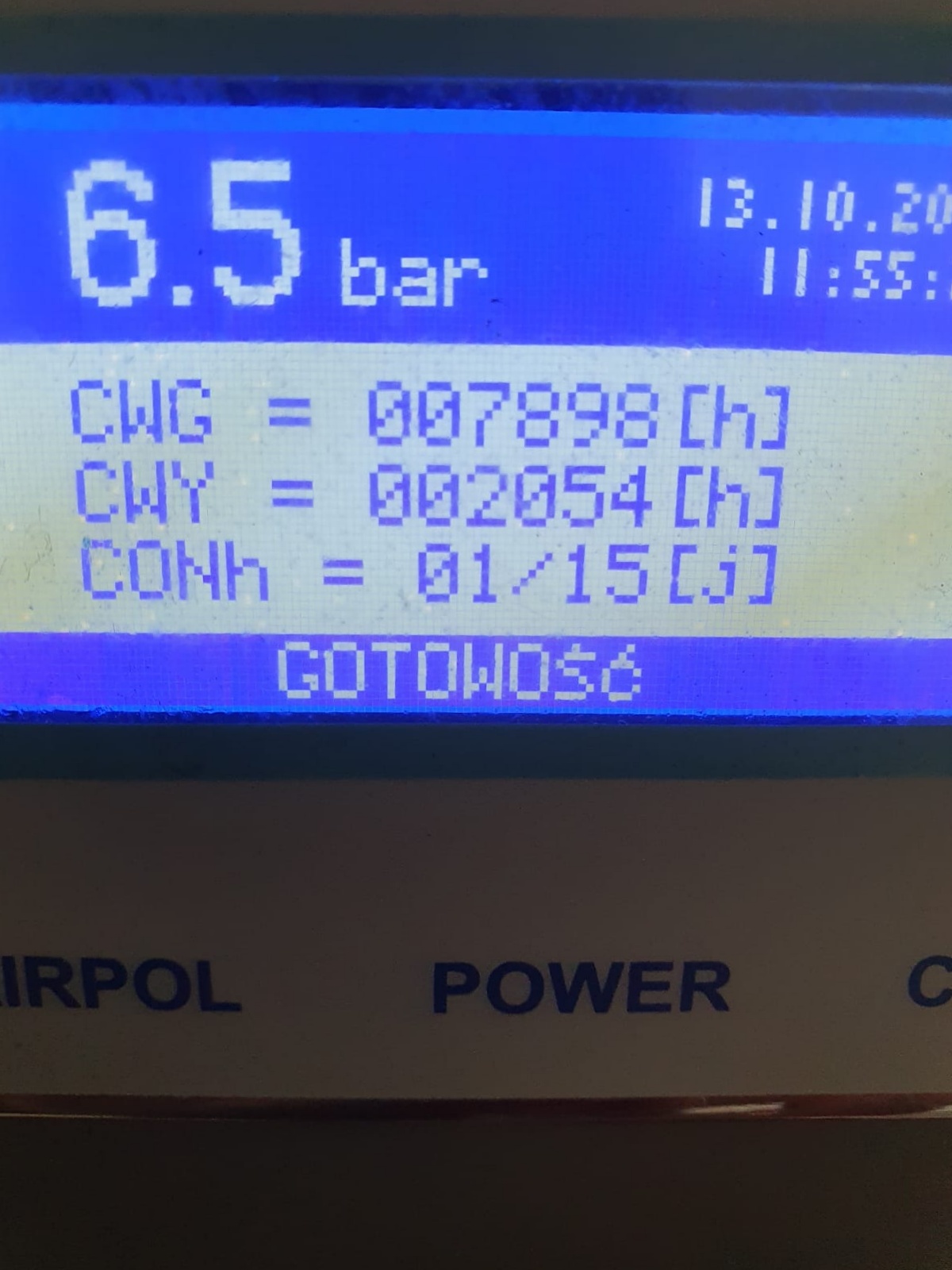

• machine switch-on time: 7898 h
• operating hours: 2054 h
• cooling air requirement: 1200 m3/h
• compressed air connection: G 3/4
• compressed air connection height: 740 mm
• cross-section of supply cable: 5×4 mm2
• ambient temperature: +5°C/+40°C
• noise level: 72 dB(A)
• power supply: 400 V
• dimensions (L x W x H): 1924 x 650 x 1425 mm
• weight of the AIRPOL KT7 machine: 405 kg
