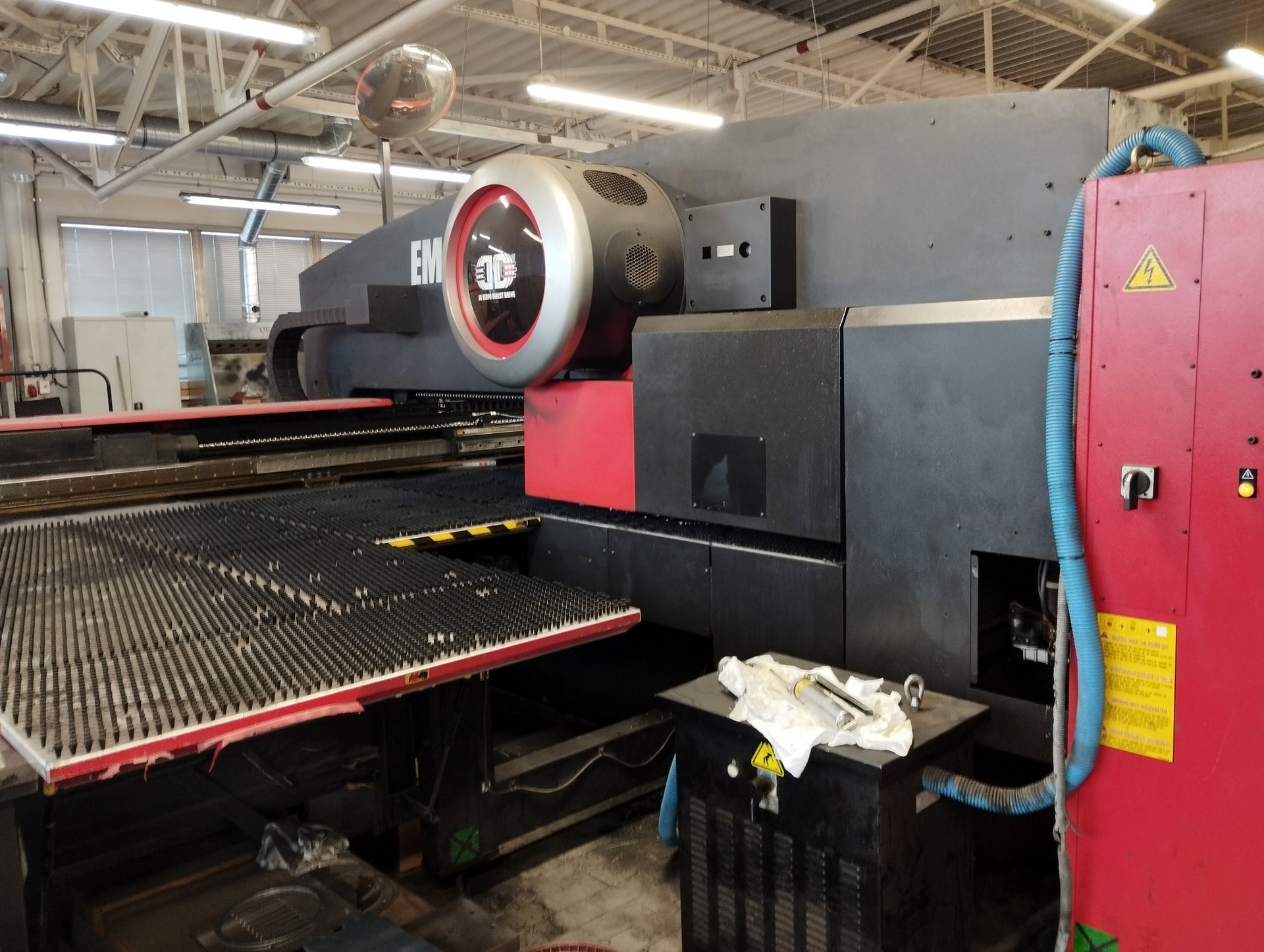

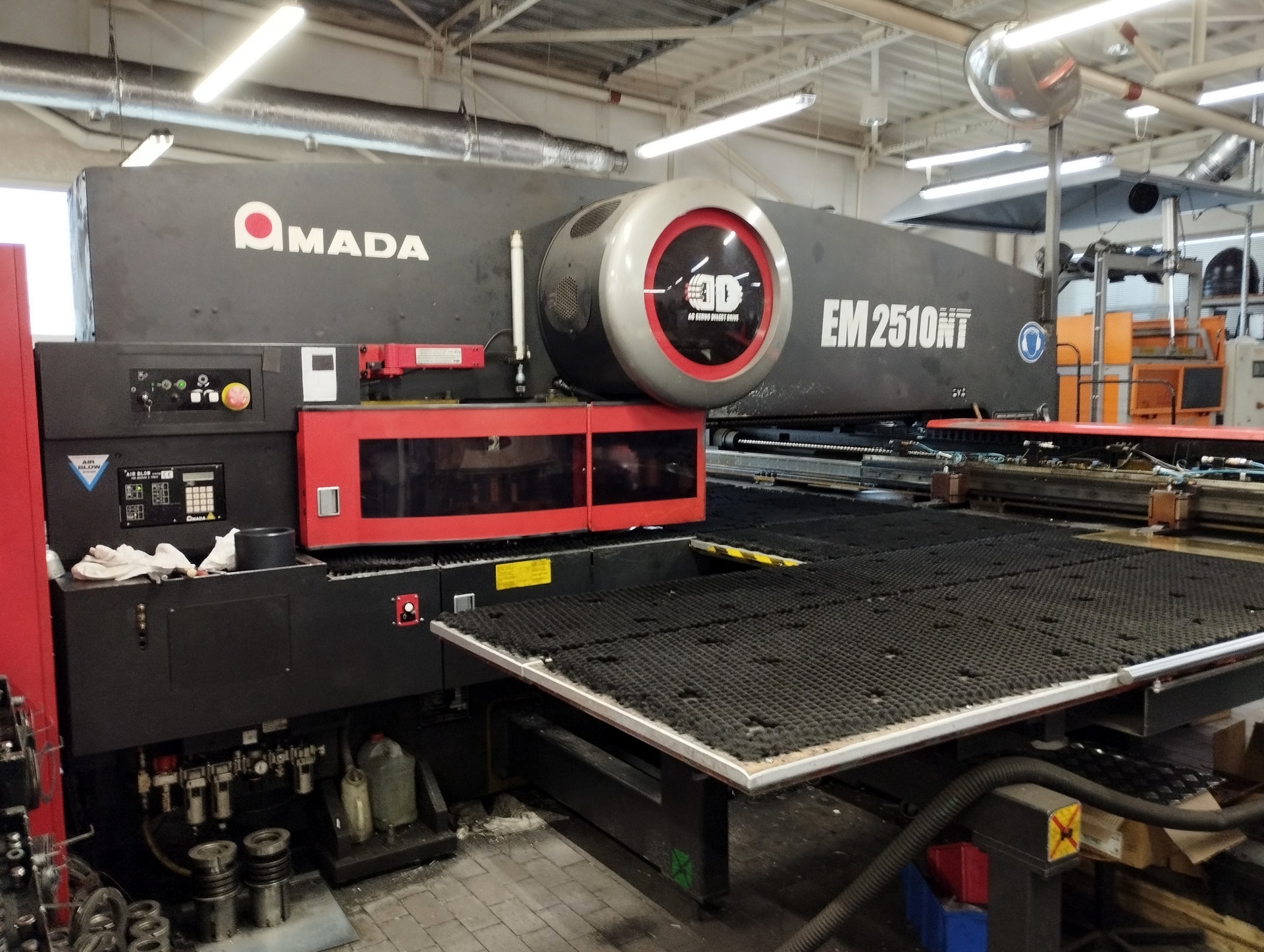

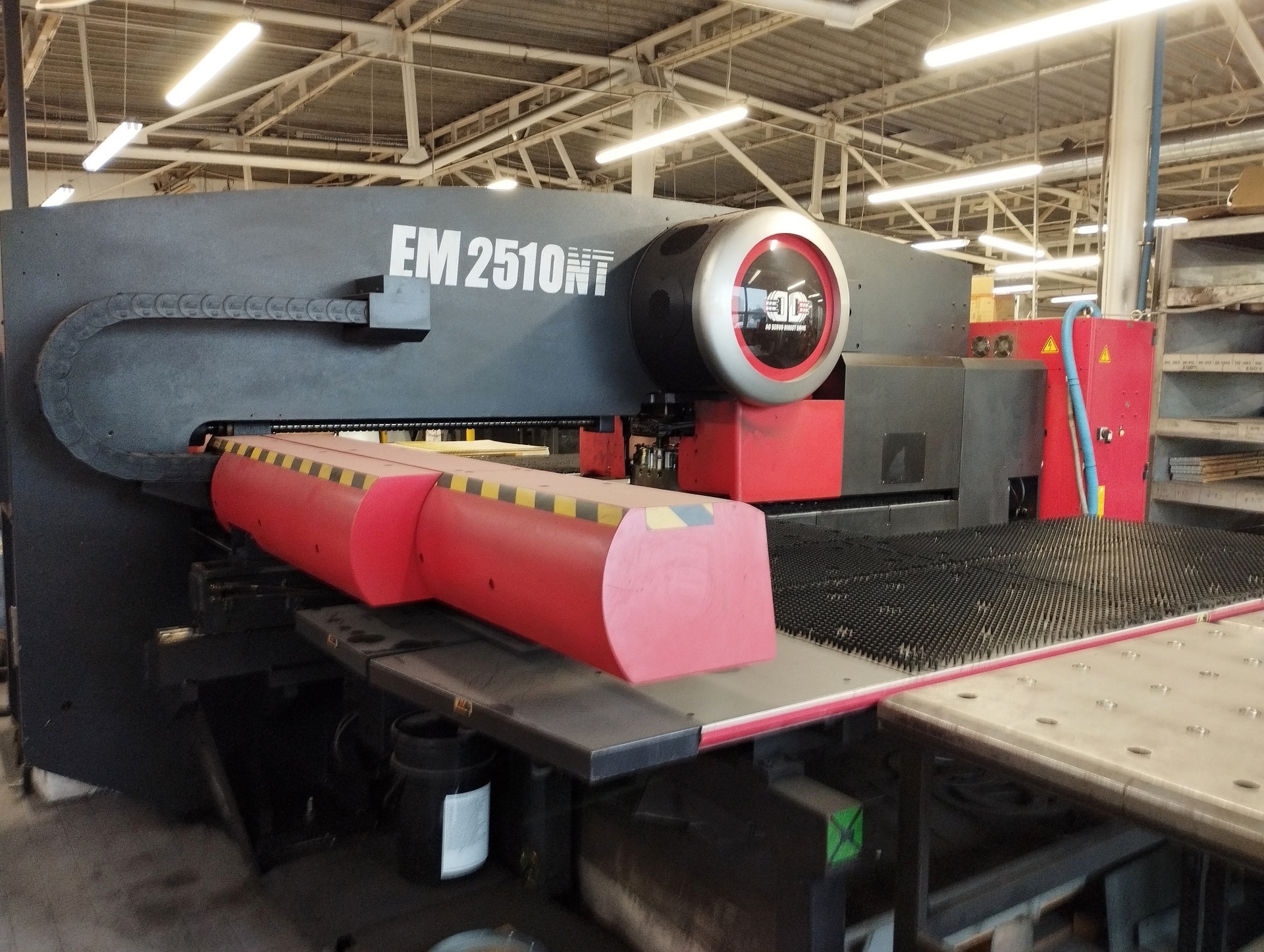

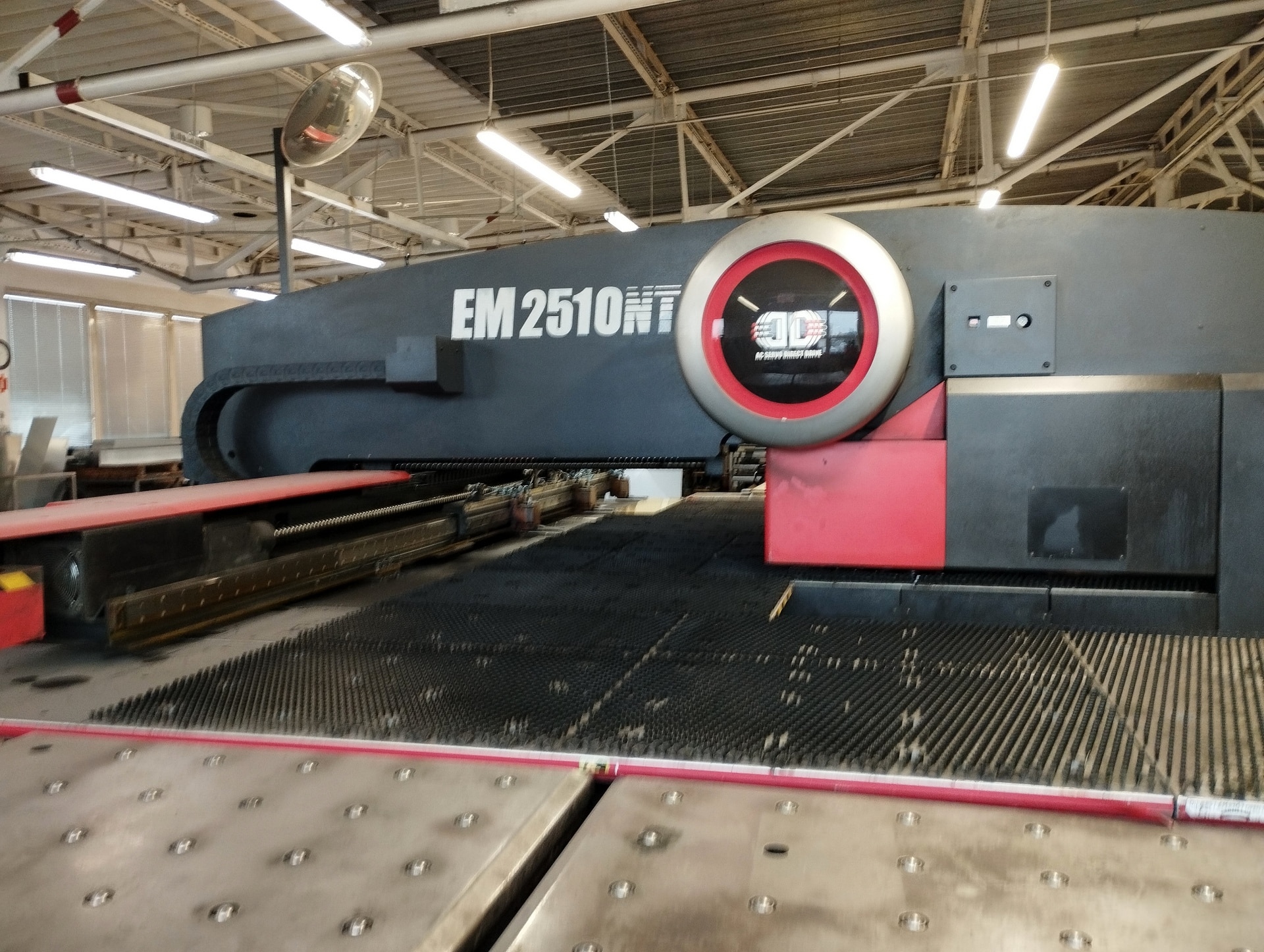

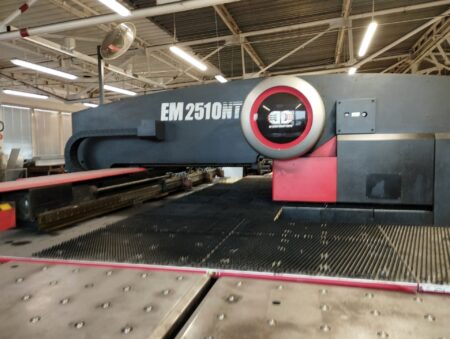

AMADA EM2510NT punching machine

AMADA EM2510NT punching machine was built in 2005 in France by AMADA EUROPE S.A.. The machine, designed for machining of thin metal sheets with a maximum thickness of 3.2 mm, is distinguished by its high reliability and precision. All machining processes are performed with a high press force of 20 tonnes, by means of tools located in a 45-station turret. A brush table with integrated balls prevents scratches and nicks on the surface of the sheet metal, as well as facilitating its positioning. The AMADA EM 2510 NT punching machine weighs 18000 kg.

Technical specifications of the AMADA EM2510NT punching machine

• maximum press force: 20 t (200 kN)
• number of axes: 5 (X,Y,T,C,A)
• feed in the X/Y axis: 2500/1270 mm
• feed rate in the X/Y axis: 100/80 m/min
• maximum workpiece thickness (plain steel): 3.2 mm
• maximum workpiece dimensions (L x W): 5000 x 1270 mm
• maximum workpiece weight (F1 traverse speed): 50 kg
• maximum workpiece weight (F4 traverse speed): 150 kg
• number of strokes (hole spacing 1 mm, stroke 5 mm): 780/min
• number of strokes in X axis (hole spacing 25.4 mm, stroke 5 mm): 500/min
• number of strokes in Y axis (hole spacing 25.4 mm, stroke 5 mm): 330/min
• maximum stroke length: 37 mm
• turret rotation speed: 30 rpm
• position deviation: ± 0.07 mm
• stopping distance: 360 mm
• compressed air requirement: 250 l/min
• air pressure: 5 bar
• electrical connection power: 27 kVA
• ambient temperature: +5°/+40°C
• dimensions (L x W x H): 5526 x 5120 x 2318 mm
• weight of the AMADA EM2510NT machine: 18000 kg

Equipment of the EM 2510NT punching machine

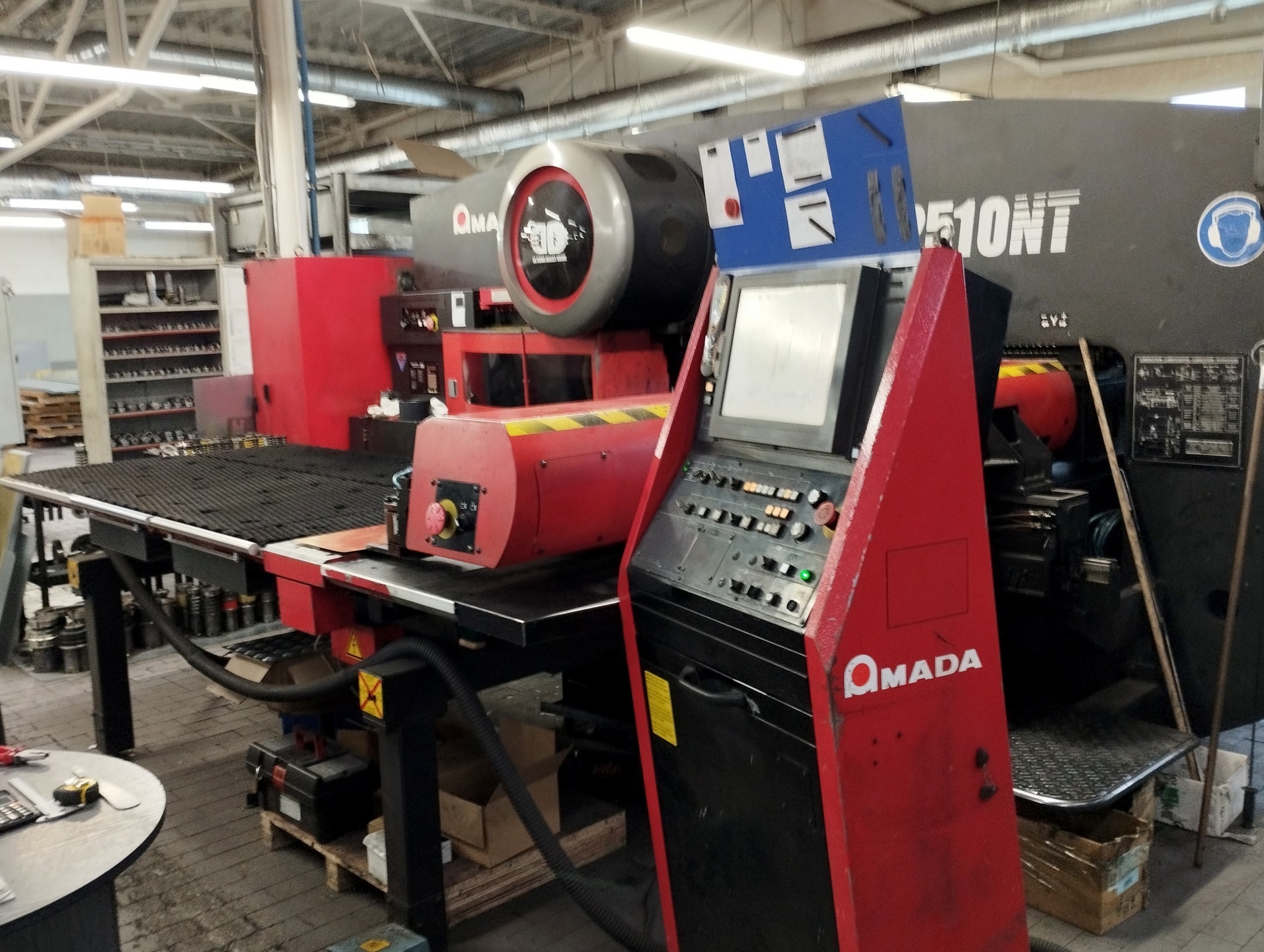

• NC controller: AMADA AMNC-F
• 45-station turret
• brush table with integrated balls
• transformer: Marx TG 214
