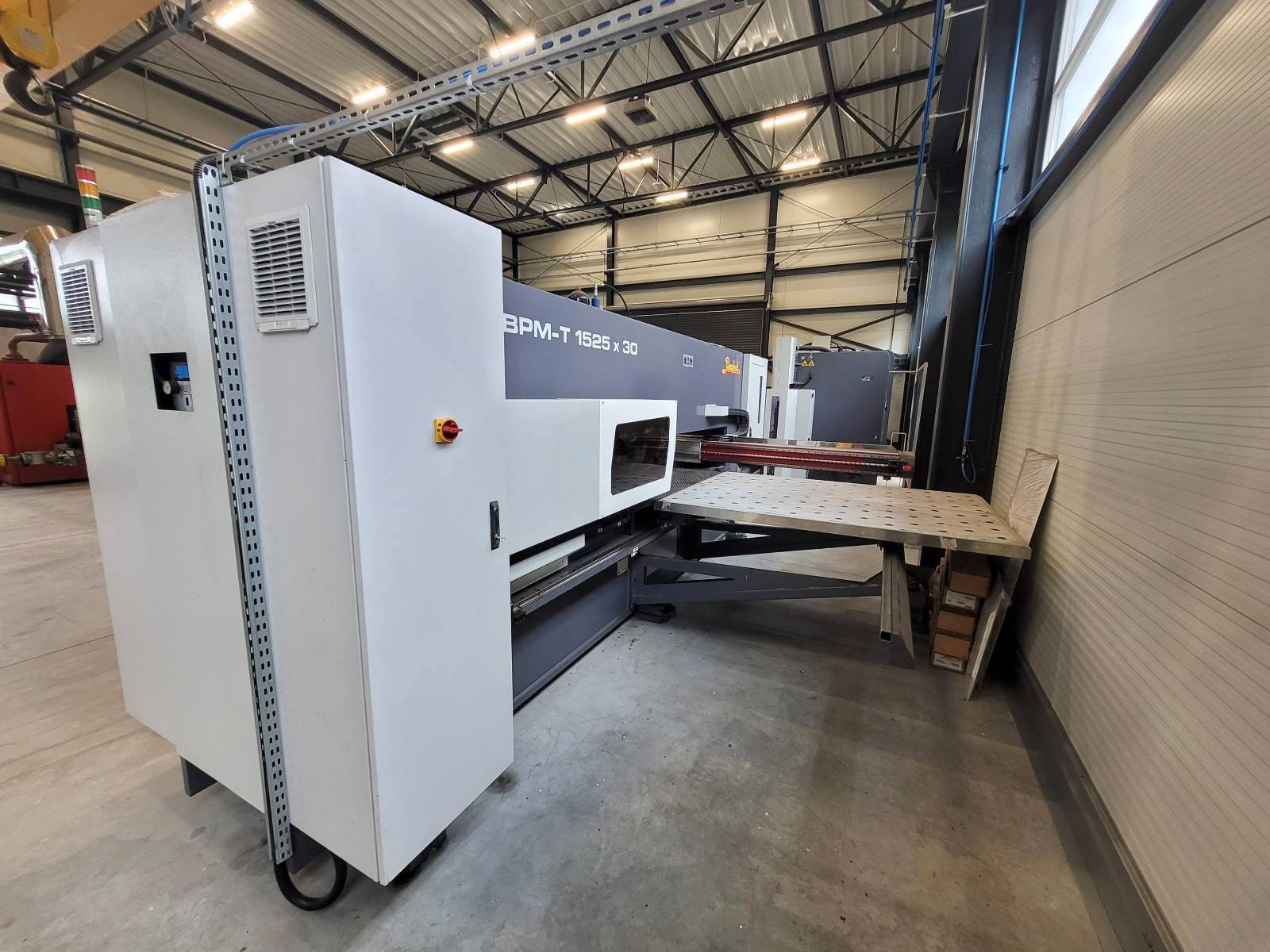

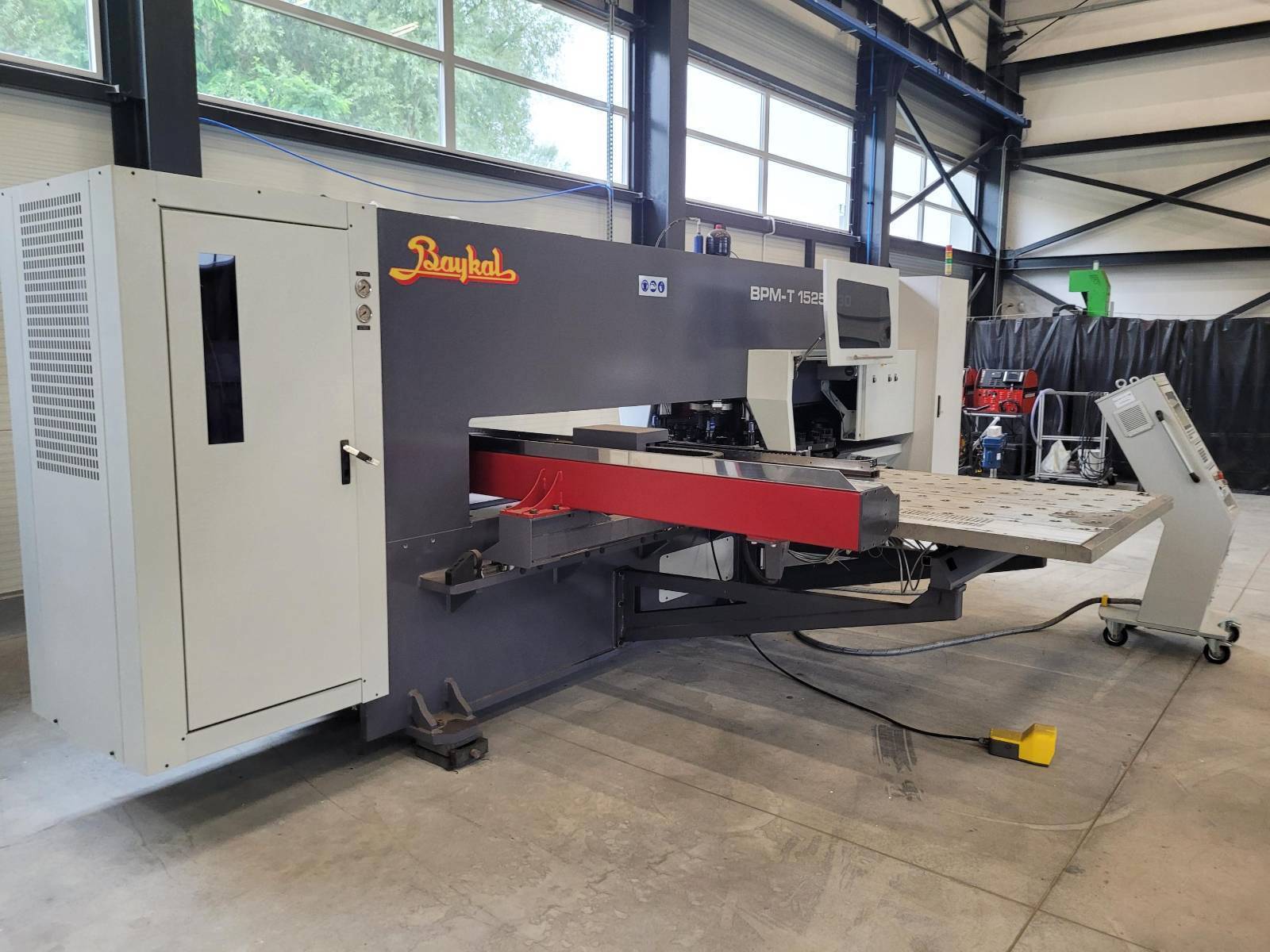

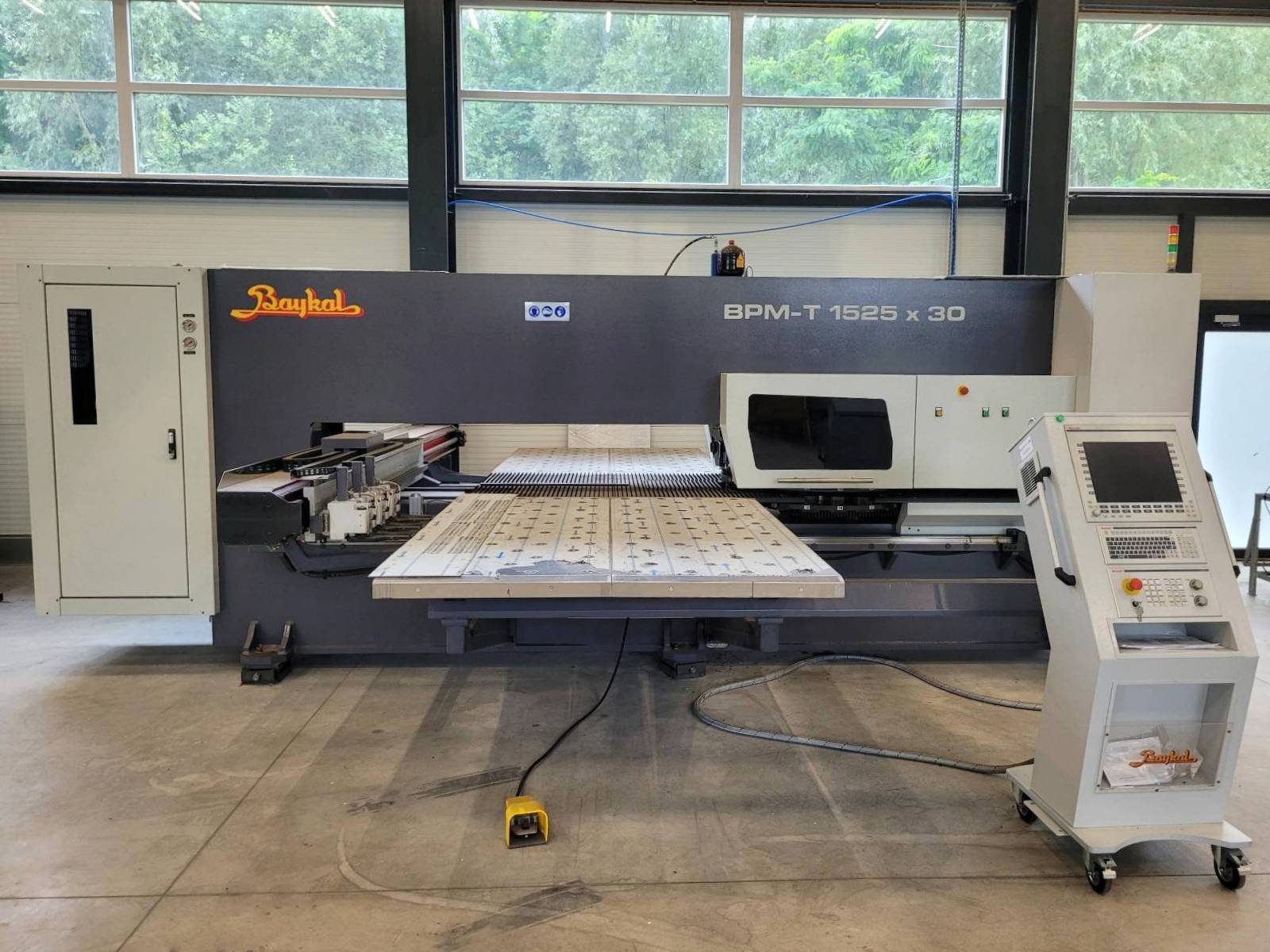

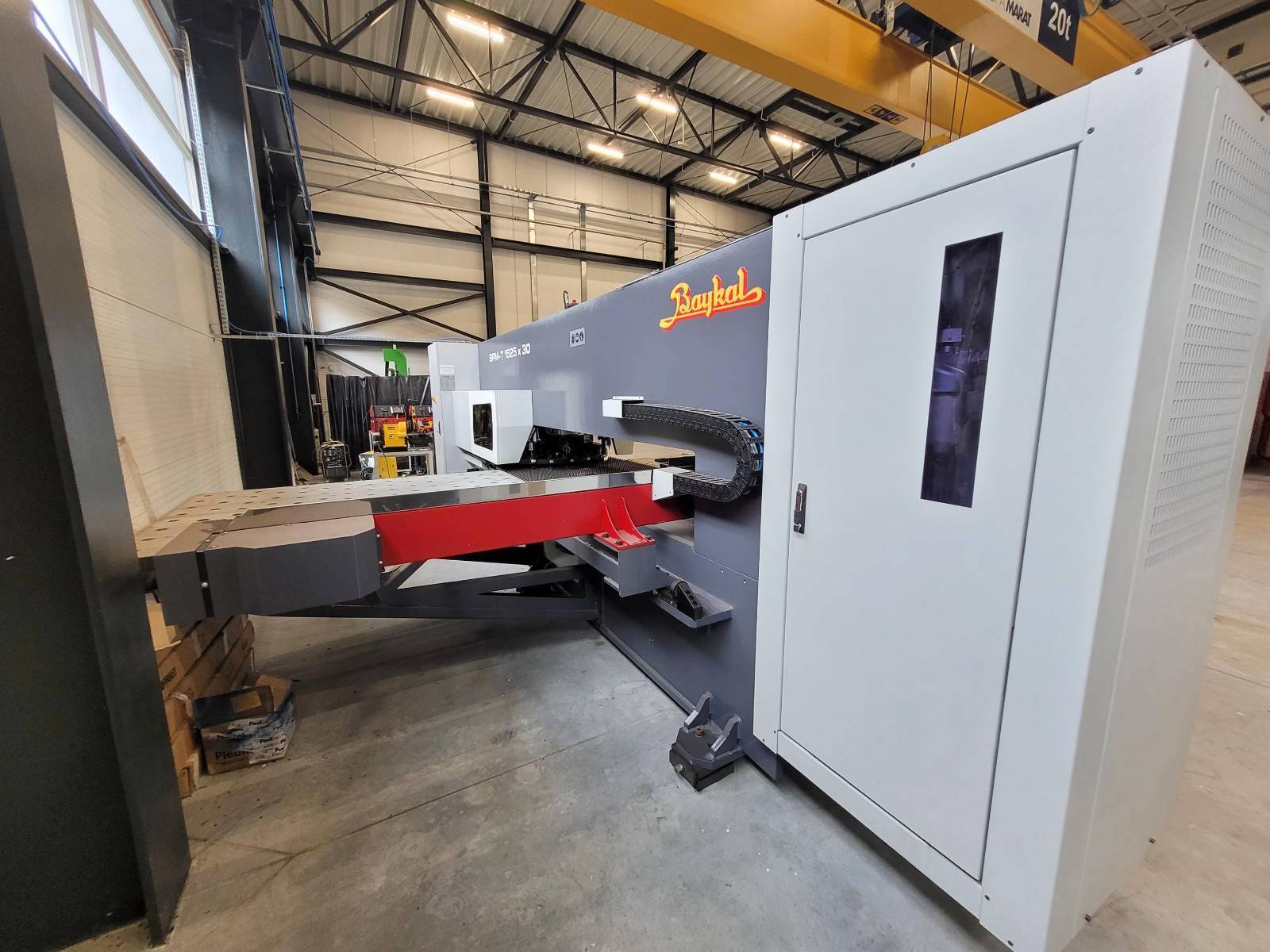

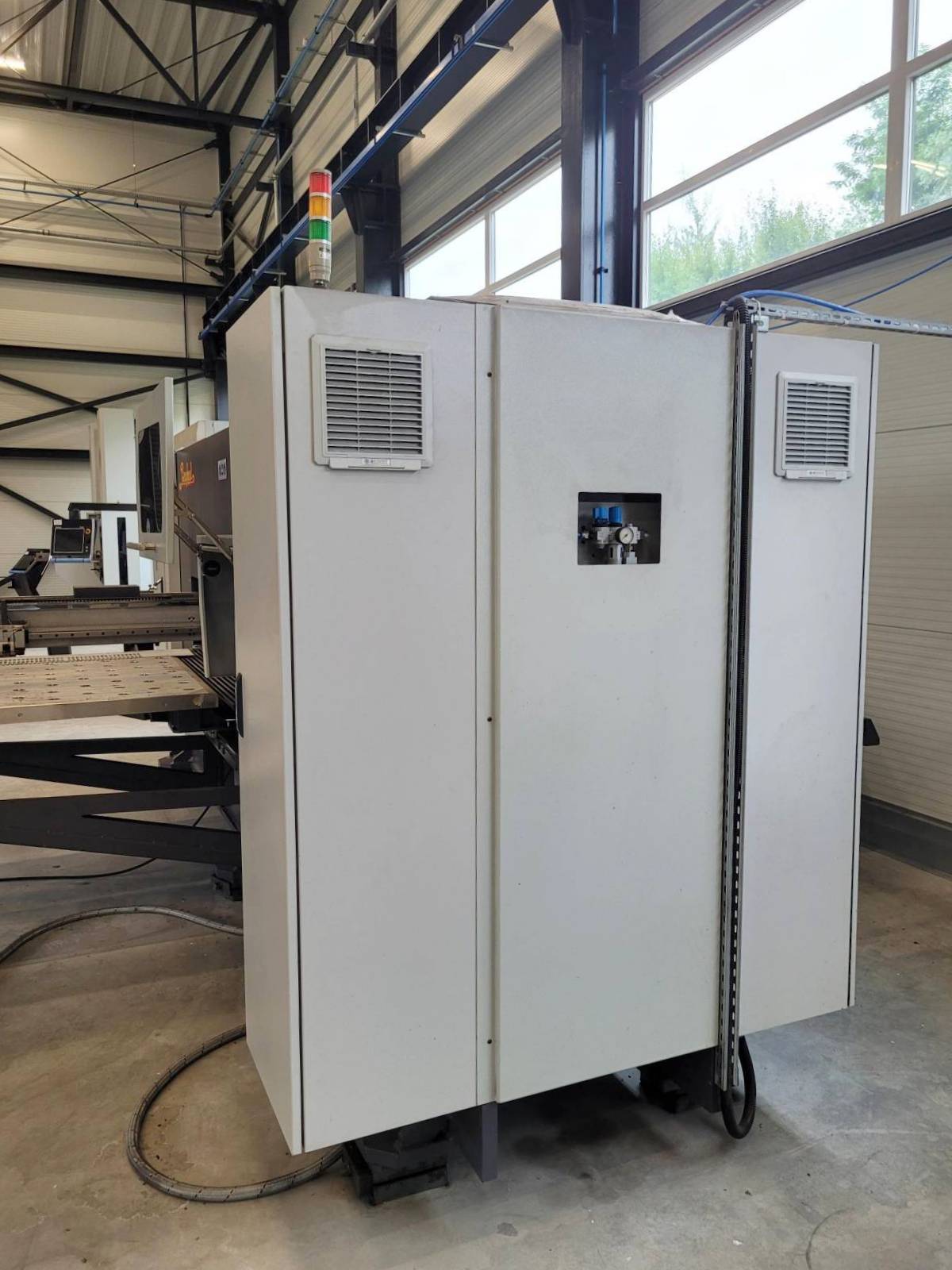

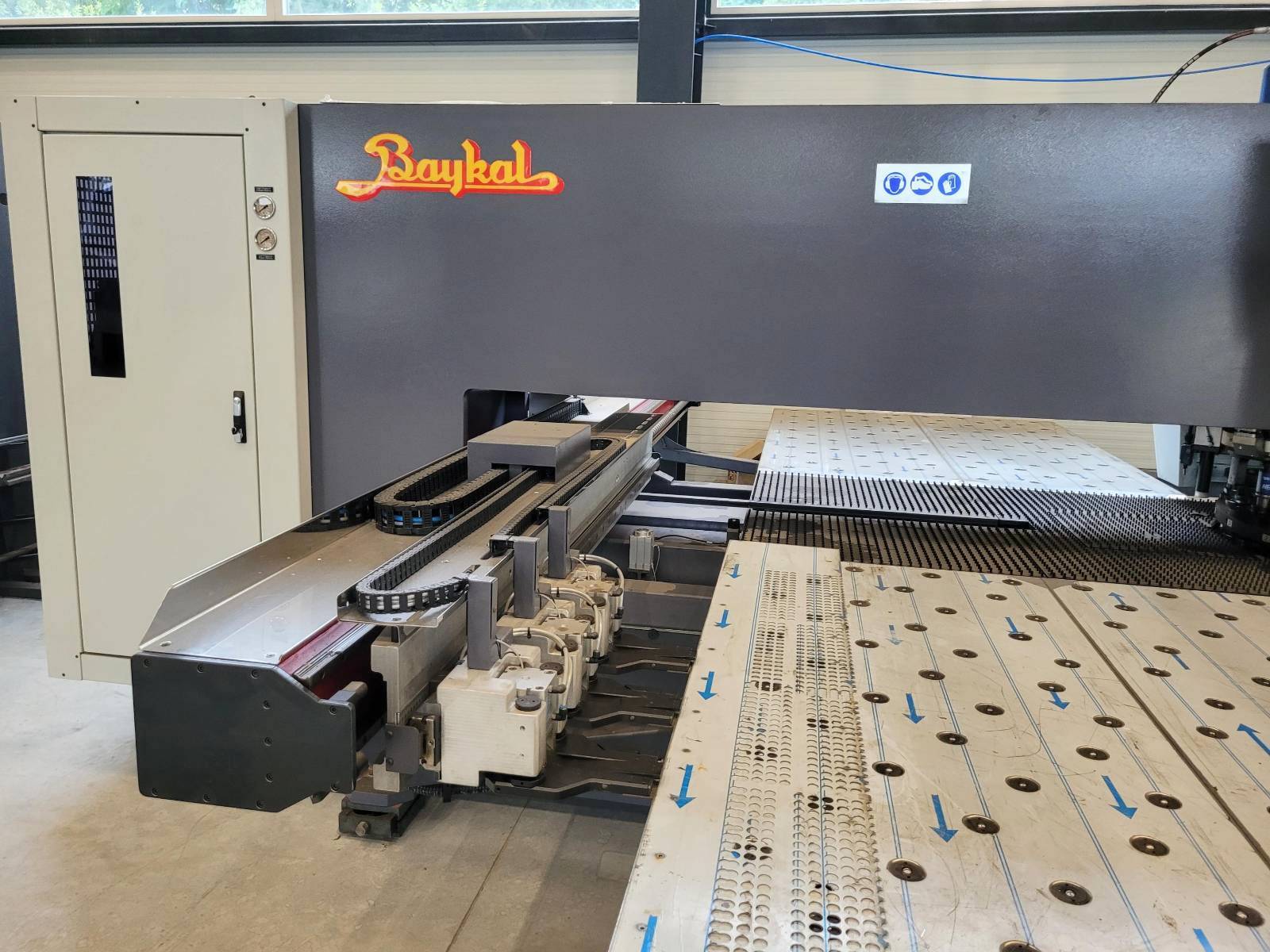

BAYKAL BPM-T 1525X30 CNC punching machine

BAYKAL BPM-T 1525X30 CNC punching machine was built in 2020 in Turkey by BAYKAL MAKINA SANAYI VE TICARET A.Ş. The machine, distinguished by its stable design and state-of-the-art components, is the best choice for the production of precise parts of the highest quality. Hole punching of sheet metal made of, among others, stainless steel and aluminium is performed with a high press force of 30 tonnes on a large work table. All this is complemented by an intelligent REXROTH CNC control in which the most advanced machining programmes are created in just a few steps. The BAYKAL BPM-T punching machine weighs 15000 kg.

Technical data of the BAYKAL BPM-T 1525X30 punching machine

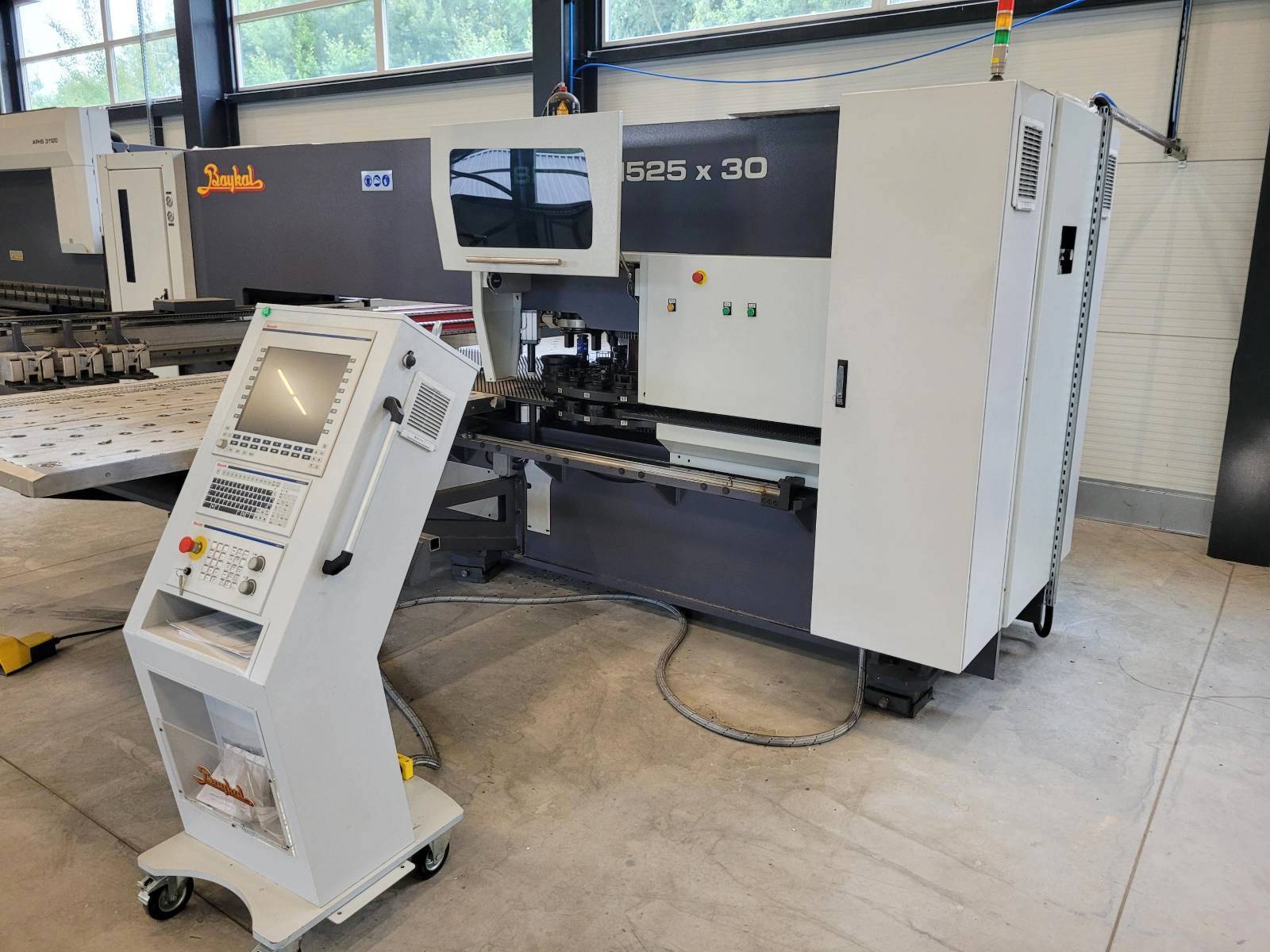

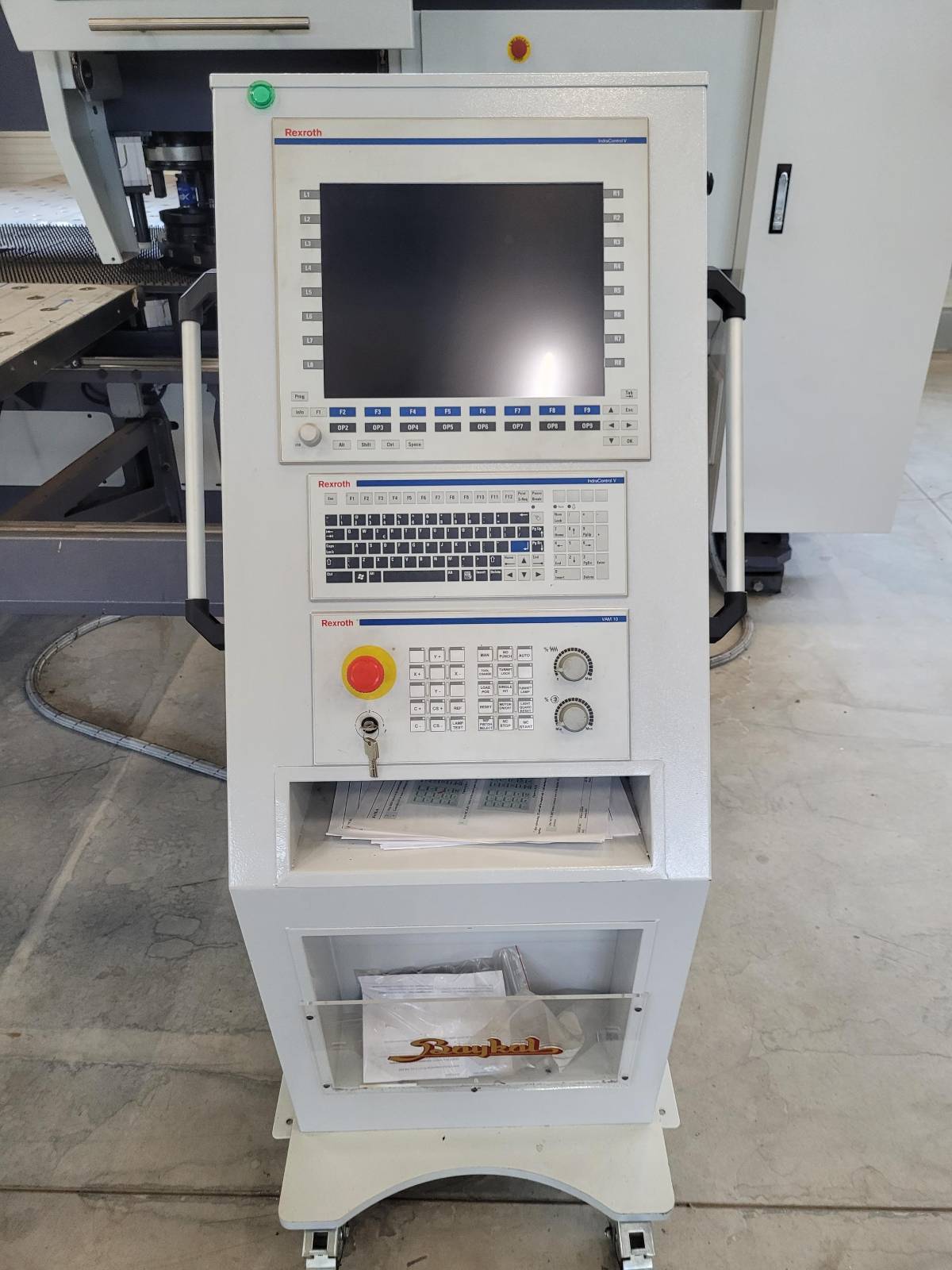

• CNC controller: REXROTH
• maximum press force: 30 t
• feed in the X/Y axis: 2500/1500 mm
• slider stroke number: 900/min

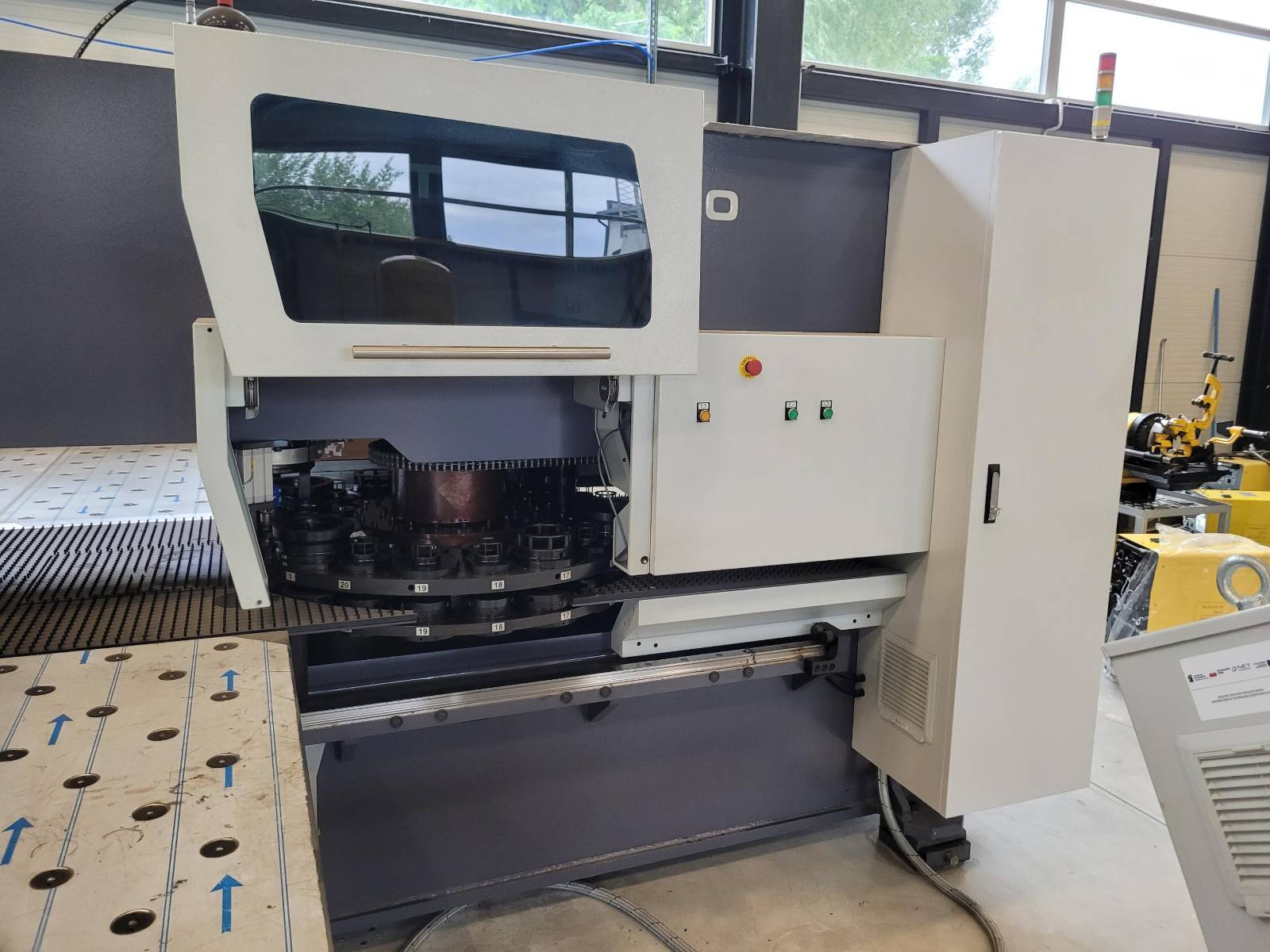

• 20-station turret head
• foot switch control
• oil tank capacity: 350 l
• air pressure: 6 bar
• power: 15 kW
• power supply: 3x 380 V; 50 Hz
• dimensions (L x W x H): 6050 x 5210 x 2220 mm
• weight of the BAYKAL machine: 15000 kg
