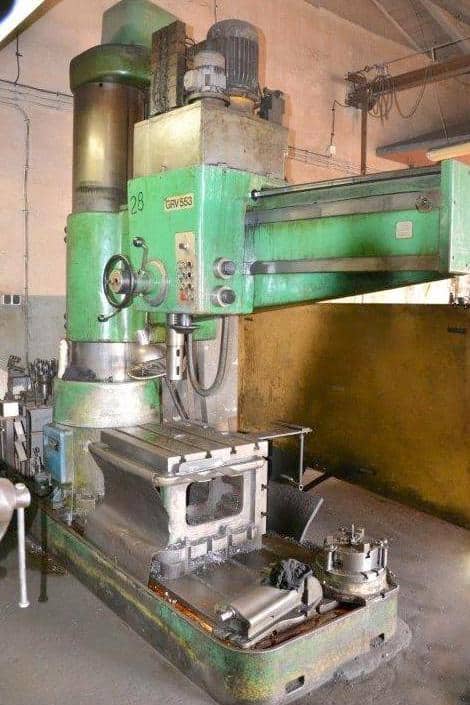

CEGIELSKI GRV 553 radial drilling machine

CEGIELSKI GRV 553 radial drilling machine was built in Poland. The machine used for reaming, countersinking and threading holes in workpieces made of e.g. steel and cast iron, offers a wide range of revolutions and feeds for any machining operation. It is equipped with a reliable spindle with Morse 5 taper rotating from 12.5 to 1600 times per minute. The total weight of the machine is 6050 kg.

Technical data of the CEGIELSKI GRV 553 drilling machine

• largest drilling diameter in steel Rr 50-70 kg/mm2 (feed 0.4 mm/rev): 55 mm
• largest drilling diameter in steel Rr 50-70 kg/mm2 (feed 0.32 mm/rev): 63 mm
• largest drilling diameter in cast iron Rr 18-22 kg/mm2 (feed 0.4 mm/rev): 70 mm
• largest drilling diameter in cast iron Rr 18-22 kg/mm2 (feed 0.32 mm/rev): 80 mm
• minimum spindle mechanical feed: 0.063 mm/rev
• maximum spindle mechanical feeds: 2.5 mm/rev
• number of spindle mechanical feeds: 15
• maximum spindle speed: 1600 rpm
• minimum spindle speed: 12.5 rpm
• number of spindle speeds: 15
• largest spindle extension: 415 mm
• largest distance between spindle axis and column surface: 1600 mm
• smallest distance between spindle axis and column surface: 375 mm
• spindle taper: Morse 5
• base plate working area (L x W): 1700 x 1000 mm
• largest distance between spindle and base plate: 1700 mm
• smallest distance between spindle and base plate: 400 mm
• working area illumination
• maximum feed force: 2000 kG
• main motor power: 5.5 kW
• hoisting mechanism motor power: 2.2 kW
• hydraulic motor power: 0,75 kW
• clamping mechanism motor power: 0.37 kW
• power of coolant electropump: 0.22 kW
• power supply: 3x 380 V; 50 Hz
• dimensions (L x W x H): 2950 x 1195 x 3400 mm
• weight of machine H. CEGIELSKI GRV 553: 6050 kg
