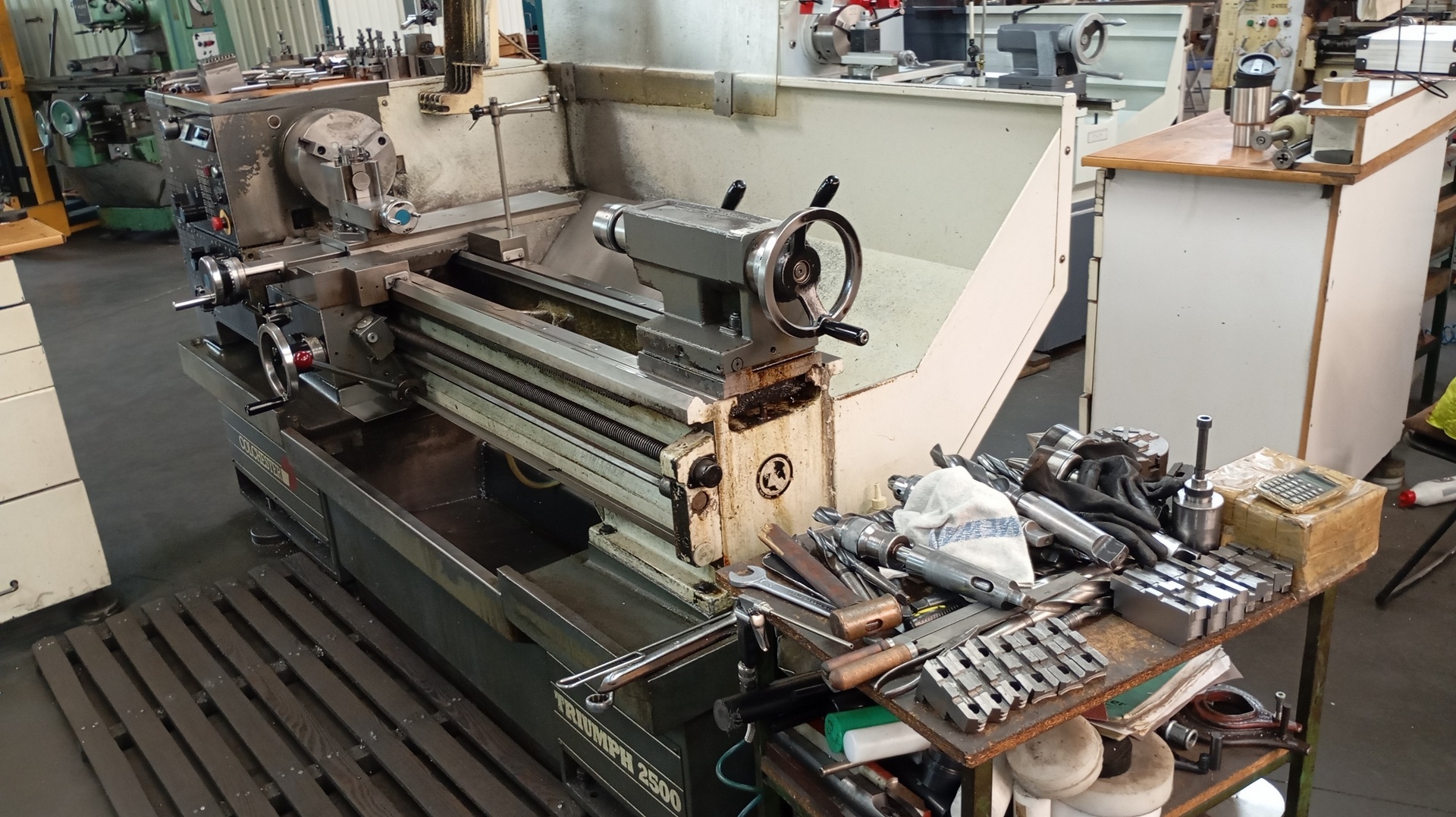

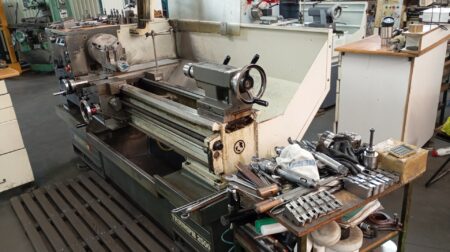

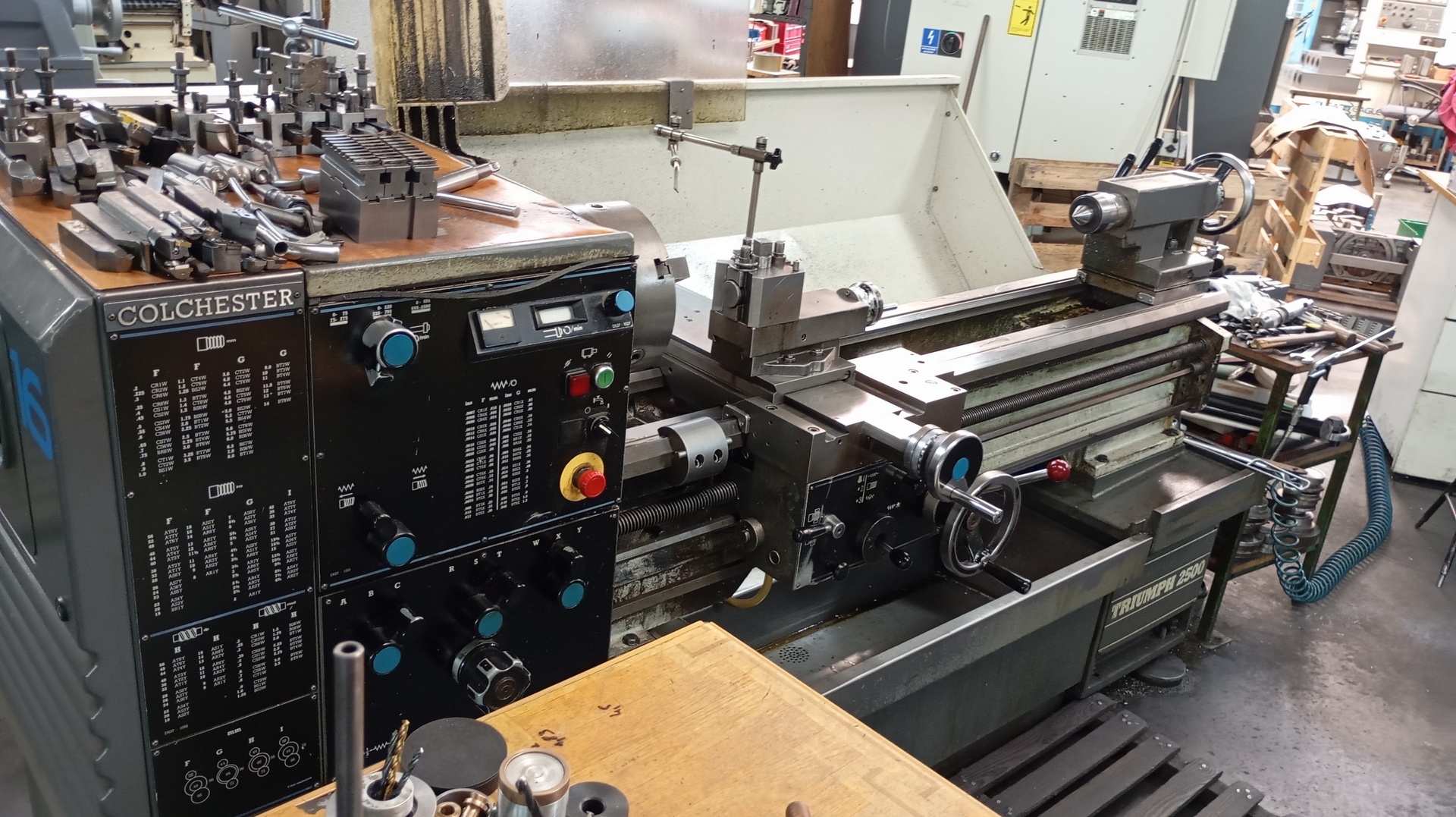

COLCHESTER TRIUMPH 2500 conventional lathe

COLCHESTER TRIUMPH 2500 conventional lathe was built in England by Colchester Lathe Co., Ltd. The machine, designed for machining workpieces with a maximum diameter of 585 mm, offers exceptional precision and repeatability of the produced parts. All this is achieved thanks to a reliable spindle with an optimised speed range and a cast iron bed, which ensures maximum process stability during even the most intensive challenges. The TRIUMPH 2500 universal lathe on offer is an excellent choice for both unit and small batch production.

Technical specifications of the COLCHESTER TRIUMPH 2500 metal lathe

• maximum turning diameter above the bed: 410 mm
• maximum turning diameter above the slide: 246 mm
• maximum turning diameter over gap: 585 mm
• distance between centers: 1250 mm
• spindle rotational speed range: 14-2500 rpm
• spindle bore diameter: 54 mm
• spindle end: D1-6 CAMLOCK
• spindle taper: MT4
• tailstock quill extension: 145 mm
• tailstock quill taper: MT5
• main motor power: 10 HP

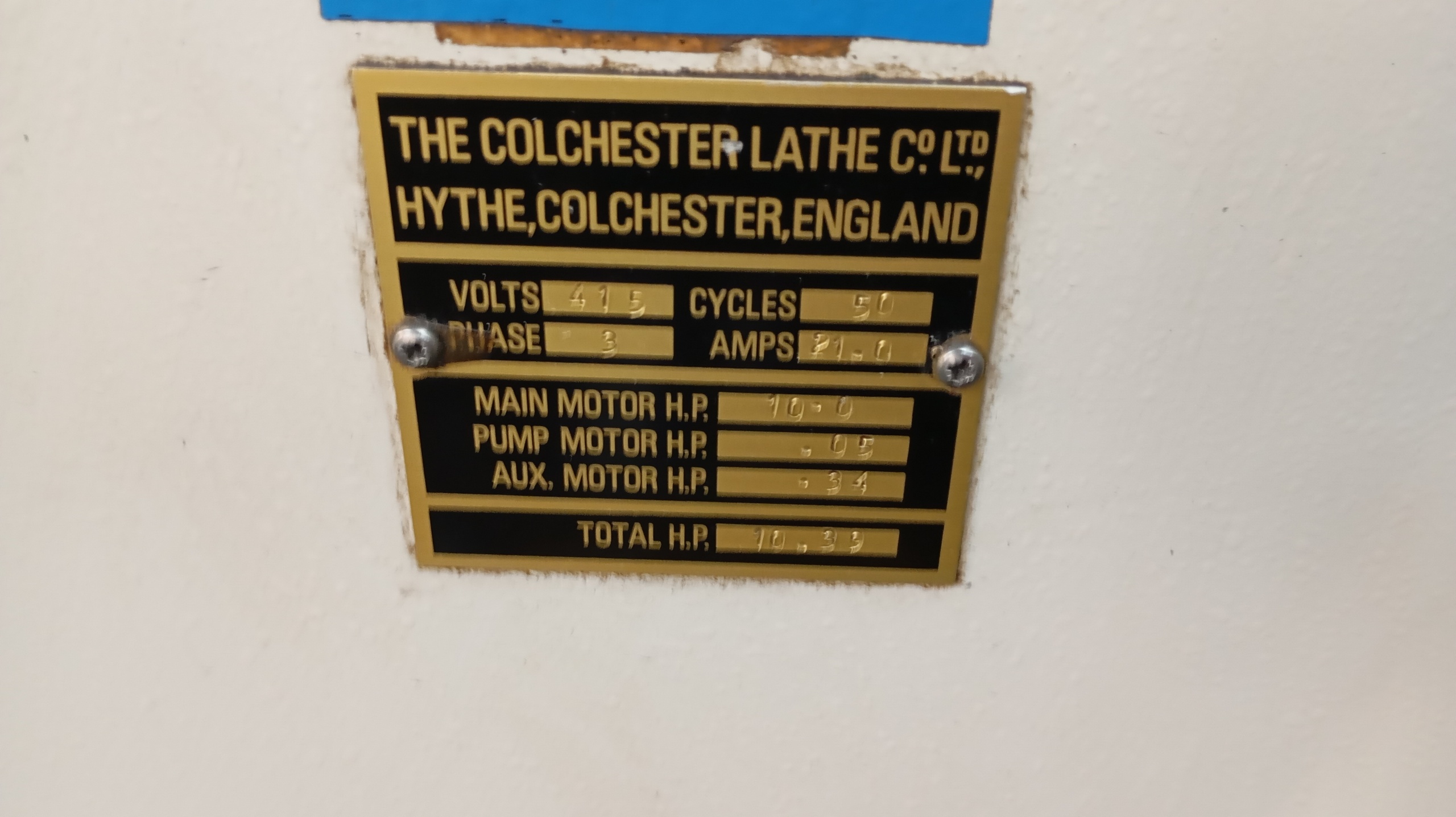

• power supply of the COLCHESTER TRIUMPH 2500 machine: 3x 415 V; 50 Hz

(The technical parameters given may differ slightly from reality. A verification with the actual capabilities of the offered machine is required.)
