DEFUM ADS-115 boring machine

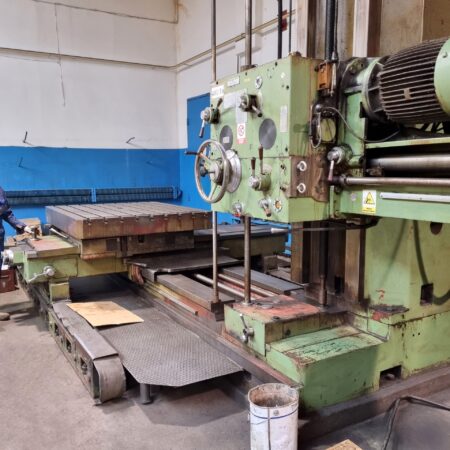

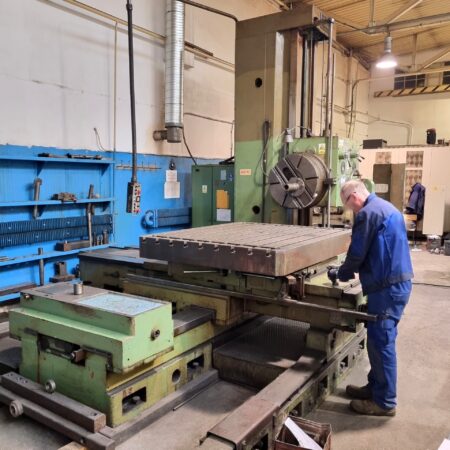

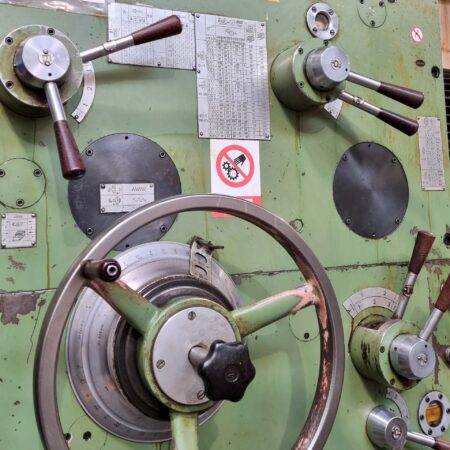

DEFUM ADS-115 boring machine was manufactured in Poland. The reliable machine is used for, among others, drilling, boring, planning, reaming, milling and threading workpieces with a maximum weight of 6 tonnes. Thanks to the use of a large work table with an area (L x W) of 1500 x 1800 mm with manual and mechanical rotation, it is possible to comfortably load larger workpieces which do not fit on standard-sized drilling and milling machines.

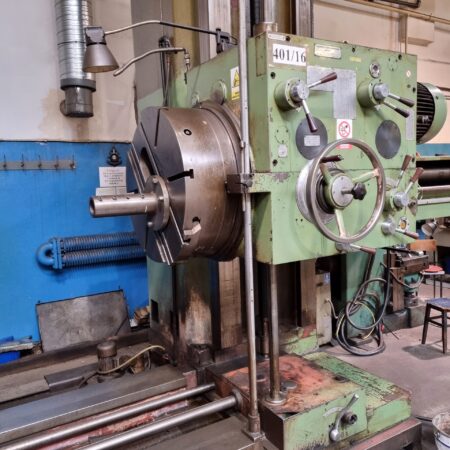

For increased spindle travel and transverse table travel, the cross-table drilling and milling machine is equipped with two additional guides. The feeds of the spindle with a diameter of 115 mm and a maximum speed of 674 rpm are switched off automatically in extreme positions. The machine is equipped with, among others, a 750-mm-diameter disc with an integrated planning slide, changewheels and various types of screws. The total weight of the DEFUM AD-S 115 boring machine is 26000 kg.

Technical specifications of the DEFUM ADS-115 drilling and milling machine

• work table dimensions (L x W): 1500 x 1800 mm
• maximum workpiece weight: 6000 kg
• maximum spindle speed (50 Hz): 674 rpm
• minimum spindle speed (50 Hz): 10 rpm
• number of spindle speeds: 18
• number of spindle feeds: 100
• spindle feed rate range: 0.017-12 mm/rev
• spindle diameter: 115 mm
• spindle taper: Morse 6
• largest spindle travel: 850 mm
• largest distance between spindle axis and table surface: 1900 mm
• smallest distance between spindle axis and table surface: 0 mm
• transverse table travel: 2000 mm
• longitudinal slide travel: 1400 mm
• number of spindle and transverse table feeds: 20
• range of spindle and transverse table feeds: 0.035-10.7 mm/rev
• number of longitudinal table feeds: 20
• range of longitudinal table feeds: 0.034-10.5 mm/rev
• largest planning diameter: 1000 mm
• smallest planning diameter: 400 mm
• largest hooping diameter: 1000 mm
• smallest hooping diameter: 400 mm
• disc diameter: 750 mm
• maximum disc speed (50 Hz): 380 rpm
• minimum disc speed (50 Hz): 10 rpm
• number of disc speeds: 15
• diameter of clamping plane on disc: 750 mm
• largest slide extension in disc: 190 mm
• largest distance from disc to support: 3200 mm
• number of planning slide feeds: 10
• feed rate range of the planning slide: 0.026-2 mm/rev
• metric thread pitch: 0.2-12 mm
• two-speed main motor power: 13/19 kW
• dimensions (L x W x H): 6807 x 3883 x 4180 mm
• ADS-115 machine weight: 26000 kg

Boring machine equipment

• boring knife vise with slide for planning
• hand crank
• changewheels for feed and thread z=36, 40, 45, 50, 54
• foundation bolts with washers and nuts
• clamping bolts M30x110
• clamping bolts M30x80
• steel washers 70x70x12
• steel washers 120x120x16
• 24V installation for lighting lamp
• DTR – Technical and Operating Documentation
