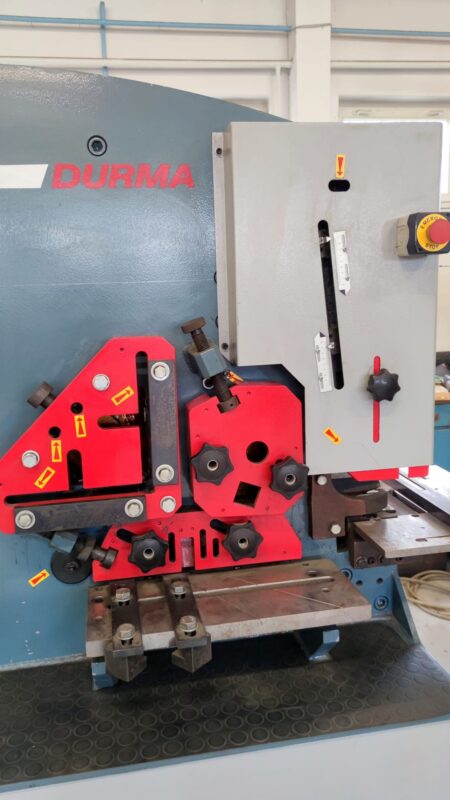

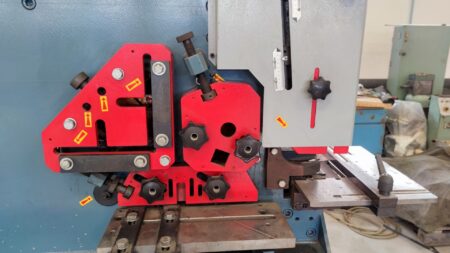

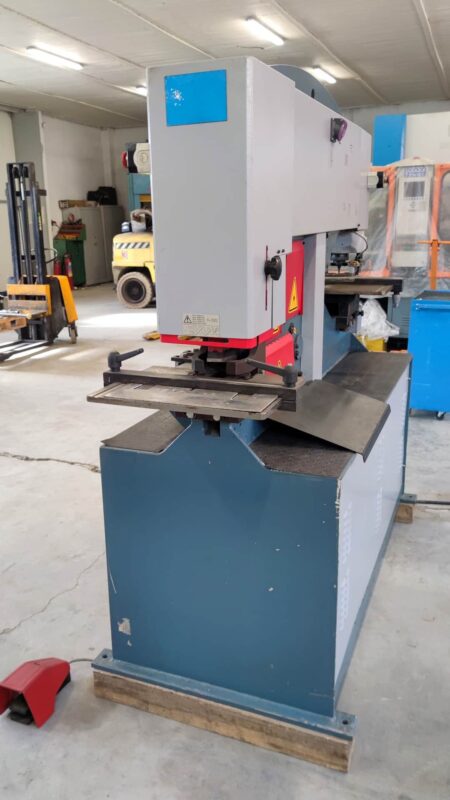

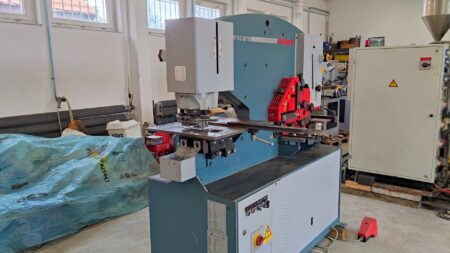

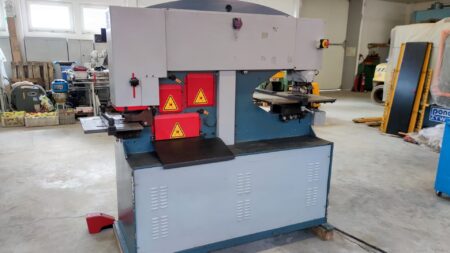

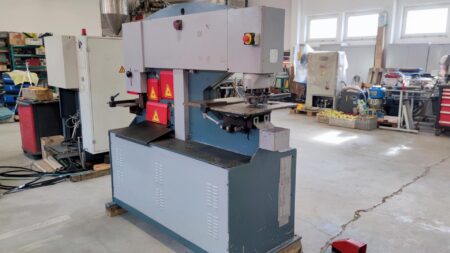

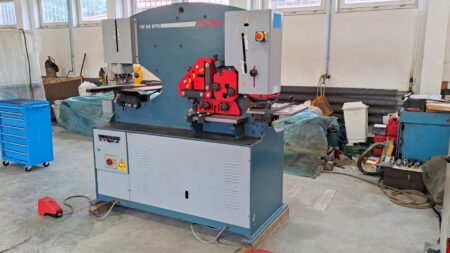

DURMA IW 55/110 BTD ironworker machine

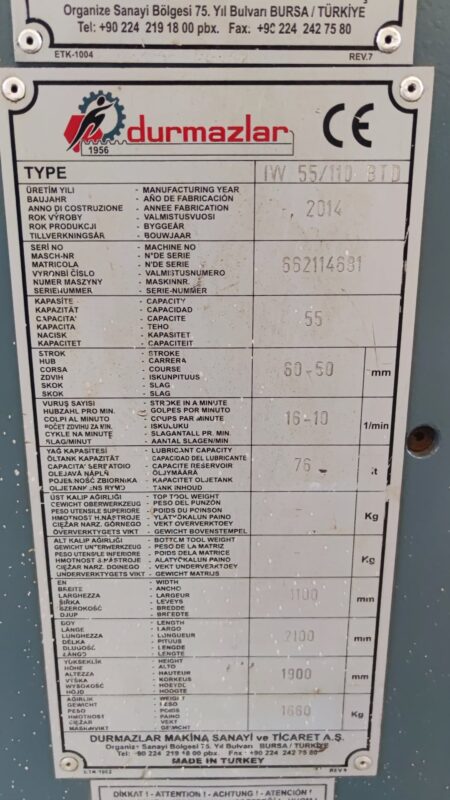

DURMA IW 55/110 BTD ironworker machine manufactured in 2014 in Turkey helps to significantly increase production efficiency while keeping operating costs low. The highly versatile and multifunctional machine has a rigid and stable frame made of steel plates with 5 work stations for precise hole and corner punching, as well as cutting flat bars, angle bars and solid bars. The DURMA hydraulic ironworker machine guarantee excellent cutting quality throughout their service life, thanks to the use of a hydraulic cylinder with a centrally located actuator. The total weight of the machine is 1660 kg.

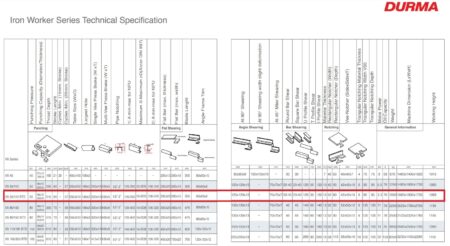

Technical specifications of the DURMA IW 55/110 BTD ironworker machine

General data

• punching force: 55 t
• cutting force: 110 t
• number of workstations: 5
• number of hydraulic cylinders: 2
• cylinder stroke: 50-60 mm
• number of cylinder strokes (20 mm stroke): 37/min
• reach: 510 mm
• foot control
• motor power: 5.5 kW
• oil tank capacity: 76 l
• maximum pressure in hydraulic system: 210 bar
• dimensions (L x W x H): 2100 x 1100 x 1900 mm
• weight of machine: 1660 kg

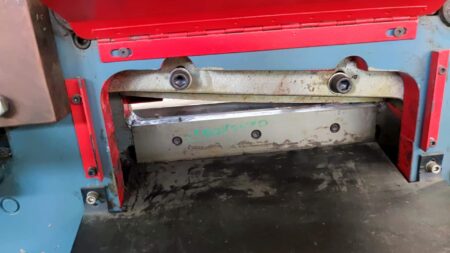

Flat bar cutting station

• press force: 110 t
• flat bar dimensions: 300 x 15 mm; 200 x 20 mm
• blade length: 305 mm
• cutting angle at 45°: 60 mm
• working height: 890 mm

Angle bars cutting station

• press force: 110 t
• angle bars cutting at 90°: 120 x 120 x 10 mm
• angle bars cutting at 45°: 70 x 70 x 7 mm
• working height: 1096 mm

Square and solid bars cutting station

• press force: 110 t
• solid bar diameter: fi 16-40 mm
• square bar diameter: from 16 x 16 mm to 40 x 40 mm

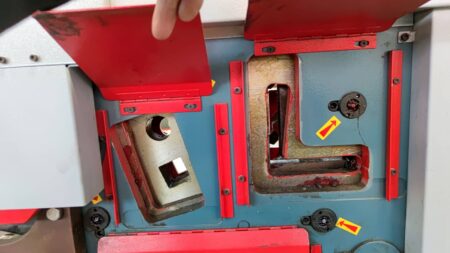

Corner punching station

• press force: 55 t
• sheet metal maximum thickness: 10 mm
• width V90: 42 mm
• depth P: 90 mm
• working height: 956 mm

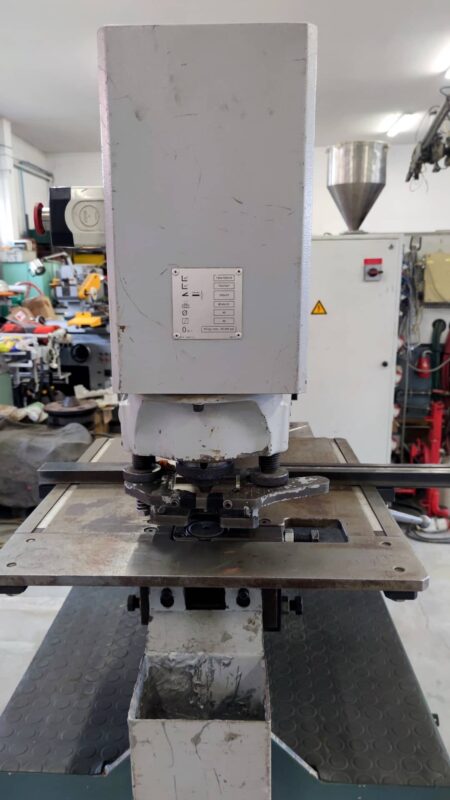

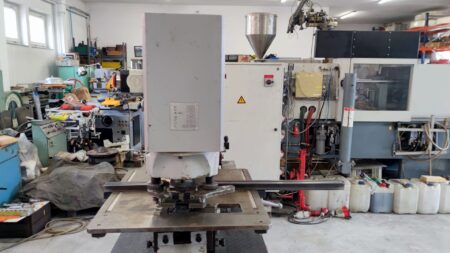

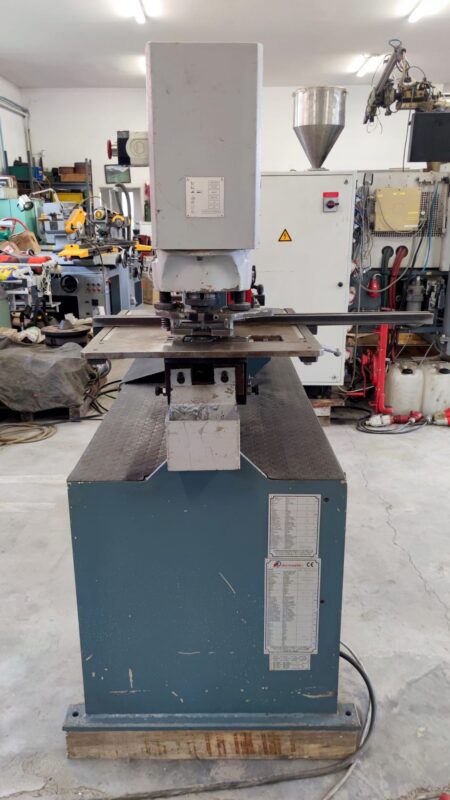

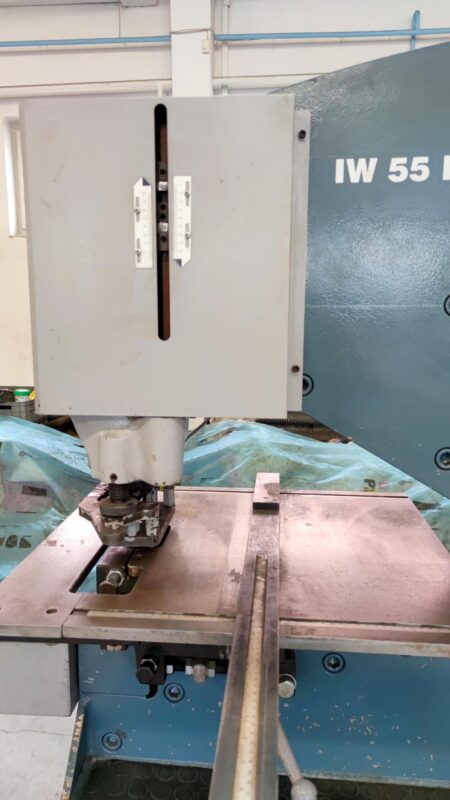

Hole punching station

• press force: 55 t
• maximum hole diameter (sheet metal thickness 10 mm): 40 mm
• maximum hole diameter (sheet metal thickness 20 mm): 20 mm
• working height: 1088 mm
