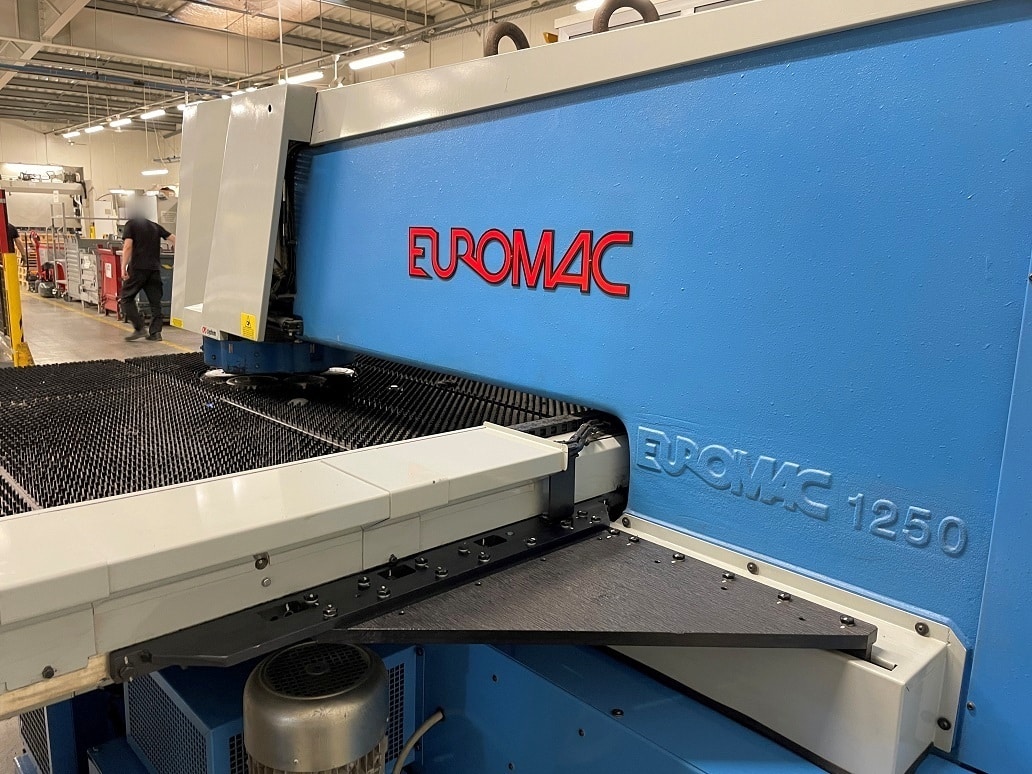

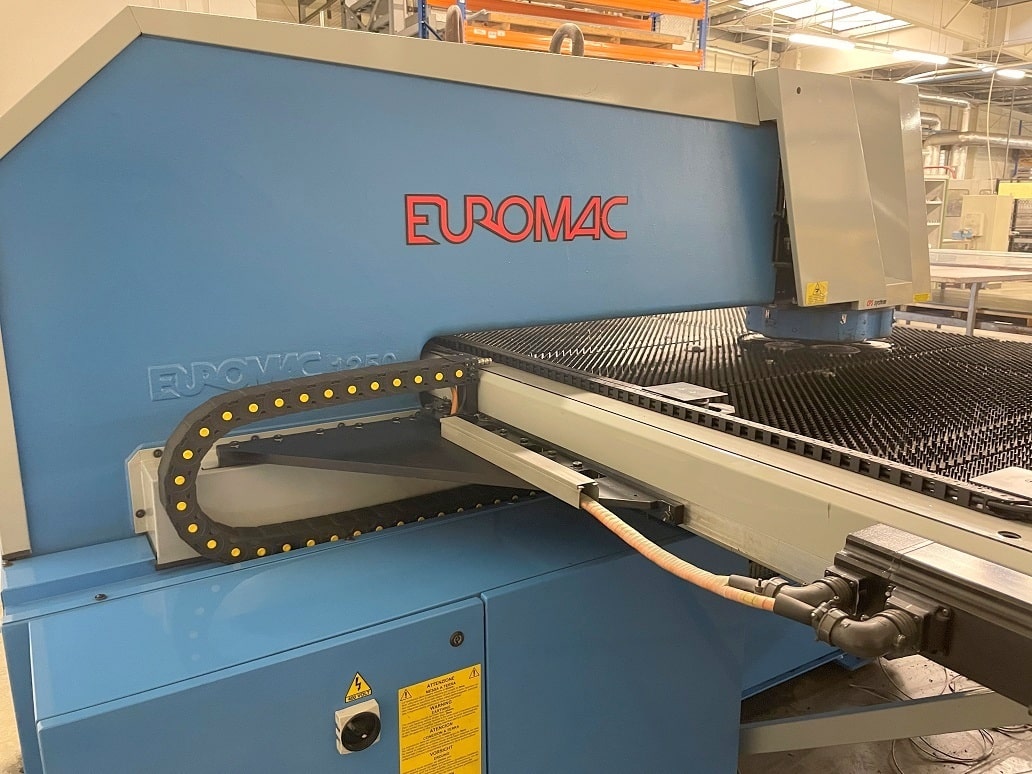

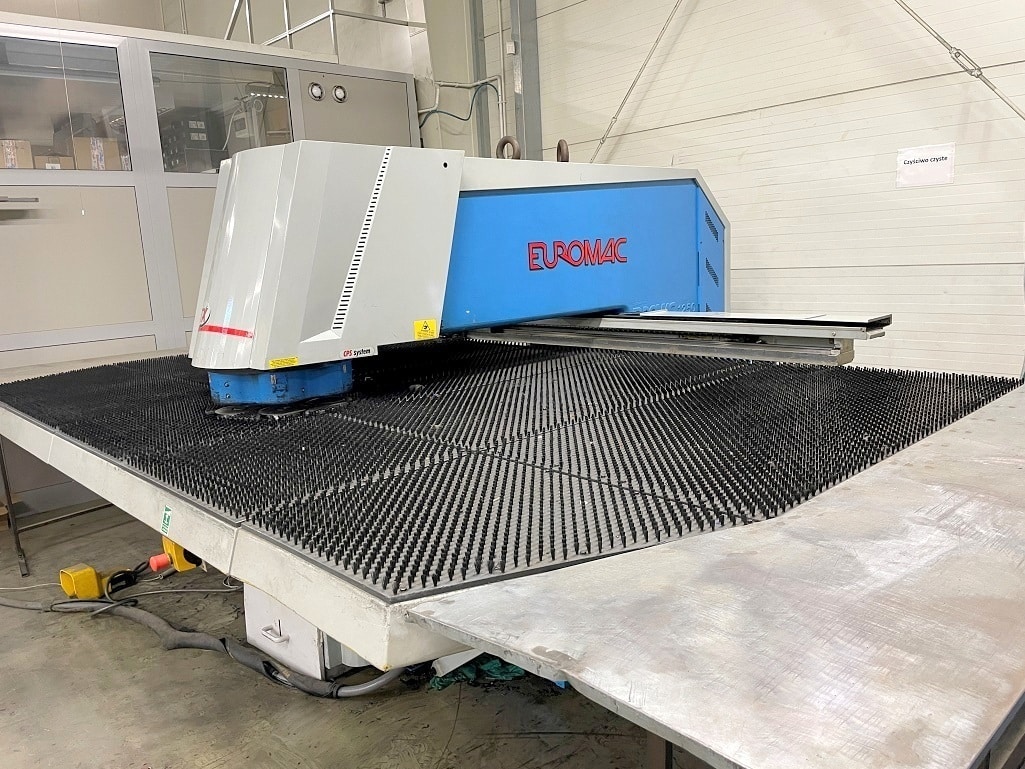

EUROMAC MTX INDEX 1250/30 punching machine

EUROMAC MTX INDEX 1250/30 punching machine was manufactured in Italy in 2008. The machine used for punching in various types of sheet metal, achieves the highest precision and accuracy in machining, thanks to its capacious turret head and high press force of 30 tonnes. The process is performed on a large brush table, which significantly reduces noise level and protects the workpiece surface from scratches and nicks. The EUROMAC 1250 hydraulic punching machine is controlled via a FabriWIN CNC 68 controller with many useful functions. For transport of the machine, tables 4,5,6 are removed and the holding bar is rotated by 90°.

Technical specifications of EUROMAC MTX INDEX 1250/30 punching machine

• press force: 30 t
• feeds in X axis: 1250-2000 mm
• feeds in Y axis: 1250 mm
• automatic repositioning in the X axis: up to 10000 mm
• working speed (cutting, stroke 20 mm): 780 1/min
• working speed (punching, stroke 20 mm): 300 1/min
• maximum punching diameter: 88.9 mm

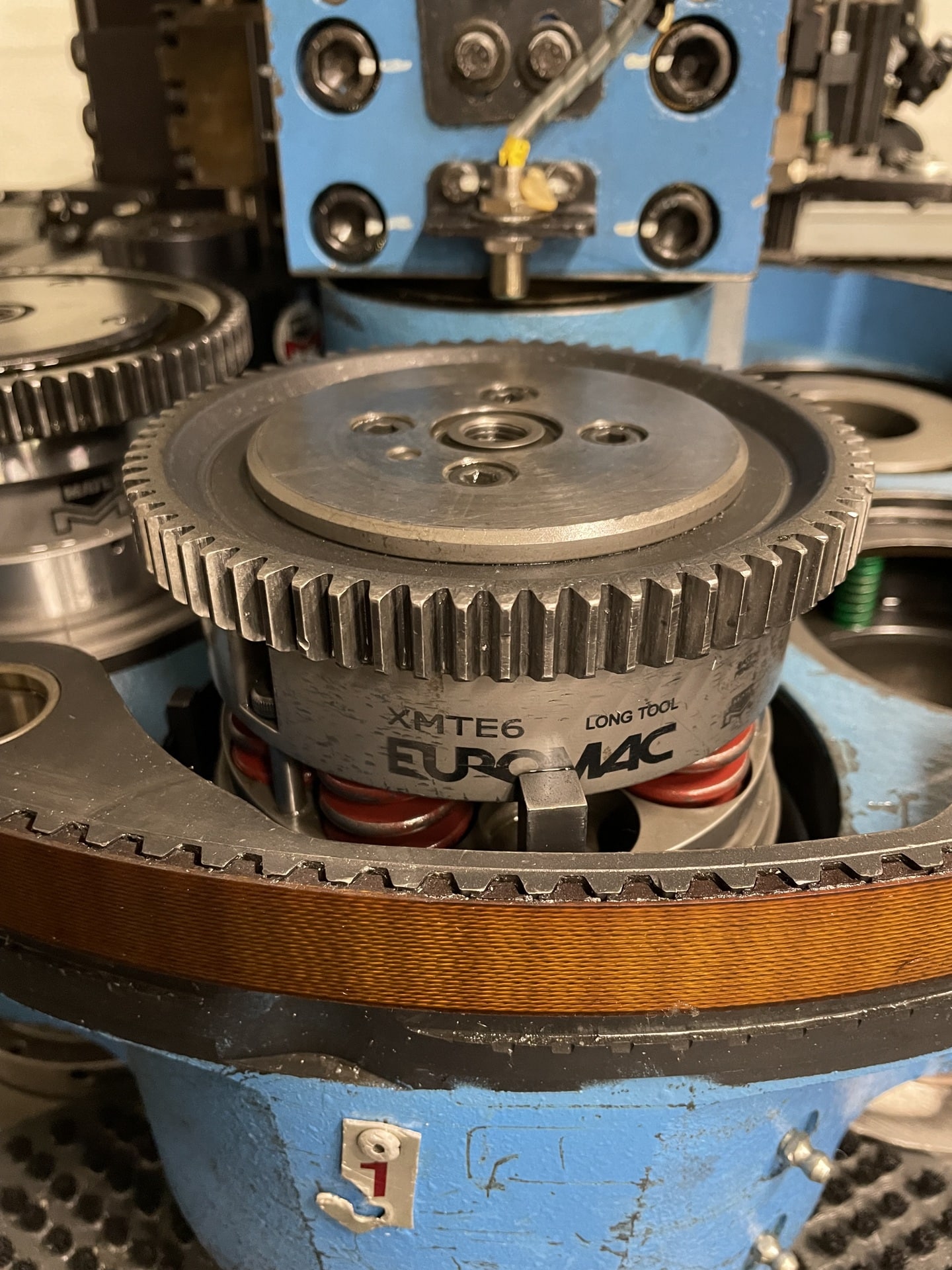

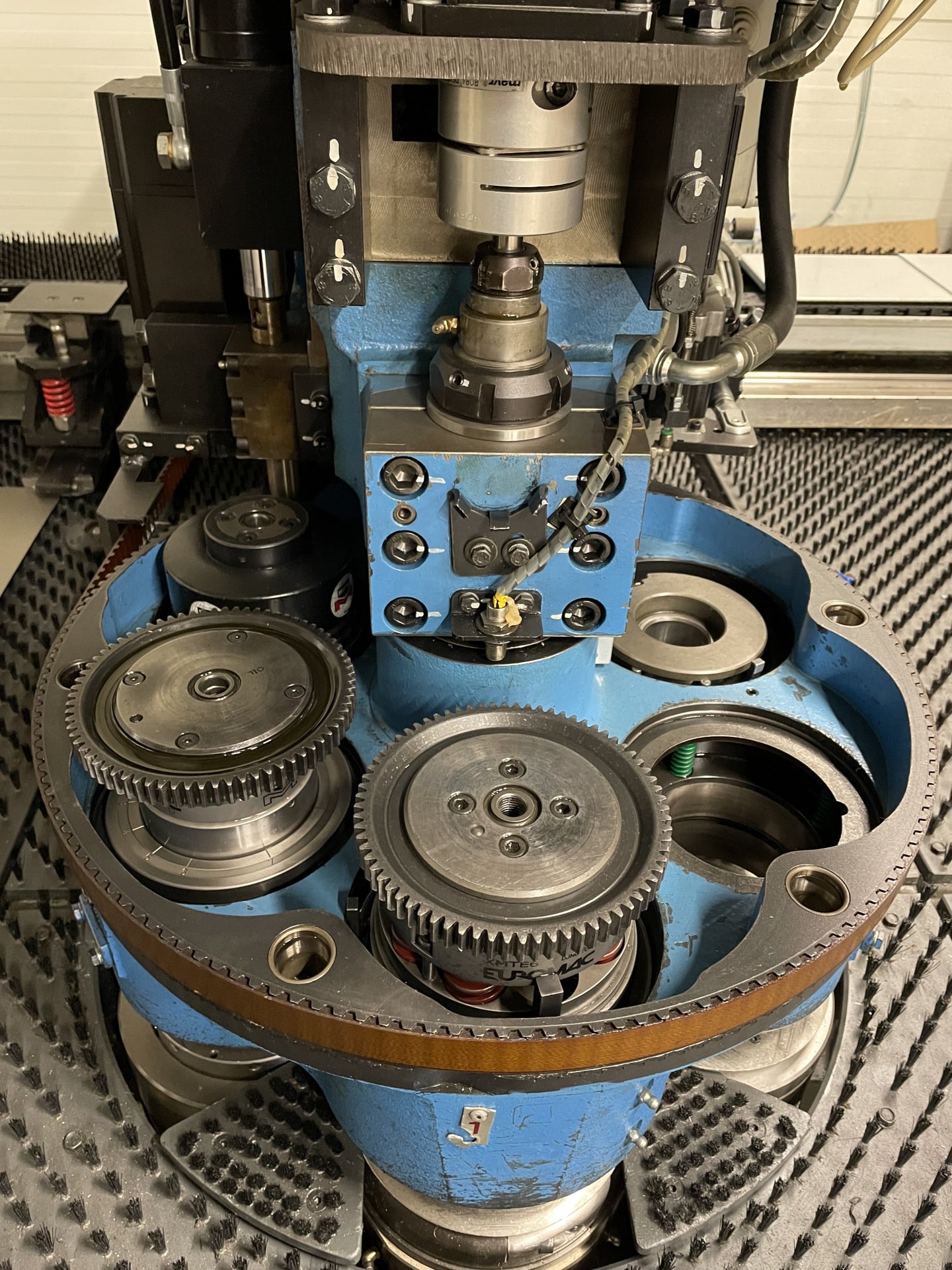

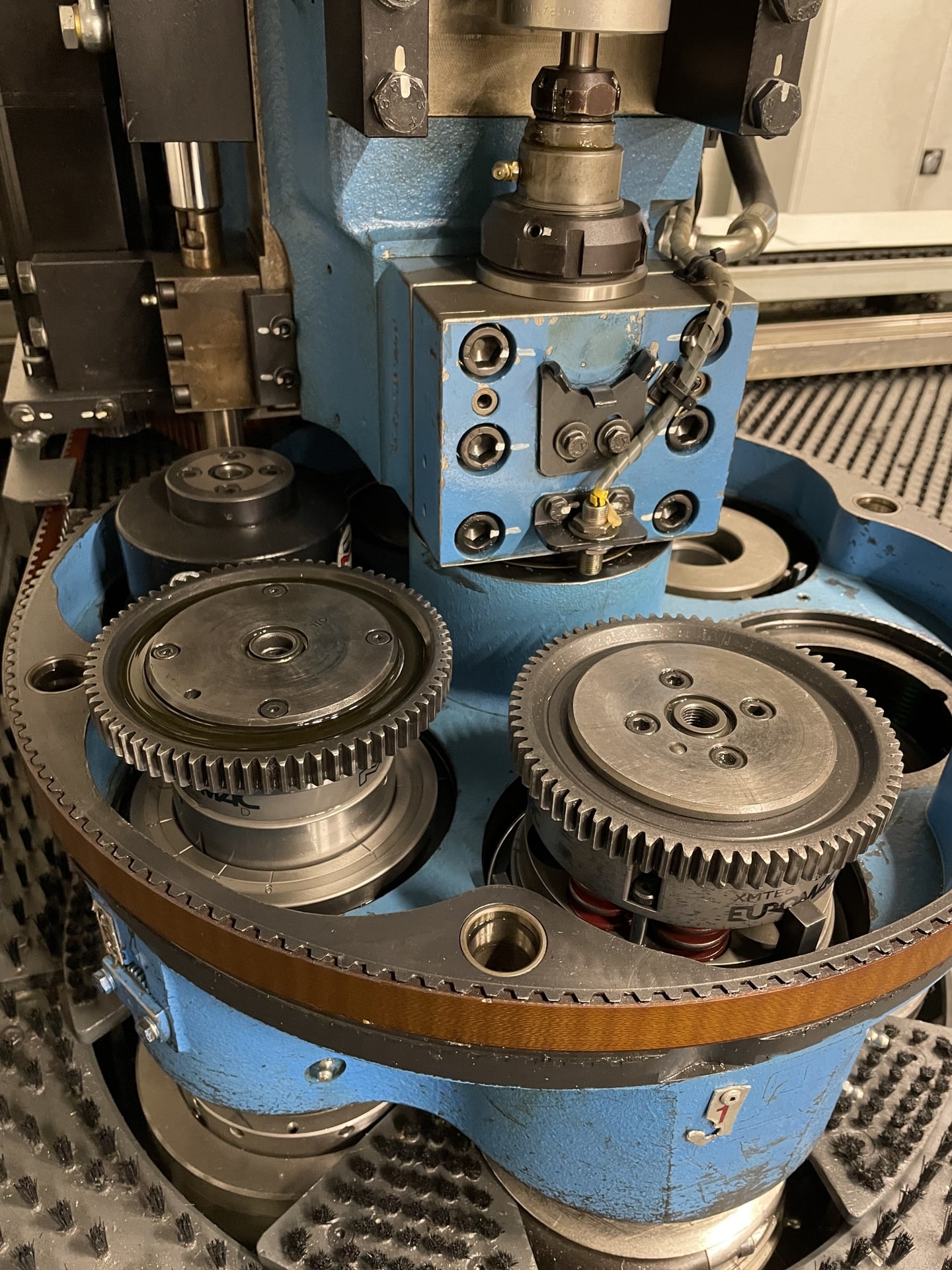

• automatic indexing
• working height: 980 mm

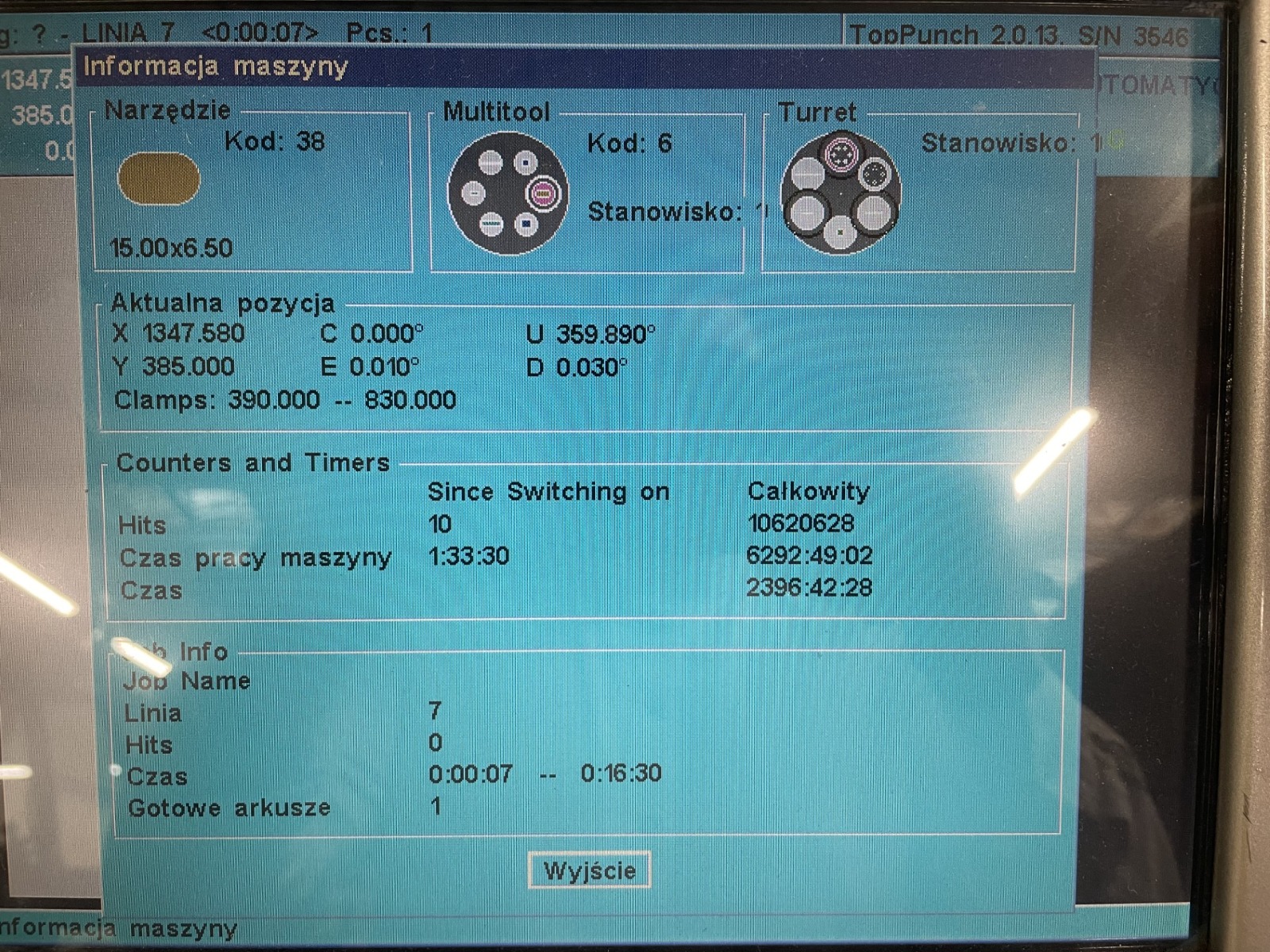

• working hours: 6293 h

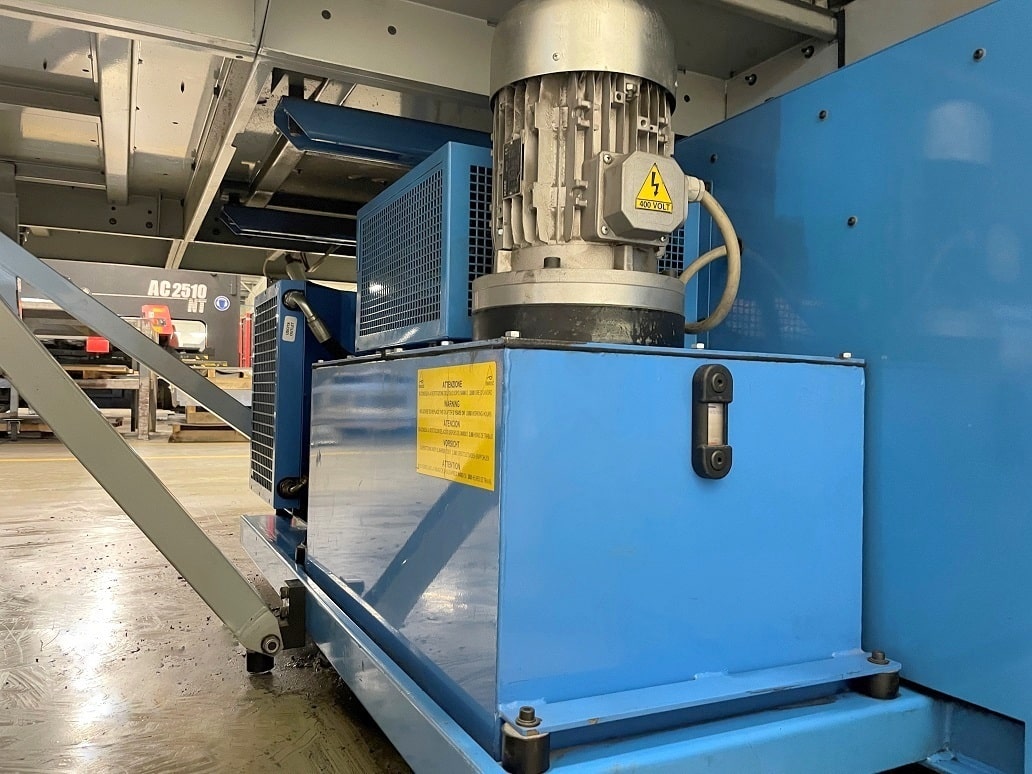

• oil tank capacity: 35 l
• maximum pressure: 240 bar
• engine power: 7.5 HP
• power supply of the machine EUROMAC MTX 1250: 400 V; 50 Hz

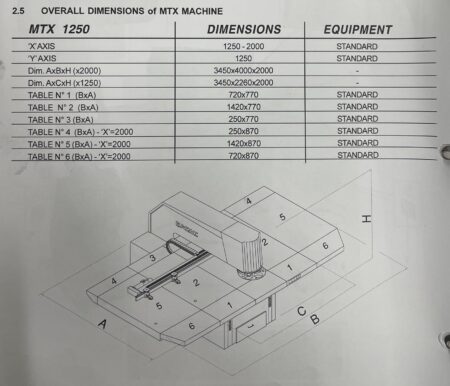

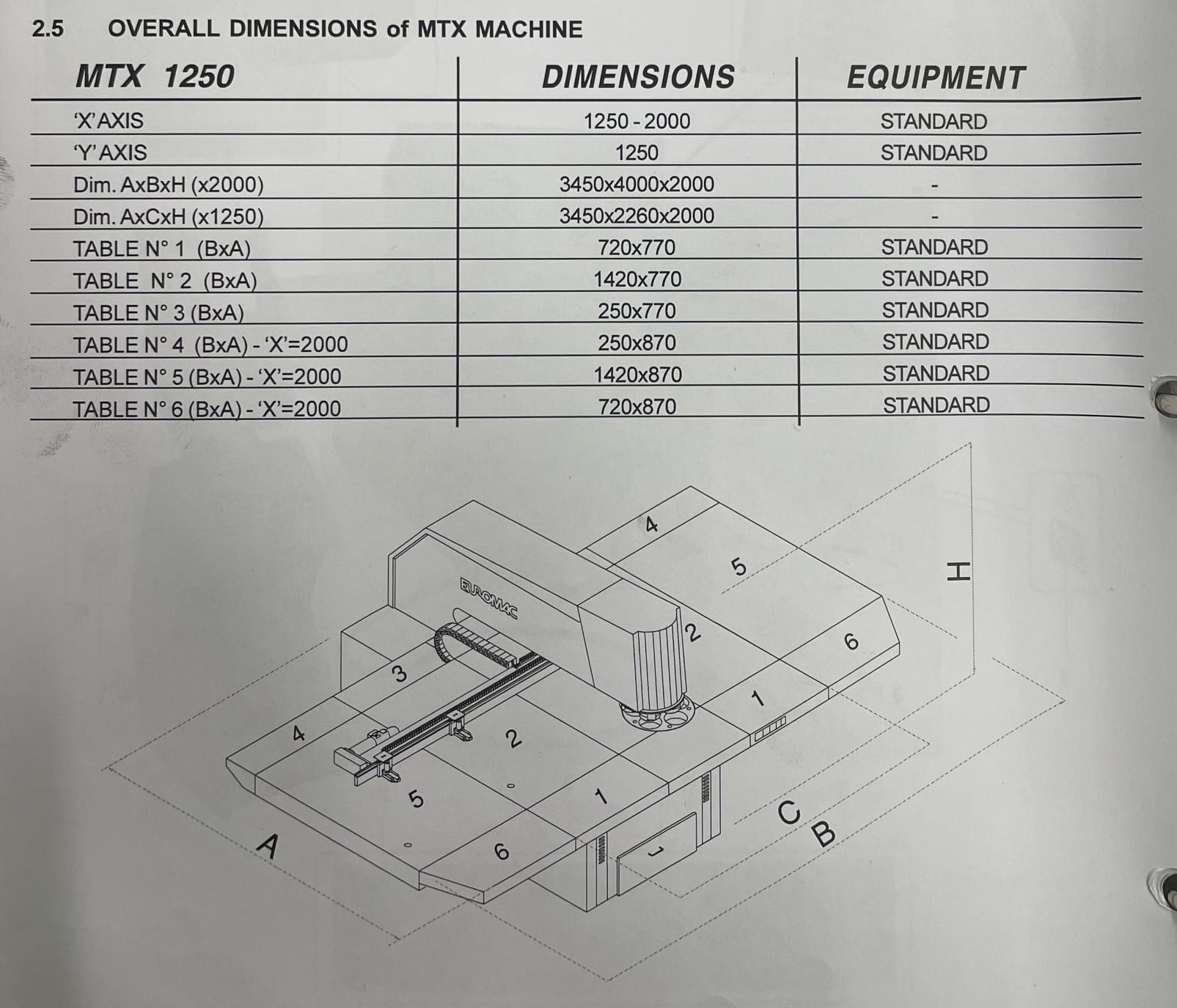

• dimensions (L x W x H): 3450 x 2260 x 2000 mm

Equipment of the EUROMAC MTX INDEX 1250 punching machine

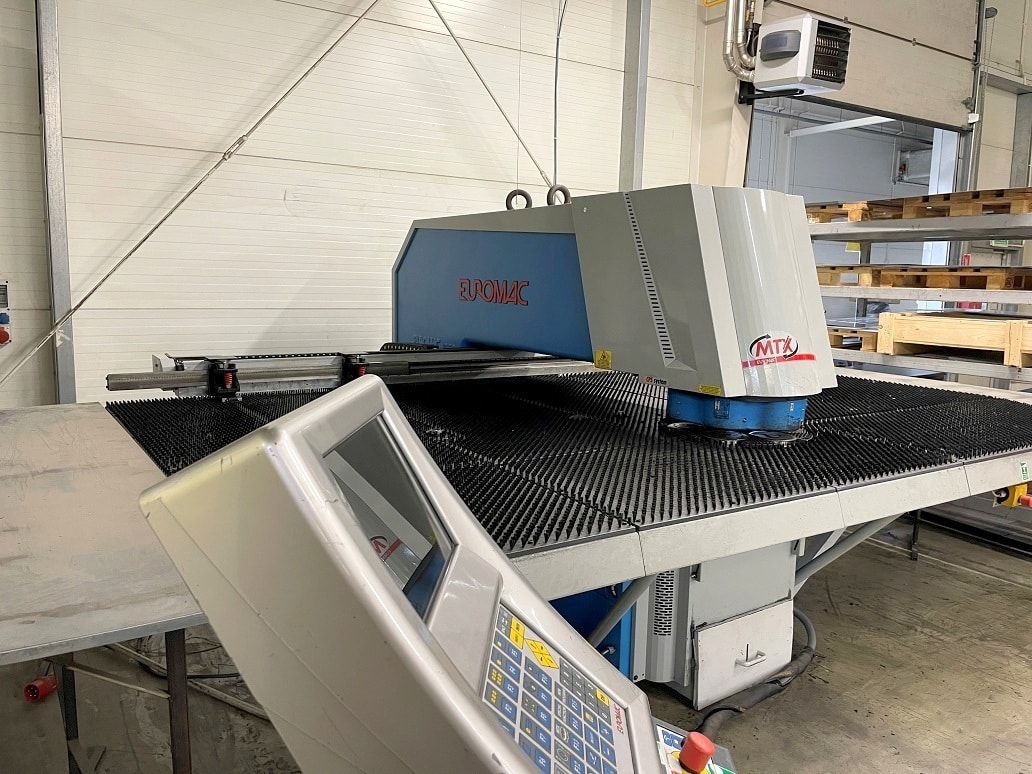

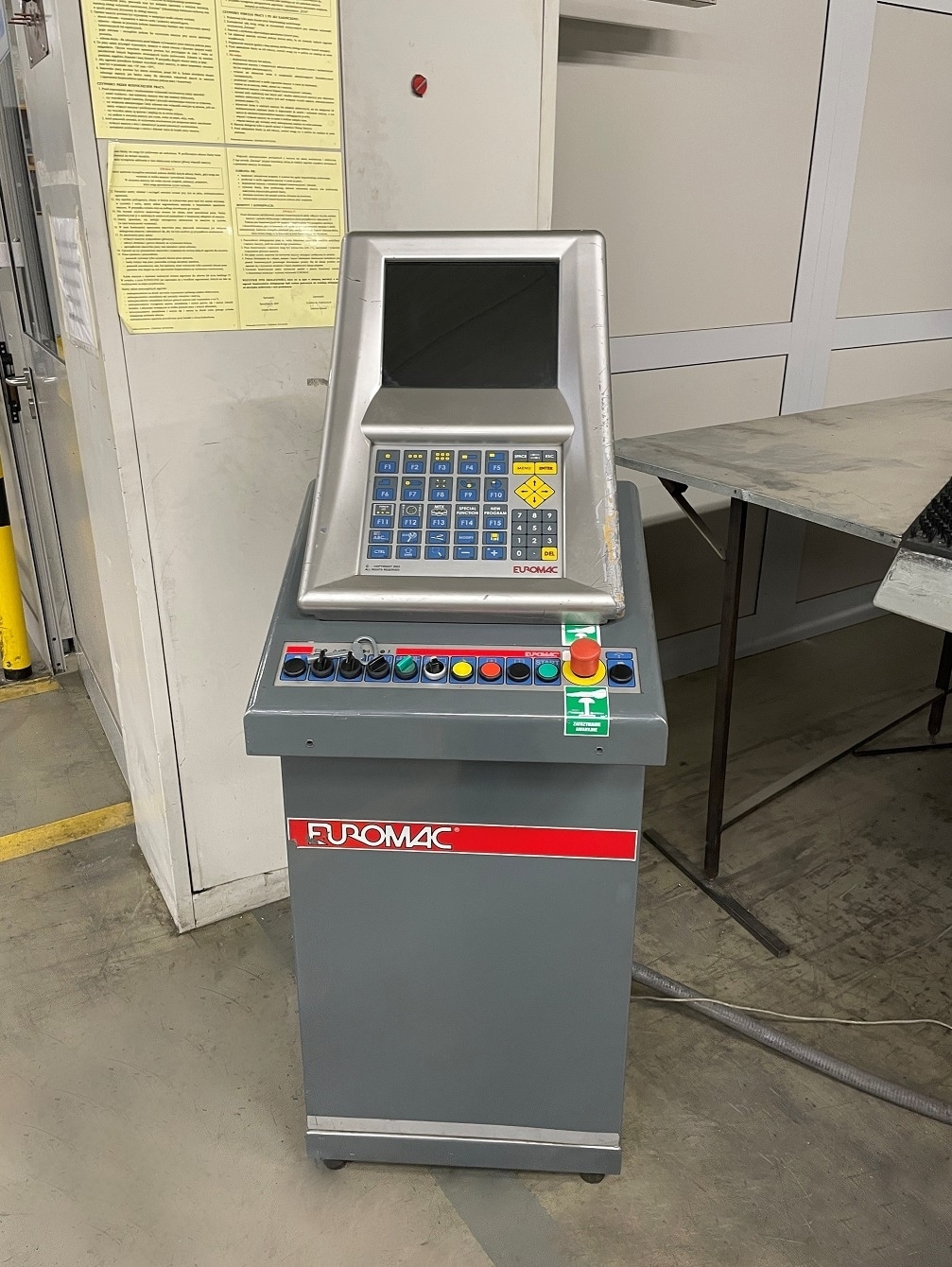

• CNC control: FabriWIN CNC 68
• industrial PC (Windows XP, USB port x2, LCD monitor)

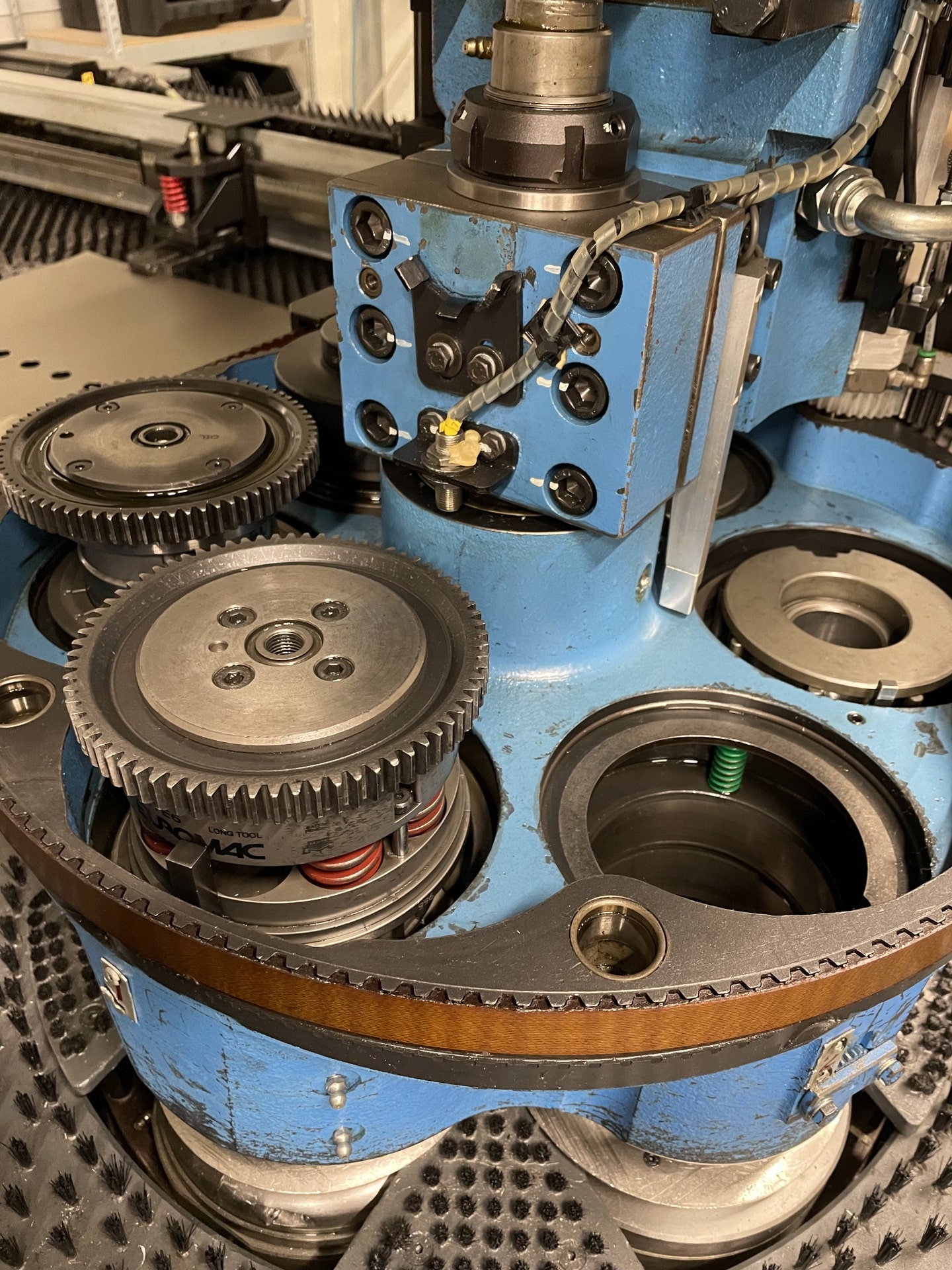

• tooling type: THICK TURRET

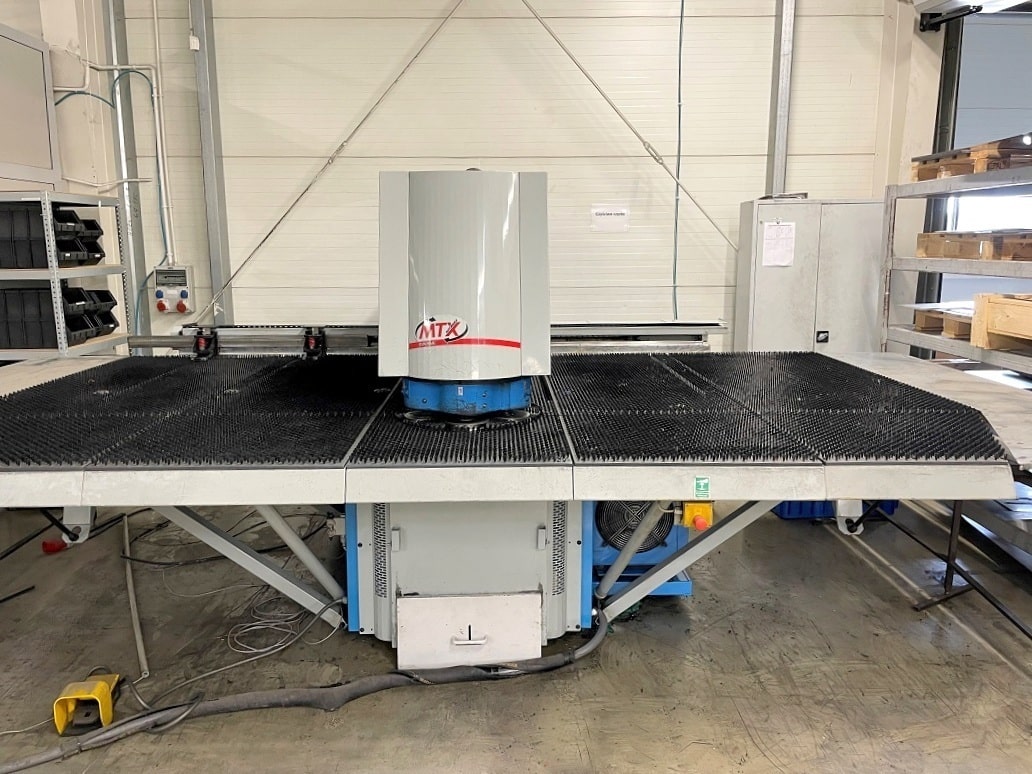

• brush table
• automatic tool lubrication
• external cooling system
• UPS system (uninterruptible power supply)

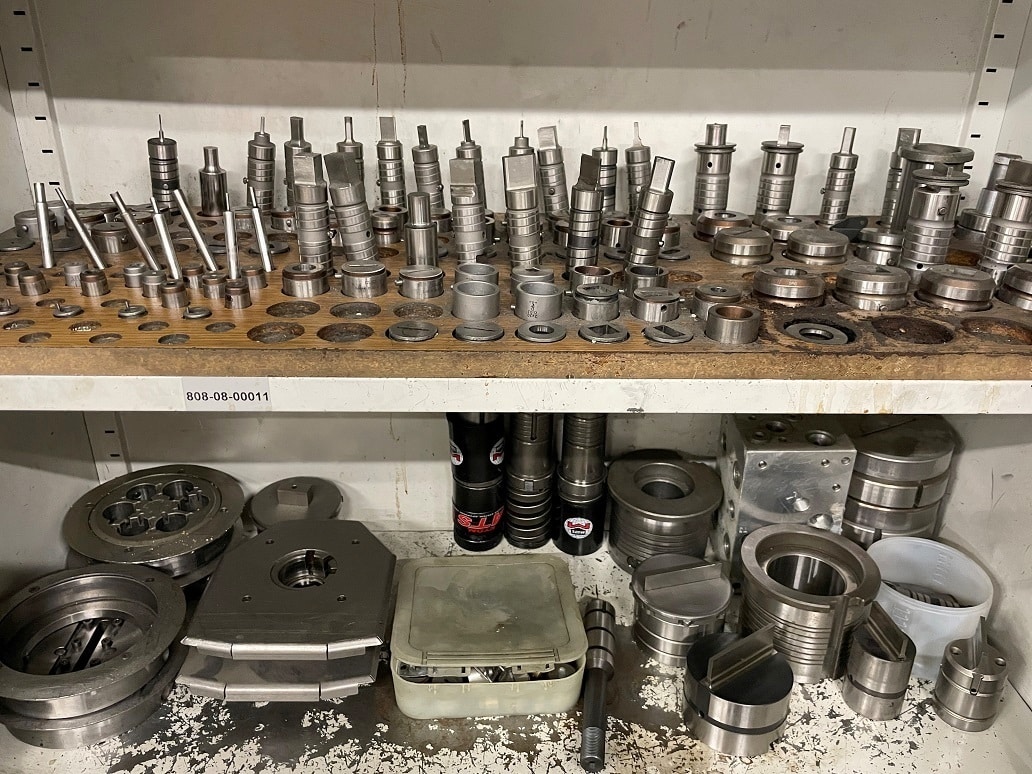

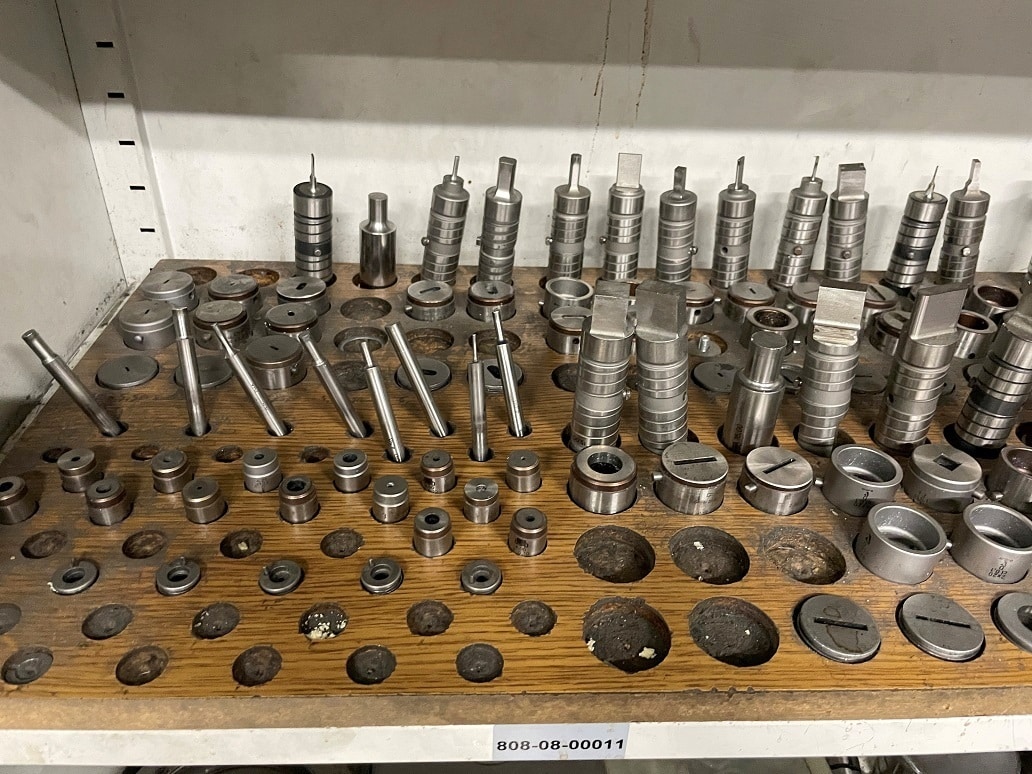

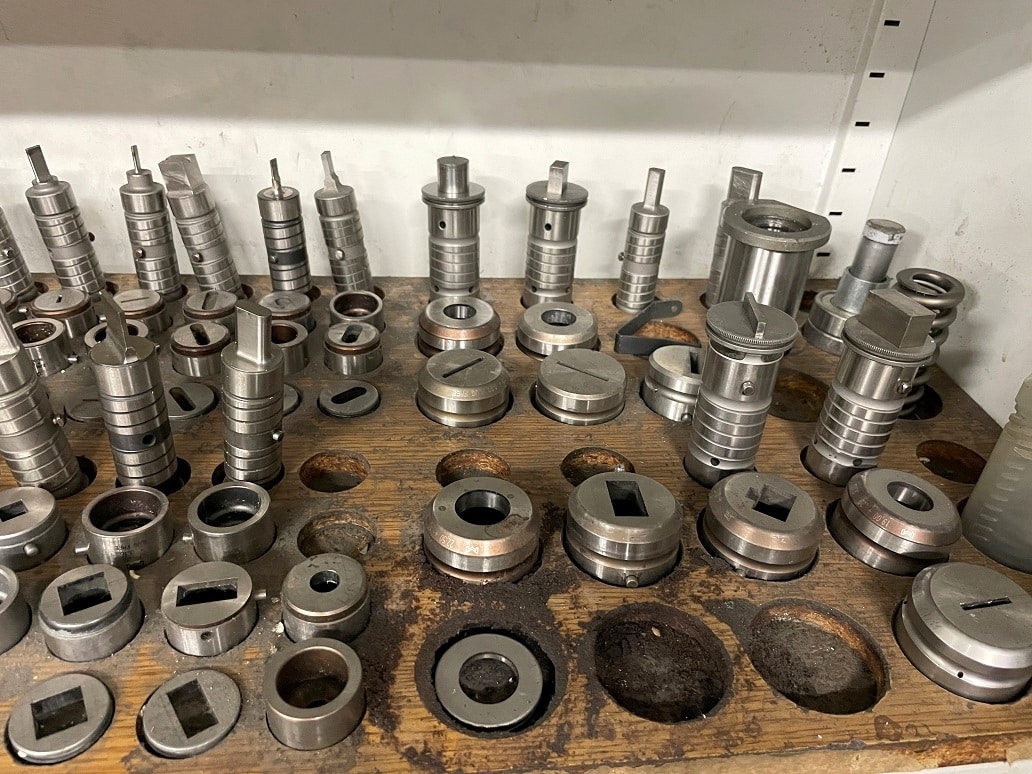

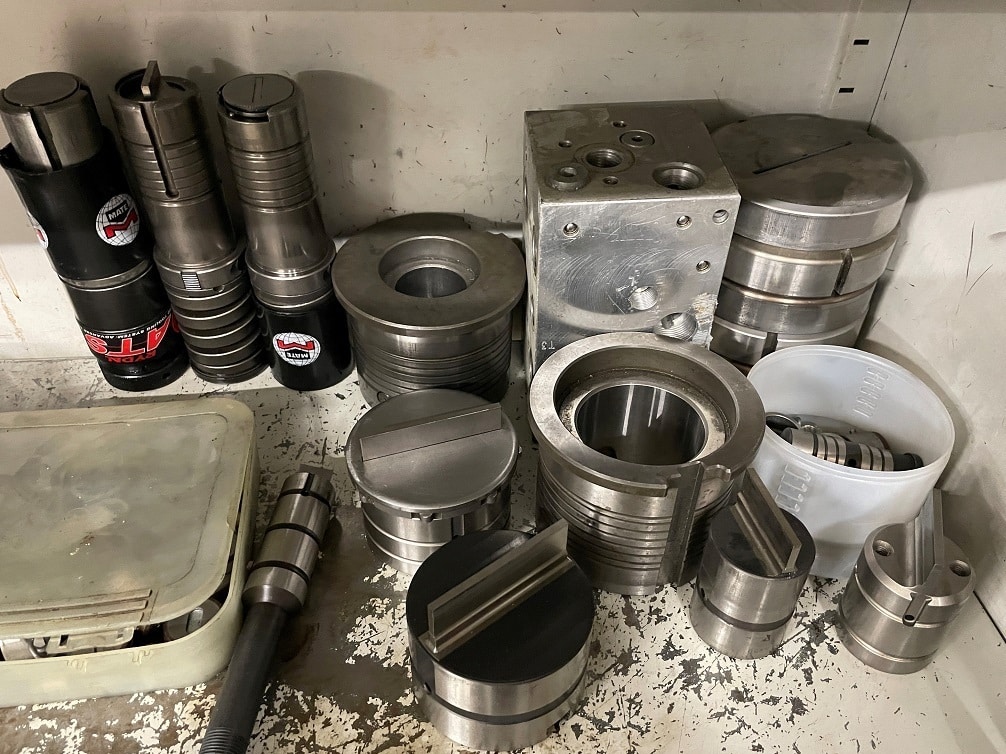

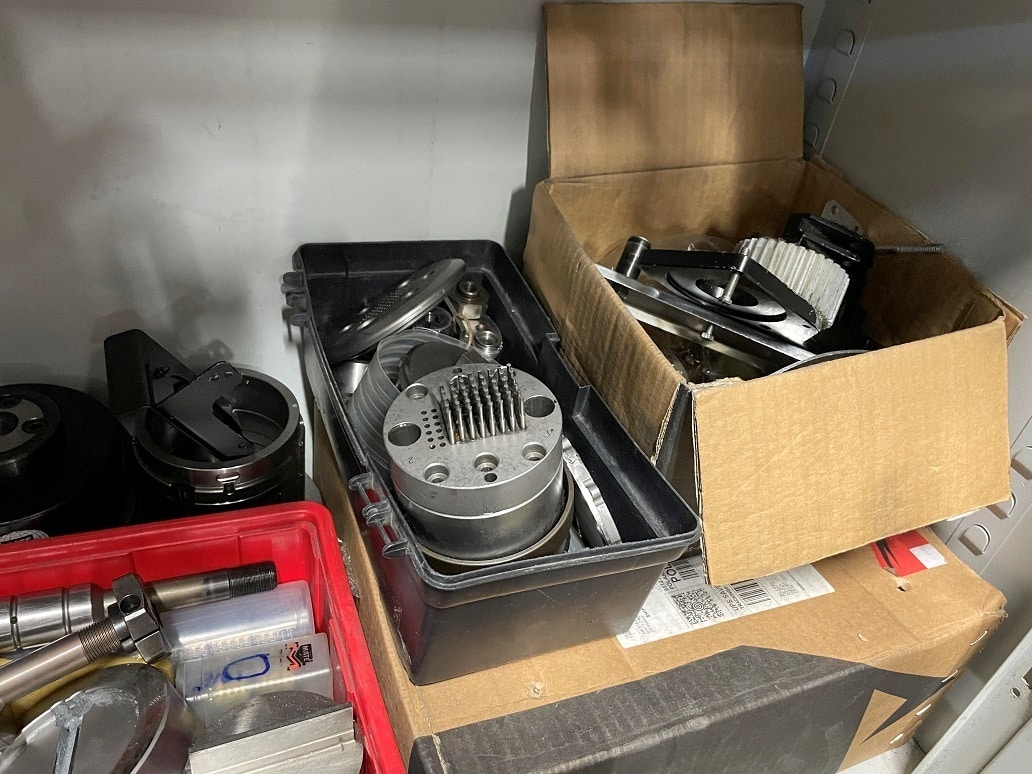

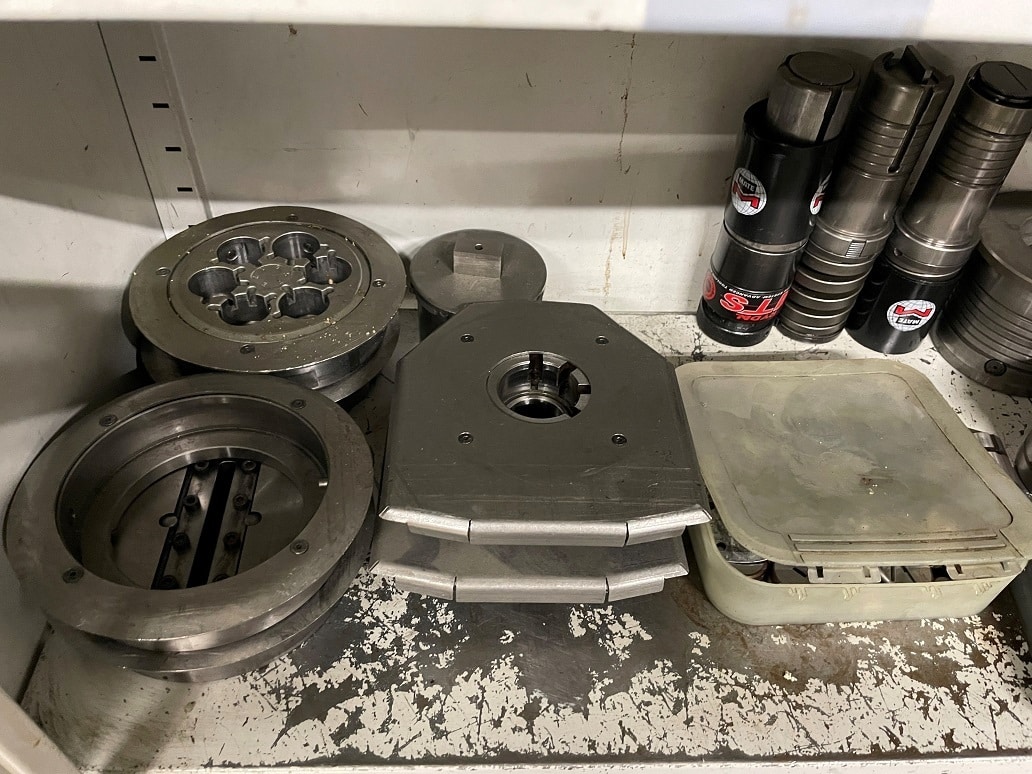

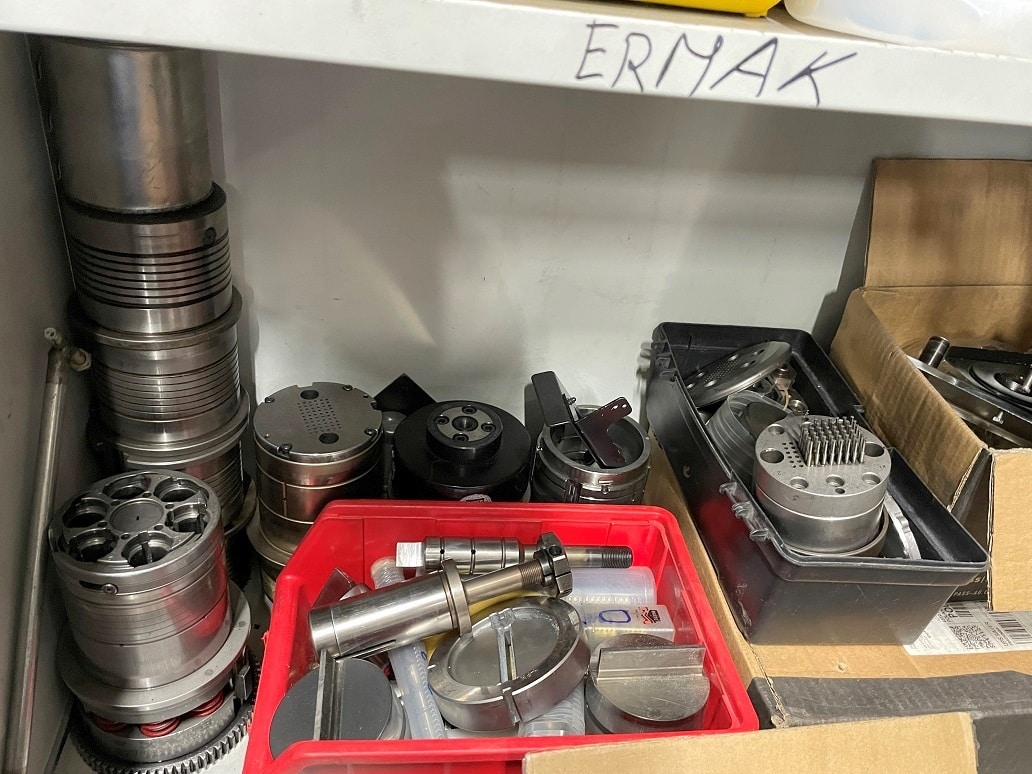

• tools
