GEKA BENDICROP 50 ironworker machine

GEKA BENDICROP 50 ironworker machine was built in 2018 in Spain by MAQUINARIA GEKA S.L.U. The machine, designed for the comprehensive machining of steel parts, enables a wide range of operations to be performed in one place. This solution significantly improves the production process and reduces the need for additional machines.

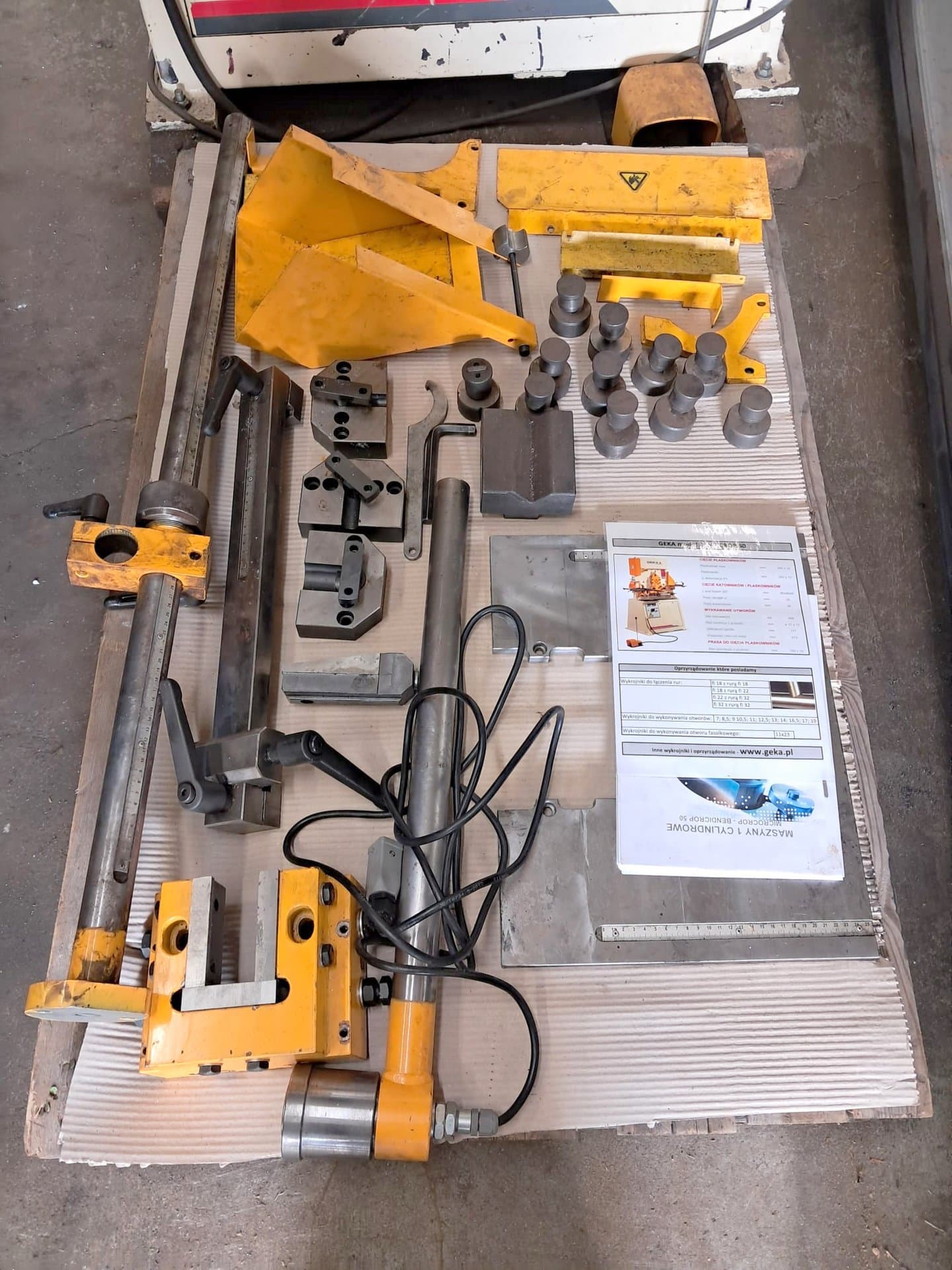

The GEKA BENDICROP 50 is equipped with 5 work stations for punching holes, bending flat bars, and shearing flat bars, angle bars and steel bars. Each station features high-quality, quick-change tools, which allow the machine to be adapted to current production requirements. The design, based on a rigid, durable frame, ensures high operational stability even during intensive use. As a result, the GEKA BENDICROP ironworker machine is an excellent choice for production plants and locksmith workshops. The total weight of the machine is approximately 1000 kg.

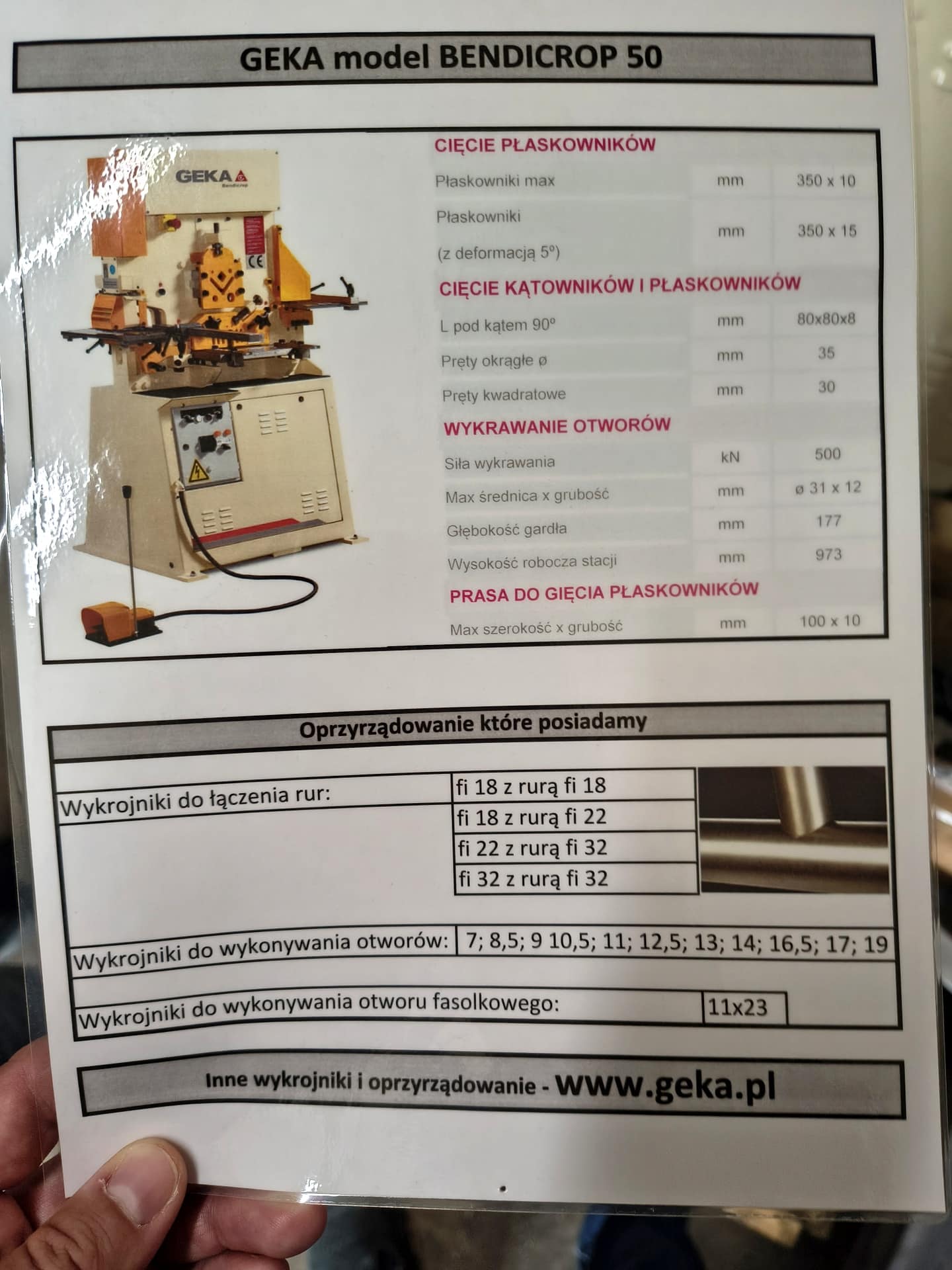

Technical specifications of the GEKA BENDICROP 50 ironworker machine

General data

• maximum punching force: 50 t
• maximum cutting force: 50 t
• number of work stations: 5
• number of hydraulic cylinders: 1
• number of cycles (cylinder stroke 15 mm): 34/min
• motor power: 3 kW
• dimensions (L x W x H): 1300 x 1100 x 1850 mm
• weight of the BENDICROP 50 machine: approx. 1000 kg

Flat bar cutting station

• flat bar dimensions: 350×10 mm
• flat bar dimensions (with 5° deformation): 350×15 mm
• blade length: 356 mm
• working height: 865 mm

Angle bar and bar cutting station

• angle bar dimensions (shearing at 90°): 80 x 80 x 8 mm
• maximum round bar diameter: ø 35 mm
• maximum square bar diameter: 30 mm
• working height: 1093 mm

Rectangular notching station

• maximum notching thickness: 10 mm
• maximum notching dimensions: 100 x 100 x 10 mm
• blade length: 90 mm
• blade width: 42 mm
• working height: 1025 mm

Hole punching station

• maximum hole diameter (12 mm workpiece thickness): 31 mm
• maximum hole diameter (13 mm workpiece thickness): 28 mm
• throat depth: 177 mm
• maximum punch stroke length: 50 mm
• working height: 973 mm

Flat bar bending station

• maximum flat bar dimensions: 100×10 mm

(The technical parameters given may differ slightly from reality. A verification with the actual capabilities of the offered machine is required.)
