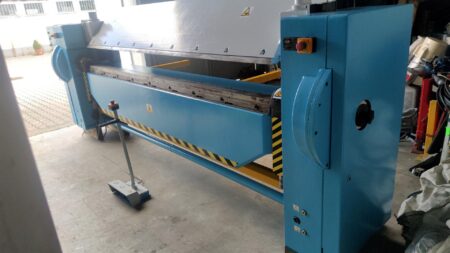

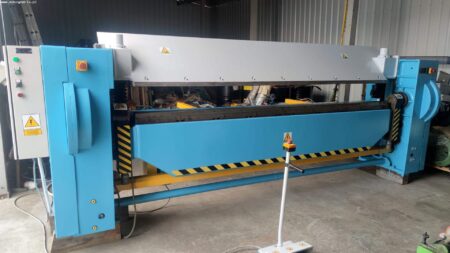

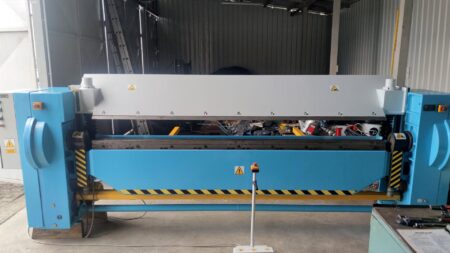

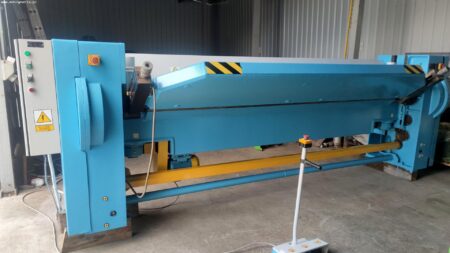

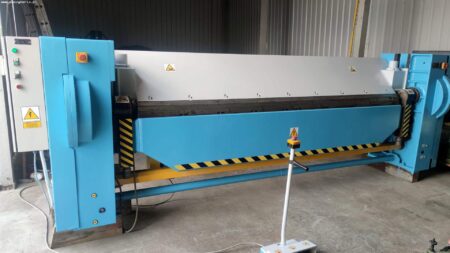

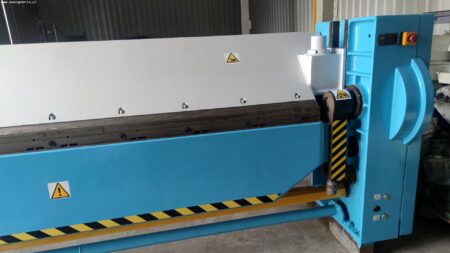

OZAMECH KM-3/3000 mechanical folding machine

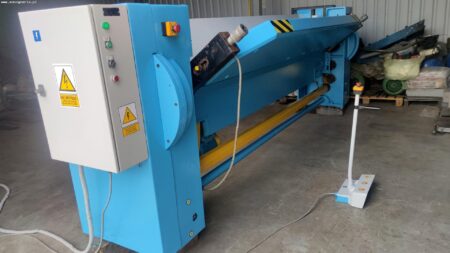

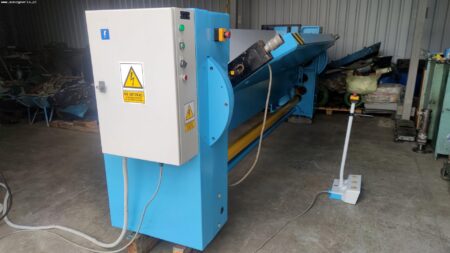

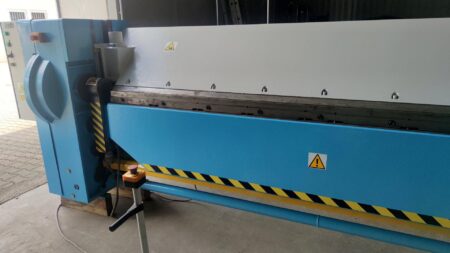

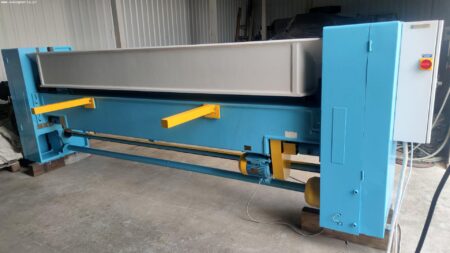

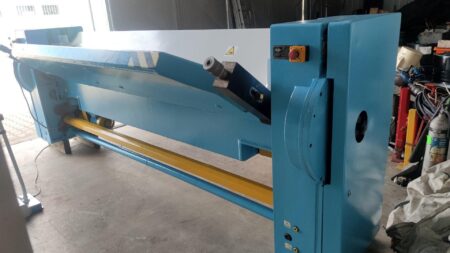

OZAMECH KM-3/3000 mechanical folding machine manufactured in Poland in 1999, is used to manufacture bended profiles from metal sheets and strips, and after fitting special equipment it also allows for e.g. rolling of sheet metal edges, shaping of sheet metal cases or making square and rectangular pipes. The process of sheet bending takes place in manual or semi-automatic mode, on workpieces having up to 3 mm of thickness and 3000 mm of length. The bending machine allows for individual sheet metal bending by using individual control of the upper and bending beam, which it raises and lowers at a speed of 4.4 mm/s. The total weight of the machine is 4430 kg.

Technical parameters of the OZAMECH KM-3/3000 folding machine

• maximum length of the bent sheet metal: 3000 mm
• maximum thickness of the bent sheet metal over the entire working length: 3 mm
• yield strength of the bent sheet metal: Re=250 N/mm2
• lifting range of top beam (from bending beam pivot axis): 200 mm
• lowering range of bottom beam (from bending beam axis): 60 mm
• normal rotation range of bending beam: 5-130 mm
• extended rotation range of bending beam: 5-150 mm
• cycle time in bending sheet metal at right angle: 12 s
• lifting and lowering speed of the top beam: 4.4 mm/s
• bending beam angular speed: 23°
• top beam drive motor: 2.2 kW
• bending beam drive motor: 5.5 kW
• machine dimensions (L x W x H): 4500 x 900 x 1400 mm

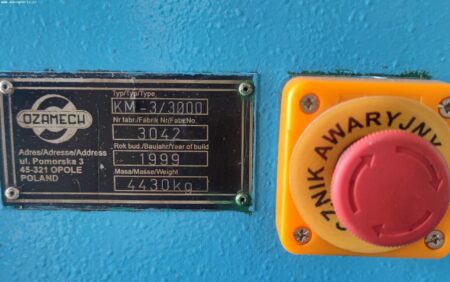

• weight of KM 3/3000 folding machine: 4430 kg
