STANKOIMPORT KOMSOMOLEC 5A140 slotting machine

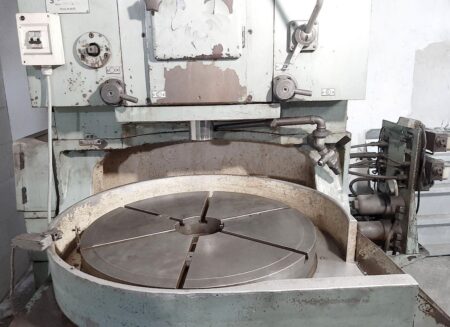

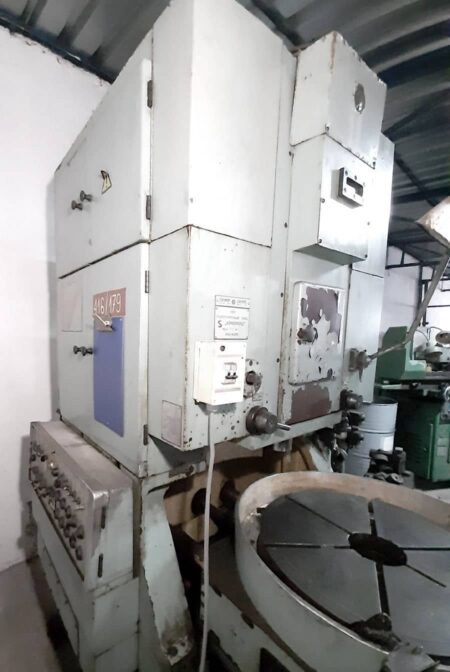

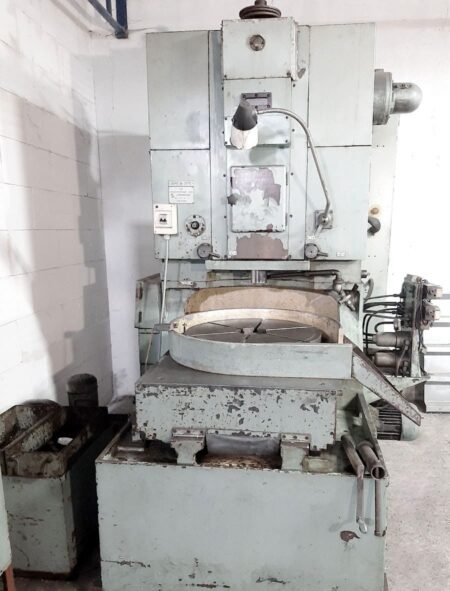

STANKOIMPORT KOMSOMOLEC 5A140 slotting machine was built in the USSR in 1988 and is used for machining the internal and external surfaces of gear wheels using the Fellows method. The KOMSOMOLEC 5A140 gear slotting machine is characterised by a very sturdy construction and a reliable spindle with a Morse 5 taper, guaranteeing very efficient machining of workpieces with a module of 8 mm and a maximum diameter of 500 mm. The machine is equipped with toolholders, a set of changewheels and technical documentation. The total weight of the 5140 (model A) slotting machine is 7500 kg.

Technical data of STANKOIMPORT KOMSOMOLEC 5A140 Fellows gear shaper

• largest gear wheel module: 8 mm
• largest gear wheel diameter: 500 mm
• largest gear wheel rim width: 100 mm
• spindle travel: 150 mm
• largest spindle travel: 125 mm
• diameter of product spindle flange or work table: 560 mm
• base hole in table or product spindle flange: 110 mm
• number of double strokes: 18
• range of double stroke changes: 55-560/min
• peripheral stroke range: 6-590 mm/min
• radial feed range: 0.02-0.2 mm/s
• distance between bottom plane of base and table working surface: 920 mm
• largest distance between table surface and tool spindle face: 270 mm
• smallest distance between table surface and tool spindle face: 120 mm
• largest distance between table axis and tool axis: 355 mm
• smallest distance between table axis and tool axis: 0 mm
• limbus and nonius value for setting the product and tool spacing: 0.01 mm
• automatic sliding-back of table
• travel of table relative to tool axis: 355 mm
• rapid table travel speed: 1.5 m/min
• high-speed table rotation: 4.5 rpm
• boring depth: 25 mm
• tool offset at idle speed: 0.5 mm
• amount of stand offset when tool offset at an angle: ± 20 mm
• number of motors: 6
• main drive motor power: 4/4.5/7.5 kW
• hydraulic drive motor power: 2.2 kW
• table rotation accelerator motor power: 0.75 kW
• cooling pump motor power: 0.6 kW
• lubrication pump motor power: 0.25 kW
• peripheral feed motor power: 2.4 kW
• dimensions (L x W x H): 1975 x 1690 x 2510 mm
• power supply: 3x 380 V; 50 Hz
• weight of machine 5A140: 7500 kg

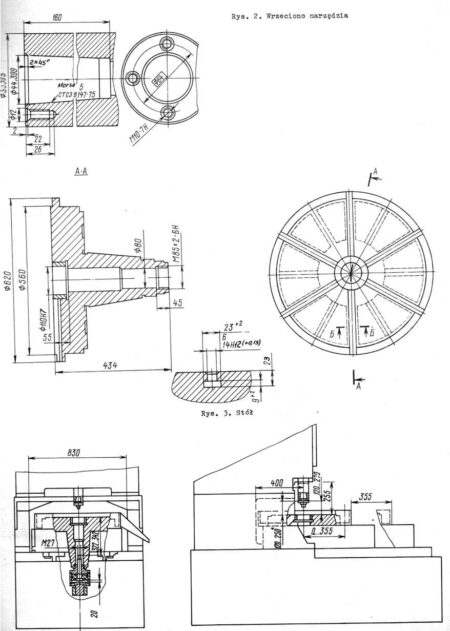

Equipment of the slotting machine

• spindle taper: Morse 5

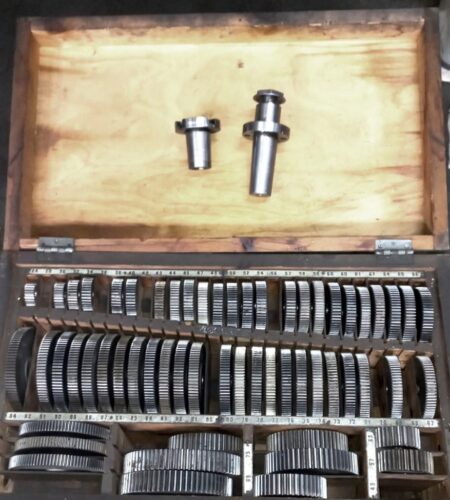

• set of changewheels
• tool holders
• technical documentation of the STANKOIMPORT 5A140 machine
