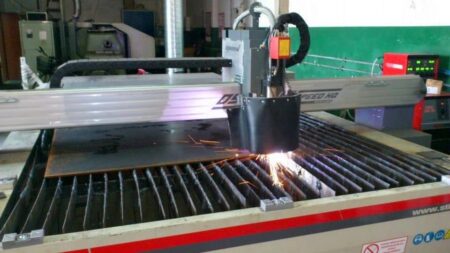

STIGAL DYNAMIC SPEED HQ plasma cutting machine

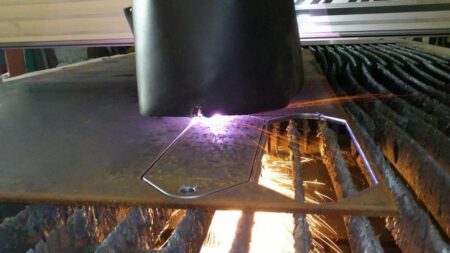

STIGAL DYNAMIC SPEED HQ plasma cutting machine manufactured in 2012, precisely cuts workpieces made of plain steel, stainless steel and aluminium on a large work table with dimensions (L x W) of 4000 x 2000 mm (the table grate will be replaced with a new one before sale). The numerically-controlled plasma cutting machine ensures a high degree of operational safety, as the machine is equipped with an extraction table designed to eliminate the contamination generated during cutting. The plasma cutting machine is also equipped with a reliable CEBORA PROF 165 HQC plasma source and GudePol GO-R refrigeration dryer.

Technical data of the plasma cutting machine STIGAL DYNAMIC SPEED HQ

• work table surface (L x W): 4000 x 2000 mm
• cutting length: 4000 mm
• cutting width: 2000 mm
• maximum sheet thickness: 20 mm
• plasma source power: 120 A
• power consumption: 7000 W
• DYNAMIC SPEED HQ machine power supply: 230 V; 50 Hz

Equipment of the plasma cutting machine

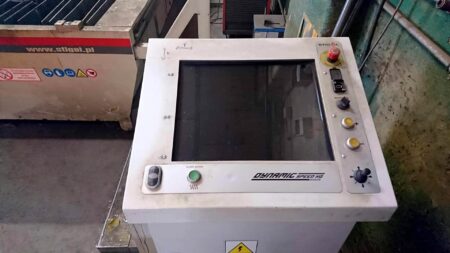

• CNC control

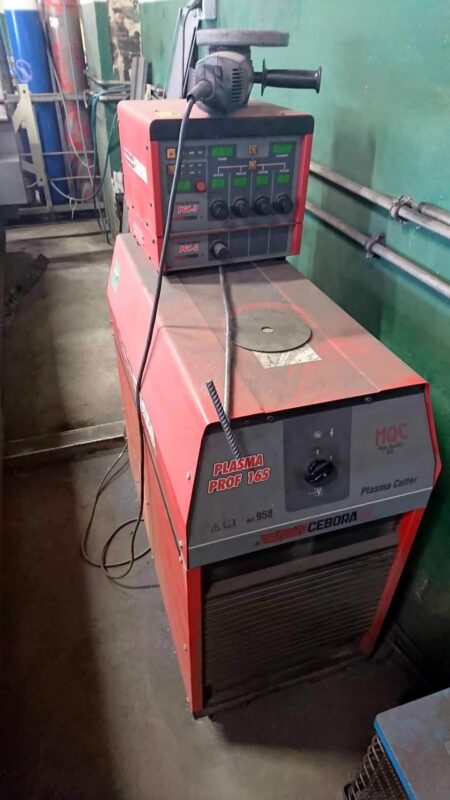

• plasma source: CEBORA PROF 165 HQC
• refrigeration dryer: GudePol GO-R
• extraction table
• torch: CEBORA CP251G
