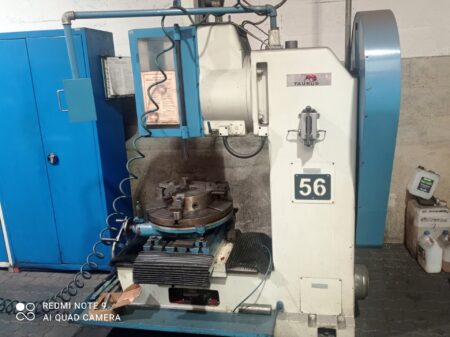

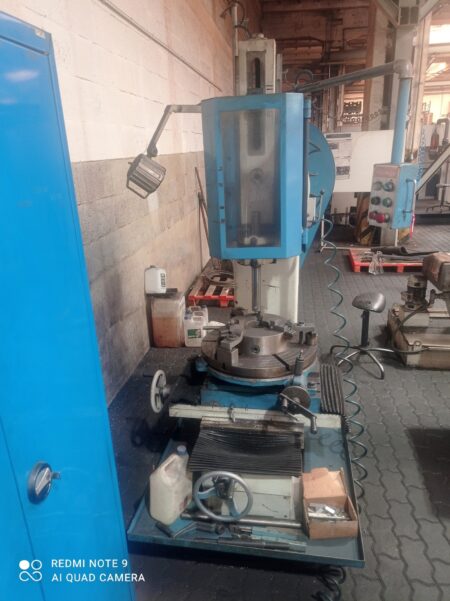

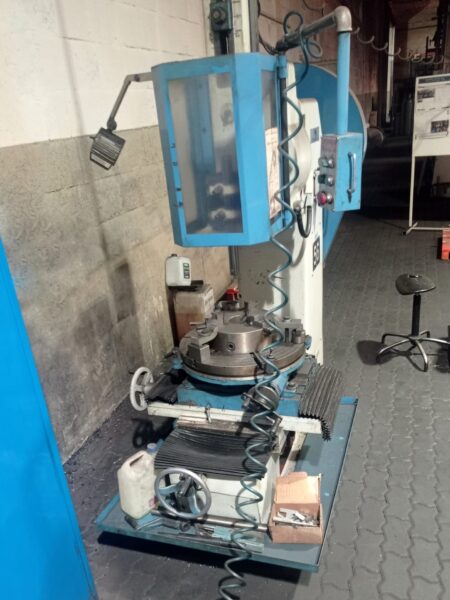

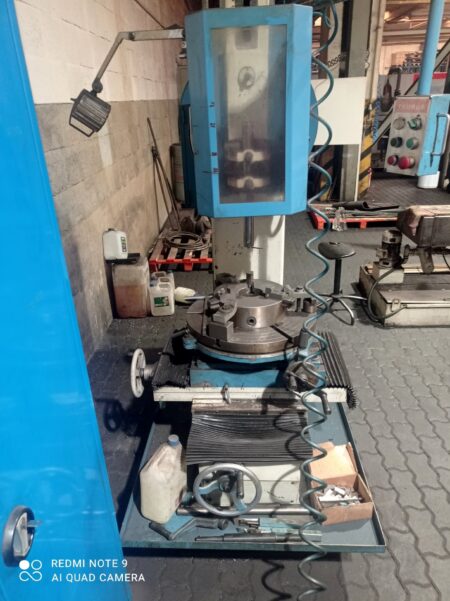

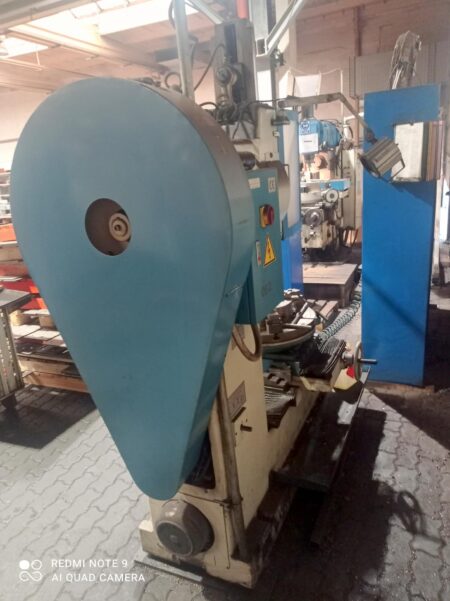

TAURUS DA-350 slotting machine

TAURUS DA-350 slotting machine was built in 2006 in Taiwan. The slotting machine of compact and stable design is used in repair shops and tool shops for the machining of internal and external surfaces. The machine’s wide range of applications makes the vertical slotting machine ideal for both unit and small batch production. Achieving high precision in machining is possible thanks to the use of a slider with 350 mm stroke and a large rotary table with feeds of 460 (X axis) and 500 mm (Y axis). The total weight of the TAURUS DA 350 machine is 2000 kg.

Technical parameters of the TAURUS DA-350 slotting machine

• rotary table feed in the X/Y axis: 460/500 mm
• rotary table diameter: 560 mm
• slider stroke: 350 mm
• number of slider strokes (50 Hz): 23-42-66-87/min
• number of slider strokes (60 Hz): 28-50-80-105/min
• distance between table and slider: 470 mm
• distance between tool and column: 560 mm
• rotary table positioning: 1:80
• head twist: 30°
• main motor power: 2.25 kW
• power supply: 3x 380 V; 50 Hz
• dimensions (L x W x H): 1900 x 1100 x 2100 mm
• weight of machine DA-350: 2000 kg
