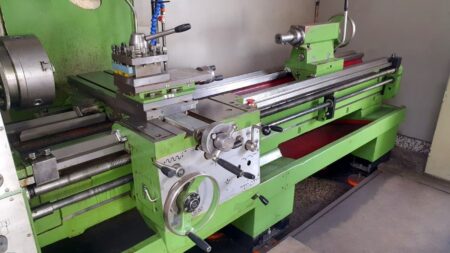

TUR 50S x 2000 universal lathe

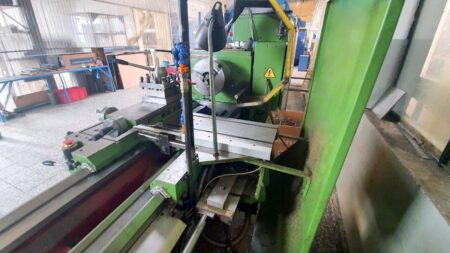

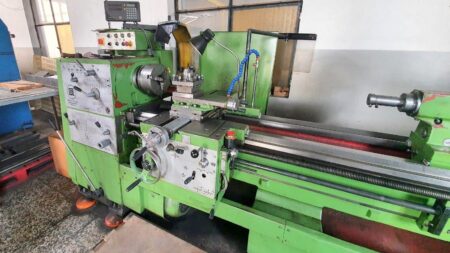

TUR 50S x 2000 universal lathe built in Poland in 1980 by the Fabryka Automatów Tokarskich PONAR-WROCŁAW, is used for precise machining of workpieces with a maximum length of 2000 mm and a diameter of 500 mm (turning over the bed) or 300 mm (turning above the slide). The TUR 50S conventional lathe is characterised by a stable construction and reliability ensured by, among others, an extremely efficient spindle with 21 speed adjustment stages, which rotates with a speed ranging from 18 to 1800 rpm.

The lathe is equipped with, among others, a PEARL IAP2X digital readout of the X and Z axes, an D315 additional chuck and a Morse 5 tailstock quill cone. During its use, the machine has been continuously maintained and repaired and has undergone a major upgrade. The total weight of the lathe is 3150 kg.

Technical specifications of the TUR 50S x 2000 conventional lathe

• maximum turning length: 2000 mm
• maximum turning diameter (over the bed): 500 mm
• maximum turning diameter (above the slide): 300 mm
• longitudinal feed range: 0.64-26 mm/rev
• transverse feed range: 0.32-13 mm/rev
• spindle passage: 70 mm
• maximum spindle speed: 1800 rpm
• minimum spindle speed: 18 rpm

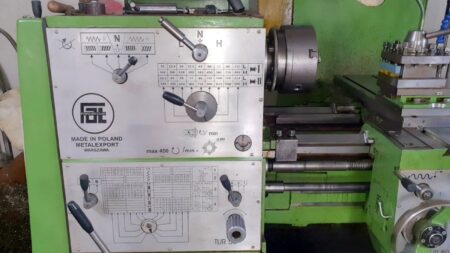

• number of spindle speeds: 21

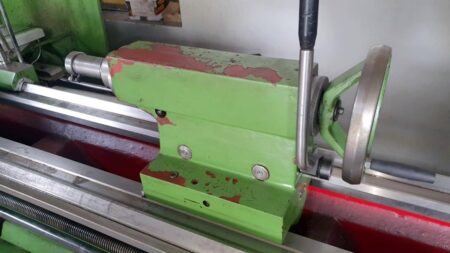

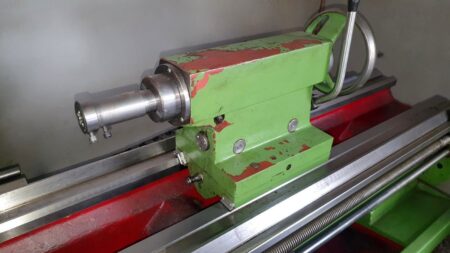

• tailstock quill diameter: 90 mm
• tailstock quill extension: 180 mm
• chuck diameter: 400 mm

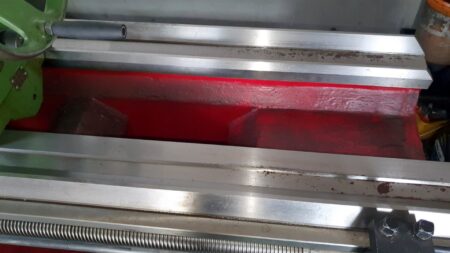

• bed width: 432 mm
• dimensions (L x W x H): 3900 x 1350 x 1580 mm
• TUR 50S x 2000 machine weight: 3150 kg

Equipment of the universal lathe

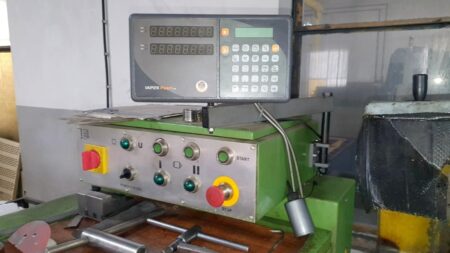

• digital readout: PEARL IAP2X
• additional chuck D315
• tailstock quill cone: Morse 5

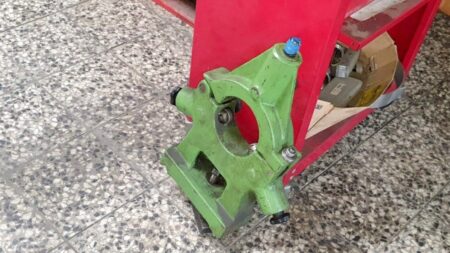

• additional support
• eyepiece
• basic tool kit
