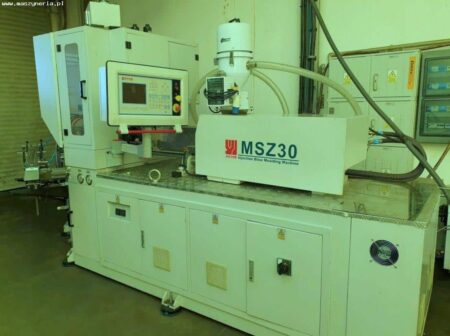

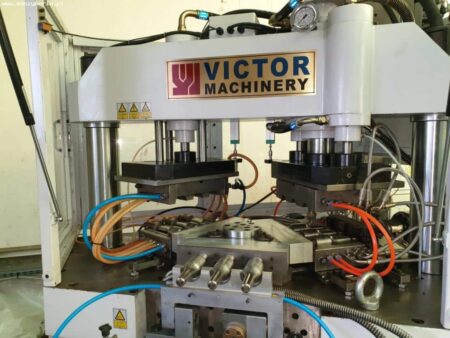

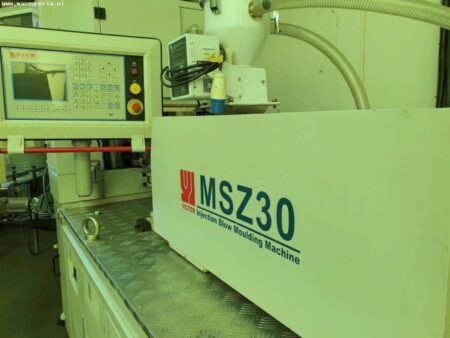

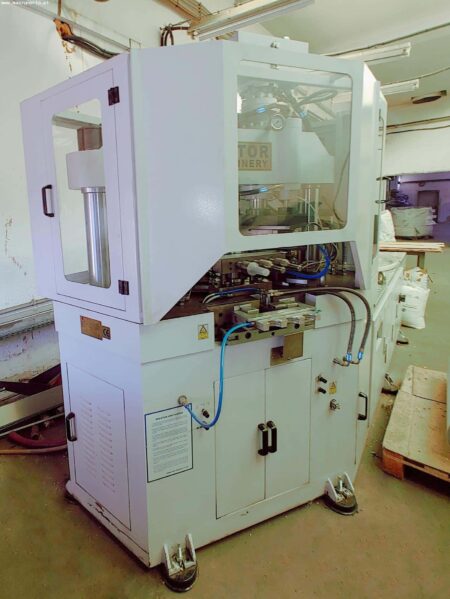

VICTOR MACHINERY MSZ 30 injection molding machine

VICTOR MACHINERY MSZ 30 injection molding machine was produced in 2015. The machine is used to produce bottles with a maximum height of ≤190mm and a maximum diameter of ≤100mm. It has a screw with a diameter of 40 mm, running at a speed of 10 to 225 revolutions per minute. The injection clamping force of the injection molding machine is 292 kN, and the blow-in clamp is 46.7 kN. The machine is fully operational.

Technical data of the VICTOR MSZ30 injection molding machine

– screw diameter: 40 mm
– maximum speed of the screw: 10-225 rpm.
– injection clamping force: 292 kN
– blow clamping force: 46.7 kN
– heating power: 8.3 kW
– mold heating capacity: 3 kW
– injection weight (HDPE): 190 g
– maximum plate size (L x W): 400 × 270 mm
– minimum mold thickness (H): 180 mm
– opening: 220 mm
– drying cycle: 3.5 sec.
– engine power: 15 kW
– hydraulic pressure: 15MPa
– suitable bottle range: 3-800 ml
– maximum bottle height: ≤190 mm
– maximum bottle diameter: ≤100 mm
– minimum air pressure: 1MPa
– compressed air discharge rate: ≥0.7 M3/mm
– screw L / D: 22:1
– water flow: 3 M3/h
– total rated power with mold heating: 26.3 kW

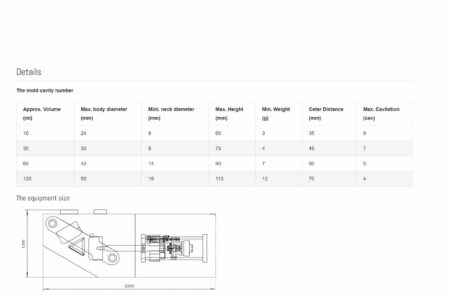

– dimensions (L x W x H): 3.26 x 1.2 x 2.2 m
– net weight of the VICTOR MSZ 30 machine: 4 t
