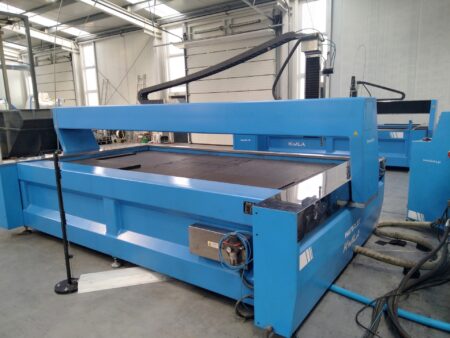

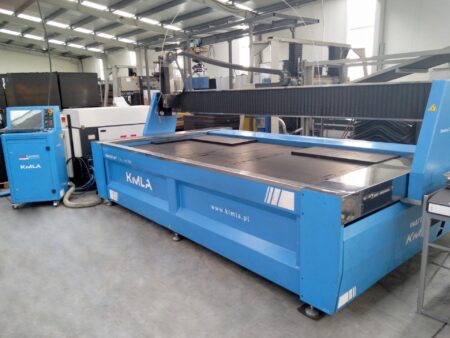

WaterJet KIMLA STREAMCUT 3116

WaterJet KIMLA STREAMCUT 3116 build in 2017 in Poland, uses innovative waterjet cutting technology for machining among others steel, plastics and glass. Workpieces with a maximum thickness of 200 mm are cut on an easily accessible working area by the 3D head, programmed in the intuitive KIMLA software with many useful functions. The use of state-of-the-art technology combined with reliable components and a sturdy design guarantee the achievement of clean and precise edges along the entire length of the workpiece, regardless the type of machined material.

During its use, the KIMLA 3116 water cutting machine was used to cut rubber using only water and underwent regular maintenance. The total weight of the machine is 2500 kg.

Technical specifications of the KIMLA STREAMCUT 3116 water cutting machine

• machinable materials: steel, stone, glass, plastics, tiles, etc.
• work area dimensions (L x W): 3100 x 1600 mm
• maximum workpiece thickness: 200 mm
• maximum workpiece dimensions (L x W): 3000 x 1500 mm
• pump power: 37 kW
• operating hours: 11800 h
• working pressure: 8 bar
• power supply: 230 V; 50 Hz
• weight of machine: 2500 kg

Equipment of the STREAM CUT 3116 water cutting machine

• software: KIMLA
• 3D cutting head

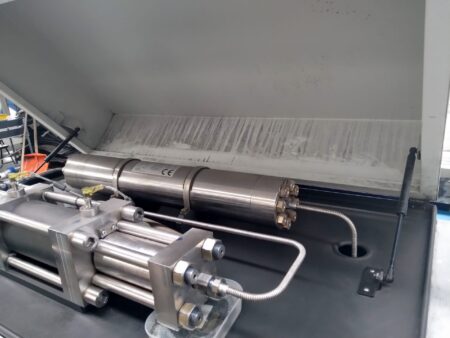

• high-pressure pump with pressure intensifier and ceramic plungers: HYPERTHERM HyPrecision 50
• galvanised tub
