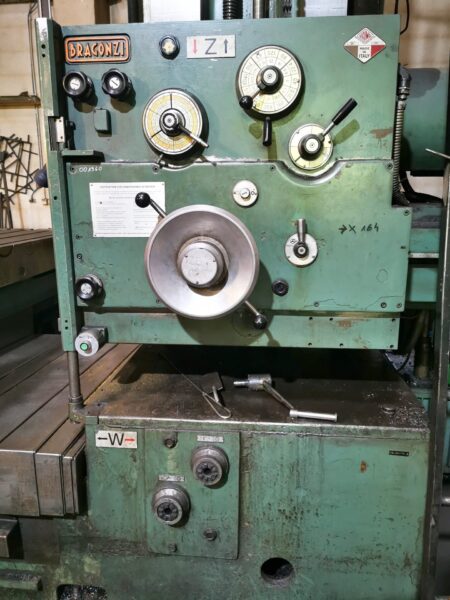

BRAGONZI 130/200 R boring machine

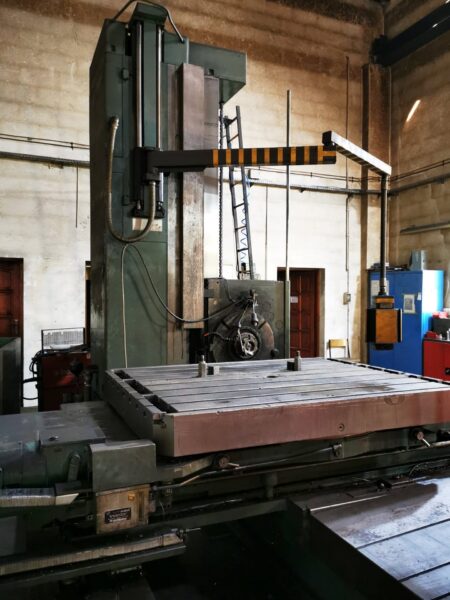

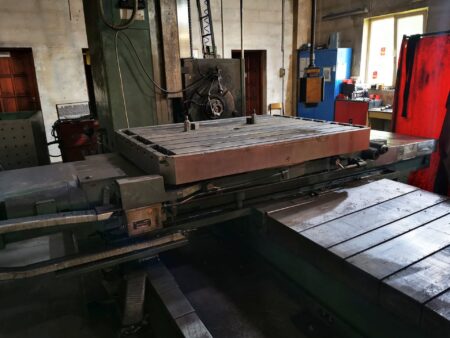

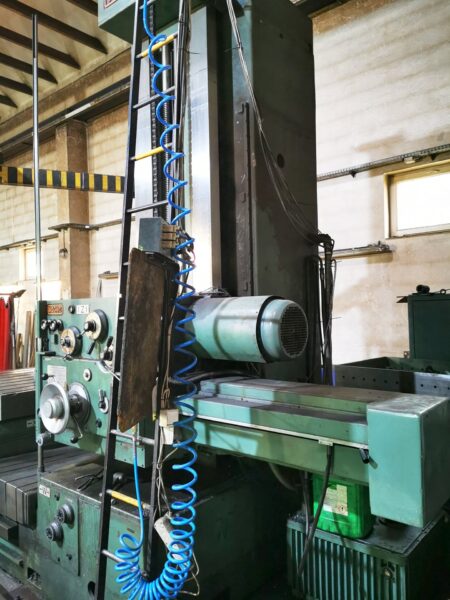

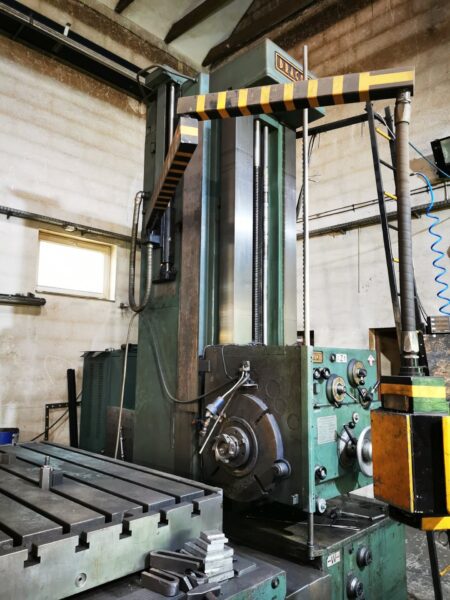

BRAGONZI 130/200 R boring machine built in 1986 in Italy, is used for machining holes with knives or knife heads in workpieces weighing a maximum of 10 tonnes, with high dimensional precision. The machine is equipped with a feed and rotary table, a control panel with SONY LG10 axis readout and a spindle rotating with a speed from 4.5 to 1,000 rpm allowing drilling holes up to 300 mm in diameter. The total weight of the machine is 25500 kg.

Technical data of the BRAGONZI 130/200 R boring machine

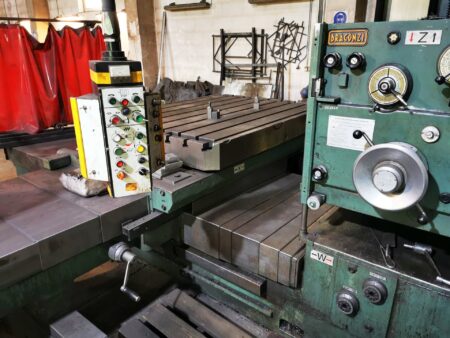

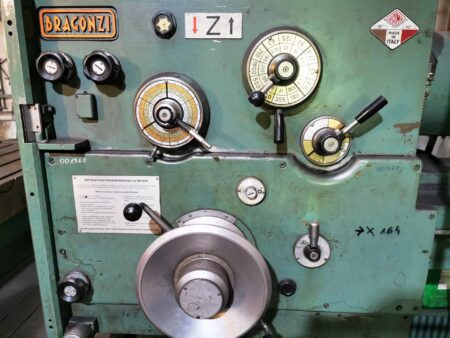

• control: control panel + axis readout SONY LG10
• spindle diameter: 130 mm
• spindle speed range: 4.5 – 1000 rpm
• spindle taper: ISO 50
• maximum drilling diameter with spindle: 300 mm
• spindle axial feed: 800 mm
• spindle vertical feed: 1800 mm
• distance of spindle above rotary table surface: 1 – 1800 mm
• distance of spindle above feed table surface: 90 – 1800 mm

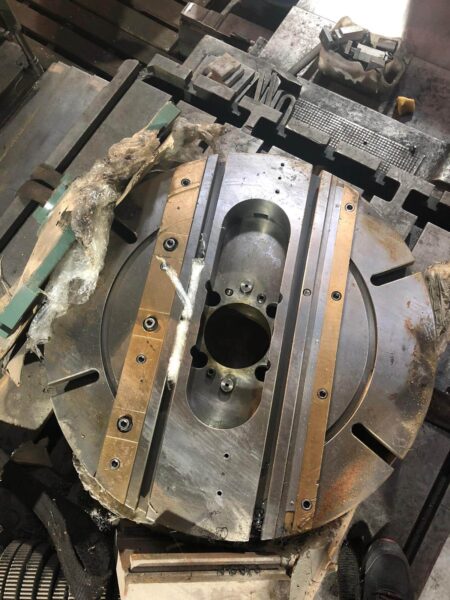

• dimensions of rotary table (L x W): 1800 x 1400 mm
• rotary table speed range: 0.1 – 3 rpm
• feed table dimensions (L x W): 2300 x 1400 mm
• speed of feed table: up to 2000 mm/min
• maximum workpiece weight: 10000 kg
• main motor power: 18.6 kW
• power supply: 400 V
• overall dimensions (L x W x H): 6000 x 3700 x 4100 mm
• total weight of machine 130/200 R: 25500 kg
