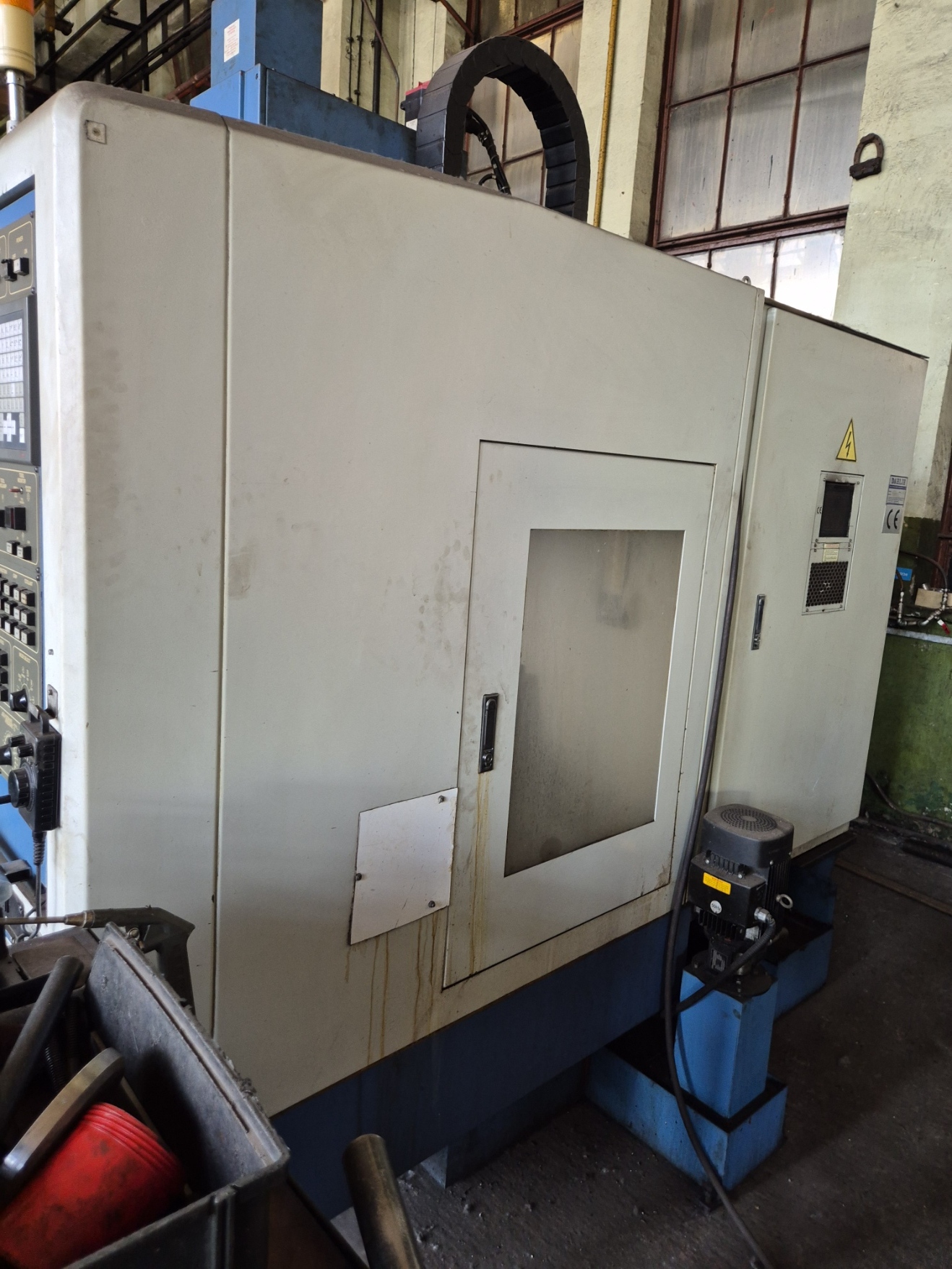

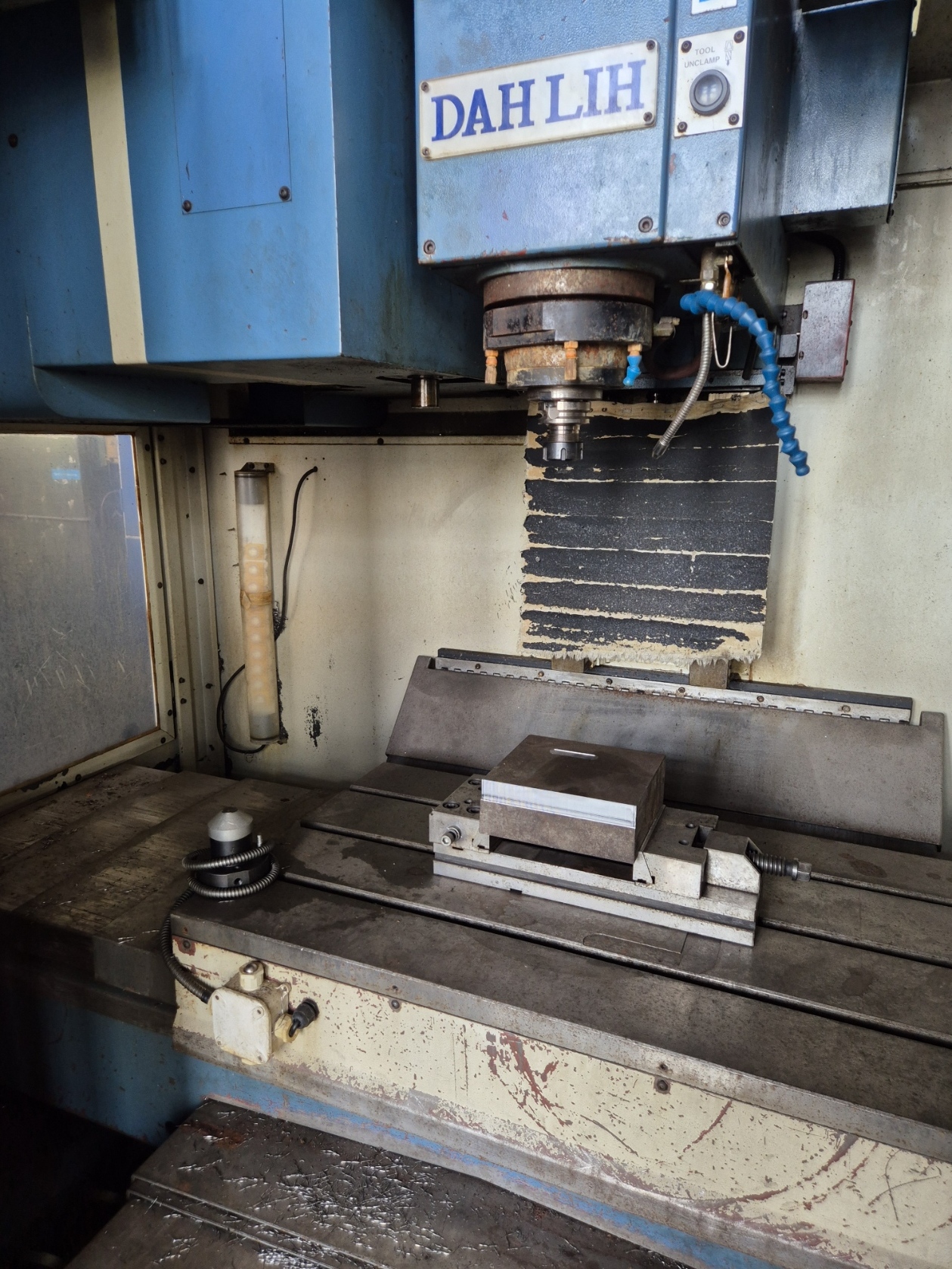

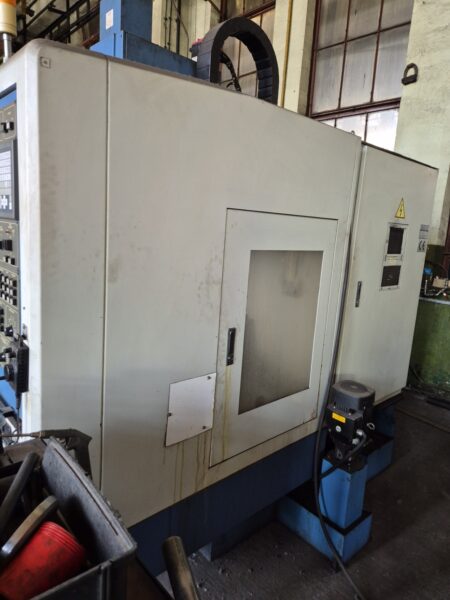

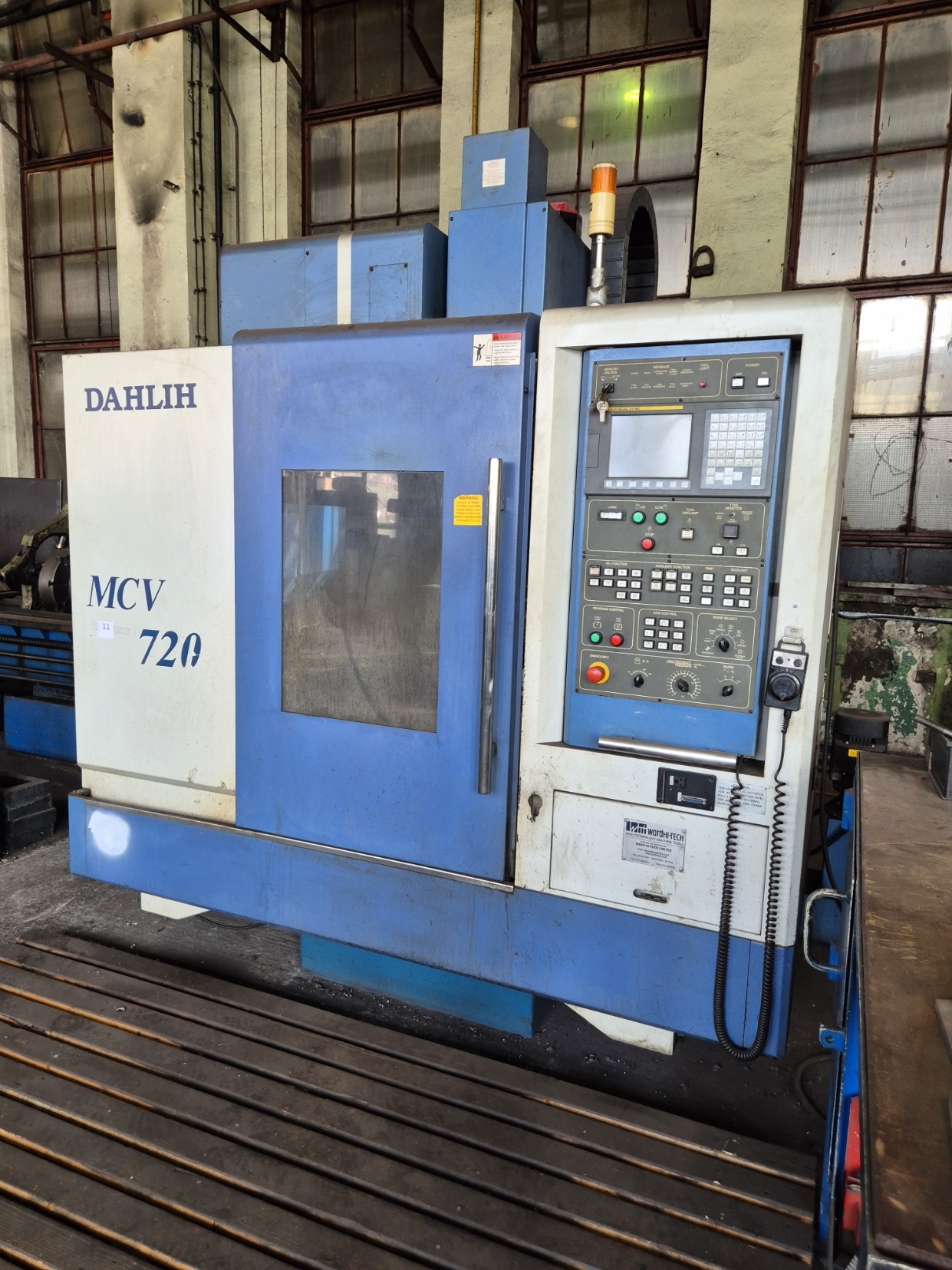

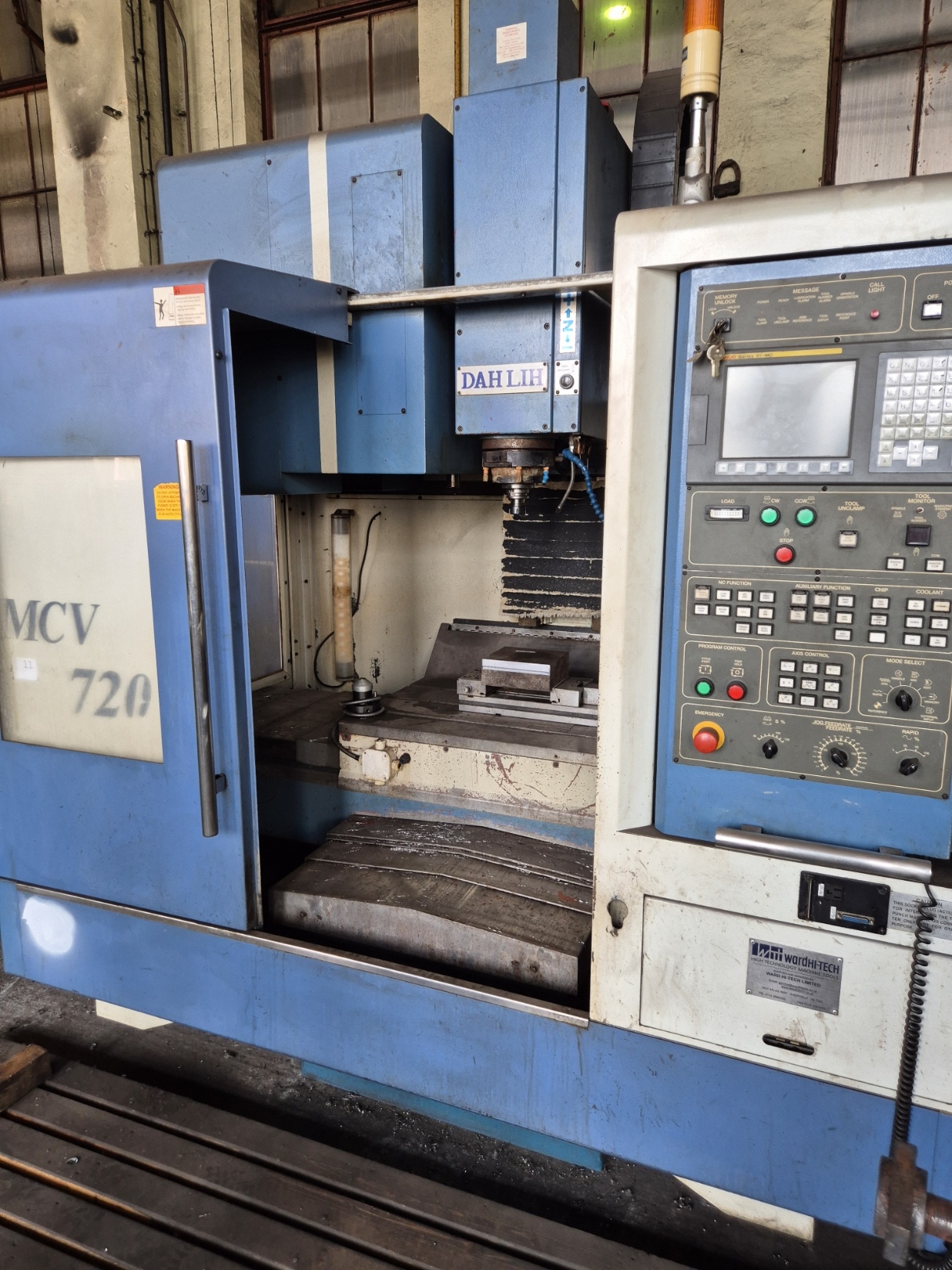

DAHLIH MCV 720 CNC vertical machining center

DAHLIH MCV 720 CNC vertical machining center was built in 2006 in Taiwan by DAHLIH MACHINERY INDUSTRY CO., LTD. The machine, distinguished by its high efficiency and reliability, is an excellent choice for precision machining of workpieces with a maximum weight of 500 kg. The machining process is performed inside a large work space by means of a high-speed spindle and cutting tools taken from a 30-position magazine. All this is complemented by an advanced FANUC CNC control with an intuitive interface. The DAHLIH CNC machining center weighs 4400 kg.

Technical specifications of the DAHLIH MCV 720 CNC milling machine

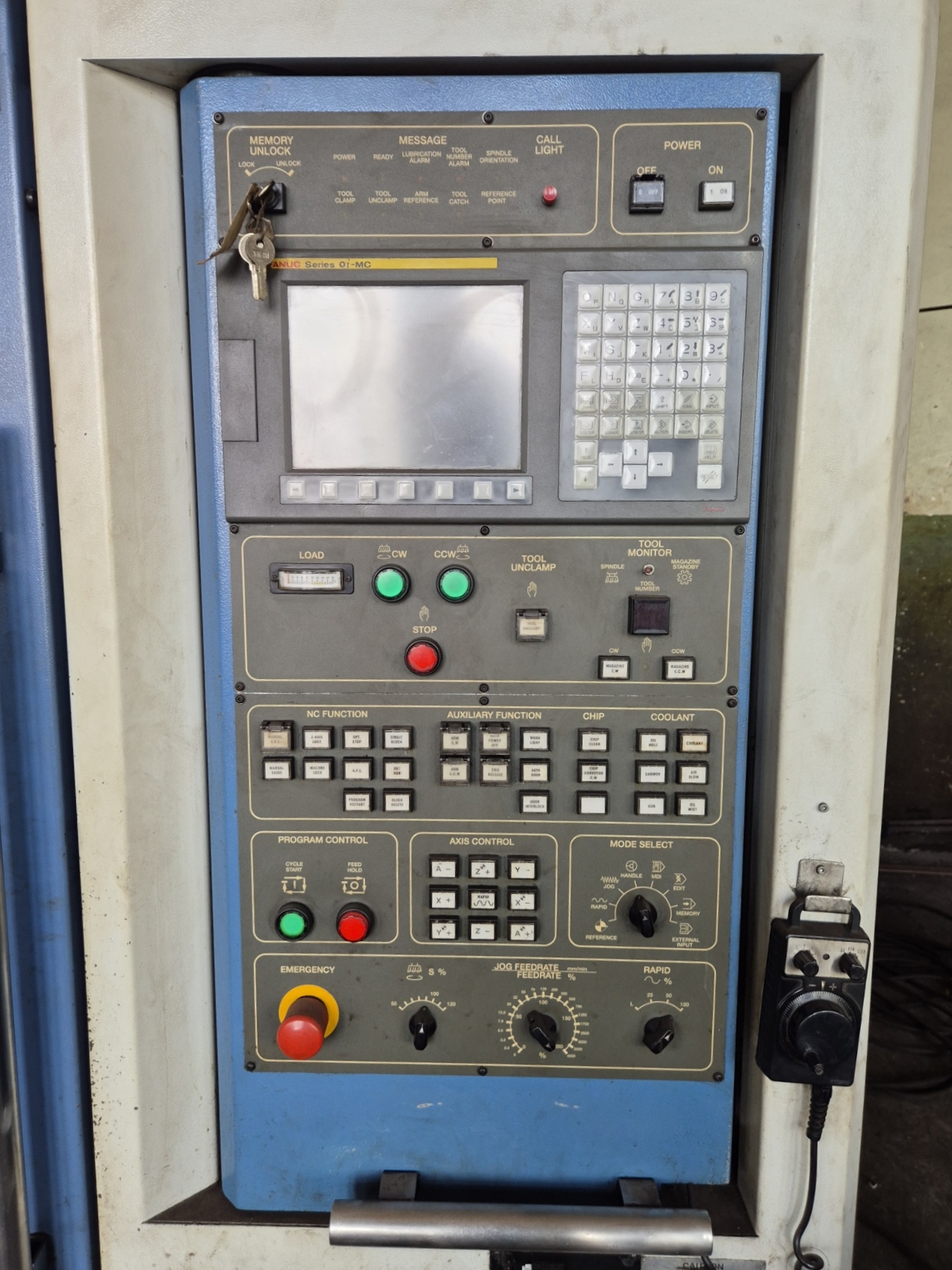

• CNC controller: FANUC Series 0i-MC

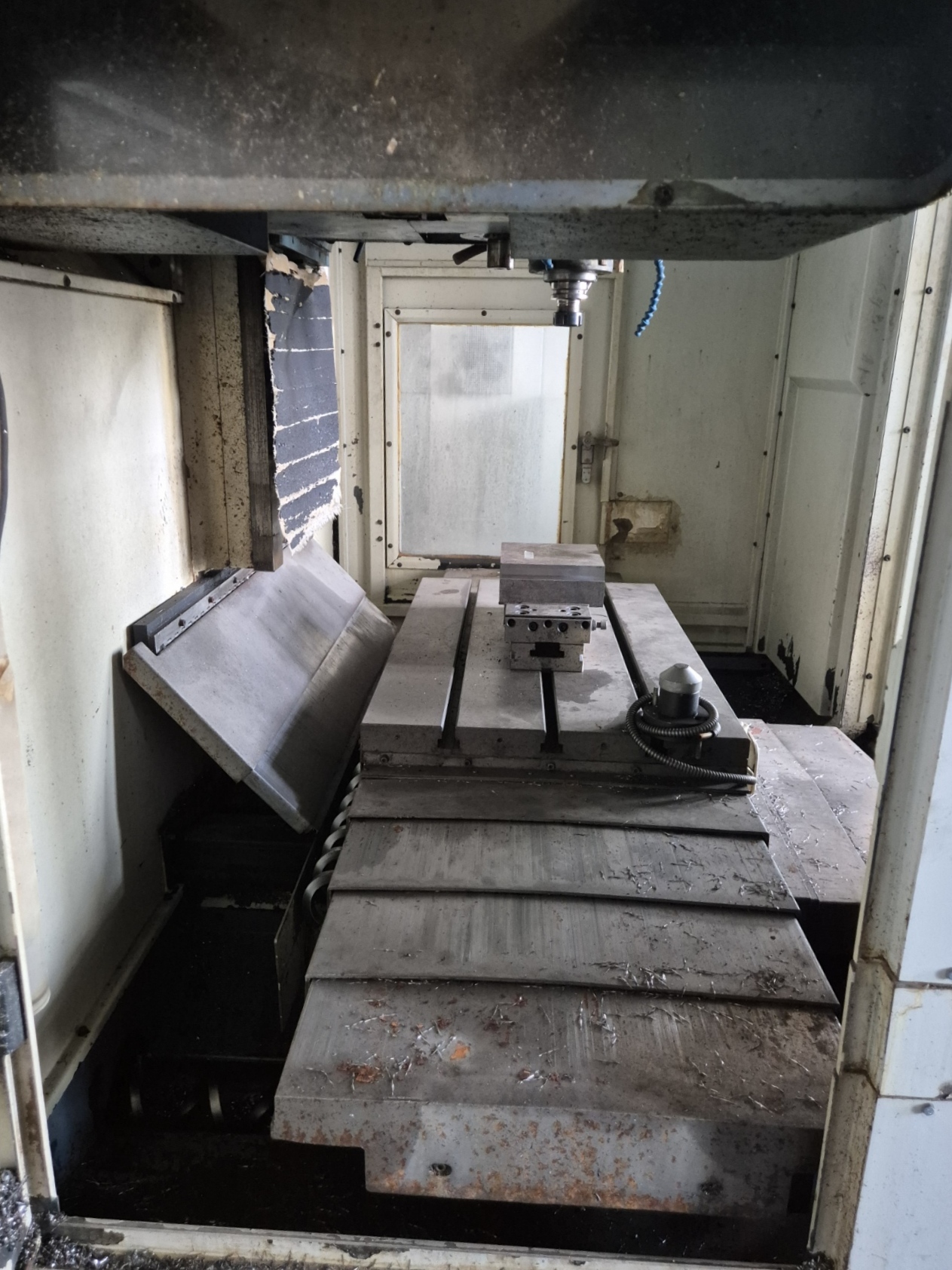

• work table dimensions (L x W): 950 x 560 mm
• T-slot number: 3
• maximum workpiece weight: 500 kg

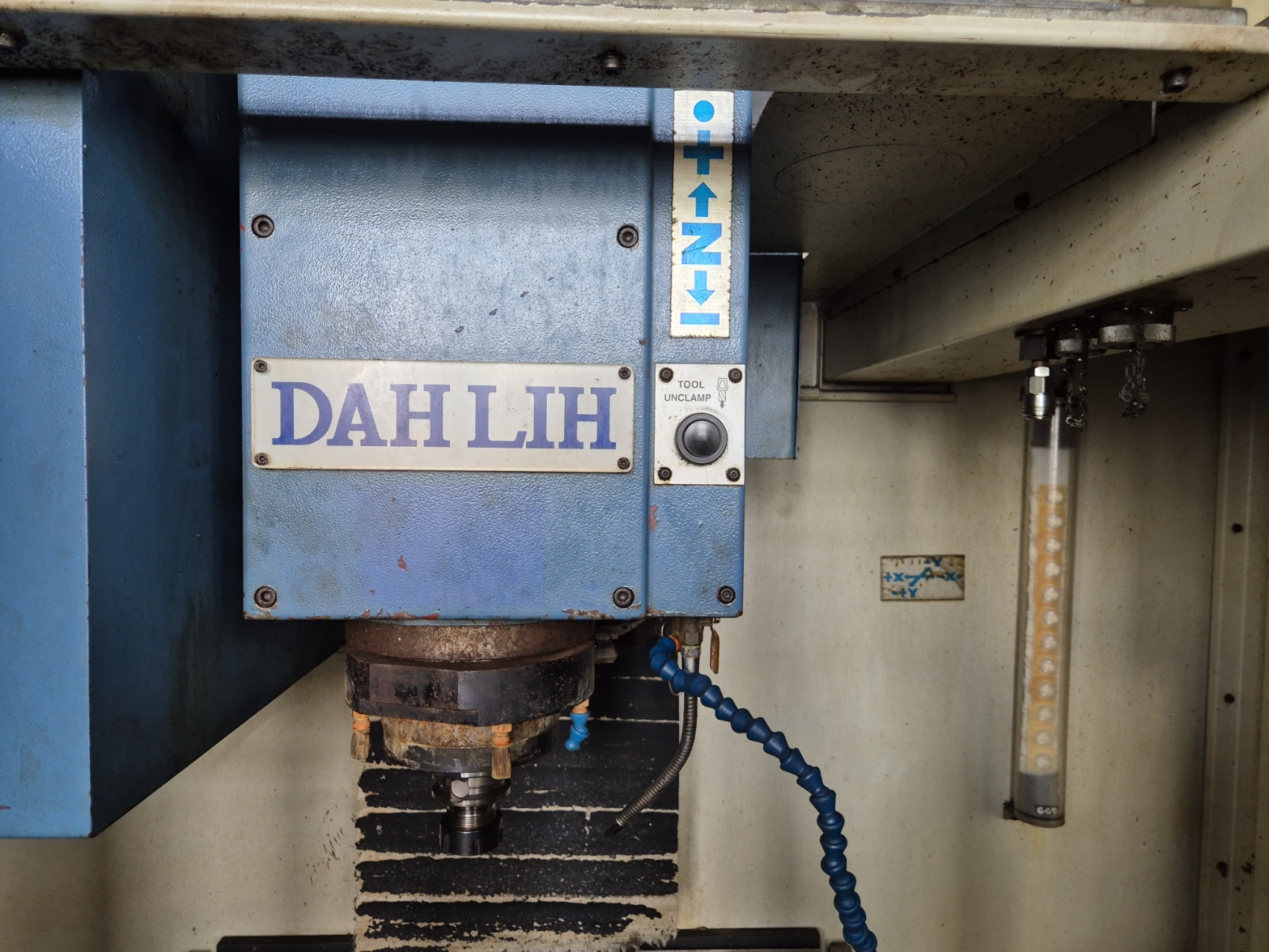

• maximum spindle rotational speed: 8000 rpm
• spindle taper: BT 40
• spindle drive power: 11 kW
• 30-position tool magazine
• dimensions (L x W x H): 2540 x 2180 x 2380 mm
• weight of the MCV 720 machine: 4400 kg
