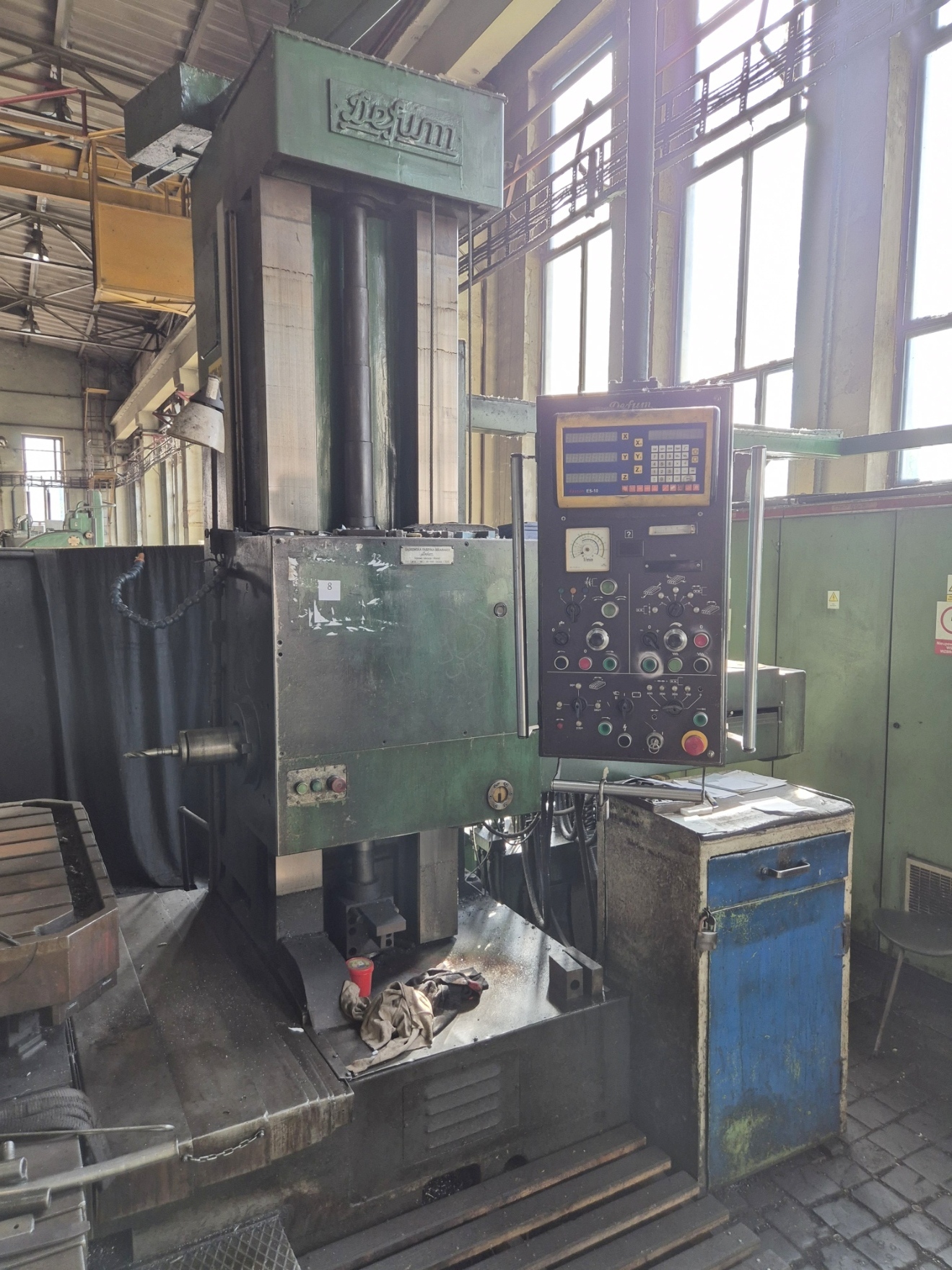

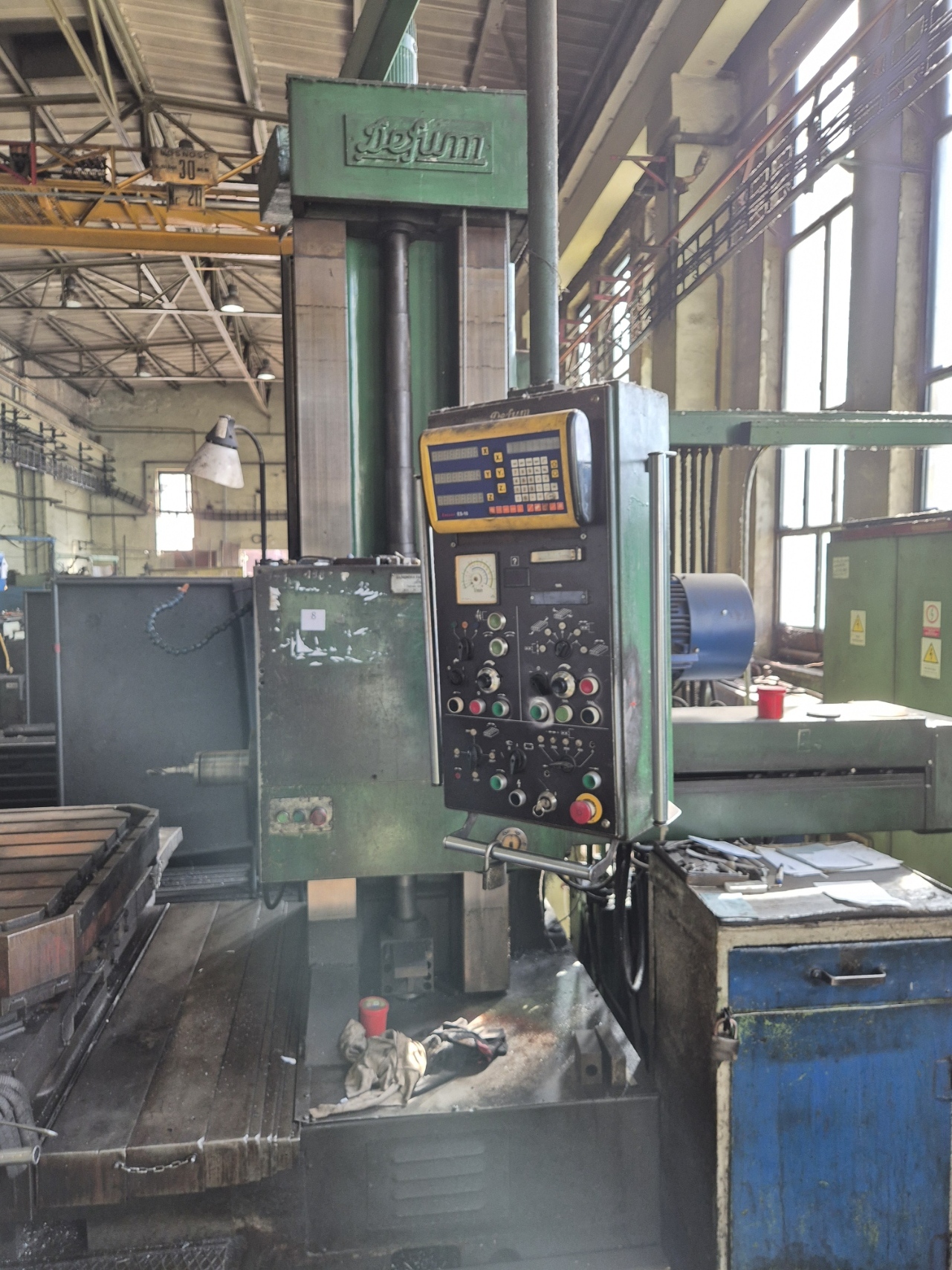

DEFUM WFM-100 boring machine

DEFUM WFM-100 boring machine was built in 1984 in Poland by the Dąbrowska Fabryka Obrabiarek DEFUM. The machine is designed for precision machining of workpieces with complex geometry and high weight. All machining processes, i.e. drilling, milling, boring and thread cutting, are performed on a stable work table by means of a powerful spindle with a diameter of 100 mm. The WFM 100 horizontal boring machine weighs 11000 kg.

Technical specifications of the DEFUM WFM-100 drilling and milling machine

• feed in the X/Y/Z axis: 1200/1000/600 mm
• work table dimensions (L x W): 1100 x 1100 mm
• maximum workpiece weight: 3000 kg
• maximum spindle rotational speed: 1600 rpm
• spindle diameter: 100 mm
• spindle drive power: 18.5 kW
• dimensions (L x W x H): 4610 x 3620 x 3110 mm
• weight of the DEFUM machine: 11000 kg
