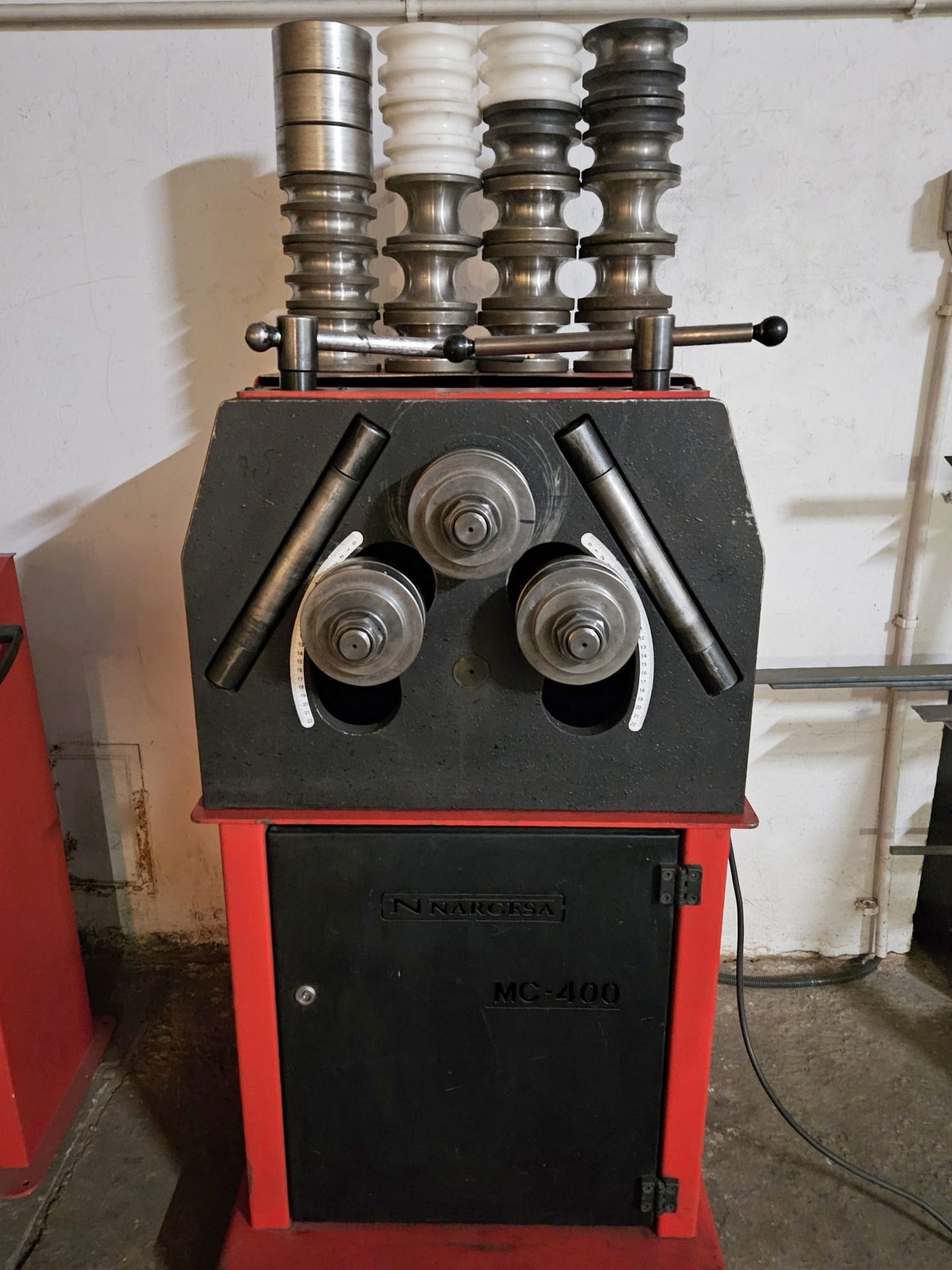

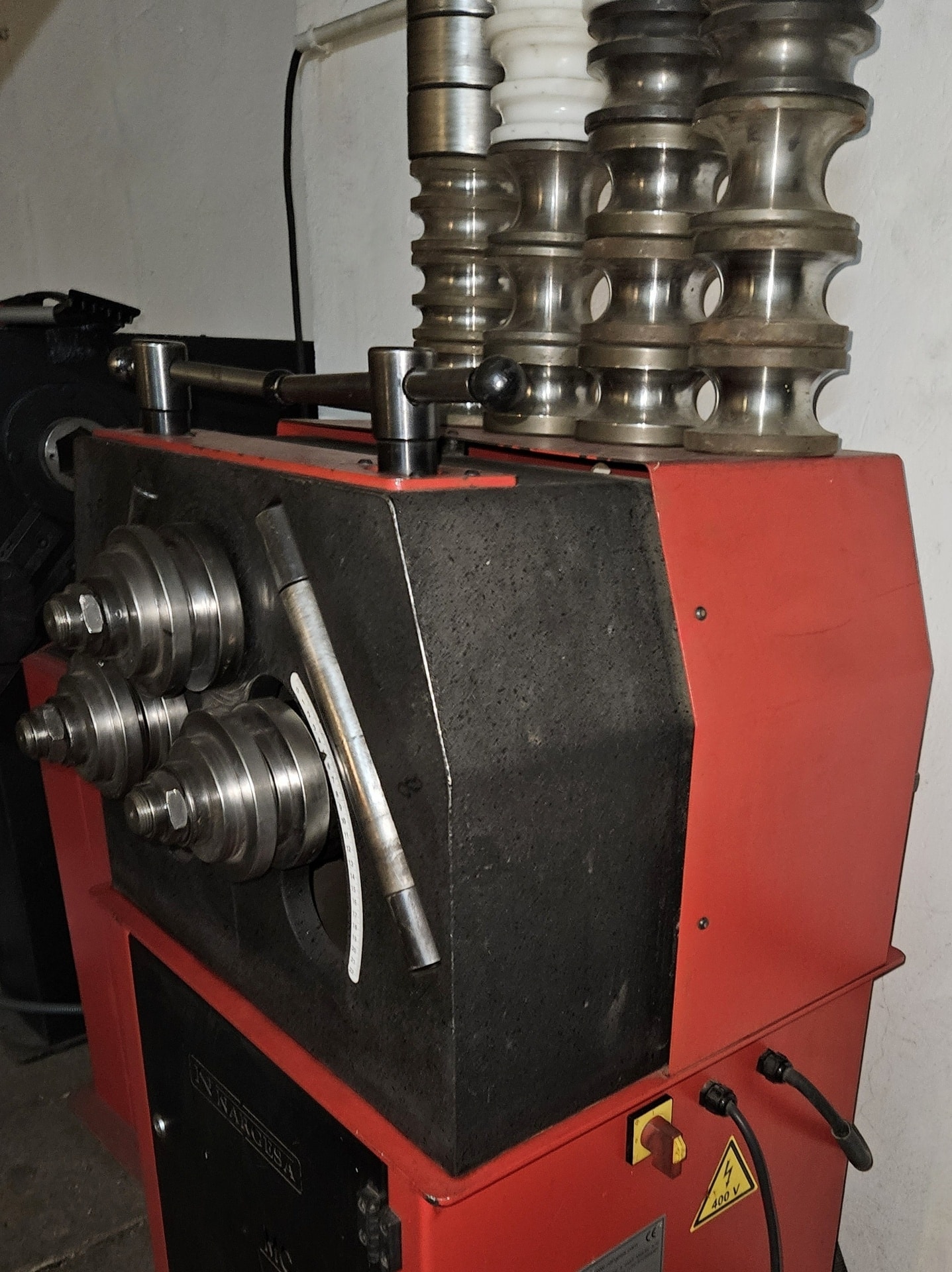

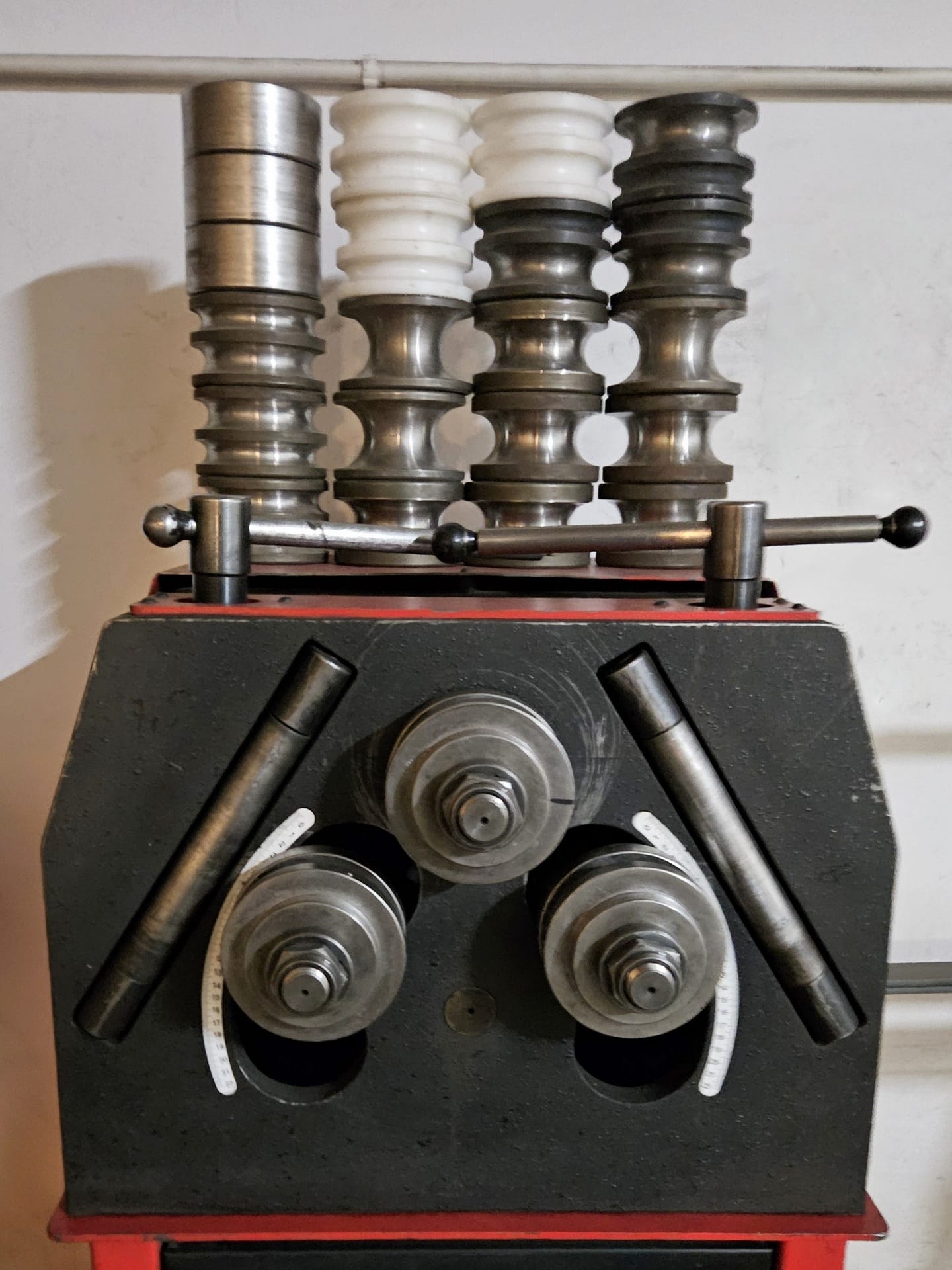

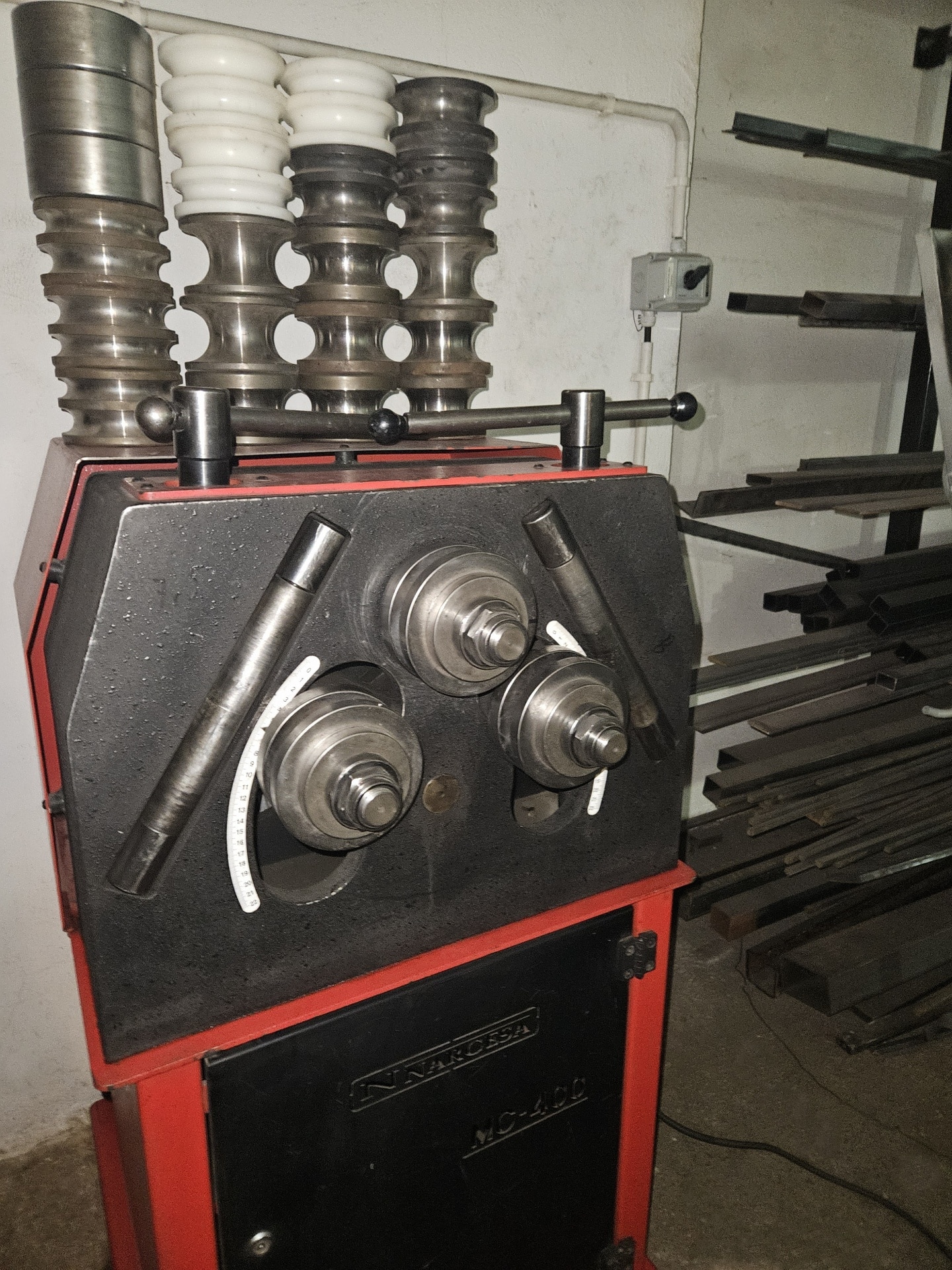

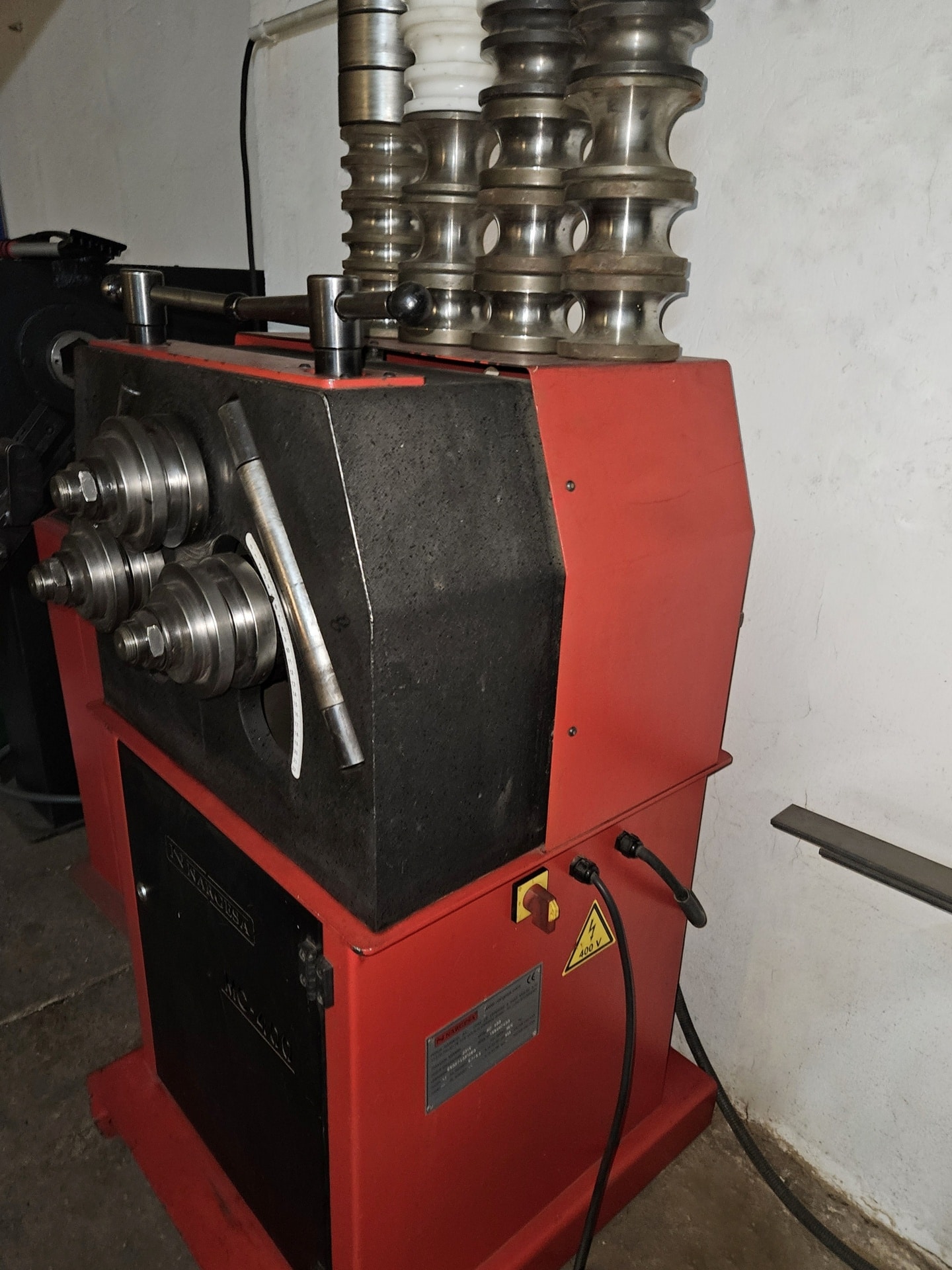

NARGESA MC 400 3-roll bending machine

NARGESA MC 400 3-roll bending machine was built in 2015 in Spain by PRADA NARGESA, S.L. The machine, designed for precision machining of steel components, is an excellent choice for the production of, among others, gates, fences, railings and balustrades. The extremely rigid body is distinguished by the use of guide shafts and 3-axis rollers made of hardened steel, whose drive eliminates slippage during the rolling process. This solution, combined with independent, manual adjustment of the lower axes, increases overall ergonomics and productivity. The NARGESA tube and profile bending machine weighs 365 kg.

Technical specifications of the NARGESA MC 400 tube and profile bending machine

• number of rollers: 3
• roller diameter: 130 mm
• roller rotation speed: 8 rpm
• number of shafts: 2
• shaft diameter: 40 mm
• shaft usable length: 80 mm
• power: 1.5 kW
• power supply: 3x 400 V; 50/60 Hz
• dimensions (L x W x H): 650 x 740 x 1260 mm
• weight of the machine: 365 kg
