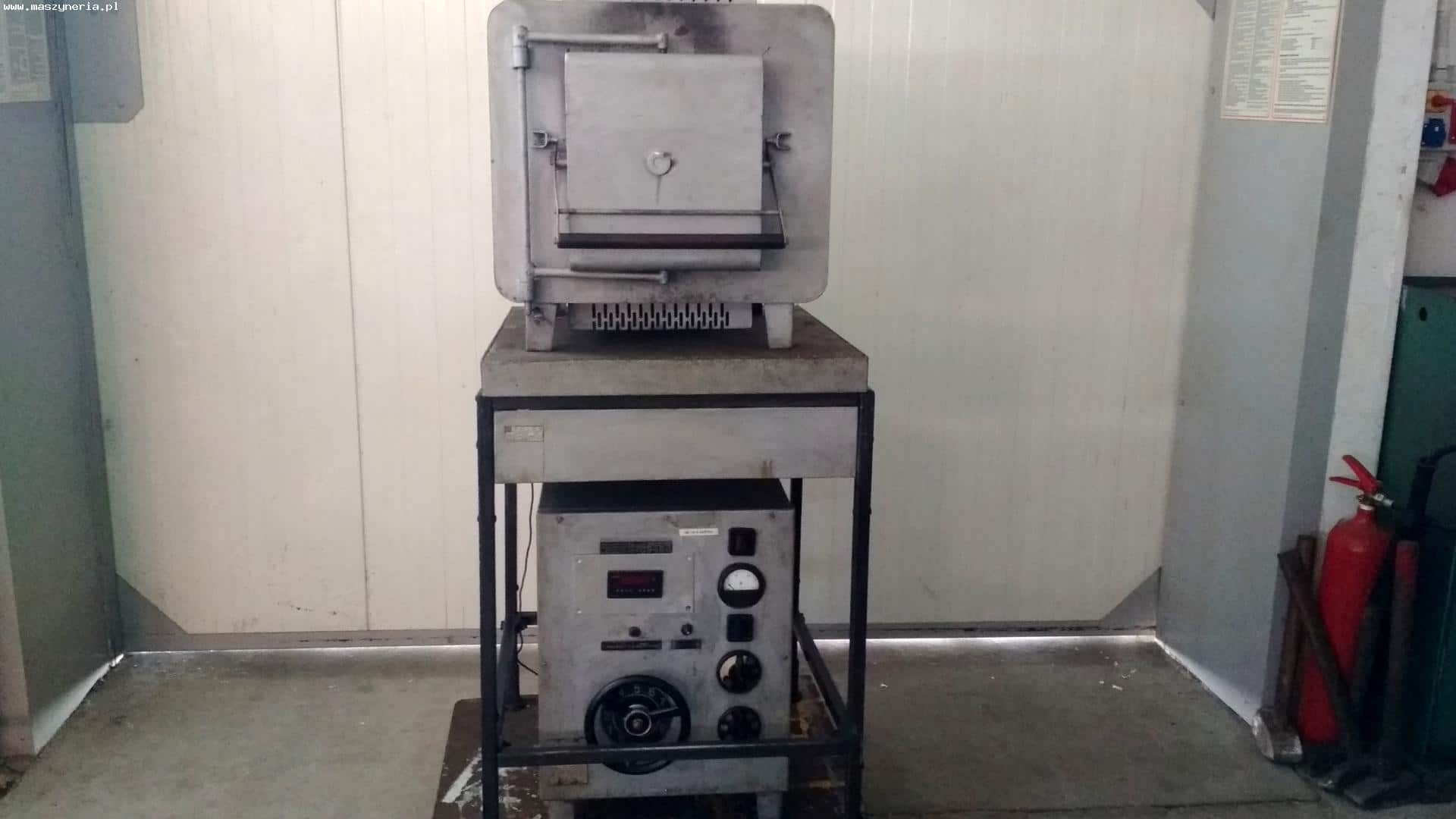

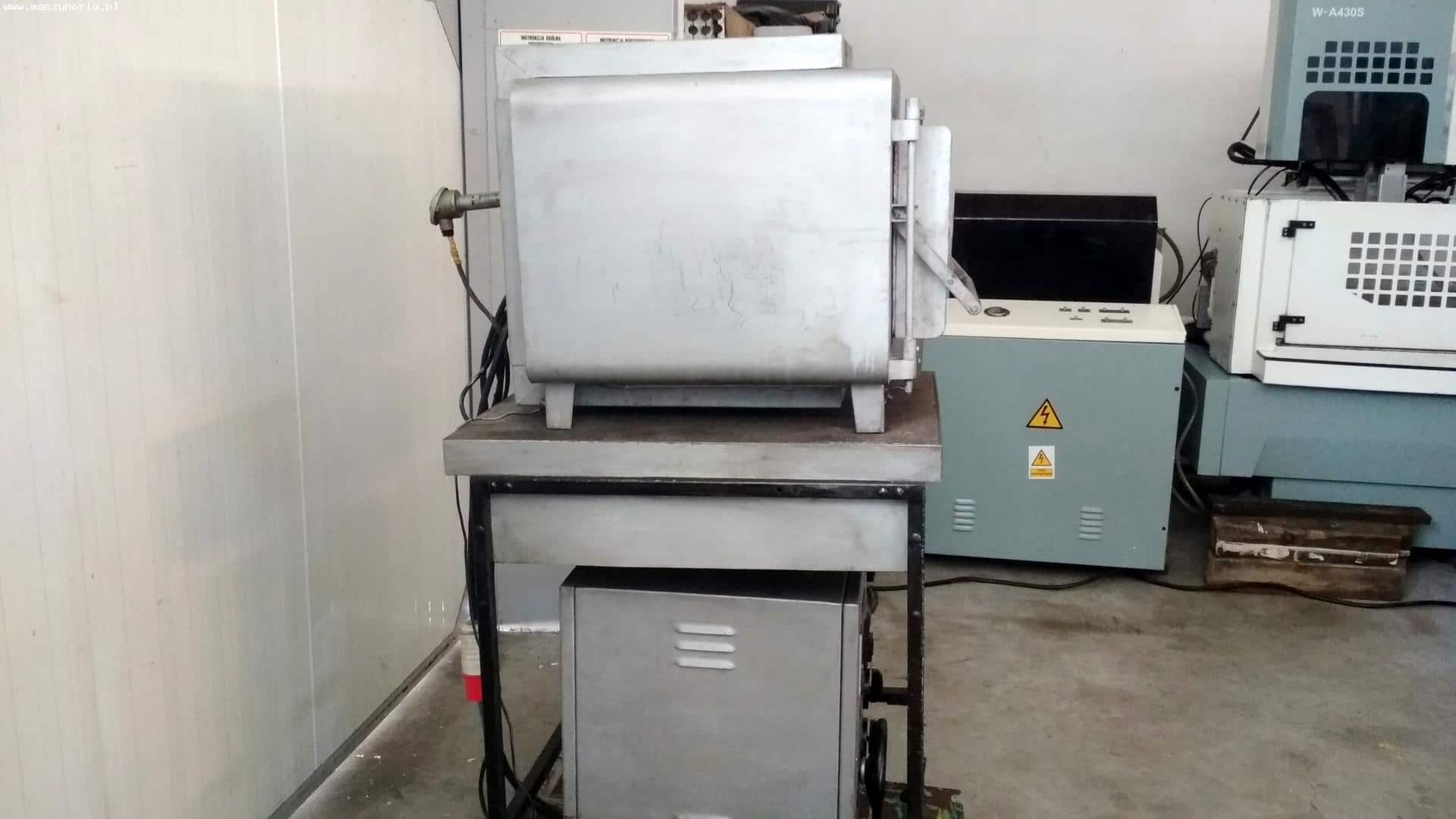

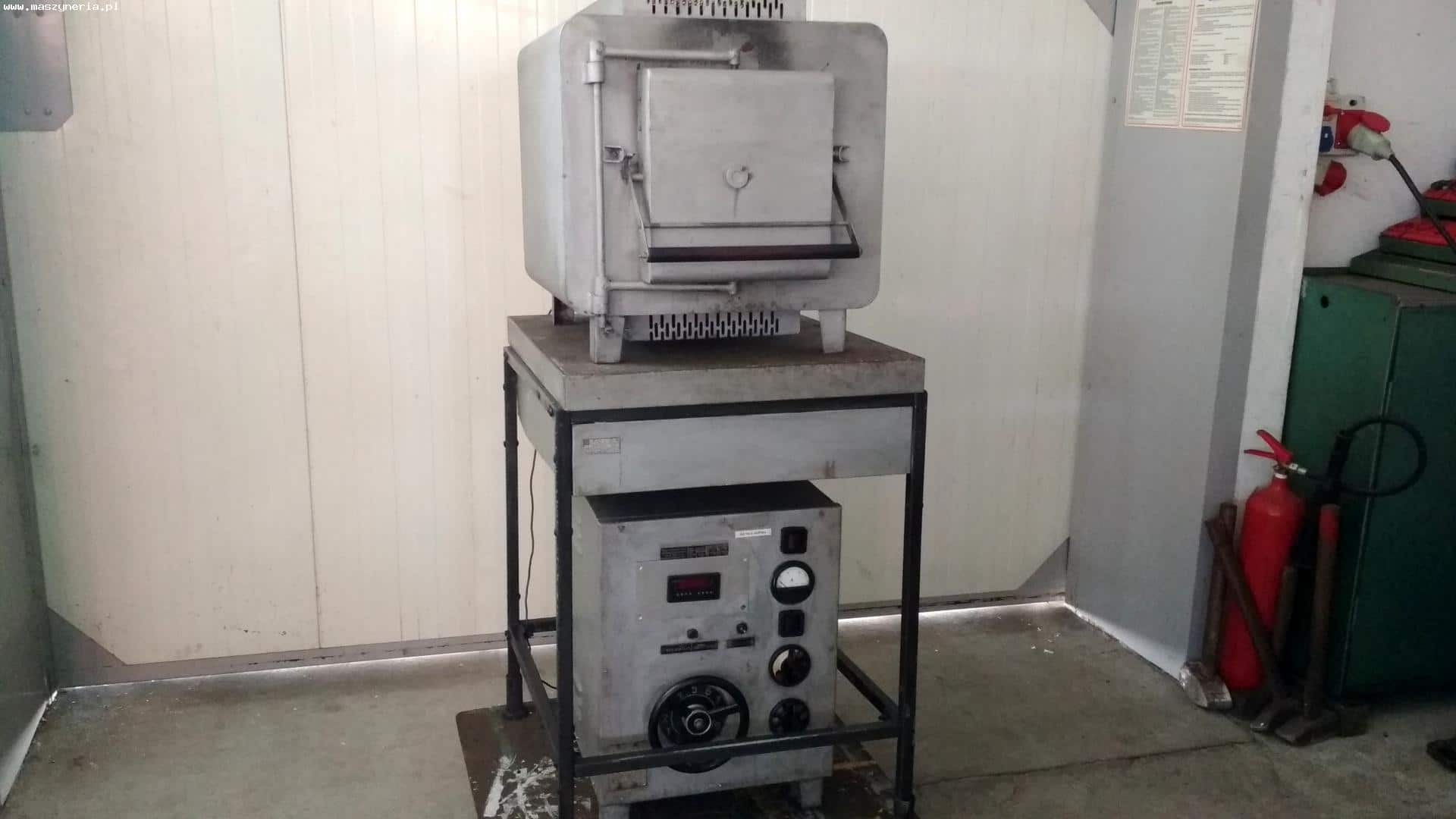

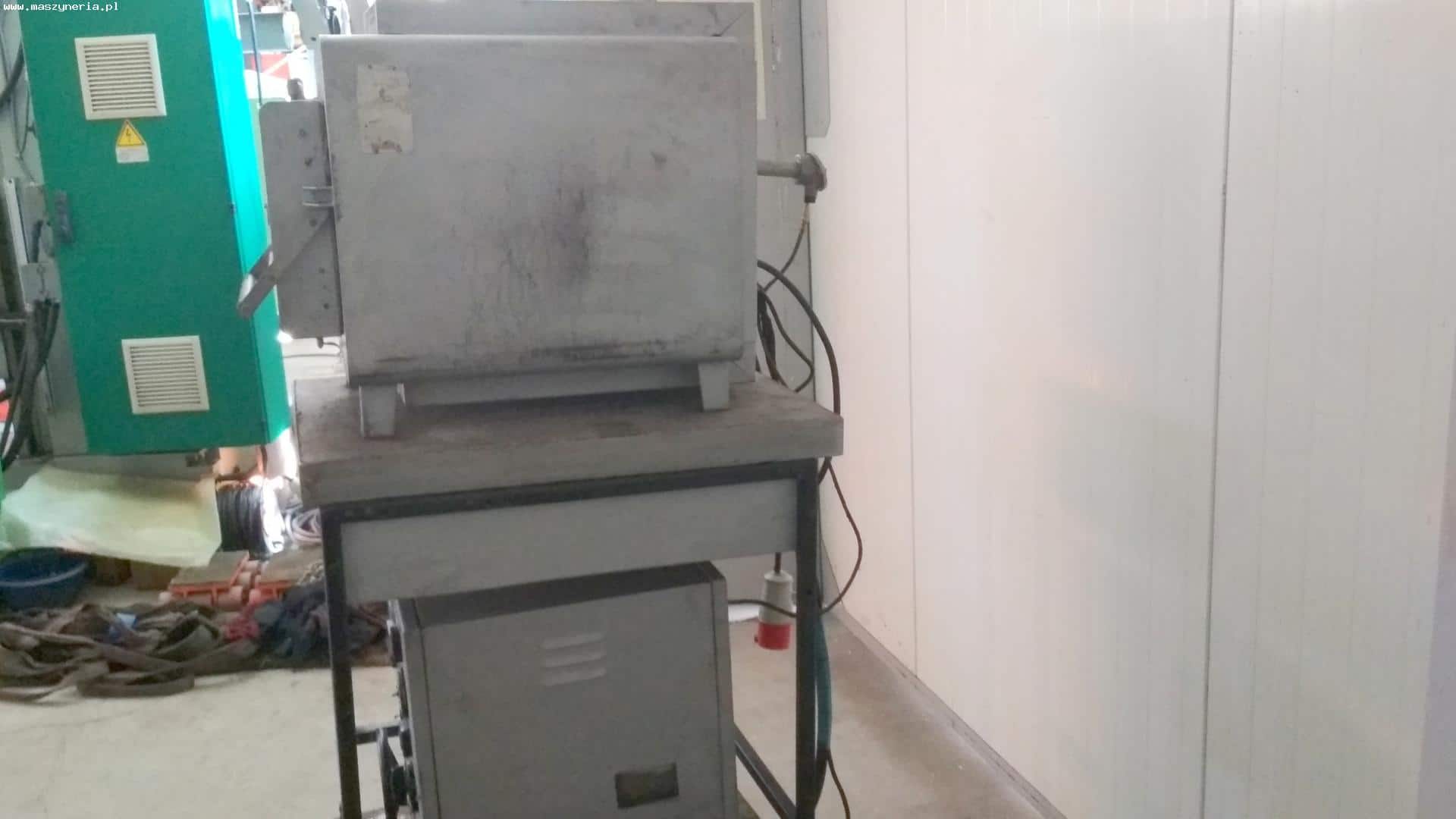

ZWUT PSK-1 hardening furnace

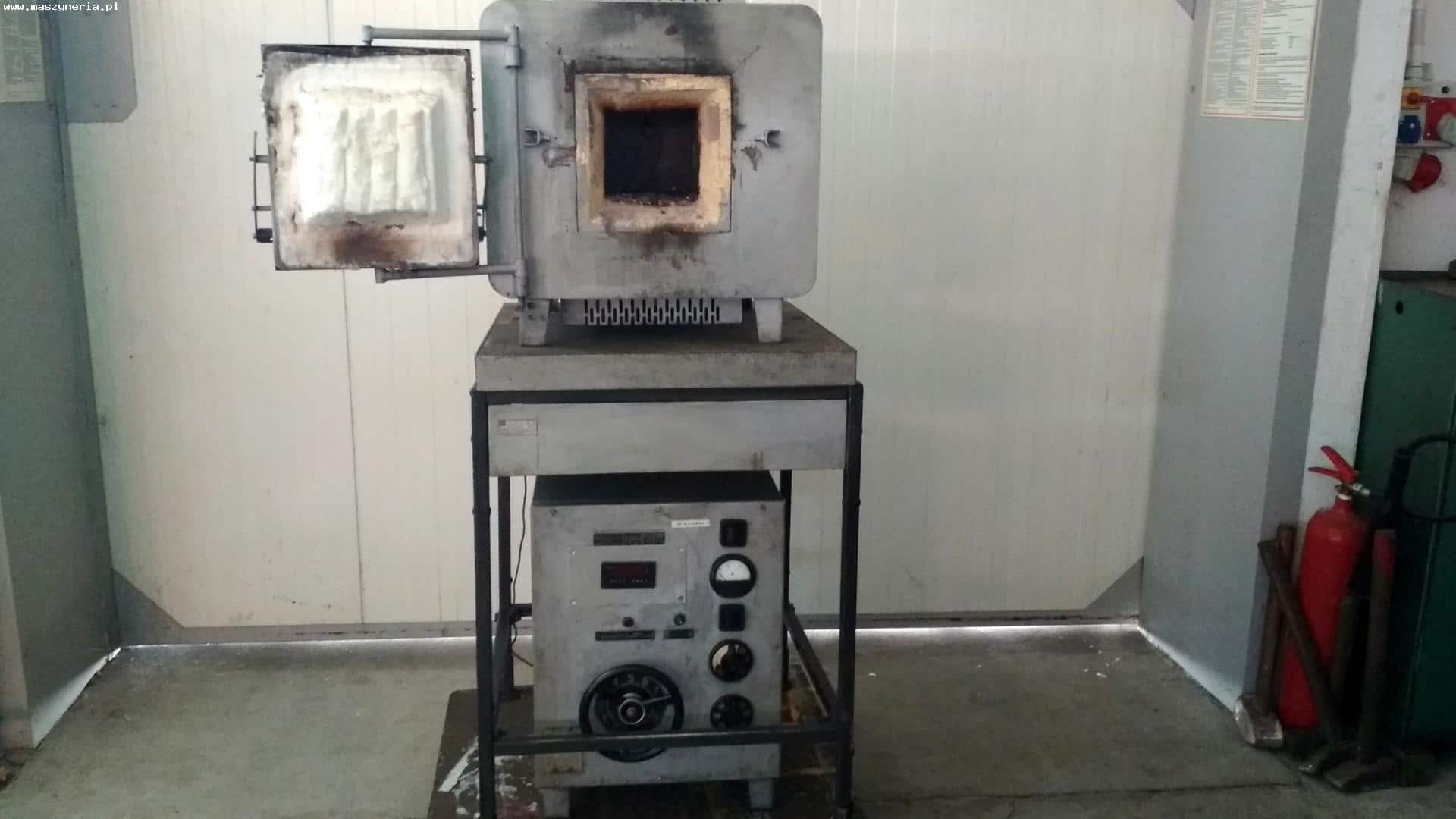

ZWUT PSK-1 hardening furnace was manufactured in Poland. The furnace is used for various types of laboratory and industrial work. The heating chamber of the furnace is resistant to high temperatures, thanks to fireclay and thermal insulation in layers. The outer casing of the furnace is made of steel sheets and angles. The door opens on hinges. The lock has a long handle, which makes handling the stove much more convenient.

Specification of the ZWUT PSK1 hardening furnace

– rated temperature: 1350 degrees C
– warm-up time to rated T: approx. 3.5 hours.

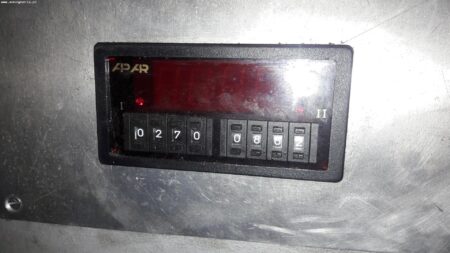

– temperature control accuracy: 1.5 (or 0.2 + /%, when working with a feedback adapter)
– power consumed at T = 1350 degrees C: 4.10 kW
– installed power: 5.5 kW
– supply voltage: 220 V, 50 Hz
– autotransformer secondary voltage: 7-41, 1-3-58, 9-5-84, 4
– number of phases: 1
– type and number of silites: 8/150/150/10 mm / pcs.
– useful dimensions of the heating chamber (height x width x length): 150 x 150 x 280 mm
– cabinet weight: 81 kg
– PSK1 furnace weight: 138 kg
