AMADA VIPROS 255 punching machine

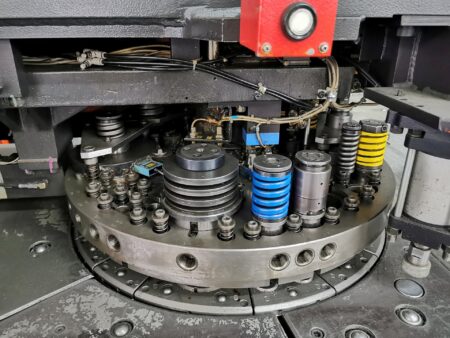

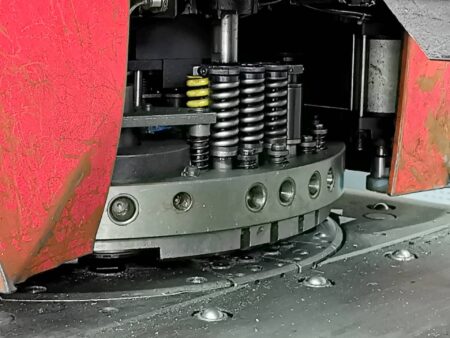

AMADA VIPROS 255 punching machine was built in 1997 in Japan. The machine with its extensive machining capabilities provides the highest precision and accuracy in punching workpieces with a maximum thickness of 6 mm. Excellent machining results are achieved thanks to the high pressing force of 19.6 tonnes and the use of a capacious turret head with 31 work stations (including 3 auto indexing stations), which can accommodate a large number of tools for many different applications. The AMADA punching machine has only worked for 2294 hours to date. The total weight of the punching machine is 9800 kg.

Technical data of the AMADA VIPROS 255 punching machine

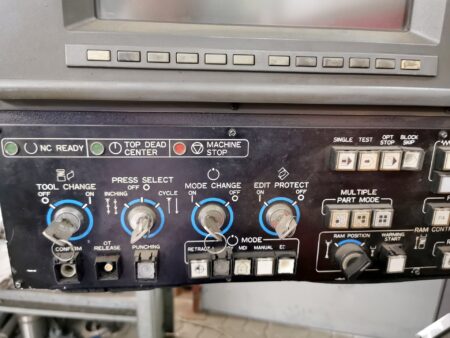

• CNC control: FANUC 18PC
• maximum press force: 19.6 t (196 kN)
• feeds in the X/Y axis: 1270/1270 mm
• rapid traverse in the X/Y axis: 65/50 m/min
• simultaneous positioning speed in the X and Y axes: 82 m/min
• maximum workpiece thickness: 6 mm
• maximum workpiece weight: 104 kg
• workspace dimensions (L x W): 2540 x 1270 mm
• maximum punching diameter: 88.9 mm
• punching accuracy: ± 0.07 mm
• punching accuracy (high accuracy mode): ± 0.05 mm
• number of tool stations: 31
• number of index tool stations: 3

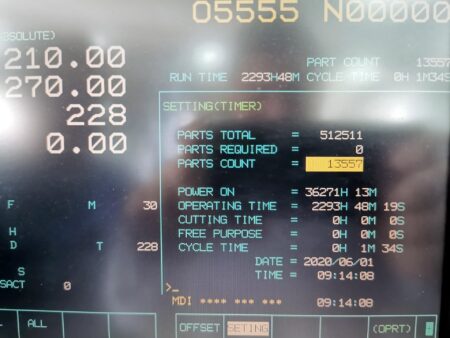

• operating hours: 2294 h
• machine switch-on time: 36271 h

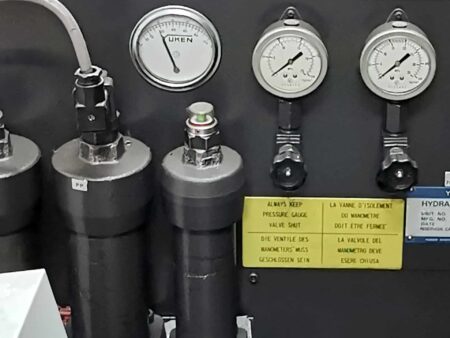

• compressed air consumption: 250 l/min
• power requirement: 22 kVA
• dimensions (L x W x H): 5030 x 2630 x 2160 mm
• weight of machine: 9800 kg
