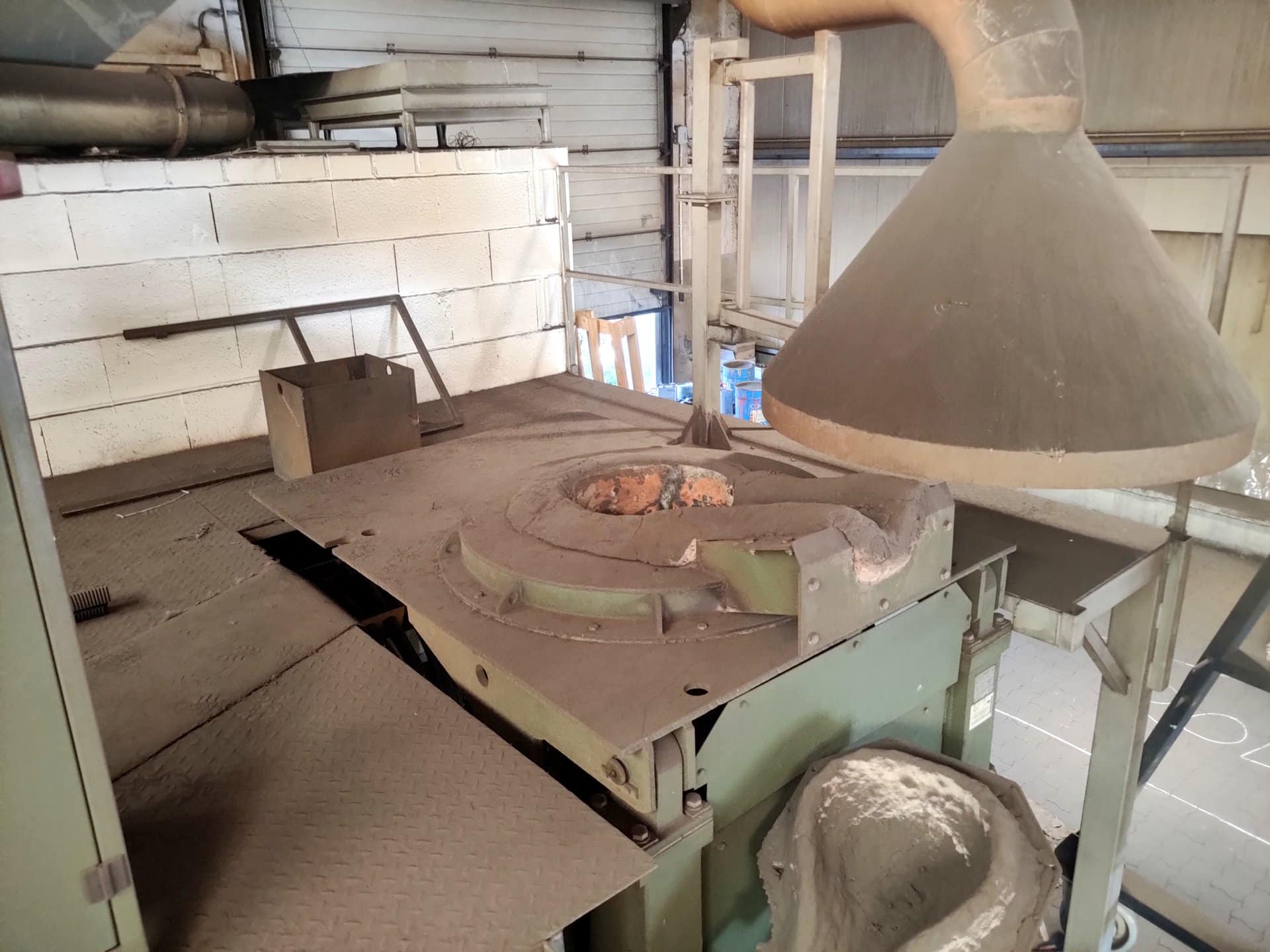

TERMOLIT ICMEF – 0.8 TH induction melting furnace was manufactured in 2011 in Ukraine. The machine with a heating chamber having a capacity of 800 kg, is used for the melting process of cast iron, steel and non-ferrous metals. The temperature in the heating chamber reaching up to 1600°C, allows the melting up to 1 tonne of material in one hour. The robust stainless steel body guarantees high performance, reliability and economic efficiency.
The induction furnace is equipped with top-class medium-frequency capacitors and reliable 650 kW thyristor frequency converters with automatic control during remelting. The equipment also includes a TERMOLIT CSC-650 power source with an output of 20 kW. The total weight of the furnace is 3100 kg.
Specification of the induction metal melting furnace TERMOLIT ICMEF – 0,8 TH
- melting materials: cast iron, steel, non-ferrous metals
- heating chamber capacity: 800 kg
- maximum metal melting temperature: 1600°C
- metal melting rate: 1000 kg/h
- total power of furnace converter: 650 kW
- power source: TERMOLIT CSC-650
- power source output: 20 kW
- power source weight: 100 kg
- total cooling water consumption: 18 m3/hour
- total electricity consumption: 560 kWh/t
- total weight of the ICMEF-0.8/0.65 TH machine: 3100 kg
