WaterJet KIMLA STREAMCUT 4020

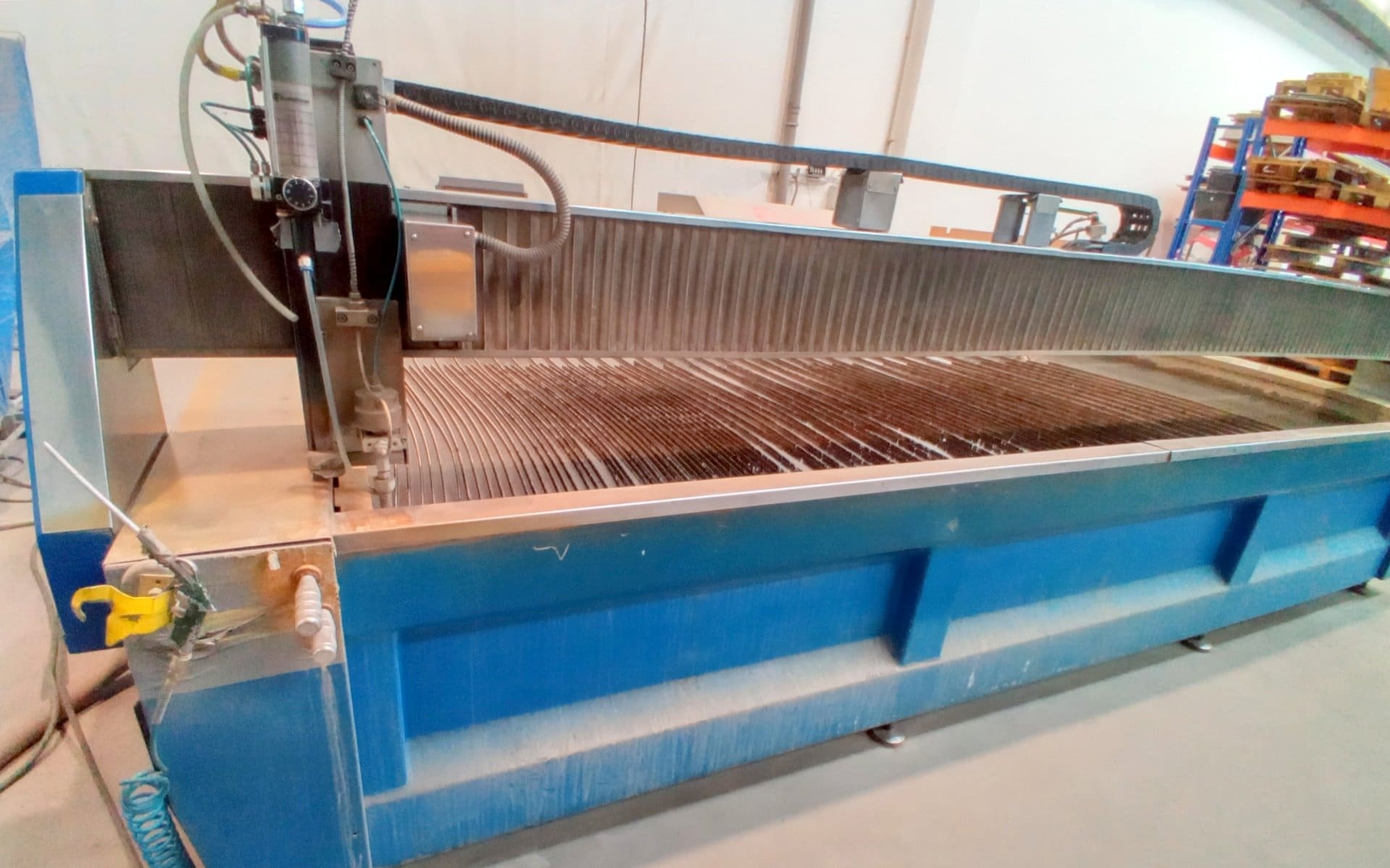

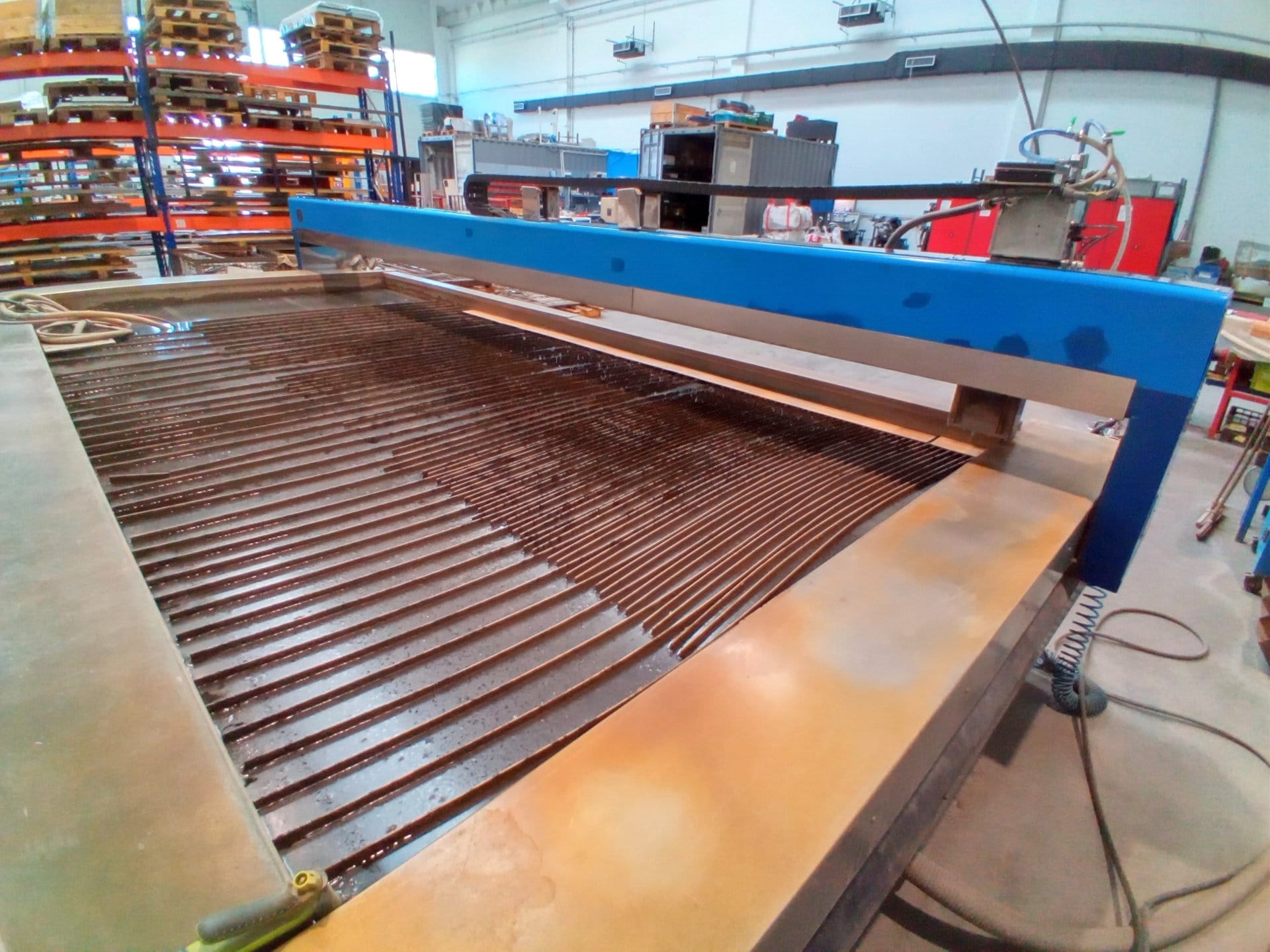

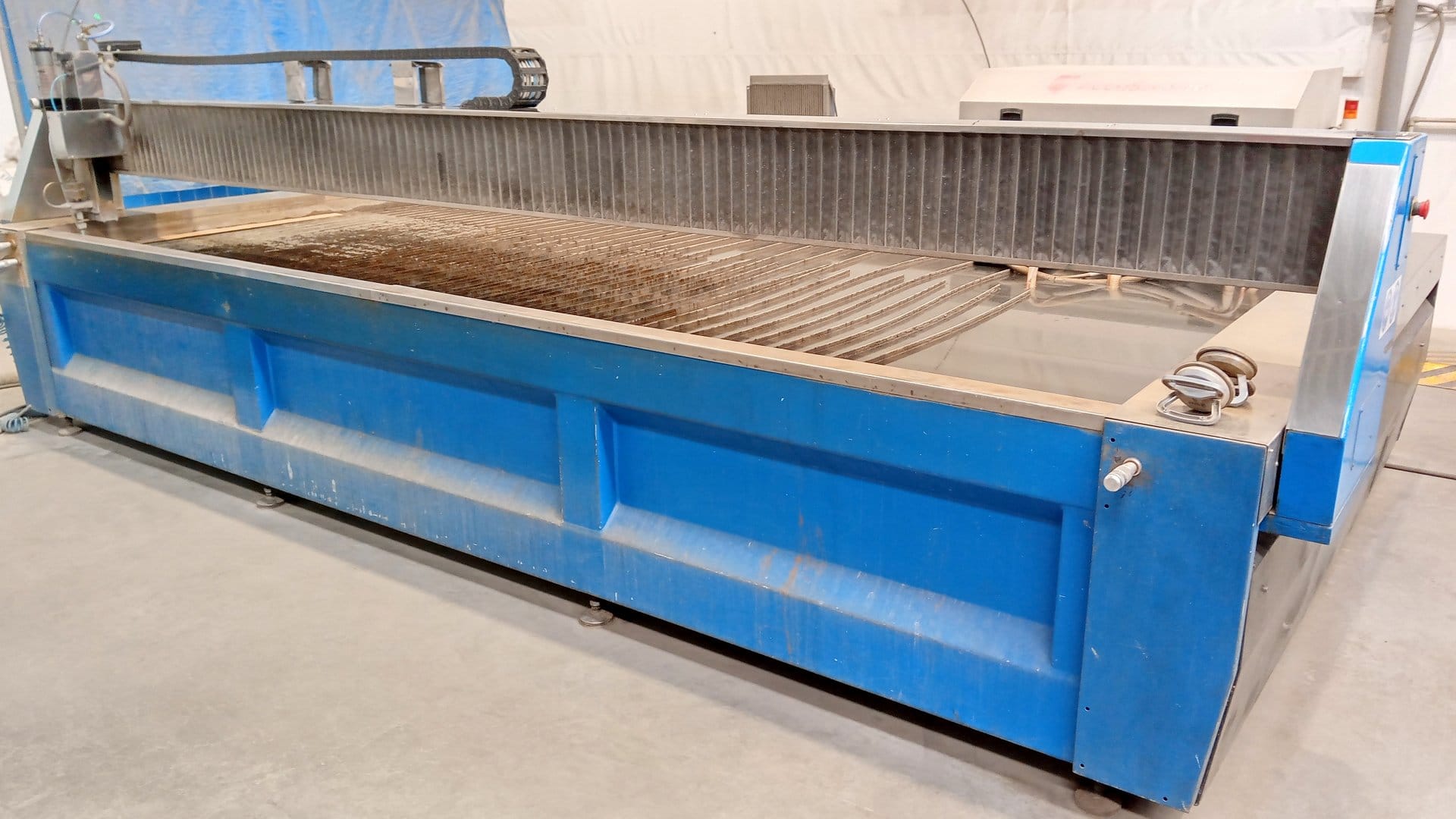

WaterJet KIMLA STREAMCUT 4020 built in Poland in 2009 is designed for water jet cutting of workpieces with thickness up to 200 mm. The machine cuts a wide range of materials such as metal, plastic or stone on a working table with dimensions (L x W) of 4530 x 2190 mm. The compact, space-saving design, ease of use and perfect cutting quality are the main advantages of the water cutting machine.

The water cutting system has a wide range of useful functions and features such as air bag and low-pressure piercing. The mounted air bag considerably facilitates the operator’s work, allowing the water mirror to be raised during cutting and lowered for workpiece removal. The low-pressure piercing function reduces the impact force of the water jet, preventing cracking and chipping of certain workpieces during the cutting process.

The water cutting machine has a wide range of equipment, including e.g. KOMNINO abrasive tanks with a capacity of 300 kg each, ACCUSTREAM AS 6050 high-pressure pump with a power of 37 kW and PcCam Plus CNC controller. The total weight of the machine is 3000 kg.

Technical specification of the water cutting machine KIMLA STREAMCUT 4020

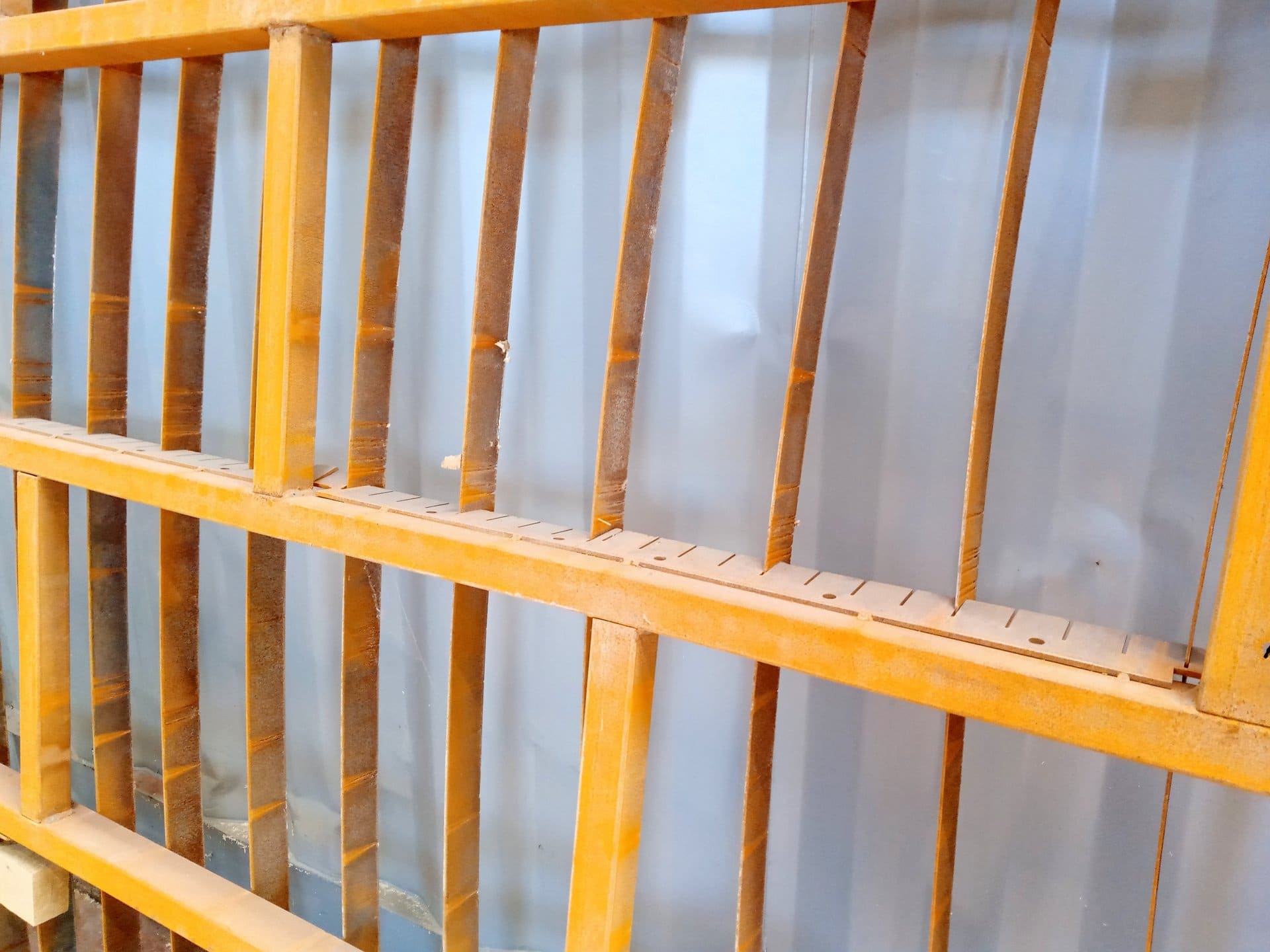

• working table size (L x W): 4530 x 2190 mm
• cutting area (L x W): 4300 x 2010 mm
• cutting materials: metals, stoneware, stones, conglomerates, glass, foams, plastics
• maximum cutting thickness of workpieces: 200 mm

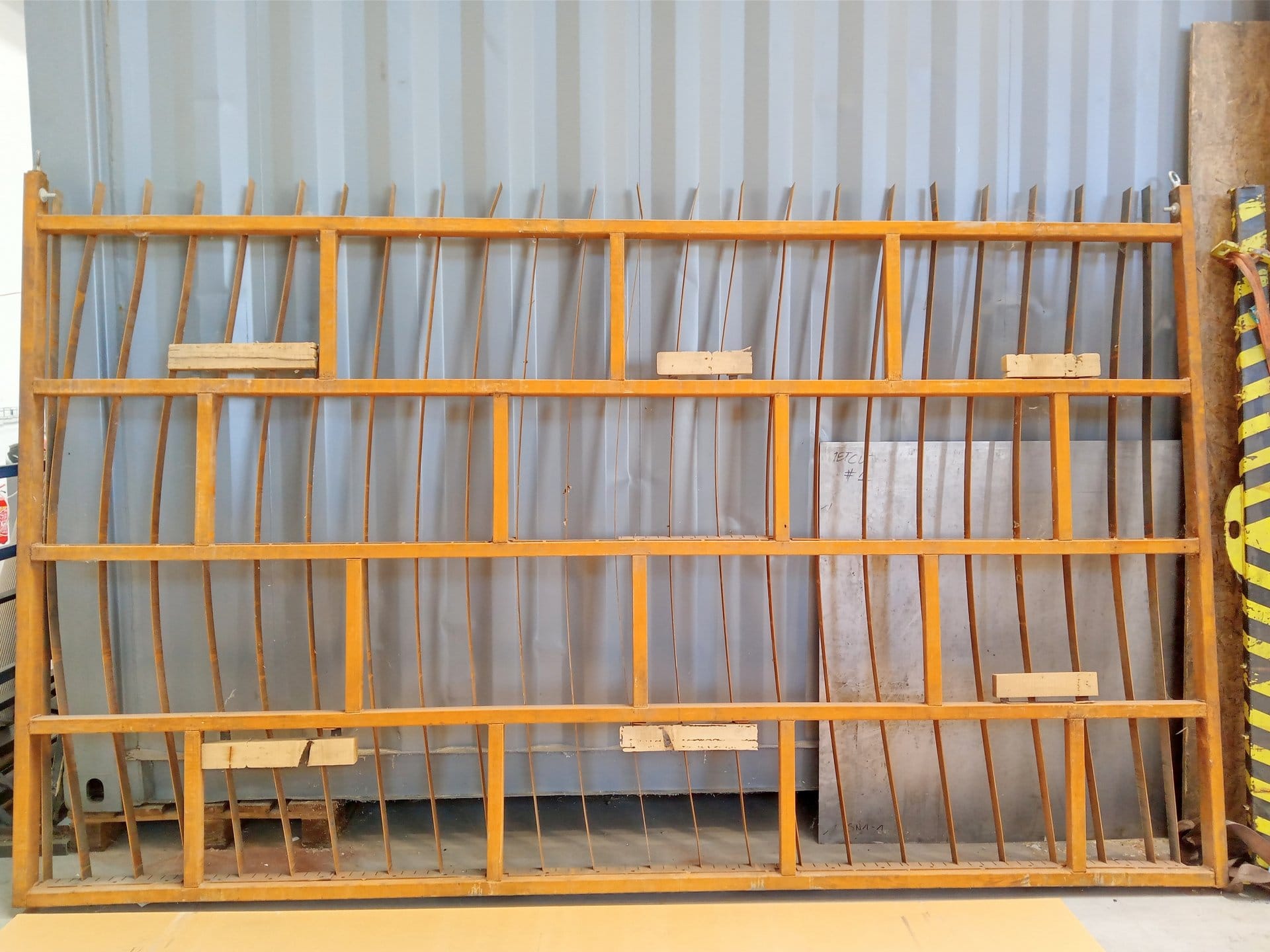

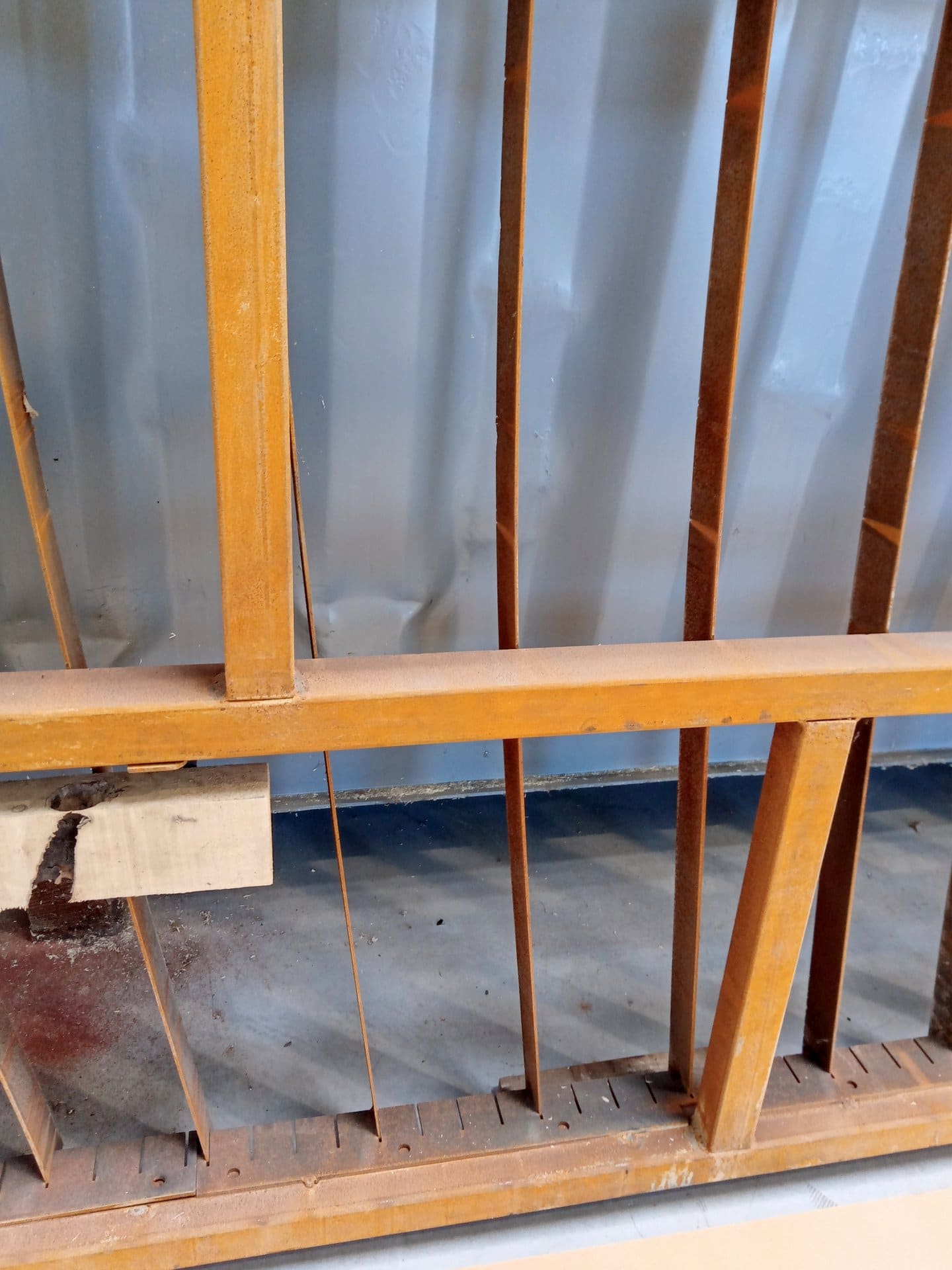

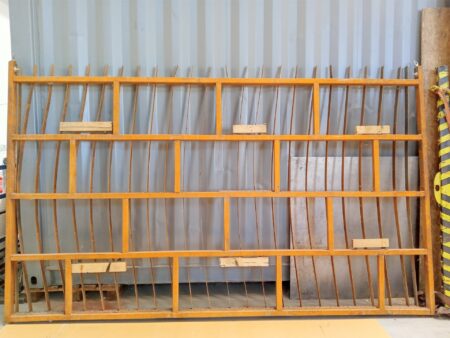

• table with X-Y axis and movable Z axis
• galvanised tub
• air cushion
• low-pressure piercing function
• pneumatic abrasive delivery system
• volume of abrasive tank: 300 kg

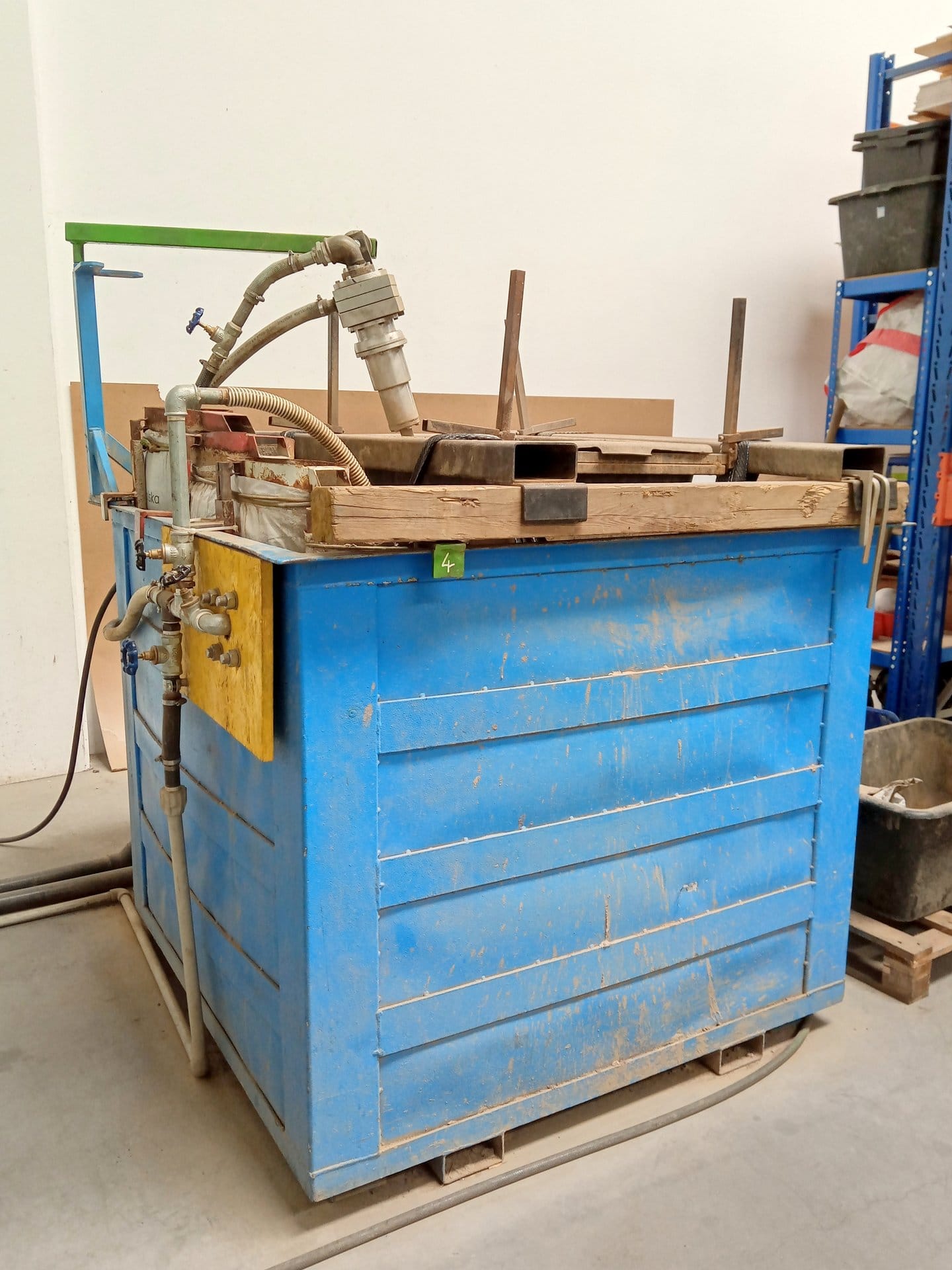

• capacity of steel water tank: 1000 l
• number of operating hours of the high-pressure pump: 40000 mth
• pump power: 37 kW / 50 hp
• maximum pump pressure: 4137 bar
• control via MICROSOFT XBOX pad
• machine dimensions for transport (L x W x H): 5350 x 2900 x 1600 mm
• total weight: 3000 kg

CNC water cutting machine equipment

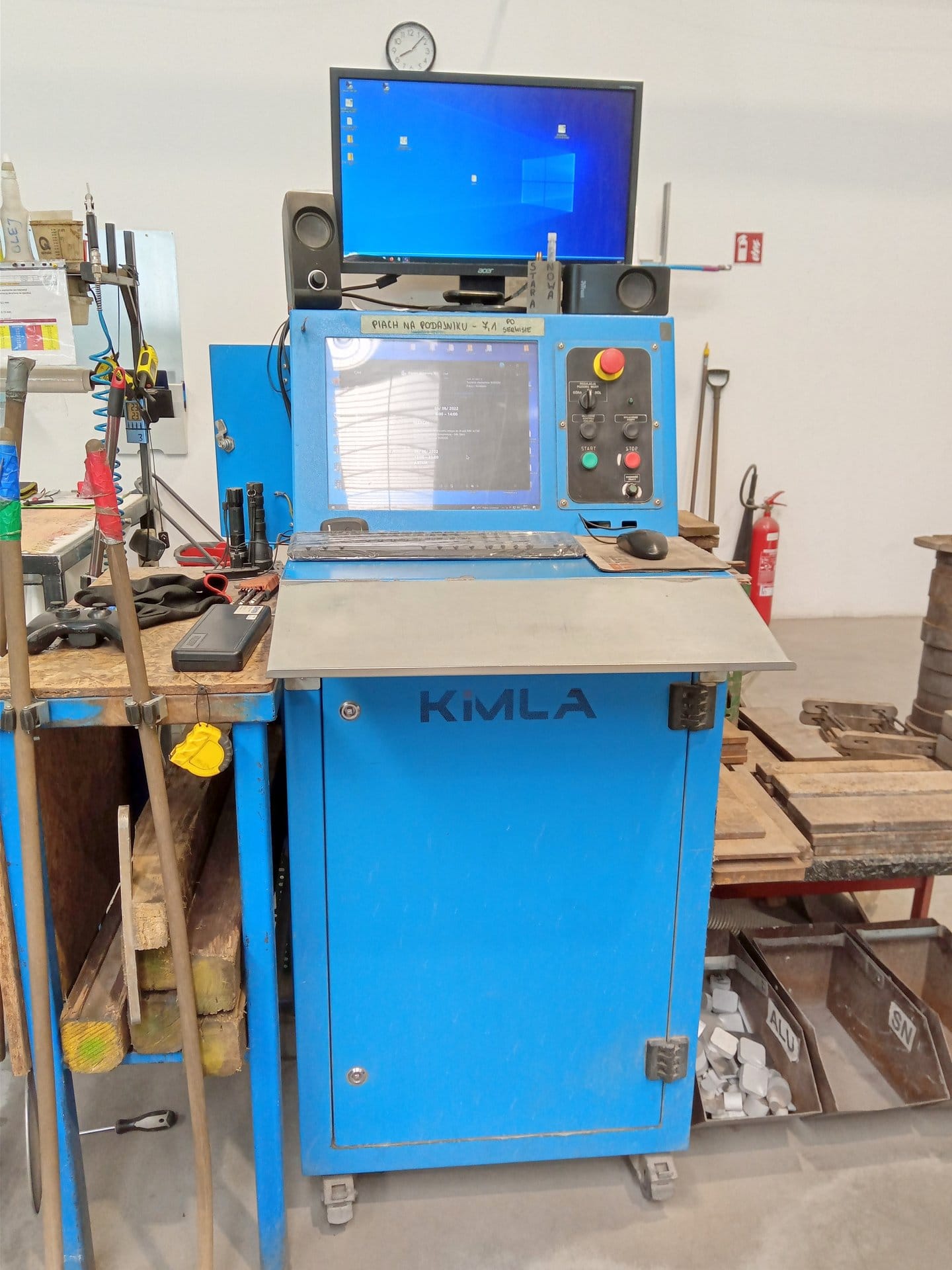

• CNC controller: PcCam Plus

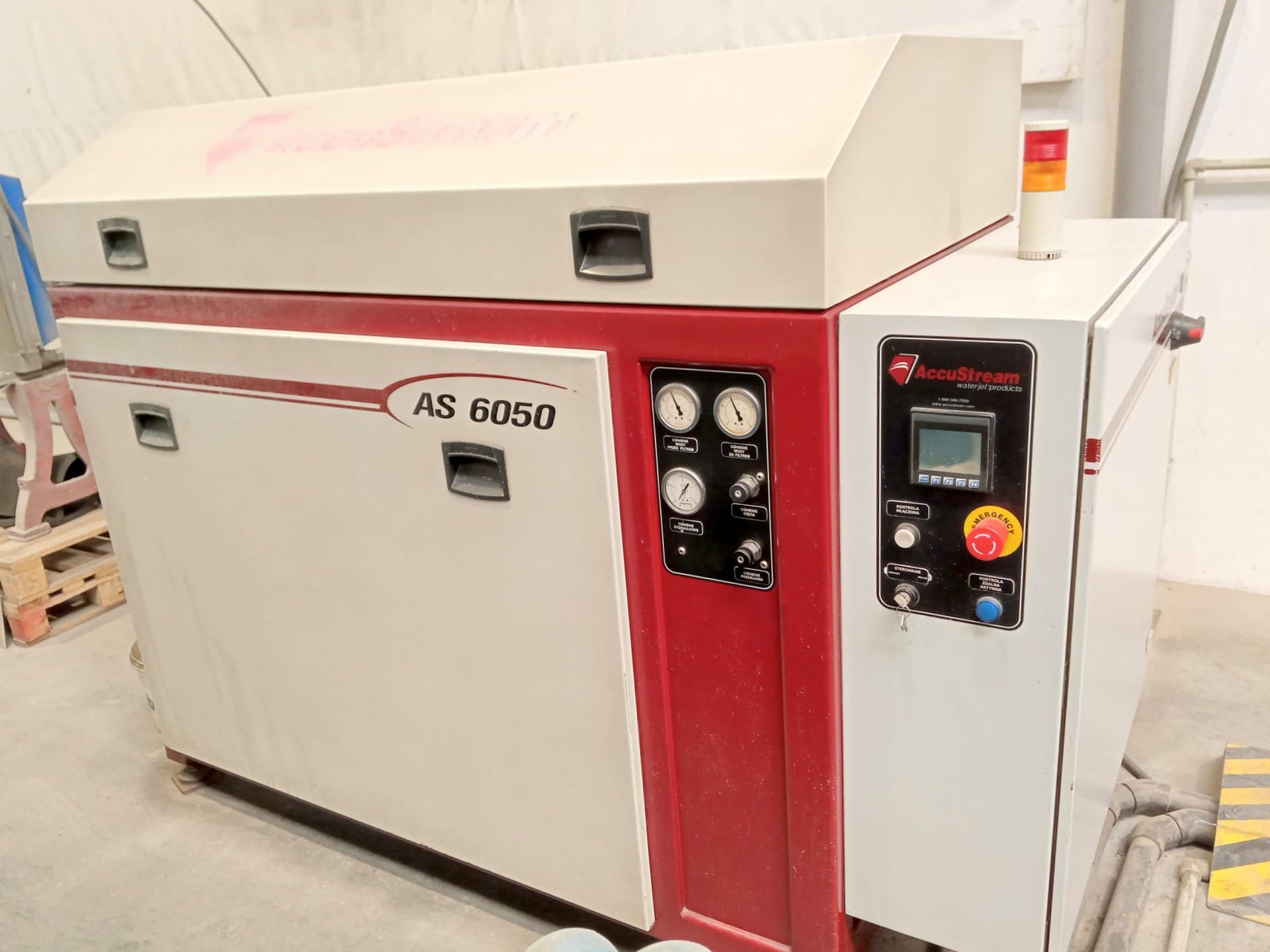

• high pressure pump: ACCUSTREAM AS 6050
• integrated cutting head of machine: SLICE2

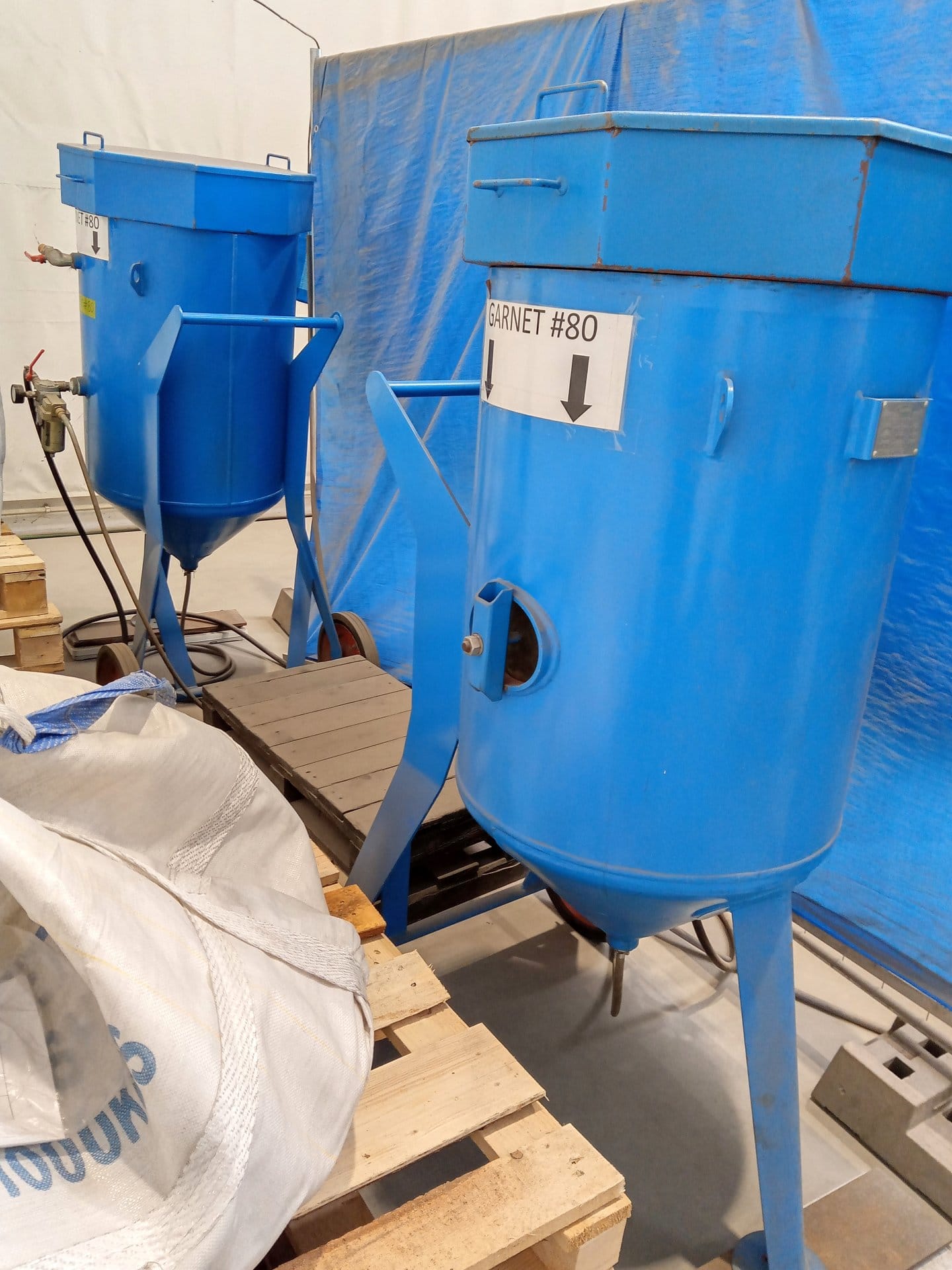

• abrasive tank: KOMNINO (2 pcs)
• cylinder: Hypertherm
• plug valve: Hypertherm
