WaterJet MicroStep Aqua Cut 3001.20

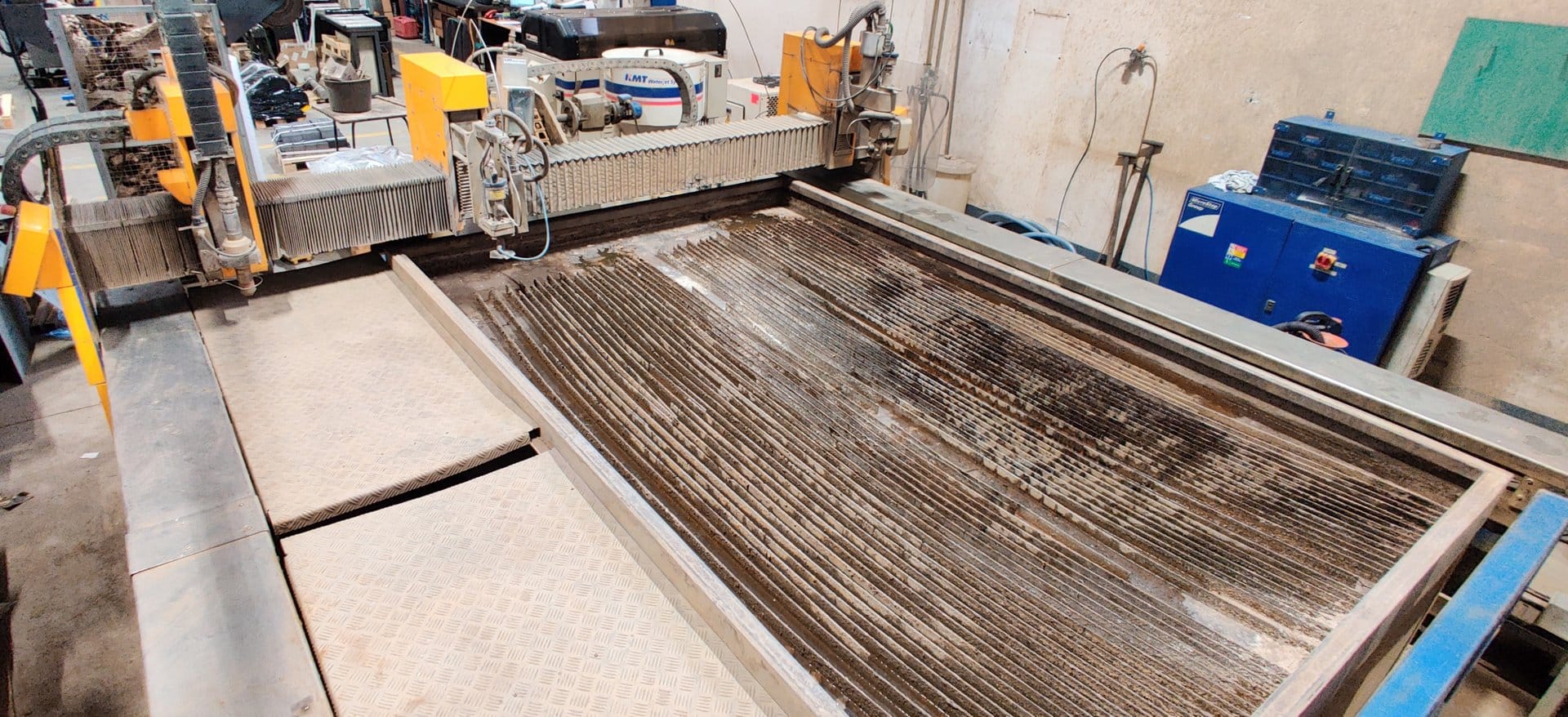

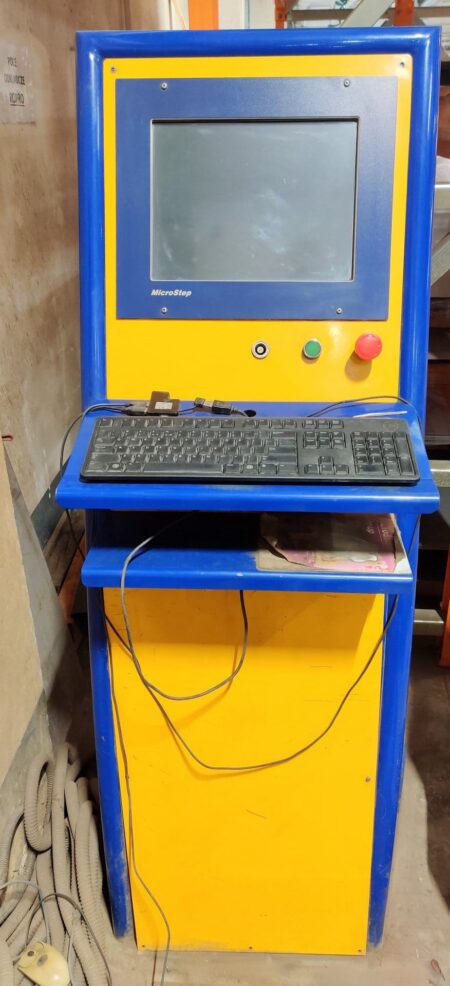

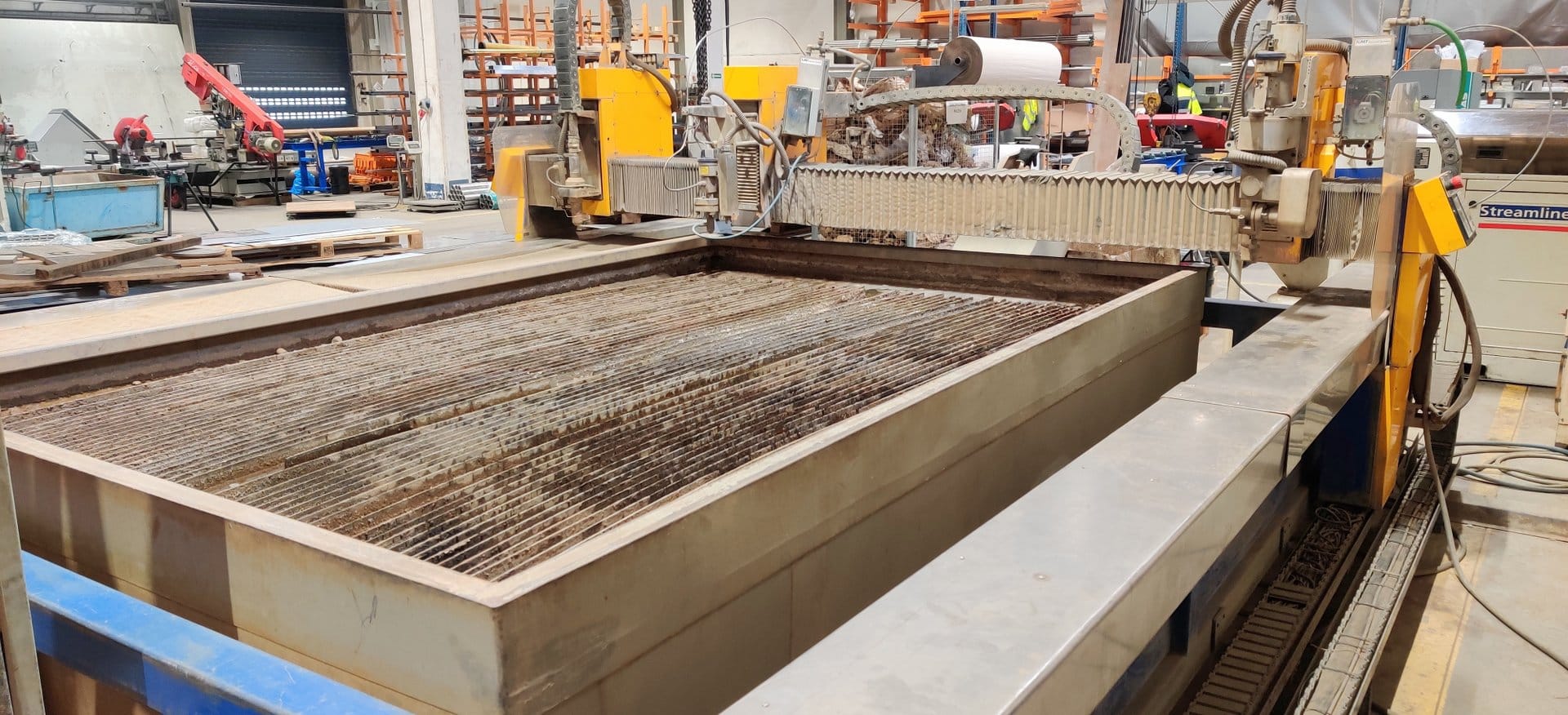

WaterJet MicroStep Aqua Cut 3001.20 was manufactured in 2005. On the portal of the water cutting machine are installed two water cutting heads, one of which is rotary. The cutting takes place on a working table with an area (L x W) of 3300 x 2200 mm, and the operation of the water cutting machine is controlled via a control panel with CNC control MSNC 500. The maximum thickness of the cut sheet metal is 120 mm.

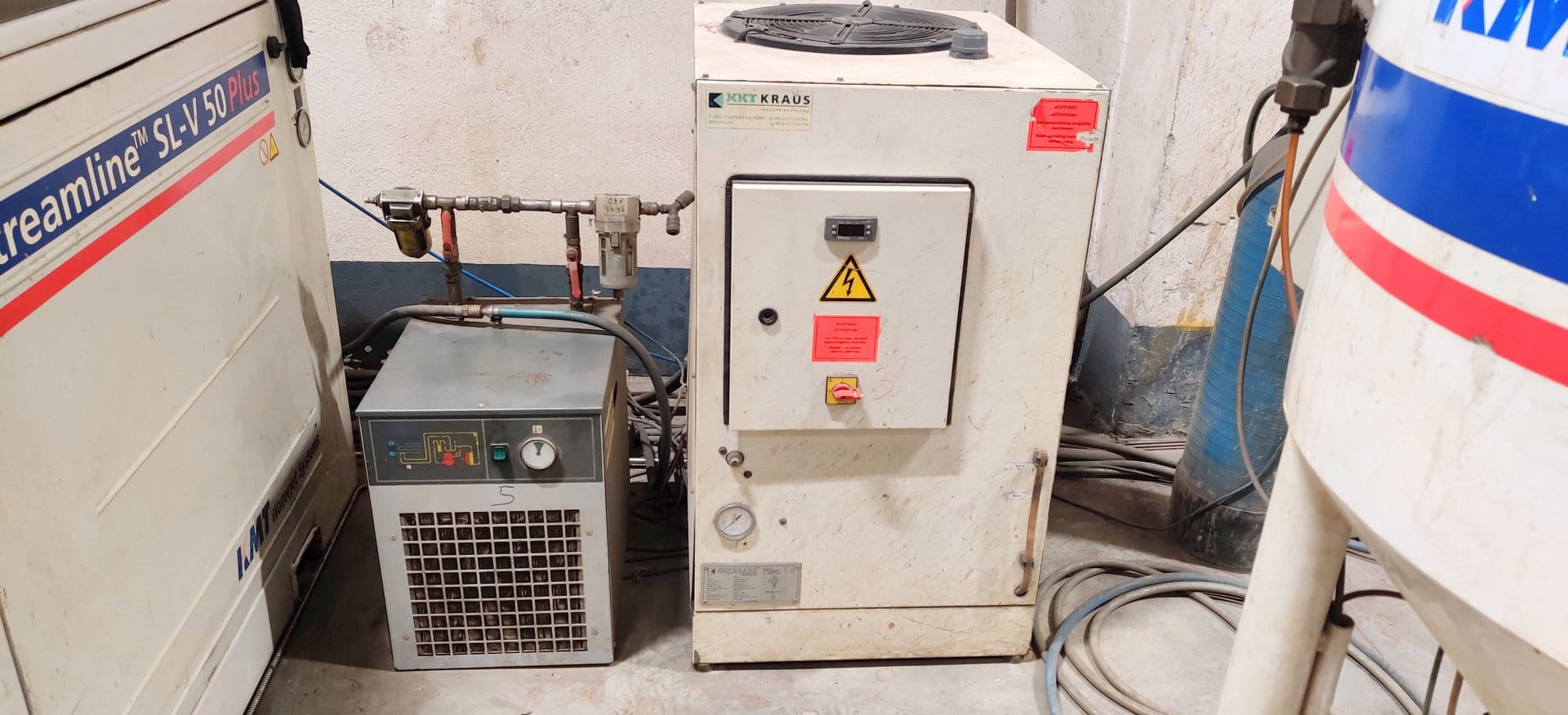

The MICROSTEP Aqua Cut 3001.20 WWr+4001.20P water cutting system is extensively equipped. The equipment includes among others: ATLAS COPCO FX1 dehumidifier, Streamline SL-V 50S Plus oil cooler and KKT KRAUS OLB7 refrigeration unit. After installing an additional table, it is possible to cut with plasma, the machine has an additional head and plasma aggregate.

Technical data of water cutting machine MICROSTEP Aqua Cut 3001.20

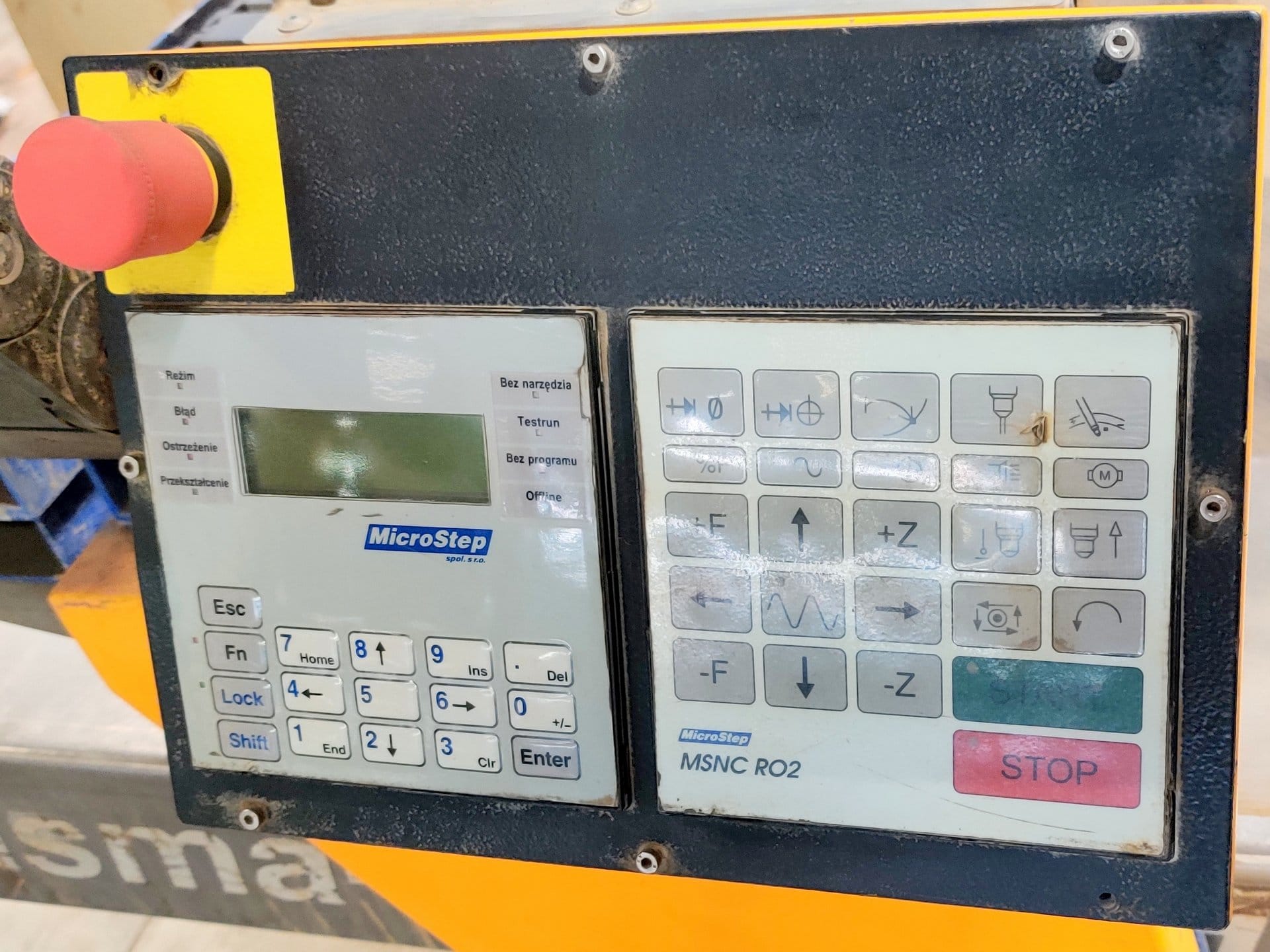

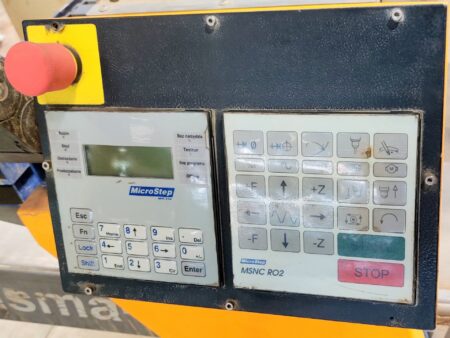

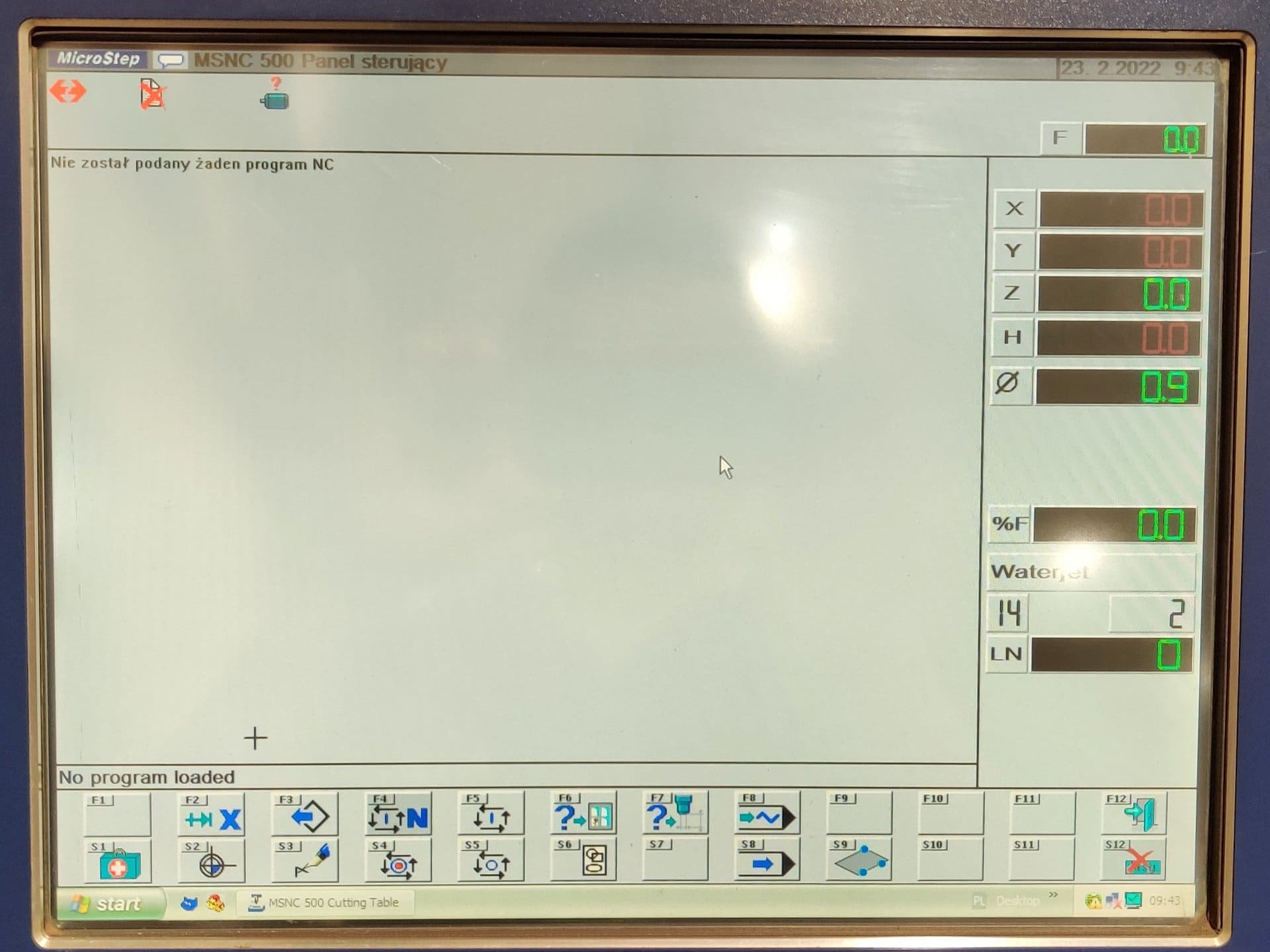

• CNC control: MSNC 500
• working table size (L x W): 3300 x 2200 mm
• maximum cutting thickness: 120 mm
• plasma cutting head (1 pc.)
• water cutting head (1 pc)
• rotating water cutting head (1 pc.)

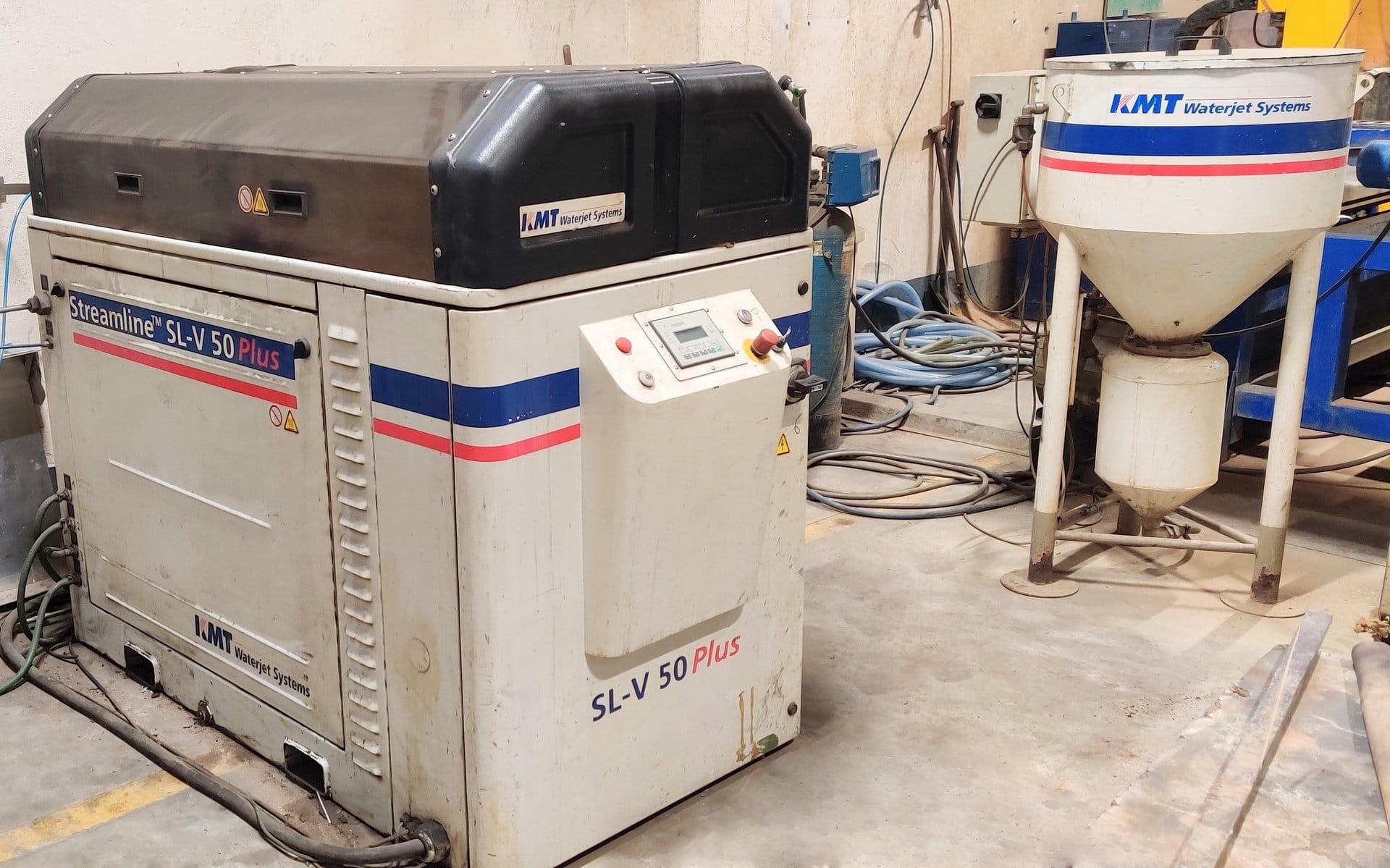

• oil cooler: Streamline SL-V 50S Plus
• refrigeration unit: KKT KRAUS OLB7
• dehumidifier: ATLAS COPCO FX1
• abrasive feeder for cutting heads: KMT Abraline
• plasma aggregate: Hypertherm HPR130

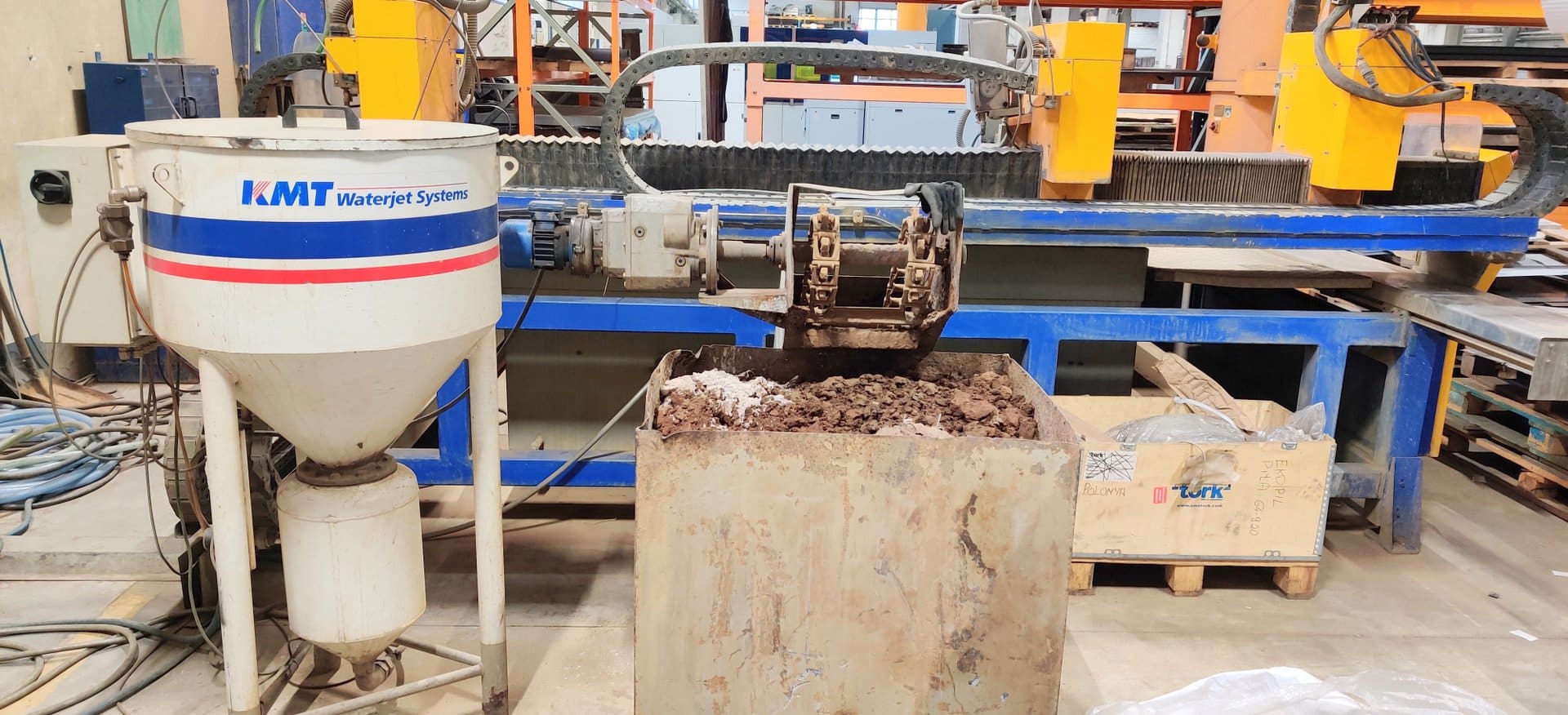

• conveyor with carriers for removal of used abrasive
