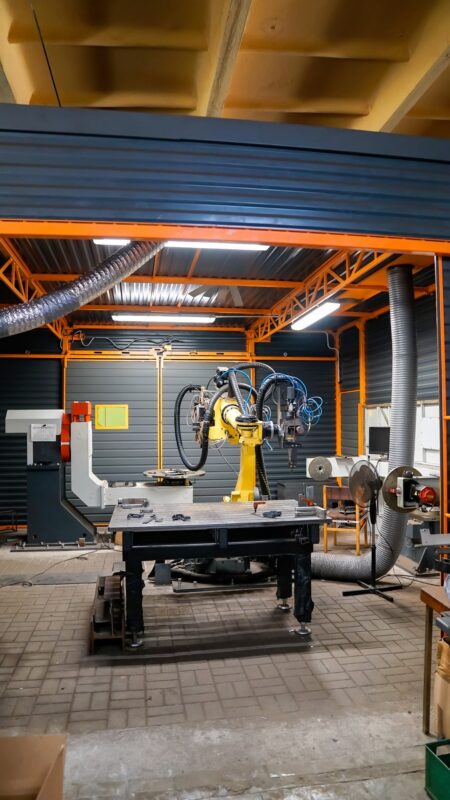

FANUC M-710iC/70 robotic station for laser cutting and welding

FANUC M-710iC/70 robotic station for laser cutting and welding was built in 2017. The offered station is complete and includes the following components:
– FANUC M-710iC industrial robot
– IPG YLS-4000-S2T fibre laser source

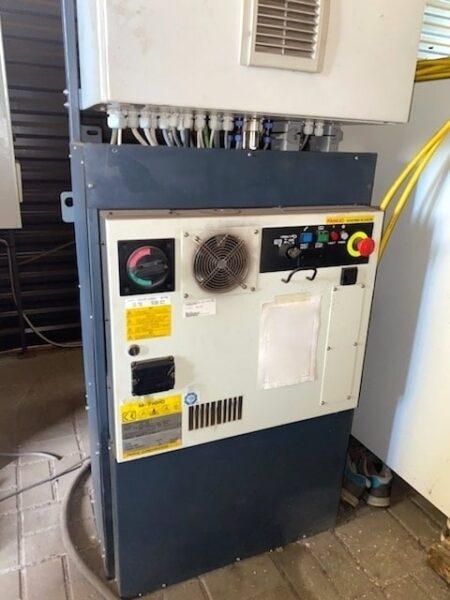

– FANUC SYSTEM R-30iB controller
– 2-position rotary table with horizontal rotation
– 2-axis “L” type positioner
– semi-automatic head changing system

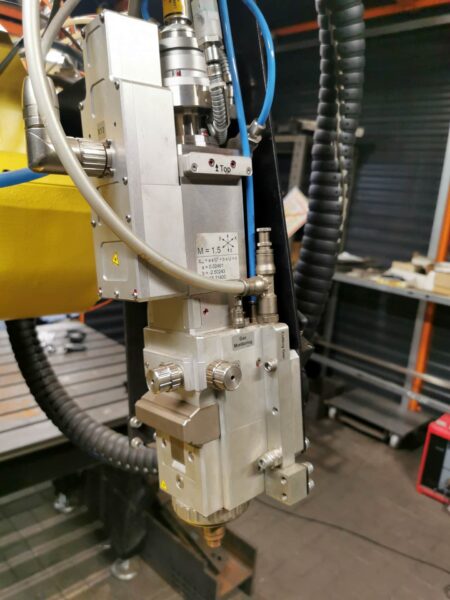

– HIGHYAG BIMO-FSC laser cutting head

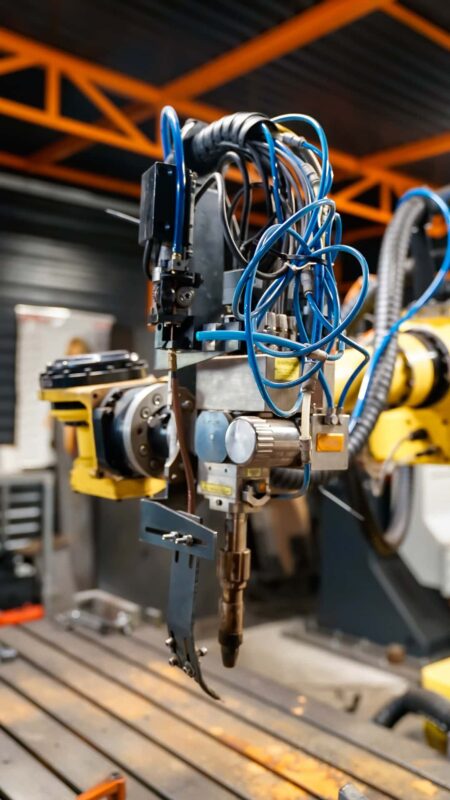

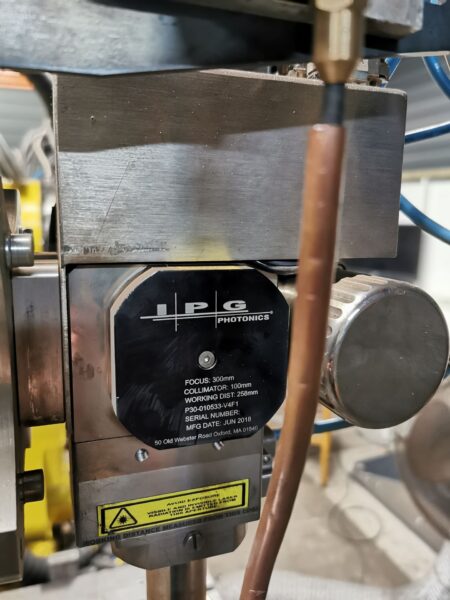

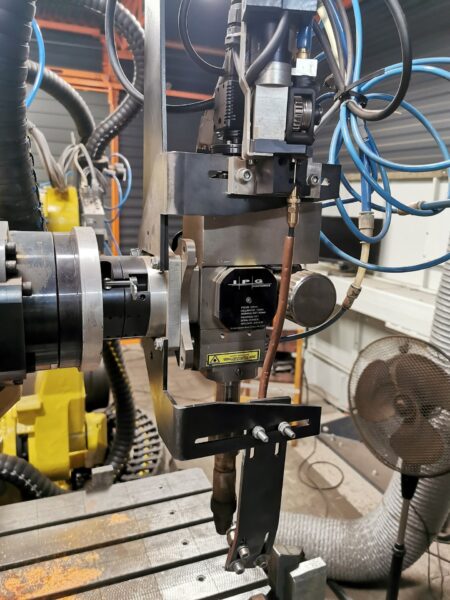

– IPG Photonics FLW-D30 Vertical oscillating laser welding head with HD camera
– KLIMAWENT UFO-4-M/N-1/R filtering system

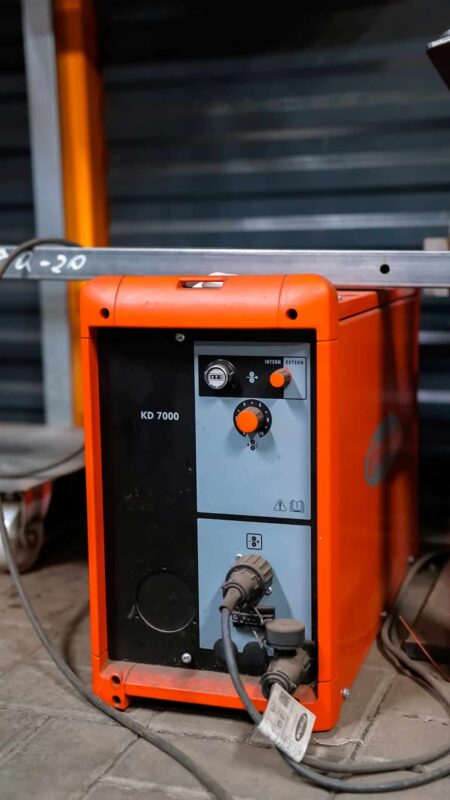

– wire feeder (4 reels and equipment for 0.8 mm and 0.6 mm wire)

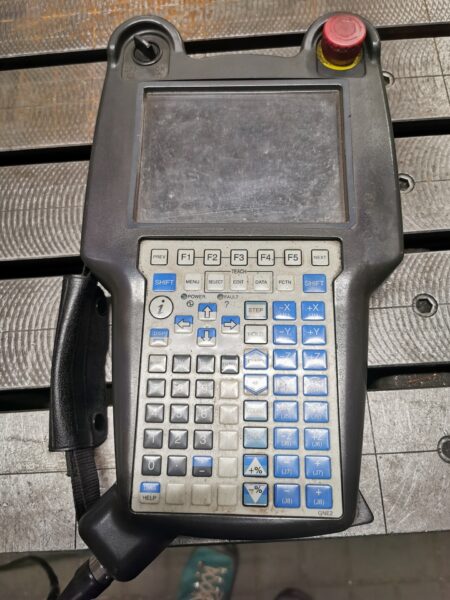

– portable teach pendant FANUC A05B-2255-C101
– control system
– metal construction with cabin

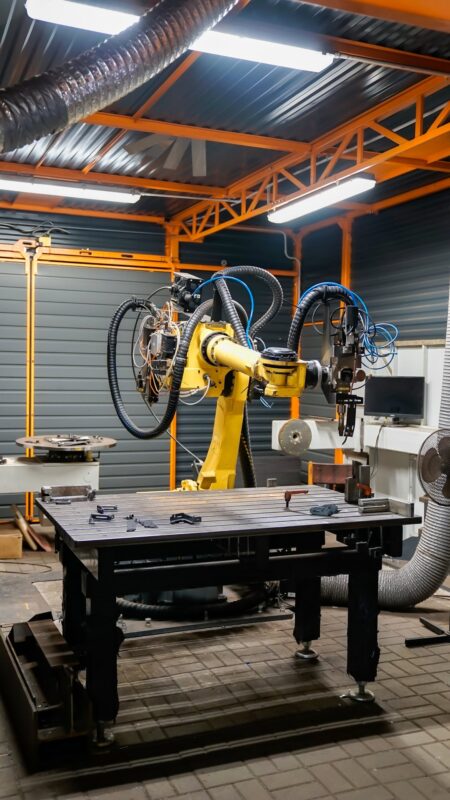

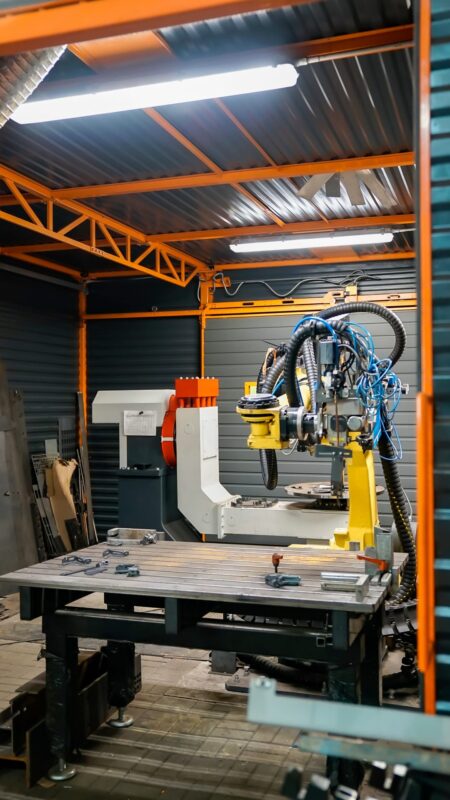

Laser machining of workpieces is performed by a specially designed FANUC M-710iC/70 robot arm, distinguished by the best permissible load and inertia in its category. With its narrow wrist and rigid arm of 2050 mm reach, this FANUC 6-axis robot guarantees efficient work in all positions, even in hard-to-reach places. The machine uses different work heads depending on the type of machining performed, which are changed using a semi-automatic head change system.

Both working heads are powered by an extremely stable 4 kW fibre-optic beam, generated by a reliable laser source with a powerful cooling system. The use of this innovative technology in the machining process makes it possible to achieve extraordinary precision and accuracy while keeping operating costs low. During automated laser welding, dynamic and accurate feeding of the welding wire is also extremely important. For this purpose, the laser welding head is additionally equipped with a wire feeder with all the necessary accessories and an HD camera.

The FANUC M-710iC welding station also features a 2-position rotary table with horizontal rotation, which provides automatic repositioning between the robot and the operator. Each table position is driven and has a universal set of clamping jaws. On top of this, the motor of each rotary table position reducer is an additional axis of the robot, creating a uniform station coordinate system.

To maintain a clean and safe working environment, the air is purified from contaminants by a KLIMAWENT ventilation system. A filter chamber with four cartridge filters made of polyester fabric traps even the smallest dust particles. The air is filtered through several stages, after which the air is returned to the room or exhausted to the outside.

Technical data of the FANUC M-710iC/70 welding robot

• number of axes: 6
• arm reach: 2050 mm
• maximum payload: 70 kg
• axis movement range

– J1 axis: 360°
– J2 axis: 225°
– J3 axis: 440°
– J4 axis: 720°
– J5 axis: 250°
– J6 axis: 720°

• axis motion speed

– J1 axis: 160°/s
– J2 axis: 120°/s
– J3 axis: 120°/s
– J4 axis: 225°/s
– J5 axis: 225°/s
– J6 axis: 225°/s

• absolute path measurement system
• repeatability: ± 0.04 mm
• average power consumption: 2.5 kW
• weight: 560 kg

Technical data of other welding cell components

Fibre laser source IPG YLS-4000-S2T

• laser type: fibre
• laser power: 4 kW (4000 W)
• wavelength: ≥ 100 µm
• current at full load: 29,3 A
• power supply: 3x 400-460 V; 50/60 Hz
• dimensions (L x W x H): 856 x 806 x 1206 mm
• weight: 330 kg

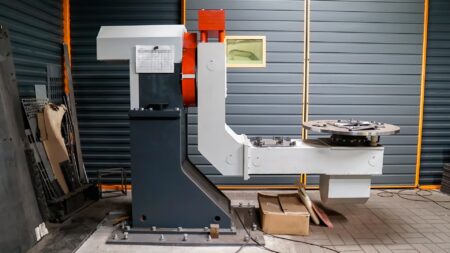

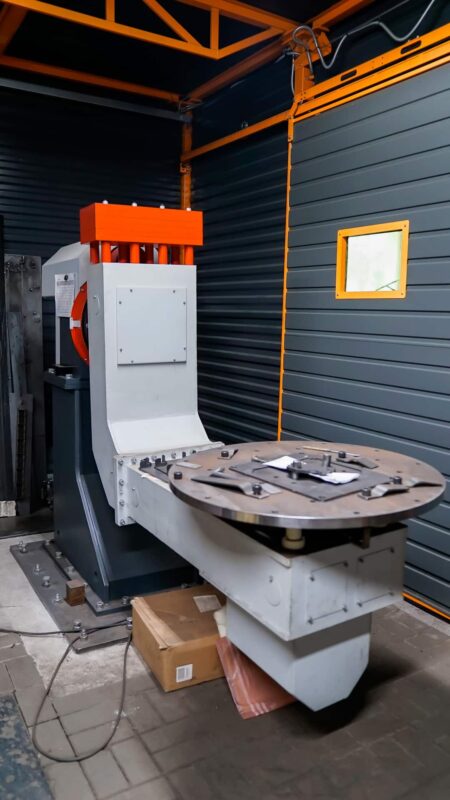

Two-axis “L” type positioner

• disc diameter: 800 mm
• maximum load: 15 kN
• maximum workpiece dimensions: ⌀ 2100 х 1000 mm
• distance between floor and front face of disc: 920 mm
• maximum tilting moment: 5 kNm
• maximum torque (static): 3 kNm
• dimensions (L x W x H): 2170 x 940 x 1430 mm
• weight: 1250 kg

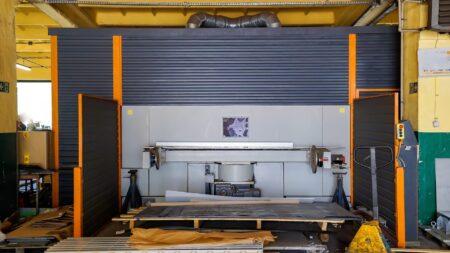

Two-position rotary table

• angle of rotation: ± 180°
• maximum load of each position: 500 kg
• speed of position changes: 0-5 rpm
• faceplate rotation speed: 0-16.5 rpm
• distance between faceplates: 2200 mm
• maximum disc torque: 520 Nm
• maximum torque of indexing axis: 1400 Nm
• distance between floor and pivot axis: 900 mm

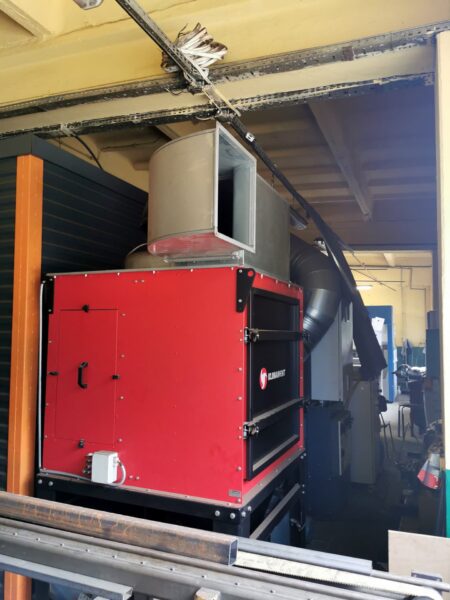

KLIMAWENT UFO-4-M/N-1/R filter unit

• capacity: 6300 m3/h
• motor power: 5.5 kW
• number of cartridge filters: 4 pcs.
• filter diameter: ⌀ 380 mm
• filter height: 660 mm
• compressed air pressure required: 0.6 MPa
• maximum vacuum: 4200 Pa
• compressed air consumption: 2.8 Nm3/h
• dust container capacity: 72 dm3
• inlet connection diameter: ⌀ 500 mm
• discharge nozzle diameter: 400 x 400 mm
• compressed air connection diameter: ⌀ 12 mm
• noise level: 72 dB(A)
• power supply: 3x 400 V; 50 Hz
• weight: 565 kg

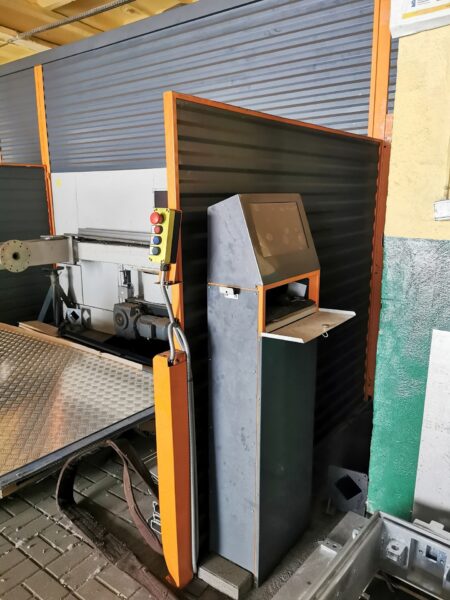

Control system

• light curtains (2 pcs.)
• control panel
• automatic fuses
• main switch
• power supply: 24 V

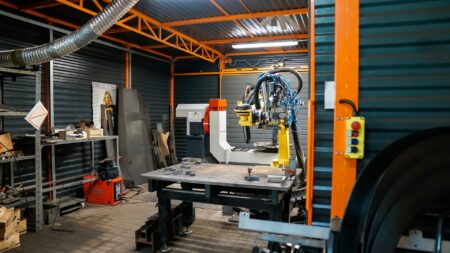

Metal structures with cabin

• closed metal cell with 3 doors
• robot base
• rotary table structure
• L-type positioner structure
• welding table
• support and head storage
• supports for accessories on the robot
